Analyzing the Translatome of Lymphatic and Venous Endothelial Cells In Vivo via Translating Ribosome Affinity Purification (TRAP)

Materials and reagents

Biological materials

1. Stable transgenic zebrafish line: Tg(mrc1a:egfp-2a-rpl10a-3xHA)^y723

Reagents

1. Invitrogen Dynabeads^TM Protein G (ThermoFisher, catalog number: 10004D)

2. Direct-zol^TM RNA MicroPrep (ZymoResearch, catalog number: R2060)

3. 100 μg/mL cycloheximide (Sigma, catalog number: C7698)

4. Protease inhibitor cocktail (Sigma, catalog number: P8340)

5. Pierce^TM Bradford Protein Assay kit (ThermoFisher, catalog number: 23200)

6. 1 mM DTT (Sigma, catalog number: 646563)

7. 200 units/mL RNAsin (Promega, catalog number: N2115)

8. 1 mg/mL heparin (Sigma, catalog number: H3393-10KU)

9. 10% NP-40 (Roche, catalog number: 11-332-473-001)

10. Anti-HA antibody (Abcam, catalog number: ab9110)

11. TRIzol (Ambion Life Technologies, catalog number: 15596026)

12. Glycogen RNA-grade (ThermoFisher, catalog number: R0551)

13. High-Capacity cDNA Reverse Transcription kit (Applied Biosystem, catalog number: 4374966)

14. TaqMan Fast Advanced Master Mix (Applied Biosystem, catalog number: 4444557)

15. Phosphate-buffered saline (PBS), pH 7.4 (Fisher, catalog number: BP2438)

16. Pronase from Streptomyces griseus (20 mg/mL) (Sigma, catalog number: 10165921001)

17. Ethyl alcohol 200 proof (Sigma, catalog number: E7023-1L)

18. Chloroform HPLC-grade (Fisher, catalog number: C606SK-1)

19. Sodium chloride (NaCl) (Sigma-Aldrich, catalog number: S3014-1KG)

20. Potassium chloride (KCl) (Fisher Chemical, catalog number: P217-500)

21. Sodium bicarbonate (NaHCO₃) (Fisher Chemical, catalog number: S233-500)

22. Calcium chloride (CaCl₂) (MP Biomedicals, catalog number: 193819)

23. Magnesium chloride (MgCl₂) (Invitrogen, catalog number: AM9530G)

24. Calcium nitrate hydrate [Ca(NO₃)₂·xH₂O] (Alfa Aesar, catalog number: 44515-14)

25. Magnesium sulfate heptahydrate (MgSO₄·7H₂O) (Sigma-Aldrich, catalog number: 230391-25G)

26. Tris pH 8.5 (Teknova, catalog number: 21327)

27. Tris-HCl pH 7.4 (Teknova, catalog number: T1074)

28. Molecular grade water (H₂O) (Corning, catalog number: 46-000-CM)

29. HEPES (Fisher Bioreagents, catalog number: BP310-500)

Solutions

1. Deyolking buffer (see Recipes)

2. Deyolking wash buffer (see Recipes)

3. Homogenization buffer (HB) (see Recipes)

4. Homogenization buffer+ (HB+) (see Recipes)

5. High salt buffer (HSB) (see Recipes)

6. High salt buffer+ (HSB+) (see Recipes)

7. Hypertonic salt solution (3× Danieau buffer) obtained from 10× Danieau buffer stock (see Recipes)

8. High-capacity RT mix for cDNA synthesis (see Recipes)

9. TaqMan Real-Time PCR (see Recipes)

Recipes

1. Deyolking buffer

Store at 4 °C.

2. Deyolking wash buffer

Store at 4 °C.

3. Homogenization buffer (HB)

Store at 4 °C.

4. Homogenization buffer+ (HB+)

Freshly prepared on ice.

5. High salt buffer (HSB)

Store at 4 °C.

6. High salt buffer+ (HSB+)

Freshly prepared on ice.

7. Hypertonic salt solution (3× Danieau buffer) obtained from 10× Danieau buffer stock

Store at 4 °C.

8. High-capacity RT mix for cDNA synthesis

Volumes per reaction. Store at -20 °C.

9. TaqMan real-time PCR

Volumes per reaction. Store at -20 °C.

Laboratory supplies

1. 1.5 mL microcentrifuge tubes (ABDOS, catalog number: P10202)

2. RNase-free elution tubes (Invitrogen, catalog number: AM12480)

3. VWR disposable pestles (VWR, catalog number: 47747-358)

4. SureOne sterile pipette tips (FisherBrand, catalog number: 02-707-442)

Equipment

1. Magnetic Eppendorf stand (ThermoFisher, catalog number: 12321D)

2. Sorvall^TM Legend^TM Micro 21R Microcentrifuge 4 °C microfuge (ThermoFisher, catalog number: 75002445)

3. 4 °C Gentle Eppendorf tube rotator (Fisher, catalog number: 11-676-342)

4. Zymo-DR Duet kit (ZymoResearch, catalog number: R2060)

5. Labnet centrifuge (Thomas Scientific, catalog number: 1160W29)

6. Vortex (Fisher, catalog number: 88-882-011)

7. Zeiss Stemi 305 microscope (Zeiss, catalog number: 435063-9020-100)

8. Biovortexer (BioSpec, model: 1083MC)

9. NanoDrop (Thermo Scientific, catalog number: 13400518)

10. Confocal laser scanning microscope (Zeiss, model: LSM880)

11. Quantitative PCR machine (Applied Biosystems, model: Quant Studio 7 Flex)

Software and datasets

1. GraphPad Prism Software, version 9.2.0

Procedure

Day 1

A. Experimental animal setup

1. Set up breeding tanks with an equal number of male and female Tg(mrc1a:egfp-2a-rpl10a-3xHA)^y723 zebrafish. To synchronize embryo collection at a defined developmental stage, place a divider in the tank to separate males and females overnight. Although both homozygous and heterozygous transgenic embryos can be used, homozygous transgenic animals allow for better yield.

Day 2

B. Collect embryos/larvae

1. In the morning, collect fertilized eggs and maintain them at 28.5 °C under standard zebrafish husbandry conditions, in accordance with institutional animal care guidelines.

2. Collect embryos at the desired developmental stage. The mrc1a promoter drives vascular transgene expression prior to 24 h post-fertilization (hpf) and continues to adulthood [6].

Note: This protocol was optimized using embryos at 3 days post-fertilization (dpf).

C. Dechorionate embryos

1. Add pronase (20 mg/mL stock solution) to 0.3× Danieau solution at a final concentration of 2 mg/mL.

2. Incubate embryos at 28.5 °C until the chorions are digested and begin to disintegrate.

3. Wash three times with 0.3× Danieau solution and collect the dechorionated embryos.

D. Induce edema

1. Subject dechorionated 3 dpf embryos to hypertonic conditions by incubating them in 3× Danieau solution for 24 h at 28.5 °C (Figure 1A).

2. Maintain control embryos in 0.3× Danieau solution under the same conditions.

3. After 24 h, transfer the treated embryos to 0.3× Danieau solution and incubate for an additional 24 h. Induced edema is visible with a brightfield microscope at 4 dpf (Figure 1B).

4. Collect both edematous and control larvae at desired developmental stages and proceed with TRAP protocol. This protocol used 5 dpf larvae. Samples are processed simultaneously to minimize batch effects.

Figure 1. Schematic of edema induction. (A) Timeline of the edema induction protocol. Larvae were treated with 3× Danieau solution from 2 to 3 dpf. Edemagenesis was induced by replacing the medium with 0.3× Danieau solution at 3 dpf to impose osmotic stress. (B) Brightfield image of a control (untreated) larva and edema-induced larva at 4 dpf. Scale bar, 500 µm. More detailed information on the edema induction protocol is available in Olayinka et al. [3].

E. Buffer preparation

1. Chill all buffers on ice or at 4 °C prior to use.

2. Thaw all necessary inhibitors for HB+ buffer preparation.

Note: Cycloheximide may require warming to 30 °C to thaw completely.

3. Prepare HB+ buffer by adding inhibitors to the homogenization buffer (HB) immediately before use. Keep the HB+ buffer on ice.

F. Deyolk embryos

1. Transfer 200–500 embryos from each embryo group (edematous and control) into separate 1.5 mL microcentrifuge tubes and remove all remaining 0.3× Danieau solution.

2. Add 1 mL of deyolking buffer supplemented with 10 μL of protease inhibitor cocktail.

3. Gently disrupt the yolk by pipetting up and down using a 200 μL pipette tip. Confirm yolk separation under a stereomicroscope.

4. Centrifuge at 300× g for 30 s at 4 °C and discard the supernatant.

5. Wash the embryos three times with 1 mL of cold deyolking wash buffer, centrifuging at 300× g for 30 s at 4 °C each time. Repeat until the supernatant is clear.

6. Perform a final wash with cold PBS. Centrifuge at 300× g for 30 s, then discard the supernatant.

G. Embryo homogenization

1. Add 2 μL of HB+ buffer per embryo to the deyolked pellet for each group (edematous and control).

2. Homogenize thoroughly using a Biovortexer with pestles. Avoid introducing bubbles during homogenization.

3. Incubate the homogenate on ice for 10 min to ensure complete cell lysis.

4. Centrifuge at 3,000× g for 10 min at 4 °C. Transfer the supernatant to a new tube and discard the pellet.

5. Repeat the centrifugation of the supernatant phase at 10,000× g for 10 min at 4 °C to remove cellular debris.

6. Collect the final supernatant in a new 1.5 mL tube and keep it on ice before proceeding to immunoprecipitation.

H. Protein quantification

1. Quantify the total protein concentration from each embryo lysate (edematous and control) using the Bradford protein assay, following the manufacturer’s instructions.

Note: Use BSA as a standard and perform measurements in triplicate to ensure accuracy.

I. Set up indirect immunoprecipitation (IP)

1. Add 1 μL of anti-HA antibody per 400 μg of protein into the lysate supernatant collected from section G.

2. Incubate the mixture on a tube rotator at 4 °C for 4 h to allow antibody-ribosome complex formation.

J. Prepare Dynabeads Protein G

1. Vigorously shake the Dynabeads Protein G tube to resuspend the beads evenly in the storage buffer.

2. Dispense 57 μL of Dynabeads per 400 μg of protein to a 1.5 mL tube.

3. Place the tube on a magnetic stand and allow the beads to collect on the tube wall; carefully remove and discard the storage buffer (Figure 2).

4. Take out the tube from the magnetic stand and add 800 μL of HB+ buffer to the beads.

5. Use a tube rotator to equilibrate beads to HB+ buffer by rotating at 4 °C for 1 h.

K. Affinity purification

1. Remove the HB+ buffer from the equilibrated Dynabeads using a magnetic stand (Figure 2).

2. Add 800 μL of the HA-antibody and lysate mixture to the beads.

3. Incubate the mixture overnight (~16 h) at 4 °C on a tube rotator to allow affinity binding.

Figure 2. Image illustrating Dynabead-bound endothelial ribosome lysates and unbound protein lysates on a magnetic Eppendorf stand

Day 3

L. Wash beads

1. Remove and save the supernatant (unbound protein lysate) from each sample on ice (Figure 2).

2. Wash the beads three times with 800 μL of HSB+.

a. Rotate at 4 °C for 5 min.

b. Use a magnetic stand to collect the beads for 3 min and carefully remove the wash buffer (Figure 2).

3. After the second wash, transfer the beads to a fresh tube to reduce background before the final wash.

M. RNA isolation from the bead–antibody complex

1. Add 500 μL of TRIzol reagent directly to the antibody-bound beads.

2. Incubate on ice for 5 min to ensure thorough lysis.

3. Add 100 μL of chloroform and then vortex vigorously for 30 s.

4. Incubate the mixture at room temperature for 3 min.

5. Centrifuge at 12,000× g for 15 min at 4 °C. The mixture separates into a lower phenol-chloroform phase, an interphase, and a colorless upper aqueous phase.

6. Carefully transfer the upper aqueous phase to a fresh RNase-free tube.

7. Add 1.5× volume of 100% ethanol and 1 μL of glycogen as a carrier.

8. Purify RNA using the Direct-zol^TM RNA MicroPrep kit according to the manufacturer’s instructions.

9. Quantify RNA concentration by nanodrop.

10. Store RNA at -80 °C or continue immediately.

Note: This protocol used 200–500 larvae at 5 dpf, collecting an RNA yield ranging from 400 to 600 ng. Samples should be pooled for RNA isolation to achieve sufficient yield for certain downstream applications (e.g., RNA-seq).

Data analysis

qPCR amplification curves and threshold cycle data were exported in .xlsx format for processing in Microsoft Excel. For each vascular gene, the ΔCT value was calculated by subtracting the cycle threshold (CT) of the reference gene (eef1a1) from the corresponding CT of the target (Ct_target–Ct_eef1a1). The ΔΔCT values were then obtained by subtracting the mean ΔCT of the supernatant control sample from each ΔCT value in both supernatant (sup) and purified endothelial (Endo) RNA. Fold changes in gene expression were calculated using the 2^-ΔΔCT method. Replicate fold changes were averaged for each vascular gene and compared between endothelial and supernatant samples (Figure 3). The results show that the TRAP protocol, using the RiboTag strategy, efficiently enriches for specific endothelial gene markers such as lyve1b, flt4, and cdh5, while not enriching for ubiquitous genes like n4bp1 (Figure 3A). This technique enables targeted analysis of gene expression for selected cell types within complex tissue samples and can be applied in a range of clinical and research contexts to profile cell type–specific gene expression (Figure 3B).

Figure 3. Analyzing endothelial translatome using the translating ribosome affinity purification (TRAP) assay. (A) Real-time qPCR showing specific enrichment of endothelial genes lyve1b, flt4, cdh5, and kdrl in the purified endothelial RNA, compared to non-endothelial RNA from the supernatant. n4bp1, a ubiquitous gene, served as a negative control. Fold change values were imported into GraphPad Prism version 9.2.0 for visualization and statistical analysis. Data were plotted as mean ± SD. An unpaired two-tailed Student’s t-test was used to compare the groups. Significance was defined as p-value < 0.05. (B) Diverse clinical and biomedical research themes where the TRAP protocol can be employed.

Validation of protocol

Purified endothelial and supernatant RNA samples were normalized to equal concentrations and reverse transcribed using the High-Capacity cDNA Reverse Transcription Kit following the manufacturer’s instructions. Each reaction contained an equal volume (10 µL) of master mix (Recipe 6) and normalized RNA in a PCR tube and was incubated in a thermal cycler under the following conditions: 25 °C for 10 min, 37 °C for 120 min, 85 °C for 5 min, and then held at 4 °C. The resulting cDNA was stored at -20 °C or used immediately for qPCR.

cDNA samples were diluted 1:5 with nuclease-free water and kept on ice. Real-time multiplex PCR reactions were performed using the TaqMan Fast Advanced Master Mix (Recipe 9), with reaction volumes adjusted according to the number of target genes and the number of technical replicates. Gene-specific FAM-labeled TaqMan probes were used for vascular targets, while a VIC-labeled probe targeting the reference gene eef1a1α served as the internal control. Multiplex reactions were prepared in a 96-well fast optical plate, sealed, and briefly centrifuged to ensure homogeneity. Plates were loaded into the Quant Studio 7 Flex Real-Time PCR System and amplified under the following conditions: hold at 95 °C for 2 min, followed by 40 cycles of denaturation at 95 °C for 15 s and annealing/extension at 60 °C for 30 s.

This protocol (or parts of it) has been used and validated in the following research article:

1. Olayinka et al. [3]. Compensatory lymphangiogenesis is required for edema resolution in zebrafish. Scientific Reports.

General notes and troubleshooting

General notes

1. Screen all embryos for transgenic expression prior to TRAP to ensure sample consistency. Both homozygous and heterozygous embryos can be used; however, a larger sample pool is recommended when embryos are heterozygous.

2. Perform all steps following edema induction on ice to preserve RNA integrity and protein complexes.

3. Prepare all supplemented buffers fresh on the day of the experiment to maintain reagent activity.

4. Handle samples gently throughout the protocol to minimize material loss and maximize yield.

Troubleshooting

Acknowledgments

The specific contributions of each author are as follows: Conceptualization, H.M.J.; Investigation, O.O. and L.Z.; Writing—original draft, O.O. and L.Z.; Writing—review and editing, H.M.J. This work was supported by the American Heart Association (Grant #24PRE1199881 to O.O.) and the UIC College of Medicine start-up fund to H.M.J. This protocol was initially described in Miller et al. (2019) and was subsequently modified and optimized in Olayinka et al. (2025).

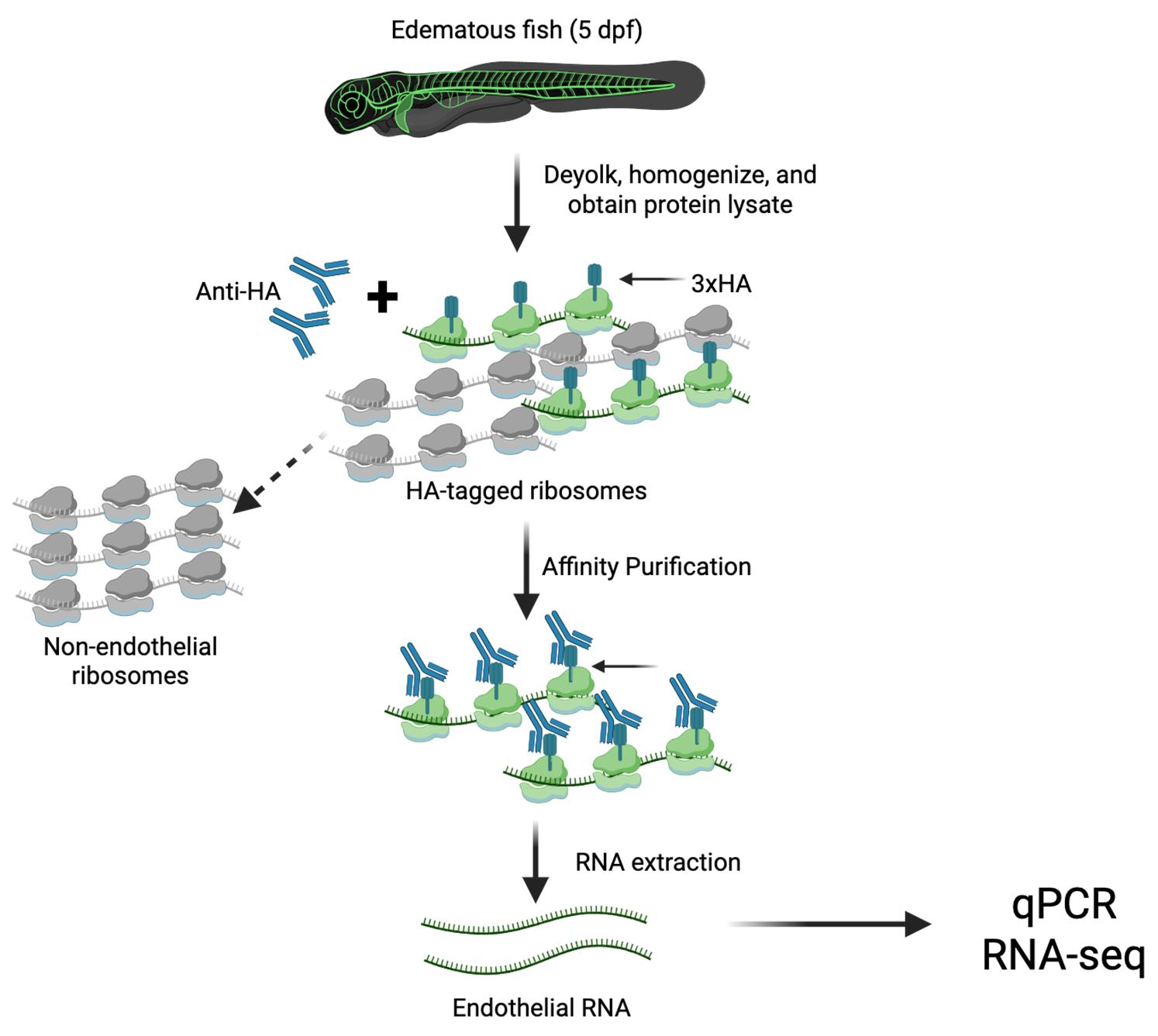

The following figures were created using BioRender: Graphical overview, https://BioRender.com/vs4grkh; Figure 3B, https://BioRender.com/44gaqew.
