Phylogenomics of Plant NLR Immune Receptors to Identify Functionally Conserved Sequence Motifs

Equipment

1. 64-bit Linux operating system; alternatively, Mac OS X operating system

Software and datasets

1. Protein or nucleotide sequences from reference genome databases

2. InterProScan 5.53-87.0 [10]

3. NLRtracker v1.0.3 [2]

4. NLR-Annotator v2.1 [11]

5. MAFFT v7 [12]

6. RAxML v8.2.12 [13]

7. iTOL (Interactive Tree Of Life) [14]

8. BLAST+ v2.12.0 [15]

9. MCL v14-137 [16]

10. MEME Suite v5.5.5 [17]; same analysis can be performed through MEME website (https://meme-suite.org/meme/tools/meme)

11. HMMER v3.4 [18]

12. Test data are included as supplemental datasets in this manuscript and have been deposited in GitHub: https://github.com/slt666666/MADA_motif_protocol. Supplemental Python scripts can be used through Google Collaboratory: https://colab.research.google.com/github/slt666666/MADA_motif_protocol/blob/master/Supplemental_scripts.ipynb (Access date, 22/01/24). The instructions for using Supplemental Scripts are provided in Supplemental video file (Video S1).

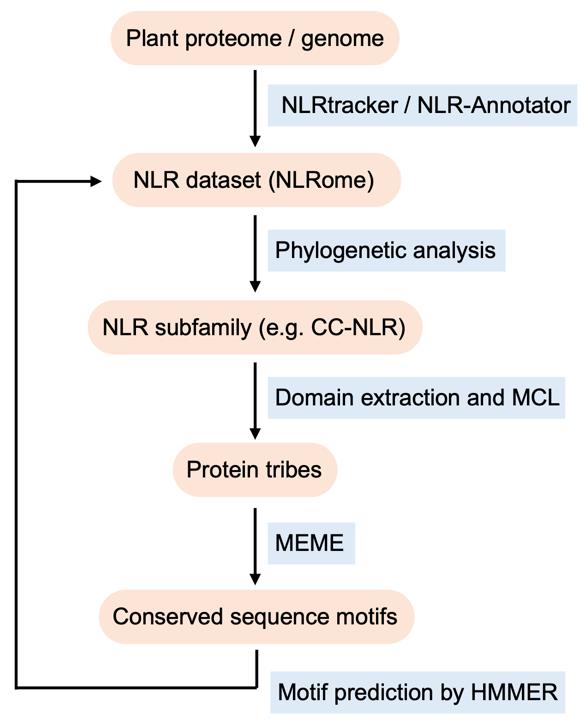

Procedure

1. Software installation

   1. InterProScan 5.53-87.0

      InterProScan is a software that characterizes protein function. This program can be downloaded and installed by following the instructions provided at https://www.ebi.ac.uk/interpro/download/. It is compatible with 64-bit Linux operating systems. In this protocol, the InterProScan is utilized in the NLRtracker pipeline.

   2. NLRtracker v1.0.3

      NLRtracker is an NLR annotation tool that utilizes a protein sequence file as the input dataset. This program can be downloaded and installed by following the instructions provided at https://github.com/slt666666/NLRtracker. NLRtracker is more sensitive and accurate than other available tools for extracting NLRs from a given plant proteome [2]. Alternatively, NLR-Annotator v2.1 can be downloaded and installed by following the instructions available at https://github.com/steuernb/NLR-Annotator. NLR-Annotator is an NLR annotation tool designed to work with nucleotide sequence files as input datasets. This program is suitable for users who do not have access to a Linux system.

   3. MAFFT v7

      MAFFT is a program for multiple sequence alignment. This program can be downloaded and installed by following the instructions provided at https://mafft.cbrc.jp/alignment/software/.

   4. RAxML v8.2.12

      RAxML is a program for maximum likelihood-based inference of large phylogenetic trees. To download and install this program, please refer to PART and in the manual available at https://cme.h-its.org/exelixis/resource/download/NewManual.pdf. Alternatively, RAxML-NG v1.2.1 can be downloaded and installed on Unix/Linux and macOS systems by following the instructions provided at https://github.com/amkozlov/raxml-ng?tab=readme-ov-file.

   5. BLAST+ v2.12.0

      BLAST+ is a command-line tool to run BLAST in your own local environment. This program can be downloaded and installed by following the instructions provided at https://www.ncbi.nlm.nih.gov/books/NBK569861/.

   6. MCL v14-137

      MCL software is a program for clustering weighted or simple networks. To install blast packages in the MCL software, “--enable-blast” option is required. The installation commands are as follows:




      wget http://www.micans.org/mcl/src/mcl-14-137.tar.gz

      tar -zxvf mcl-14-137.tar.gz

      cd mcl-14-137

      ./configure --enable-blast

      Make

      make install




   7. MEME Suite v5.5.5

      MEME Suite is a motif-based sequence analysis tool. This tool can be downloaded and installed by following the instructions provided at https://meme-suite.org/meme/doc/install.html. Alternatively, the same analysis can be performed through the MEME website at https://meme-suite.org/meme/tools/meme.

   8. HMMER v3.4

      HMMER is utilized for searching sequence homologs from sequence databases and for making sequence alignments. This program can be installed by following the instructions provided at https://github.com/EddyRivasLab/hmmer.




2. Annotate NLR gene family from proteome datasets

   1. Download protein sequence files from reference genome databases.

      As a test dataset, we used proteomes from six representative plant species: Arabidopsis thaliana, Beta vulgaris (sugar beet), Solanum lycopersicum (tomato), Nicotiana benthamiana, Oryza sativa (rice), and Hordeum vulgare (barley). The protein sequences were downloaded from the reference genome databases of Arabidopsis (https://www.araport.org/, Araport11), sugar beet (http://bvseq.molgen.mpg.de/index.shtml, RefBeet-1.2), tomato (https://solgenomics.net/, tomato ITAG release 2.4), N. benthamiana (https://solgenomics.net/, N. benthamiana genome v0.4.4), rice (http://rice.plantbiology.msu.edu/, rice gene models in Release 7) and barley (https://www.barleygenome.org.uk/, IBSC_v2) as used in Adachi et al. [9]. The protein sequences were compiled into a single fasta file named “NLRtracker_input_protein.fasta” (Dataset S1).

   2. Annotate NLRs from protein sequences.

      NLRs were annotated from the input protein sequence file “NLRtracker_input_protein.fasta” by running NLRtracker using the following command:




      ./NLRtracker -s NLRtracker_input_protein.fasta -o NLRtracker_output




      The output NLR protein sequences were saved as “NLR.fasta” in the “NLRtracker_output” folder. In total, we identified 1,862 NLRs from six representative plant species.

      Note: In a previous study, we used a tool, NLR-Annotator, to annotate NLR genes [11]. However, since NLR-Annotator may not detect a few functionally validated NLRs (e.g., ADR1), we employed NLRtracker [2] in this protocol. Therefore, test datasets in the following analyses slightly differ from the data reported in Adachi et al. [9].




   3. Extract specific NLR subfamily sequences based on phylogenetic analysis.

      In a previous study [9], we characterized a conserved sequence pattern (MADA motif) crucial for CC-NLRs to trigger immune responses. To identify conserved sequence patterns in each NLR subfamily, we initially classified NLRs through phylogenetic analysis. Here, the NLR sequences obtained in step B2 were combined with 31 functionally characterized CC-NLRs and saved as “NLR_set.fasta” (Dataset S2). Protein sequences in the input file “NLR_set.fasta” were aligned using MAFFT:




      mafft NLR_set.fasta > NLR_set_alignment_output.fasta




      For the phylogenetic analysis of the NLR family, NB-ARC domain sequences were extracted from the output alignment file “NLR_set_alignment_output.fasta” based on the NB-ARC domain sequence of Arabidopsis ZAR1 (Dataset S3). Extraction of NB-ARC domain sequences can be performed manually using alignment software or using our script (Supplemental script 1). In this script, protein sequences lacking the intact p-loop motif (G/AxxxxGKT/S) required for NLR protein function are automatically discarded from the dataset. Sequence gaps in the aligned NB-ARC domain sequences are also automatically deleted in this script. The sequences were saved as “NLR_set_alignment_NBARC_RemGap.fasta” (Dataset S4), which can be used as the input file for further phylogenetic analysis.




      Note: We use conserved NB-ARC domain sequences for phylogenetic analyses of the NLR gene family because other domains, such as N-terminal domains and C-terminal LRR domain, are often too diversified and not suitable for inferring phylogenetic relations in NLRs.




      The maximum likelihood phylogenetic tree was inferred by RAxML using the following command:




      raxmlHPC-PTHREADS-AVX2 -s NLR_set_alignment_NBARC_RemGap.fasta -n NLR_MLtree -m PROTGAMMAAUTO -f a -# 100 -x 1024 -p 121




      Note: The ‘-f’ and ‘-#’ options were set for 100 iterations of bootstrap. The ‘-x’ and ‘-p’ options were random seeds.




      NLRs that belong to the CC-NLR phylogenetic subclade were classified with functionally characterized CC-NLRs on the NLR phylogenetic tree output file “RAxML_bipartitions.NLR_MLtree” (Figure 2; Dataset S5). We extracted 1,305 protein IDs (Dataset S6) of the CC-NLR clade in the NLR phylogenetic tree using iTOL [14]. For further sequence analysis, we extracted protein sequences of CC-NLRs from the input file “NLR_set.fasta” (Dataset S2) and “CCNLR_IDs.txt” (Dataset S6) using Supplemental script 2 and saved them as the output file “CCNLR_set.fasta” (Dataset S7).

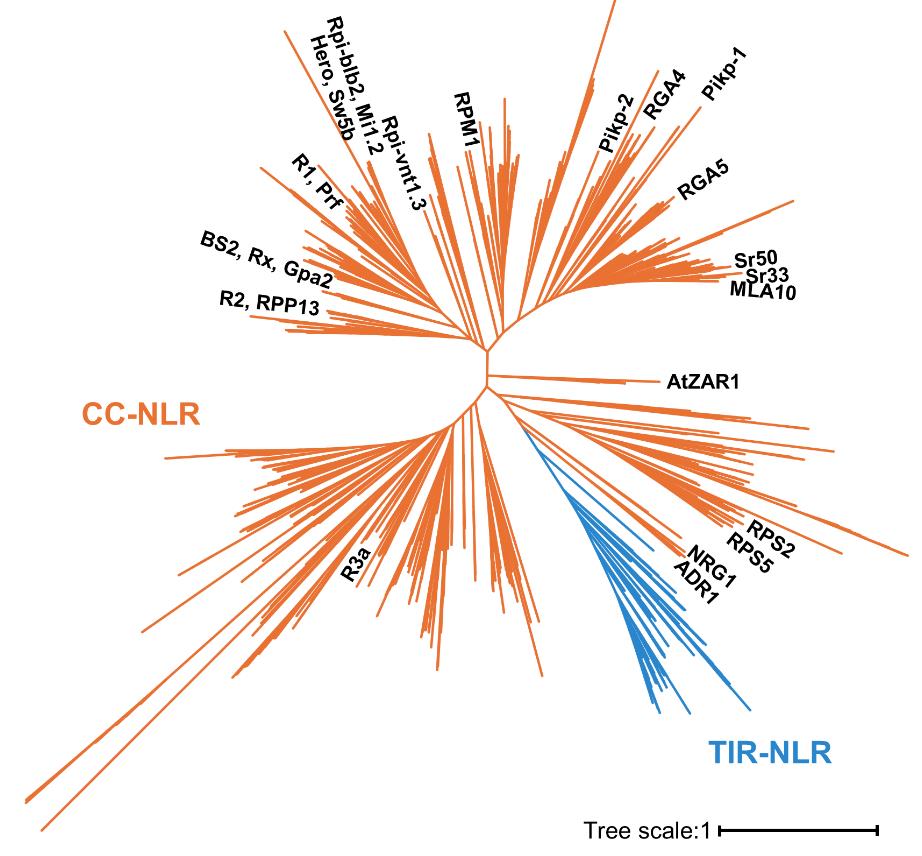

      Figure 2. Maximum likelihood phylogenetic tree for the classification of nucleotide-binding leucine-rich repeat receptors (NLR) subfamilies. Functionally characterized CC-NLRs are labeled in the phylogenetic tree using iTOL (Interactive Tree Of Life) [14]. The orange branches represent coiled-coil (CC)-NLRs used for further sequence analyses.




3. Classify N-terminal domain sequences of CC-NLRs using Markov cluster (MCL) algorithm

   1. Extract N-terminal sequences from CC-NLRs.

      Sequences prior to the NB-ARC domain were defined as N-terminal domain sequences. To extract N-terminal domain sequences, protein sequences in the input file “CCNLR_set.fasta” were aligned using MAFFT as described in section B3. N-terminal domain sequences of CC-NLRs were extracted from the alignment result, based on the start position of the NB-ARC domain of Arabidopsis ZAR1 (Dataset S3). Extraction of the N-terminal domain sequences can be done manually using alignment software or using our script (Supplemental script 3). The extracted N-terminal domain sequences were saved as the output file “CCNLR_Ndomain_set.fasta” (Dataset S8).

   2. Cluster N-terminal domain sequences into protein families.

      N-terminal domain sequences of CC-NLRs were clustered into protein families based on sequence similarity using the MCL algorithm. The method is based on a graph that contains similarity information obtained from BLAST searches. The similarity information was obtained using the following commands with the input file “CCNLR_Ndomain_set.fasta” (Dataset S8):




      makeblastdb -in CCNLR_Ndomain_set.fasta -dbtype prot

      blastp -query CCNLR_Ndomain_set.fasta -db CCNLR_Ndomain_set.fasta -out blast_results.txt -evalue 1e-8




      Note: The outcome of this BLAST search is dependent on the e-value cutoff set by investigators. We set the BLASTP e-value cutoff to <10⁻⁸ by checking the sequence similarity of raw BLAST hits.

      Clustering N-terminal domain sequences from the BLAST output file was performed using the following mclblastline command:




      mclblastline --mcl-I=1.4 blast_results.txt




      Note: The mcl-I option, which affects cluster granularity, was set to 1.4.




      Provided N-terminal domain sequences were classified into several tribes in the output file “dump.out.blast_results.txt.l14” (Dataset S9). Among the output tribes, we focused on a tribe including ZAR1, RPP13, R2, and Rpi-vnt1.3 (tribe 3) for further sequence analyses, as described in Adachi et al. [9]. We then extracted IDs of N-terminal domain sequences from CC-NLRs grouped into tribe 3 using Supplemental script 4. For the analysis of conserved sequences, we extracted N-terminal domain sequences of tribe 3 from the input file “CCNLR_Ndomain_set.fasta” (Dataset S8) using Supplemental script 2 and saved as fasta file “Nseq_Tribe3.fasta” (Dataset S10).




4. Identify conserved sequence motifs in the N-terminal domain of NLRs

   1. Identify conserved sequence patterns in the N-terminal domain tribes.

      Conserved sequence patterns in tribe 3 were identified using MEME (Multiple EM for Motif Elicitation) with the following command with the input file “Nseq_Tribe3.fasta” (Dataset S10):




      meme Nseq_Tribe3.fasta -protein -oc. -nostatus -time 14400 -mod zoops -nmotifs 5 -minw 6 -maxw 50 -objfun classic -minsites 62 -markov_order 0

      Note: The ‘-minsites’ cutoff was set to 70% of the number of sequences to identify high occurrent sequence motifs. Other options are default settings in the MEME website (https://meme-suite.org/meme/tools/meme).




      From our test data, we identified five conserved sequence patterns in the N-terminal domain of tribe 3 CC-NLRs (Figure 3). Among the identified motifs in the output “meme.html”, a motif located at the very N terminus was defined as the MADA motif based on the deduced 21 amino acid consensus sequence “MADAxVSFxVxKLxxLLxxEx” [9], conserved in approximately 78% of tribe 3 CC-NLRs. The EDVID motif, which functions in stabilizing the structure of CC-NLR proteins [19], is conserved in approximately 85% of tribe 3 CC-NLRs (Figure 3).

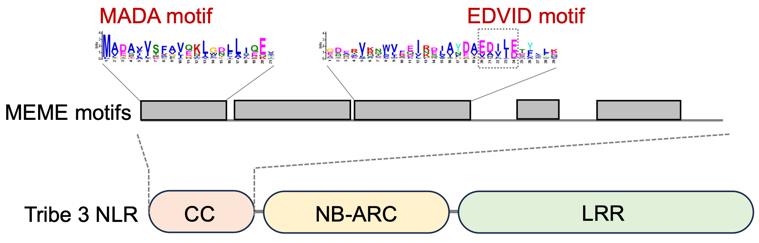

      Figure 3. Consensus sequence patterns detected in the N-terminal domain of tribe 3 coiled-coil nucleotide-binding leucine-rich repeat receptors (CC-NLRs). Conserved motifs were identified by MEME from 88 tribe 3 CC-NLR members. The motif logos describe the N-terminal consensus patterns, as reported in Adachi et al. [9]. Figure is modified from Adachi et al. [9].




5. Search the MADA motif using the hidden Markov model (HMM)

   1. Build the HMM of the conserved sequence pattern corresponding to the MADA motif.

      Protein sequences corresponding to the MADA motif were extracted from a MEME output file and saved as the input file “MEME_alignment.txt” (Dataset S11). The HMM for the MADA motif was built using HMMER with the following command:




      hmmbuild MADA.hmm MEME_alignment.txt




   2. Perform HMMER search to query NLR proteomes using the MADA motif HMM.

      HMMER detects sequence homologs and calculates HMM scores based on the degree of match. We performed a HMMER search to query NLR proteomes (Dataset S2) using the MADA motif HMM with the following command:




      hmmsearch --max --tblout MADA.hmmsearch.tsv -o MADA.hmmsearch.txt MADA.hmm NLR_set.fasta




      We set an HMM score cutoff at 10.0, which is most optimal for high-confidence searches of MADA containing CC-NLR proteins (MADA-CC-NLRs) [9]. We also defined NLR proteins with HMM scores from 0 to 10.0 as MADA-like CC-NLRs. From our test data, we identified 108 MADA-CC-NLRs and 161 MADA-like CC-NLRs. Based on conserved sequence patterns of NLRs, we can predict evolutionally conserved molecular functions of NLRs and can apply this for mutant analyses in molecular biology, biochemistry, and cell biology experiments as described in recent studies [1,9,20,21].

Validation of protocol

This protocol or parts of it has been used and validated in the following research article(s):

1. Adachi et al. [9]. An N-terminal motif in NLR immune receptors is functionally conserved across distantly related plant species. eLife (Figures 3–6).

2. Chia et al. [22]. The N-terminal domains of NLR immune receptors exhibit structural and functional similarities across divergent plant lineages. Plant Cell (Figures 3 and 5).

Acknowledgments

This protocol is based on and modified from our previous publication [9]. We are thankful to Sophien Kamoun, Mauricio P. Contreras, Adeline Harant, Chih-hang Wu, Lida Derevnina, Cian Duggan, Eleonora Moratto, Tolga O. Bozkurt, Abbas Maqbool, Joe Win, and our colleagues in the Sophien Kamoun’s group at The Sainsbury Laboratory (UK) for their contributions to the original research paper. H.A. was funded by Japan Science and Technology Agency, Precursory Research for Embryonic Science and Technology (JPMJPR21D1).

Competing interests

There are no conflicts of interest or competing interests.

References

1. Contreras, M. P., Lüdke, D., Pai, H., Toghani, A. and Kamoun, S. (2023). NLR receptors in plant immunity: making sense of the alphabet soup. EMBO Rep. 24(10): e57495.
2. Kourelis, J., Sakai, T., Adachi, H. and Kamoun, S. (2021). RefPlantNLR is a comprehensive collection of experimentally validated plant disease resistance proteins from the NLR family. PLoS Biol. 19(10): e3001124.
3. Van de Weyer, A. L., Monteiro, F., Furzer, O. J., Nishimura, M. T., Cevik, V., Witek, K., Jones, J. D., Dangl, J. L., Weigel, D., Bemm, F., et al. (2019). A Species-Wide Inventory of NLR Genes and Alleles in Arabidopsisthaliana. Cell. 178(5): 1260–1272.e14.
4. Lee, R. R. and Chae, E. (2020). Variation Patterns of NLR Clusters in Arabidopsis thaliana Genomes. Plant Commun. 1(4): 100089.
5. Prigozhin, D. M. and Krasileva, K. V. (2021). Analysis of intraspecies diversity reveals a subset of highly variable plant immune receptors and predicts their binding sites. Plant Cell. 33(4): 998–1015.
6. Bendahmane, A., Farnham, G., Moffett, P. and Baulcombe, D. C. (2002). Constitutive gain‐of‐function mutants in a nucleotide binding site–leucine rich repeat protein encoded at the Rx locus of potato. Plant J. 32(2): 195–204.
7. Tameling, W. I. L., Elzinga, S. D. J., Darmin, P. S., Vossen, J. H., Takken, F. L. W., Haring, M. A. and Cornelissen, B. J. C. (2002). The Tomato R Gene Products I-2 and Mi-1 Are Functional ATP Binding Proteins with ATPase Activity. Plant Cell. 14(11): 2929–2939.
8. Contreras, M. P., Pai, H., Selvaraj, M., Toghani, A., Lawson, D. M., Tumtas, Y., Duggan, C., Yuen, E. L. H., Stevenson, C. E. M., Harant, A., et al. (2023). Resurrection of plant disease resistance proteins via helper NLR bioengineering. Sci Adv. 9(18): eadg3861.
9. Adachi, H., Contreras, M. P., Harant, A., Wu, C. h., Derevnina, L., Sakai, T., Duggan, C., Moratto, E., Bozkurt, T. O., Maqbool, A., et al. (2019). An N-terminal motif in NLR immune receptors is functionally conserved across distantly related plant species. eLife. 8: e49956.
10. Jones, P., Binns, D., Chang, H. Y., Fraser, M., Li, W., McAnulla, C., McWilliam, H., Maslen, J., Mitchell, A., Nuka, G., et al. (2014). InterProScan 5: genome-scale protein function classification. Bioinformatics 30(9): 1236–1240.
11. Steuernagel, B., Witek, K., Krattinger, S. G., Ramirez-Gonzalez, R. H., Schoonbeek, H. j., Yu, G., Baggs, E., Witek, A. I., Yadav, I., Krasileva, K. V., et al. (2020). The NLR-Annotator Tool Enables Annotation of the Intracellular Immune Receptor Repertoire. Plant Physiol. 183(2): 468–482.
12. Katoh, K. and Standley, D. M. (2013). MAFFT Multiple Sequence Alignment Software Version 7: Improvements in Performance and Usability. Mol Biol Evol. 30(4): 772–780.
13. Stamatakis, A. (2014). RAxML version 8: a tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 30(9): 1312–1313.
14. Letunic, I. and Bork, P. (2021). Interactive Tree Of Life (iTOL) v5: an online tool for phylogenetic tree display and annotation. Nucleic Acids Res. 49: W293–W296.
15. Camacho, C., Coulouris, G., Avagyan, V., Ma, N., Papadopoulos, J., Bealer, K. and Madden, T. L. (2009). BLAST+: architecture and applications. BMC Bioinf. 10(1): 421.
16. Van Dongen, S. (2008). Graph Clustering Via a Discrete Uncoupling Process. SIAM J Matrix Anal Appl. 30(1): 121–141.
17. Bailey, T. L., Johnson, J., Grant, C. E. and Noble, W. S. (2015). The MEME Suite. Nucleic Acids Res. 43: W39–W49.
18. Eddy, S. R. (1998). Profile hidden Markov models. Bioinformatics 14(9): 755–763.
19. Förderer, A., Li, E., Lawson, A. W., Deng, Y. n., Sun, Y., Logemann, E., Zhang, X., Wen, J., Han, Z., Chang, J., et al. (2022). A wheat resistosome defines common principles of immune receptor channels. Nature. 610(7932): 532–539.
20. Duggan, C., Moratto, E., Savage, Z., Hamilton, E., Adachi, H., Wu, C. H., Leary, A. Y., Tumtas, Y., Rothery, S. M., Maqbool, A., et al. (2021). Dynamic localization of a helper NLR at the plant–pathogen interface underpins pathogen recognition. Proc Natl Acad Sci USA. 118(34): e2104997118.
21. Ahn, H., Lin, X., Olave‐Achury, A. C., Derevnina, L., Contreras, M. P., Kourelis, J., Wu, C., Kamoun, S. and Jones, J. D. G. (2023). Effector‐dependent activation and oligomerization of plant NRC class helper NLRs by sensor NLR immune receptors Rpi‐amr3 and Rpi‐amr1. EMBO J. 42(5): e111484.
22. Chia, K. S., Kourelis, J., Teulet, A., Vickers, M., Sakai, T., Walker, J. F., Schornack, S., Kamoun, S. and Carella, P. (2024). The N-terminal domains of NLR immune receptors exhibit structural and functional similarities across divergent plant lineages. Plant Cell koae113. Advance online publication.

Supplementary information

The following supporting information can be downloaded here:

1. Dataset S1. Proteome fasta file used as input for NLRtracker.
2. Dataset S2. Test dataset of full-length NLR proteins used for phylogenetic analysis.
3. Dataset S3. NB-ARC domain sequence of Arabidopsis ZAR1.
4. Dataset S4. Test dataset of aligned NB-ARC domain sequences used for phylogenetic analysis.
5. Dataset S5. Test dataset of maximum likelihood tree.
6. Dataset S6. Test dataset of protein IDs of CC-NLR subfamily.
7. Dataset S7. Test dataset of CC-NLR subfamily sequences.
8. Dataset S8. Test dataset of N-terminal domain sequences extracted from CC-NLRs.
9. Dataset S9. Test dataset of protein IDs for each tribe.
10. Dataset S10. Test dataset of N-terminal domain sequences extracted from tribe 3.
11. Dataset S11. Test dataset of the MADA motif sequences extracted in MEME.
12. Video S1. Simple instructions for using Supplemental Scripts.
