Fast, Easy, and Comprehensive Techniques for Microscopic Observations of Fungal and Oomycete Organisms Inside the Roots of Herbaceous and Woody Plants

Materials and reagents

Biological materials

1. Alnus glutinosa, Oryza sativa, or Arabidopsis thaliana roots or any other root material

1. Potassium hydroxide (KOH) (Centralchem, CAS: 1310-58-3)

2. Sodium hydroxide (NaOH) (Centralchem, CAS: 1310-73-2)

3. Hydrogen peroxide, 50% (H₂O₂) (Centralchem, CAS: 7722-84-1)

4. Sodium citrate dihydrate [HOC(COONa)(CH₂COONa)₂·2H₂O] (Sklochem-Agroekolab, CAS: 6132-04-3)

5. Magnesium sulphate heptahydrate (MgSO₄·7H₂O) (Sigma-Aldrich, CAS: 10034-99-8)

6. Methyl blue (C₃₇H₂₇N₃Na₂O₉S₃) (Fisher Chemical, CAS: 28983-56-4) (please do not confuse with methylene blue)

7. Glycerol [HOCH₂CH(OH)CH₂OH] (Duchefa Biochemie, CAS: 56-81-5)

8. Lactic acid, 80% [CH₃CH(OH)COOH] (Mikrochem, CAS: 50-21-5)

9. Solophenyl flavine 7GFE 500 (syn. Direct Yellow 96) (C₃₉H₃₄N₁₀O₁₃S₄) (abcr Germany, CAS: 61725-08-4)

10. 1% HCl

1. 1% NaOH bleaching solution—sample clearing and bleaching (see Recipes)

2. 10% KOH bleaching solution—sample clearing and bleaching (see Recipes)

3. 0.06% methyl blue—staining solution (stock) (see Recipes)

4. 0.006% methyl blue—non-fluorescent fungi staining (working solution)

5. 0.1% solophenyl flavine—fluorescent fungi staining (see Recipes)

6. Methyl blue + solophenyl flavine mixture—combined fluorescent and non-fluorescent fungi staining (see Recipes)

1. 1% NaOH bleaching solution (BS)

   To prepare 100 mL of 1% NaOH BS, first dissolve 0.9 g of NaOH in 90 mL of distilled water. Add 1 g of sodium citrate dihydrate and 0.03 g of magnesium sulphate heptahydrate into 90 mL of 1% NaOH. Using a stirrer to dissolve all components. A large volume of prepared solution may be stored for months in a dark place. Mix thoroughly before using.

   Prior to clearing, add 10 mL of 50% H₂O₂ into 90 mL of the prepared NaOH + sodium citrate dihydrate + magnesium sulphate heptahydrate solution. Stir shortly to minimize hydrogen peroxide reaction but be sure to mix the prepared solution well.

   Reagent	Final concentration	Quantity or Volume
   NaOH	1% (w/v)	0.9 g
   Sodium citrate dihydrate	1% (w/v)	1 g
   Magnesium sulphate heptahydrate	0.03% (w/v)	0.03 g
   Hydrogen peroxide	5% (v/v)	10 mL
   H2O		90 mL
   Total		100 mL




2. 10% KOH bleaching solution (BS)

   Alternatively, for 10% potassium hydroxide bleaching solution (KOH BS), dissolve 9 g of KOH in 90 mL of distilled water. Other chemicals and steps are applied in the same order as for Recipe 1.

   Reagent	Final concentration	Quantity or Volume
   KOH	10% (w/v)	9 g
   Sodium citrate dihydrate	1% (w/v)	1 g
   Magnesium sulphate heptahydrate	0.03% (w/v)	0.03 g
   Hydrogen peroxide	5% (v/v)	10 mL
   H2O		90 mL
   Total		100 mL

   Although hydrogen peroxide alone can bleach, mixing NaOH or KOH with hydrogen peroxide shortens the time required for clearing. Individual clearing with NaOH or KOH followed by hydrogen peroxide will work too, but mixed compounds work faster.




3. 0.06% methyl blue stock solution

   To make 0.06% methyl blue stock solution, dissolve methyl blue in water using a stirrer. Then, mix glycerol with lactic acid. Finally, add methyl blue solution into glycerol/lactic acid mixture and stir well. This solution can be stored in a cool, dark place for months. Before staining, prepare 0.006% working solution by diluting 5 mL of methyl blue stock solution in 50 mL of distilled water.

   Reagent	Final concentration	Quantity or Volume
   Methyl blue	0.06% (w/v)	0.03 g
   Glycerol	50% (v/v)	25 mL
   Lactic acid 80%	25% (v/v)	12.5 mL
   H2O		12.5 mL
   Total		50 mL




4. 0.1% solophenyl flavine staining solution

   To prepare a 0.1% solophenyl flavine staining solution, dissolve 0.025 g of solophenyl flavine powder in 25 mL of distilled water and mix thoroughly. This solution can be stored in a cool, dark place for one month.

   Reagent	Final concentration	Quantity or Volume
   Solophenyl flavine	0.1% (w/v)	0.025 g
   H2O		25 mL
   Total		25 mL




5. Methyl blue + solophenyl flavine mixture

   To obtain 50 mL of methyl blue + solophenyl flavine mixture, add 1 mL of 0.1% solophenyl flavine into 49 mL of 0.006% methyl blue working solution. Stir well.

Laboratory supplies

1. Petri dishes of various size (it depends on the size of the examined root system) for root processing and staining:

   1. Petri dish Ø150 mm (Fisher Slovakia, catalog number: 1215.1525)

   2. Petri dish Ø120 mm (Fisher Slovakia, catalog number: 1215.1220)

   3. Petri dish Ø50 mm (Fisher Slovakia, catalog number: 1215.0512)

   4. Petri dish Ø40 mm (Fisher Slovakia, catalog number: 1215.0412)

2. Crystallizing dish 500 mL (Fisher Slovakia, catalog number: 1212.0115)

3. Beaker 250 mL (Fisher Slovakia, catalog number: 1112.0250)

4. Beaker 150 mL (Fisher Slovakia, catalog number: 1112.0150)

5. Beaker 50 mL (Fisher Slovakia, catalog number: 1112.0050)

6. Glass slide 76 mm × 26 mm (Fisher Slovakia, catalog number: 1820.1100)

7. Cover glass 24 mm × 50 mm (Fisher Slovakia, catalog number: 1820.1250)

8. Parafilm M 50 mm × 50 mm (Fisher Slovakia, catalog number: 2105.6001)

9. Razor blade (Agar Scientific, catalog number: AGT5115)

10. Laboratory scissors (Fisher Slovakia, catalog number: 2305.7711)

11. Laboratory needle (Fisher Slovakia, catalog number: 2305.4822)

12. Laboratory tweezer (Fisher Slovakia, catalog number: 2305.4143)

13. Scalpel (Fisher Slovakia, catalog number: 2305.9004)

14. Disposable plastic Pasteur pipette (Fisher Slovakia, catalog number: 2101.6460)

15. Pasteur glass pipette (Fisher Slovakia, catalog number: 1780.0150)

16. Magnetic stir bar (Fisher Slovakia, catalog number: 6115.4008)

17. Micropipette 1,000 µL (Fisher Slovakia, catalog number: 4052.0050)

18. Flat paint brush

Equipment

1. Heating plate with regulated temperature (30–70 °C)

2. Light (brightfield) and fluorescent microscope (Leica, model: DM4000) equipped with a Leica fluorescence filter A, D, I3 or any other filter with the following characteristics: excitation 400 nm and emission 470 nm

3. Freeze dryer (Christ Alpha 1-2 LD plus) (or any other freeze-drying machine), if freeze-drying is considered to be carried out

Procedure

1. Fast root-surface screening using solophenyl flavine staining

   1. Gently rinse the root system in water to wash out the fixatives (if used) and remove soil particles or debris by using brush, needles, or forceps. Be careful as some fungal organisms are only slightly attached to the root surface; also, soil particles or debris may contain some fungal organisms. Sometimes, it is not possible to remove all soil particles; however, that can be advantageous and provide additional information about the interaction between the fungus, root, and soil.

   2. Submerge the roots into a minimum of 5 mL of 0.1% solophenyl flavine solution for 5–7 min at laboratory temperature (20–25 °C). If necessary (if roots are mature or thick), keep in warm solution (30–40 °C) on a heating plate without stirring (stirring can damage fragile roots) for 10–30 min. According to the root system size, use enough solophenyl flavine dye and be sure that all roots are submerged.

   3. Wash samples briefly in distilled water, using an approximately 50–100 times larger volume of water than the volume of used dye.

   4. Transfer roots into a drop of water on a glass slide. If the roots are too large to be observed as a one piece, use scissors, scalpel, or tweezers and divide the root into appropriately smaller pieces.

   5. Observe samples under the fluorescence light using the blue filter set (e.g., Leica A or D filter set) with excitation around 400 nm and emission around 470 nm. For more information, please see solophenyl flavine fluorescence characteristics.

   6. Stained roots are suitable for whole-mount clearing, sectioning (e.g., cryosectioning), or freeze-drying.




2. Root whole-mount clearing and staining

   1. For whole-mount clearing, we recommend using surface-stained roots from previously described steps. Nevertheless, non-stained roots are also good (Figure 1A).





      Figure 1. Laboratory steps for root clearing and staining. A. Overview of roots in a Petri dish before clearing. B. Clearing and bleaching of roots in bleaching solutions on a heating plate. C. Washing roots after clearing. D. Cleared roots in a Petri dish before staining. E. Staining roots with solophenyl flavine (yellow color) and methyl blue (blue color) in small Petri dishes. F. Completed root specimens prepared for microscopic observations.




   2. Transfer the roots to a bleaching solution (NaOH BS or KOH BS). Keep solution warm (60 °C) on a heating plate without stirring (stirring can damage fragile roots) for 1 h. A volume of 50–100 mL of solution should be enough, but it strongly depends on the root tissue mass and discoloration. If the roots are too dark, use more bleaching solution or prolong time (Figure 1B).

   3. Put the cleared roots into the preheated dH₂O (60 °C, at least 500 mL) and let them cool down at laboratory temperature for an appropriate time (approximately 30–60 min) (Figure 1C).

   4. Roots are now prepared for staining (Figure 1D).

   5. Gently transfer cleared roots into the staining solution (e.g., on the tip of a laboratory needle or tweezer, avoiding pressurizing roots with a tweezer jaw).

   6. Depending on the desired outcome, stain roots with methyl blue for brightfield observations, with solophenyl flavine for fluorescence observations, or with methyl blue + solophenyl flavine mixture for observations in both types of microscopies in parallel (Figure 1E).

   7. Methyl blue staining: Add a minimum of 5 mL of methyl blue working solution into a small Petri dish and insert the cleared roots. Stain at laboratory temperature (20–25 °C) for 10–15 min (enough for most of the roots) (Figure 1E). Shortly wash in distilled water (0.5 min, as prolonged washing may remove dye from roots). Methyl blue–stained samples should be acidified. Put a drop of 1% HCl on a glass slide, submerge the stained samples into it, and observe covered with a cover glass (Figure 1F). Use brightfield microscopy. Fungal and oomycetes structures are stained blue.

   8. Solophenyl flavine staining: Add a minimum of 5 mL of solophenyl flavine into a small Petri dish and insert cleared roots. Stain at laboratory temperature (20–25 °C) for 5 min (Figure 1E). Wash in distilled water until all free dye is released from the stained roots (5–7 min; prolonged washing does not decrease staining intensity of roots), put on a glass slide in a drop of distilled water, and observe it under a cover glass (Figure 1F). Use fluorescence microscopy. Fungal and oomycetes structures are stained blue, green, or yellow.

   9. Methyl blue + solophenyl flavine mixture staining: Add a minimum of 5 mL of solophenyl flavine + methyl blue mixture into a small Petri dish and insert cleared roots. Timing and temperature depend on the root origin and characteristics such as thickness and age. We suggest submerging for 5 min at laboratory temperature (20–25 °C) for soft and thin roots (in vitro–cultivated plants, small herbaceous species). On the other hand, we suggest submerging for 30 min at elevated temperature (50 °C) for thicker and older roots (woody plants). After staining, wash samples in distilled water for 5 min, put a drop of 1% HCl on a glass slide, and cover with cover glass. Use brightfield and/or fluorescence microscopy for observation (Figure 2A–F).

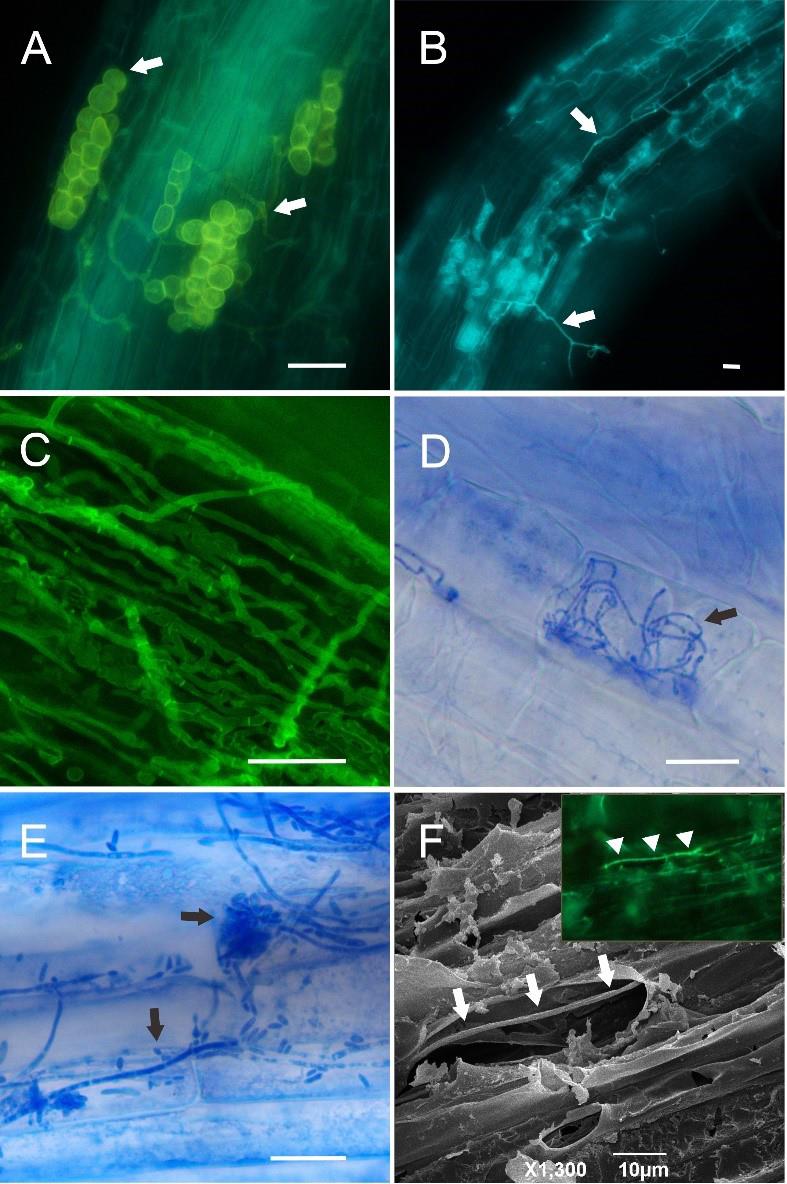

      Figure 2. Microscopy images of fungi and oomycetes inside the roots of selected plant species (Alnus glutinosa, Arabidopsis thaliana, Oryza sativa) after the clearing and staining steps described in the protocol. A. Oomycetes (arrows) inside Alnus glutinosa roots, KOH BS clearing, methyl blue + solophenyl flavine mixture staining, fluorescence microscopy. B. Oomycetes (arrows) inside Alnus glutinosa roots, NaOH BS clearing, solophenyl flavine staining, fluorescence microscopy. C. Fungal hyphae inside Oryza sativa roots, KOH BS clearing, methyl blue + solophenyl flavine mixture staining, fluorescence microscopy. D. Fungal hyphae (arrow) inside Oryza sativa roots, NaOH BS clearing, methyl blue staining, brightfield microscopy. E. Endophytic fungus (arrows) on the Arabidopsis thaliana root surface, non-cleared, methyl blue staining, brightfield microscopy. F. Oomycete hypha (arrows) inside Alnus glutinosa root, non-cleared, solophenyl flavine staining, scanning electron microscopy. The inset shows the identical hypha (arrows) in fluorescence microscopy before freeze-drying and SEM observation. Scale bars: A–E = 20 µm, F = 10 µm.




3. Freeze-drying of stained samples

   1. The following steps are optional and may follow after step A6. The majority of surface-stained samples (without clearing and bleaching) are suitable for the subsequent assessment using scanning electron microscopy (SEM).

   2. Insert two parafilm strips between the glass slide and the border of the cover glass to prevent root squeezing (Figure 3).

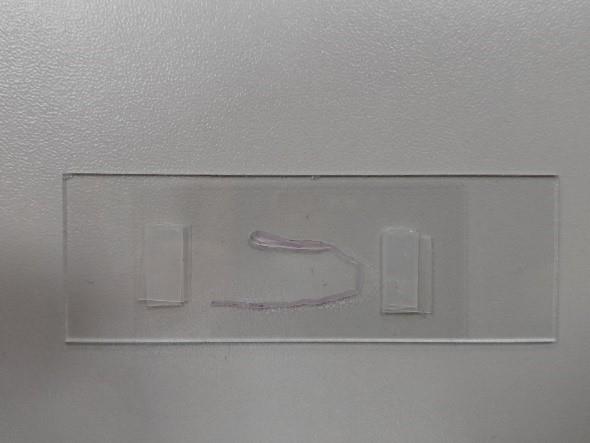

      Figure 3. Example of inserting the parafilm between the glass slide and cover glass




   3. Find the desired object (fungal structure) on a root surface using fluorescence microscopy.

   4. Put samples on the glass slide into a freeze-drying machine and freeze it. Start vacuuming and drying the samples.

   5. When the samples are dry (time of drying strongly depends on both the size of sample and the volume of water inside the sample; approximately 2 h), gently remove the cover glass and transfer samples onto the adhesive carbon tape mounted on the SEM specimen tub.

Validation of protocol

This protocol or parts of it has been used and validated in the following research article:

Corcobado et al. [13]. Metabolomic and Physiological Changes in Fagus sylvatica Seedlings Infected with Phytophthora plurivora and the A1 and A2 Mating Types of P. ×cambivora. Journal of Fungi 8(3): 298, Figure 2.

Moreover, our procedure is validated by Figure 2 shown in this protocol.

General notes and troubleshooting

General notes

1. It is not easy to determine the exact volume needed for individual solutions. Examined roots can have various sizes. The volume of clearing/bleaching solution should be 10 times higher than the volume of the examined root system. To wash in distilled water, we recommend using a 4–5 times larger volume than the volume of the clearing/bleaching solution. If solophenyl flavine or methyl blue are used as staining dye, the stained roots should be fully submerged into the staining solution. It is not necessary to add the staining solution in excess. A drop (approximately 50 µL) of mounting medium (water or 1% HCl) is used for microscopic observations.

2. If better-quality staining of surface or sub-surface fungal organisms is required, it is recommended to use solophenyl flavine dissolved in ClearSee solution. The examined samples are incubated at laboratory temperature for days or weeks. This procedure completely protects root tissues against the damage that is caused by clearing and bleaching. The same procedure is also suitable for subsequent sectioning or freeze-drying. However, ClearSee staining is a time-consuming process. We recommend using a 0.1% solution of solophenyl flavine in ClearSee. For more details about ClearSee solution, see Ursache et al. [12].

3. Be sure that all baths for sample washing or bleaching are preheated and samples are transferred to the next step without any rapid change in temperature (e.g., during the clearing/bleaching step at 60 °C in the bleaching solution, distilled water prepared for washing should be heated to the same temperature as the bleaching solution).

4. Except for staining with methyl blue + solophenyl flavine mixture, there is also a possibility to stain with solophenyl flavine at first, then wash the samples in distilled water, and subsequently stain with methyl blue. This double-staining helps to quench undesirable fluorescence of cell walls that is caused by solophenyl flavine. However, as this staining procedure is complementary, some fungal structures become stained blue with methyl blue and may lose their fluorescence from solophenyl flavine staining.

1. Clearing and bleaching methods described above are suitable for a broad range of roots that are sampled from soil. Bleaching time and temperature for agar- or hydroponics-cultivated fine roots should be adequately adjusted. For example, bleaching for agar-cultivated A. thaliana seedlings should be 30 min at 40–50 °C. Fine roots that are sampled from soil can also be cleared in a shorter time than 30 min. If the roots remain white-brown or white-yellow after 1 h of clearing and bleaching, we recommend extending the clearing/bleaching step for another 10 or 15 min. However, if the root system consists of roots with a large diameter variation, some thin roots can be already white, whereas thick roots still remain partially discolored.

2. After clearing and bleaching, fungal structures show some weak fluorescence if excited with violet/blue light. However, this signal is much more stable, and excitation is shifted toward the red (blue-green) spectrum, after staining with methyl blue + solophenyl flavine mixture.

3. Methyl blue is prone to nonspecific staining that has to be carefully recognized. If the roots are not cleared properly, cell nuclei or cytoplasm may be stained. Cell nucleuses are evenly organized inside root tissues: one nucleus in one cell. Fungal structures are distributed randomly. If stained non-specifically, other structures in roots can be recognized and distinguished from fungal structures according to their shape and morphology.

4. For certain unknown reasons, some samples cannot be stained with methyl blue. There may be a problem due to the clearing or the nature of the sample. In some samples, both fungal structures and root tissues are intensively stained with solophenyl flavine, resulting in a weak contrast. In both cases, double-staining with solophenyl flavine and methyl blue dyes or staining with methyl blue + solophenyl flavine mixture helps.

Stopping point

A stopping point is relevant mainly for section B. At step B4, if the roots are prepared for staining, they can be stored before staining in a refrigerator (1–2 days, 4 °C). At step B8, there is also a possible stopping point. If the SF-stained samples are placed on a glass slide, not in a drop of water but in a drop of water:glycerol mixture (1:1), they can be stored for several days in the refrigerator. However, ensure that the mounting medium does not evaporate from the glass slide and the specimen is still mounted. If not, add a little of the water/glycerol mixture again until the sample is completely mounted.

Extra caution

Caution is needed when mixing NaOH or KOH bleaching solutions. These reactions are exothermic, and heat is released. One should also be careful with a volume of hydrogen peroxide. If too much hydrogen peroxide is added, extreme bubbling during clearing/bleaching may damage root samples. Always protect the heating device (heating place) against small drops coming from the bleaching solution or bleached samples during a transfer. They may contaminate or damage the surface coating of your device. If using HCl for methyl blue staining, be careful as it may also etch the mechanical stage of your microscope.

Acknowledgments

This work was supported by the Slovak scientific grant agency VEGA (1/0108/23) and the TUZVO internal grant agency IPA (1/2023). A part of this protocol was published by Corcobado et al. [13].

Competing interests

The authors declare no conflicts of interest.
