VAR2CSA Ectodomain Labeling in Plasmodium falciparum Infected Red Blood Cells and Analysis via Flow Cytometry

Materials and reagents

Storage notes: All primary antibodies are stored at -20 °C. Secondary antibodies and DNA stains are stored at 4 °C unless otherwise noted. All reagents for tissue culture were prepared in a class II biosafety cabinet while practicing aseptic technique, including the use of sterile pipette tips.

1. 96-well plate, v-well, polystyrene with lid, sterile (Sarstedt, catalog number: 3 82.1583.001)

2. Sterile 35 mm × 10 mm tissue culture dish (Sigma, Corning, catalog number: 430165)

3. BSA 30% (w/v) (CSL Immulab, catalog number: 06701305)

4. Rabbit anti-VAR2CSA antibody recognizing an epitope on the ectodomain of VAR2CSA [Duffy and Rogerson labs, University of Melbourne, code: R1945 (Reeder et al., 1999)]

5. Monoclonal anti-rabbit IgG (γ-chain specific) antibody produced in mouse (Sigma, catalog number: R1008-2ML)

6. Alexa Fluor 488 goat anti-mouse IgG (H+L) (Invitrogen, Life Technologies, catalog number: A11029)

7. Alexa Fluor 647 goat anti-mouse IgG (H+L) (Invitrogen, Life Technologies, catalog number: A21236)

8. Hoechst 33342 (Invitrogen, catalog number: H3570)

9. SYTO 61 (Life Technologies, catalog number: S11343) to measure parasitemia. SYTO 61 is diluted from 5 mM to 100 μM in DMSO and stored in 50 μL aliquots at -20 °C

10. Dimethyl sulfoxide (DMSO) (ChemSupply, catalog number: DA013-500M)

11. RPMI 1640 medium with GlutaMAX supplement and HEPES (Life Technologies, Gibco, catalog number: 72400120)

12. Hypoxanthine (Sigma, catalog number: H9636-5G) made to 200 mM in 1 M NaOH (ChemSupply, catalog number: SL178-500G), filter sterilized, and stored in 1 mL aliquots at -20 °C

13. Gentamicin 10 mg/mL in deionized water (Sigma, catalog number: G1397)

14. D-glucose (ChemSupply, catalog number: GA018-500G)

15. D-sorbitol (ChemSupply, catalog number: SL151-500G), made to 5% w/v in MilliQ water, filter sterilized, and stored at 4 °C

16. Albumax II (Life Technologies, catalog number: 11021045) dissolved in RPMI 1640 medium with GlutaMAX supplement and HEPES at 5%, filter sterilized, and stored in 25 mL aliquots at -20 °C

17. Media solution (910 mM D-glucose, 0.45 mg/mL gentamicin), stored in 5 mL aliquots at -20 °C

18. Pooled sera from any blood type (Lifeblood Australia), heat inactivated for 1.5 h, filter sterilized, and stored in 25 mL aliquots at -20 °C

19. Red blood cells (Lifeblood Australia), O+

20. Malaria mix (1% O₂, 5% CO₂, and 94% N₂) (Coregas, catalog number: 388150)

21. Giemsa’s stain improved solution R66, Gurr for microscopical staining (VWR chemicals, catalog number: 350864X)

22. Methanol (ChemSupply, catalog number: MA004)

23. Triton X-100 (BioXtra, Sigma, catalog number: T9284)

24. Sodium hypochlorite 8-14% (Ajax Finechem, catalog number: AJA485-5L)

25. Complete culture media (CCM) stored at 4 °C, used at 37 °C (see Recipes)

Equipment

1. Incubator (LabQuip Sciences, SEM Equipment, model: 18FD)

2. Multichannel pipettes, 8-channel, 20–200 μL (Socorex, model: 855) and 5–100 µL (Bohit, model: m100)

3. Class II biosafety cabinet (Laftech, EuroClone, model: safemate 1.2 vision)

4. Centrifuge (Hettich, model: Rotina 420)

5. Flow cytometer [BD Biosciences, model: FACSCanto II Flow Cytometer System with an integrated BD High Throughput Sampler (HTS)]. The following filter sets were used for fluorophore detection: Alexa Fluor 647 and SYTO-61 (APC, 660/20 nm), Alexa Fluor 488 (FITC, 530/30 nm), and Hoechst 33342 (Pacific Blue, 450/50 nm)

Software

1. FACSDiva 8.0.1 (BD Biosciences, https://www.bdbiosciences.com/en-au/products/software/instrument-software/bd-facsdiva-software)

2. FlowJo v10 (BD Biosciences, https://www.flowjo.com/solutions/flowjo)

3. Prism 9 (Dotmatics, GraphPad, https://www.graphpad.com/scientific-software/prism/)

Procedure

All sample preparation is performed under sterile conditions. Centrifugation steps are at either 528× g for 5 min (5 acc/1 dec) (A3–B1) or 528× g for 90 s (9 acc/9 dec) for 96-well plates. Slow deceleration is used when centrifugation is performed in Falcon tubes to reduce the disturbance of the infected RBCs pellet.

1. Prepare malaria parasite cell culture

   1. Maintain parasite-infected RBC culture at 5% hematocrit (percentage by volume of RBCs in culture) with O+ RBCs in CCM at 37 °C in a low oxygen environment (malaria mix). As an example, a 35 mm × 10 mm tissue culture dish would contain 250 μL of RBCs and 4.75 mL of CCM, yielding a 5% hematocrit culture. O+ RBCs are used as they are compatible with pooled sera from any blood type, avoiding RBC agglutination.

   2. Parasitemia (the percentage of infected RBCs relative to total RBCs) should be kept at ≤ 5% and the CCM replaced every 24–48 h. Monitor the parasitemia via thin blood smears and Giemsa staining.

      1. Thin blood smears and Giemsa staining: Deposit 1–2 μL of RBCs at one end of a glass microscope slide. Use another glass slide held at a 45° angle to smear the cells across the first slide. Allow to air dry; then, fix the cells by immersing the slide in methanol for at least 5 s. Allow the slide to air dry and incubate the fixed slide in 10% Giemsa stain diluted in water for 5 min. Remove the slide from the stain and wash off excess stain with tap water. Blot the slide dry with paper towels; then, add immersion oil and visualize the cells with a 100× objective on a light microscope. Cell fixation and staining can be done in a non-sterile environment. Parasites will be stained dark purple and RBCs light purple. Use a physical cell counter to count ≥500 cells to determine the parasitemia, or percentage of cells infected with a parasite, prior to an experiment.

   3. Synchronize parasite cultures using the osmolyte D-sorbitol. Parasite-infected RBCs from 20 h post invasion (hpi) are susceptible to hypotonic lysis when incubated in a 5% solution of D-Sorbitol (Ginsburg et al., 1983; Counihan et al., 2017). This physiology is leveraged to synchronize cultures, as ring-stage parasites survive sorbitol treatment.

      Harvest the culture by centrifugation at 528× g for 5 min (5 acc/1 dec), aspirate the media, and resuspend the pellet in 5% D-sorbitol (w/v) to obtain a 5% hematocrit solution (the original volume of the culture). Incubate the D-sorbitol-treated culture in a water bath at 37 °C for 5–10 min. Harvest the sorbitol-treated culture, aspirate the supernatant, resuspend the pellet in CCM to 5% hematocrit, and return the culture to a fresh culturing dish or flask. One sorbitol synchronization will retain parasites that are ~0–20 hpi. Sorbitol-synchronize the parasites again 8 h later to narrow the age range to ~8–20 hpi. For the protocol outlined here, parasites must be synchronized to ~20–32 hpi (i.e., two synchronizations, 12 h apart).

   4. Transgenic parasites are maintained in the presence of selection reagent. To generate transgenic parasite cell lines, follow the detailed protocols and recipes outlined in Rug and Maier (2013). Our transgenic parasite cell lines were generated in a CS2 background, an isolate expressing the EMP1 variant VAR2CSA (Duffy et al., 2006). It is recommended to use the parent cell line as a positive control, as we do in this protocol.

      CS2 is a clonal parasite line that expresses var2csa as a dominant var gene transcript, allowing us to use an antibody for the encoded antigen (the EMP1 variant var2csa) to assess antigen trafficking to the host cell surface (Elliott et al., 2005; Duffy et al., 2006).




2. Dilute and aliquot cells

   1. The infected RBC culture should be at 5% hematocrit with a parasitemia between 3% and 5%. Harvest mid-trophozoite stage cultures (~20–32 hpi) by centrifugation at 528× g for 5 min (5 acc/1 dec).

   2. Aspirate the spent media leaving the RBC pellet undisturbed. Resuspend the RBCs in 1% BSA/PBS and dilute as required to obtain a solution containing a 3%–5% parasitemia and 2%–4% hematocrit.

   3. Load 20 μL of diluted cells into a 96-well plate in duplicate or triplicate per condition and cell line. At a minimum, you will require a no-primary control (wells incubated with the BSA diluent and that receive the second and third antibody treatments), totalling ≥ 6 wells per cell line if performed in triplicate.

   4. Add 100 μL of wash buffer (1% BSA/PBS) to each well. Alternatively, add 100 µL of wash buffer prior to loading cells in step B3. We recommend a multichannel pipette for all subsequent washing steps.

   5. Centrifuge the plate at 528× g for 90 s (9 acc/9 dec) to pellet the cells, then aspirate the media using an aspirating tip. We find that the accuracy of aspiration is improved when a sterile pipette tip (no filter) is mounted on the end of the aspirator tip. Touch the tip to the wall of each well to aspirate the supernatant.




3. Cell staining

   Note: All antisera are diluted in wash buffer (1% BSA/PBS).

   1. Resuspend each well with 10 μL of either rabbit polyclonal anti-VAR2CSA antibody (1:100) or 1% BSA/PBS as a control and incubate for 30 min at 37 °C.

   2. Add 100 μL of wash buffer (1% BSA/PBS), centrifuge the plate, and aspirate the supernatants.

   3. Resuspend each well in 100 μL of wash buffer (1% BSA/PBS), centrifuge the plate, and aspirate the supernatants.

   4. Resuspend each well with 10 μL of mouse anti-rabbit IgG (1:100) and incubate for 30 min at 37 °C.

   5. Repeat steps C2 and C3 (wash steps).

   6. Resuspend each well with 10–20 μL of goat anti-mouse antibody conjugated to a fluorophore (1:100) and incubate for 30 min at 37 °C.

      1. For cell lines expressing GFP, we use Alexa Fluor 647 goat anti-mouse IgG (H+L) and Hoechst 33342 DNA stain.

      2. For cell lines not expressing GFP, we use Alexa Fluor 488 goat anti-mouse IgG (H+L) and Hoechst 33342 or SYTO-61 nucleic acid stain.

   7. Repeat steps C2 and C3.

   8. Incubate the cells in the DNA or nucleic acid stain.

      1. For Hoechst 33342 staining, add 20 μL of stain (1:2,000) and incubate for 30 min at 37 °C. Wash cells twice (step C5), then wash the cells once in 100 μL of PBS alone. After this final wash, resuspend the cells in 200 μL of PBS (0.2%–0.4% hematocrit final), and then proceed with flow cytometry measurements. We use low hematocrit for these experiments to reduce the likelihood of capillary blockage during flow cytometry.

      2. For SYTO-61 staining, incubate cells in 20 μL of SYTO-61 (5 μM in PBS) for 15 min at room temperature (Klonis et al., 2011). Add 180 μL of PBS to dilute the wells to 0.02% hematocrit and incubate the cells for 30 min at room temperature before being measured.




4. Flow cytometry using FACSDiva software

   The steps below refer to a non-GFP-expressing cell line, labeled with Alexa Fluor 488 tertiary antibody and Hoechst 33342. Perform these steps for one well containing a double-stained positive sample (or well), e.g., the positive control, then apply the gating strategy to all wells in the plate.

   1. Use a side scatter height (SSC-H) vs. forward scatter area (FSC-A) plot to identify and gate the total RBC population (Figure 2A). Select this population.

   2. Then, use a forward scatter height (FSC-H) vs. forward scatter width (FSC-W) plot to gate singlet events (Figure 2B). Select this population.

   3. Plot Pacific blue height (DNA stain) vs. FITC height (fluorophore-conjugated tertiary antibody) (Figure 2C). Adjust the voltage of Pacific blue and FITC so that the Pacific blue-H +/- and FITC-H +/- populations can be clearly delineated. In our example plot (Figure 2C), the quadrant divide sits at approximately 10³. Once the voltages are optimized, apply these acquisition paraments to all wells in the plate and all biological repeats. As visualized in Figure 1, the Q4 population represents uninfected RBCs, the Q1 population is infected but does not have labeled EMP1 on the surface, and the Q2 population is both infected and presenting EMP1 on the surface.

      Note: If there is a substantial number of high-FITC events to the right of the main Q2 population, these are likely non-specific events. Consider increasing the volume of wash buffer during the wash steps or the number of washes after the final antisera incubation. Alternatively, use the secondary-only antibody controls as a guide for drawing a right boundary on the FITC+ populations.

   4. Update the high throughput sampler (HTS) loader settings (Table 1).




      Table 1. Flow cytometer HTS loader settings

      Sample flow rate (μL/s)	0.5
      Sample volume (μL)	20
      Mixing volume (μL)	100
      Mixing speed (μL/s)	200
      Number of mixes	4
      Wash volume (μL)	800




   5. Collect a total of 50,000 events per well.

   6. Export all data as FCS-3 files.

   7. For instrument cleanup, flush the system sequentially with ≥ 400 μL of 0.1% (w/v) Triton X-100, ≥ 400 μL of 1% sodium hypochlorite, and ≥ 800 μL of ultra-pure water.

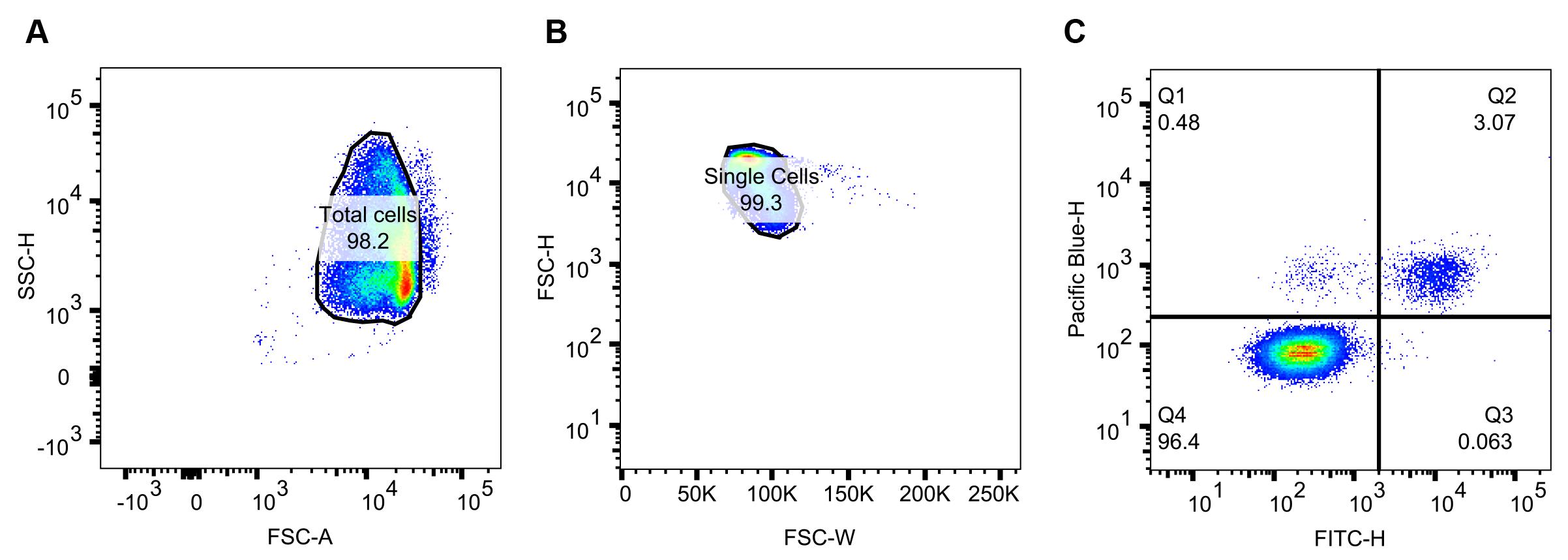

      Figure 2. Flow cytometry analysis of a single well. Dots represent events detected. Blue to green to red hues indicate increasing population densities. (A) Side scatter height vs. forward scatter area to gate the major population, or total cells (infected and uninfected RBCs). (B) Doublet discrimination by plotting forward scatter height vs. forward scatter width and gating for the major population, or single cells. (C) Pacific blue height vs. FITC height to parse the single cell events into quartiles. Q2, the Pacific blue+/FITC+ population as a percentage of the single cell events, is used to compare the surface presentation of VAR2CSA between cell lines.

Data analysis

1. Open FCS-3 files in FlowJo and apply the same gating strategy as outlined above (Figure 2A and 2B).

2. After delineating the total population into each quartile (Figure 2C), export the cell frequency of parent data for Q2 (i.e., the percentage of cells in Q2 compared to the single cell gate) for all wells.

3. Average the Q2 frequency across the technical repeats for each cell line and condition independently.

4. Subtract the Q2 averaged frequency of the no-primary controls from that of the experimental samples. This operation accounts for non-specific events in Q2.

5. Collect at least four biological repeats and perform the analysis above.

6. Using Prism 9 software, enter the biological replicate values in a column table where each column is a unique parasite cell line. Perform an unpaired t-test with Welch’s correction to determine the p-value.

7. Plot individual values as a scatterplot with bar (mean and standard deviation).

Notes

Cell staining incubations were performed at 37 °C in standard atmospheric conditions. If practical, these incubations may be performed in malaria gas mix.

If live cell flow cytometry is not an option, the cells can be fixed after step C8. Fixation may be performed by incubating each sample with 20 μL of 4% Formaldehyde/0.0065% glutaraldehyde in PBS for 10 min, followed by three washes with 200 μL of PBS.

Recipes

1. Complete culture media (CCM)

   Thaw then add the following reagents to 500 mL of RPMI 1640 medium with GlutaMAX and HEPES, store at 4 °C.

   25 mL of pooled human sera

   25 mL of 5% w/v Albumax II, dissolved in RPMI 1640 medium with GlutaMAX and HEPES

   5 mL of media solution (910 mM D-glucose, 0.45 mg/mL gentamicin)

   1 mL of 200 mM hypoxanthine

Acknowledgments

We thank Michael Duffy and Stephen Rogerson for providing us with critical reagents. This original protocol was based on Beeson et al. (2004) and Smith et al. (1995). We also thank Molly P. Schneider for reviewing the protocol and for her helpful suggestions. MWAD thanks the National Health and Medical Research Council (1098992) (https://www.nhmrc.gov.au) for funding this work. The funders had no role in study design, data collection and analysis, the decision to publish, or the preparation of the manuscript.

Competing interests

The authors have declared that no competing interests exists.

Ethics

Red blood cells and serum were acquired from the Australian Red Cross Lifeblood blood service. All blood products were anonymous and individual donors could not be identified. This work was approved with the written consent of the University of Melbourne Human Research Ethics Committee (approval number 1750526.3).
