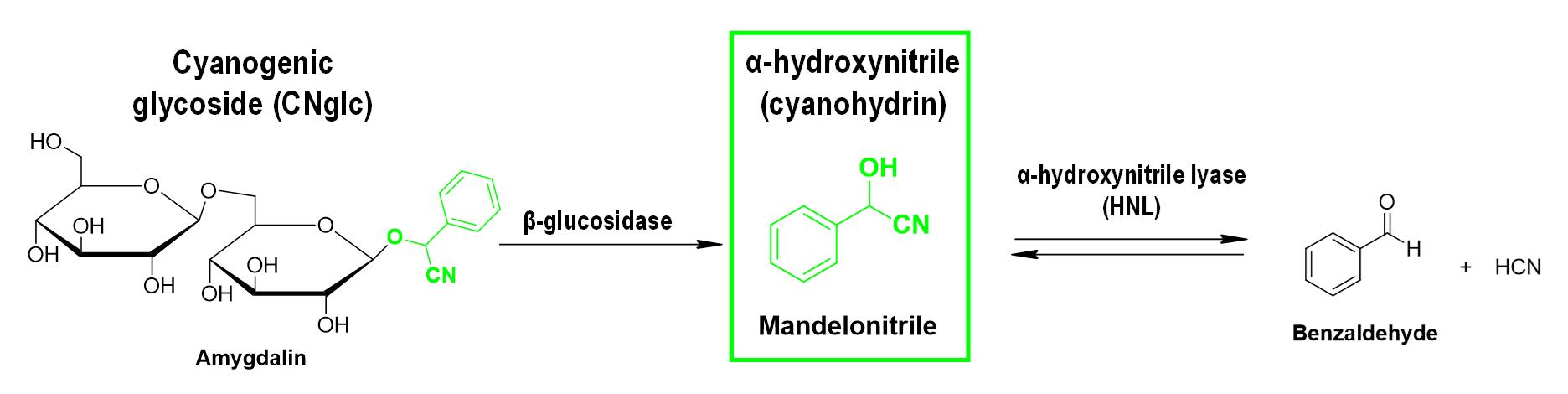

Isolation and Quantification of Mandelonitrile from Arabidopsis thaliana Using Gas Chromatography/Mass Spectrometry

Materials and reagents

Biological material

1. Arabidopsis thaliana Columbia-0 (Col-0) ecotype seeds were purchased at the Arabidopsis Biological Resource Center

2. Tetranychus urticae, London strain (Acari: Tetranychidae). Dr. Miodrag Grbic (UWO, Canada) provided the spider mite colony (see Note 1)




Materials

1. Microcentrifuge tube with safe lock 1.5 mL (Astik’s, catalog number: PCRP-015-500)

2. Pipette tips (Astik’s, catalog numbers: TIPP-1K0-10K, TIPP-200-10K, and TIPP-010-10K)

3. Peat moss (Klasmann-Deilmann, catalog number: L1070K0600)

4. Vermiculite (Valimex S.L., catalog number: 100M1006)

5. Plastic alveolus tray (Projar, catalog number: 4400000S28)

6. Cling film (KINGSWAY, catalog number: KING756046)

7. Aluminum foil (Alujet-Universal, catalog number: 293-4176)

8. Mortar and pestle (LGB, catalog number: MORN-075-001)

9. Tweezers (Clink, catalog number: FORS-003-002)

10. Micro spatula (Clink, catalog number: SPNS-150-005)

11. Centrifuge tubes with screw cap, 15 mL (Astik’s, catalog number: PTGP-E15-025)

12. Crimp neck vials ND11 (VWR, catalog number: 548-8008A)

13. Crimp caps with septa for crimp neck vials ND11 (VWR, catalog number: 548-8004A)

14. Minisart^® syringe filters PTFE 0.2 μm (Sartorius, catalog number: 17573-ACK)

15. Gas chromatography column DB-5MS UI (Agilent, catalog number: 122-5562UI)




Chemicals and solvents

1. Sodium dodecyl sulfate (SDS) (PanReac AppliChem ITW Reagents, catalog number: A2263.0100)

2. Sodium hypochlorite (PanReac AppliChem ITW Reagents, catalog number: 212297.1211)

3. Methanol (VWR, catalog number: 20864.32)

4. Mandelonitrile (Sigma-Aldrich, catalog number: 116025)

5. Ethanol absolute (VWR, catalog number: 20821.365)

6. Acetonitrile (VWR, catalog number: 83639.320)

7. 2,2,2-Trifluoro-N-methyl-N-(trimethylsilyl)acetamide (MSTFA) (Supelco, catalog number: 1.11805)

8. Silicone oil for oil baths (VWR, catalog number: 24610.363)

9. Autoclaved distilled water

10. Arabidopsis seeds sterilization solution (see Recipes)

Equipment

1. Single-channel pipettes PIPETMAN^® L P1000 (Gilson, catalog number: FA10006M)

2. Single-channel pipettes PIPETMAN^® L P200 (Gilson, catalog number: FA10005M)

3. Single-channel pipettes PIPETMAN^® L P20 (Gilson, catalog number: FA10003M)

4. Single-channel pipettes PIPETMAN^® L P2 (Gilson, catalog number: FA10001M)

5. Elmasonic S30H (Elma Schmidbauer GmbH, catalog number: 1001955)

6. Heating oven Binder E028 (BINDER GmbH, catalog number: 9010-0001)

7. Sorvall X4F Pro centrifuge (Thermo Scientific, catalog number: 75009026)

8. Digital rotary evaporator (VWR, catalog number: 531-1365P)

9. Precision balance LPW 2103i (VWR, catalog number: 611-3283)

10. Agilent 7890B gas chromatography system coupled to an Agilent 7010 triple quadrupole mass spectrometer (Agilent)

11. Freezer -80 °C

12. Sanyo MLR-350-H Panasonic growth chamber

13. Laminar flow hood

14. 4 °C chamber

Software

1. MassHunter Workstation software version B.07.01 (Agilent)

2. Microsoft office Excel

3. Statistical analysis software such as GraphPad Prism 9, OriginPro 9.0, or Statgraphics

Procedure

1. A. thaliana seeds sterilization

   1. Place approximately 80 seeds of A. thaliana Col-0 into a 1.5 mL tube.

   2. In a laminar flow hood, add 1 mL of 70% ethanol to the tubes and mix by inversion for 2 min.

   3. Remove ethanol using a micropipette, add 1 mL of Arabidopsis seeds sterilization solution (see Recipes) to the tube, and mix by inversion for 12 min.

   4. Remove the sterilization solution using a micropipette and perform five washing cycles with autoclaved distilled water.

   5. Leave the seeds in water until use (see Note 2).




2. A. thaliana seed sowing

   1. Prepare a plastic seed tray with autoclaved peat moss: vermiculite (2:1) for 20 alveolus of 6 × 6 × 8 cm.

   2. Place five sterilized seeds per alveolus avoiding corners.

   3. Cover the planted seed tray with a plastic film and leave it at 4 °C for five days to synchronize seed germination.

   4. Place the seed tray (that has been stratified at 4 °C for five days) into the growth chamber at 23 ± 1 °C, > 70% relative humidity, and a 16:8 h day/night photoperiod.

   5. Grow plants for 2–3 weeks (see Note 3).




3. A. thaliana plants infestation

Infestation assay protocol with spider mite T. urticae was previously reported by Cazaux et al. (2014).

1. Divide plants into two groups: one for control plants and the other one for infestation with T. urticae.

2. Perform the infestation. Place 20 adult female mites per plant and cover the rosette with a ventilated plastic cup to avoid mite scape. Leave in the chamber for 24 h at 25 ± 1 °C, > 70% relative humidity, and a 16:8 h day/night photoperiod.

3. Remove the plastic cup carefully, cut the rosette, and quickly freeze it in liquid nitrogen.

4. Store plant material at -80 °C until use.




4. Mandelonitrile extraction

   The mandelonitrile isolation protocol was adapted from Madala et al. (2014) as follows.

   1. Crush plant material until it reaches a fine powder using a mortar and pestle (use liquid nitrogen to prevent thawing of the material).

   2. Weigh the plant material using a precision balance (plant material ≥ 100 mg; see Note 4).

   3. In a small mortar, add 3 mL of methanol and the frozen plant material. Homogenate with a pestle and transfer the homogenate to a 15 mL Falcon tube (see Note 5).

   4. Sonicate for 20 min at room temperature (see Note 6).

   5. Incubate at 60 °C for 10 min using a heating oven.

   6. Centrifuge at 11,500× g for 5 min at room temperature.

   7. Collect the supernatants in a 10 mL flask (see Note 7) and remove the methanol on the rotary evaporator at 50 °C. Make sure that samples are completely dry (see Note 8).




5. GC/MS analyses

   1. Derivatization by silylation with N-methyl-N-(trimethylsilyl) trifluoroacetamide (MSTFA):

      1. Weigh 50 μL of mandelonitrile in a 10 mL flask to prepare the standard curve (see Note 7).

      2. Add 100 μL of MSTFA to the mandelonitrile sample and to the Col-0 samples.

      3. Mix well to achieve a homogeneous solution.

      4. Incubate at 60 °C in an oil bath for 30 min protected from light (see Note 9).

      5. Cool down the samples and the standard at room temperature.

   2. Samples and standard curve preparation for GC analyses:

      1. Prepare standard solutions of mandelonitrile (derivatized with MSTFA) in acetonitrile solvent at 2.5, 5, 10, 25, 50, 100, 250, and 500 ng/μL concentrations using 5 mL vials.

      2. Prepare samples by adding 900 μL of acetonitrile to the derivatized Col-0 samples.

      3. Filter the samples and the standards through a 0.2 μm syringe filter and place the sample and the standards in crimp neck vials for GC analyses.

   3. GC analyses:

      1. Inject 1 μL of the standard solution or the sample in a DB-5MS UI column of 60 m × 0.25 mm with 0.25 μm film thickness with a pressure of 17.7 psi, septum purge flow of 3 mL/min, and spitless time of 1.5 min (see Note 10).

      2. Set the injector temperature to 250 °C.

      3. Set the oven temperature to 60 °C, hold for 3 min, and then raise 10 °C/min up to 300 °C and maintain at 300 °C for 6 min.

      4. Set the transfer line temperature to 280 °C.

      5. Set the collision gas (nitrogen) and the quench gas (helium) with a flow rate of 1.5 mL/min and 2.25 mL/min, respectively.

      6. Set the operation mode as electron ionization mode at 280 °C and 70 eV with multiple reaction monitoring (MRM) to monitor ion transitions (see Notes 11 and 12).

   The total ion and the retention time zoom chromatograms between minutes 15 and 18 are shown in Figure 2A and 2B, respectively.

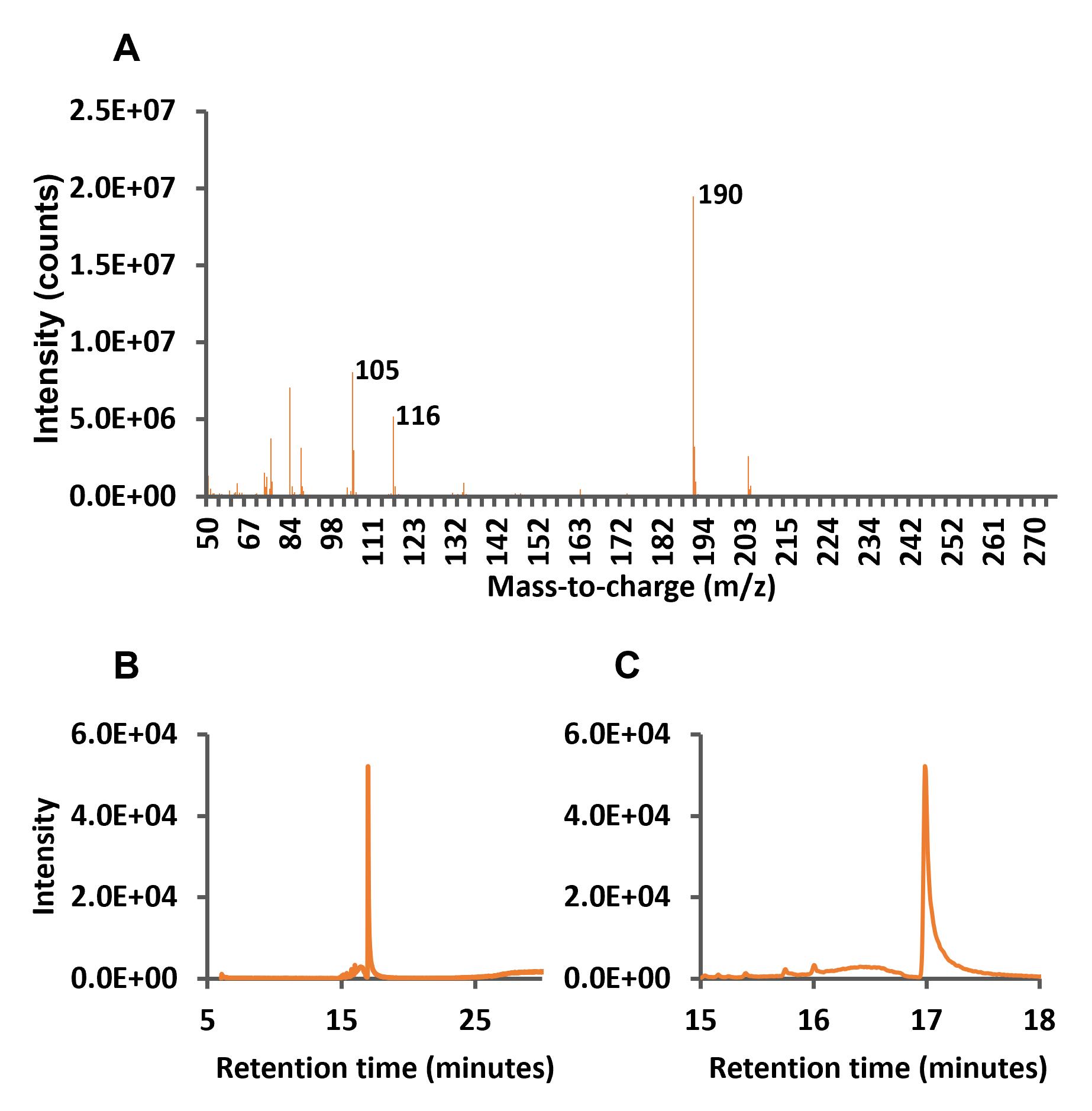

   Figure 2. Full scan and total ion chromatograms (TICs) of mandelonitrile standard. A. Full scan chromatogram of mandelonitrile indicating the selected ion products. B. TIC of mandelonitrile at 25 ng/mL. C. Amplification of the retention times between 15 and 18 min.

Data analysis

Three independent experiments of A. thaliana spider mite infestation were performed. Therefore, three independent mandelonitrile A. thaliana extractions, derivatizations, and quantifications were done, always including the standard molecule.

The product ion 190 (m/z) was designated as a quantifier ion; therefore, this product ion was selected for analyzing the standard and the samples. MassHunter Workstation software version B.07.01 was used to analyze the results and to export the data in csv format, to analyze using Excel software.

First, the standard curve was analyzed (Figure 3) by graphical representation of the intensity obtained from the mass spectrometer (from the 190-product ion peaks) vs. the mandelonitrile concentration.

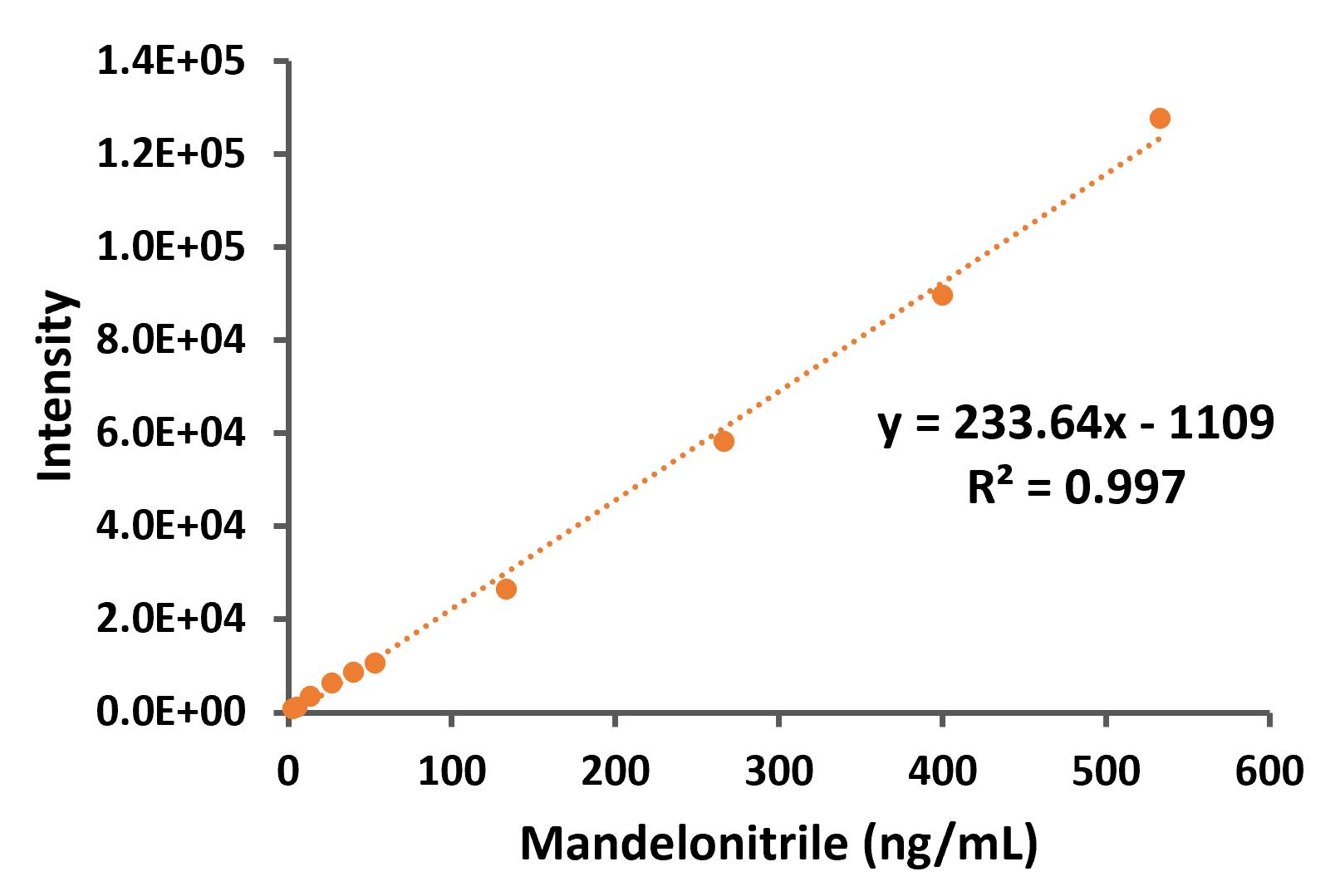

Figure 3. Standard curve of mandelonitrile derivatized

Next, the total ion chromatograms (TICs) of the samples were compared to the standard in order to find the derivatized mandelonitrile peak in the Arabidopsis samples. As shown in Figure 4, the TICs from Arabidopsis Col-0 samples present different peaks, both in the control and in the mites-infested samples, including the mandelonitrile ones marked with a red arrow in each chromatogram.

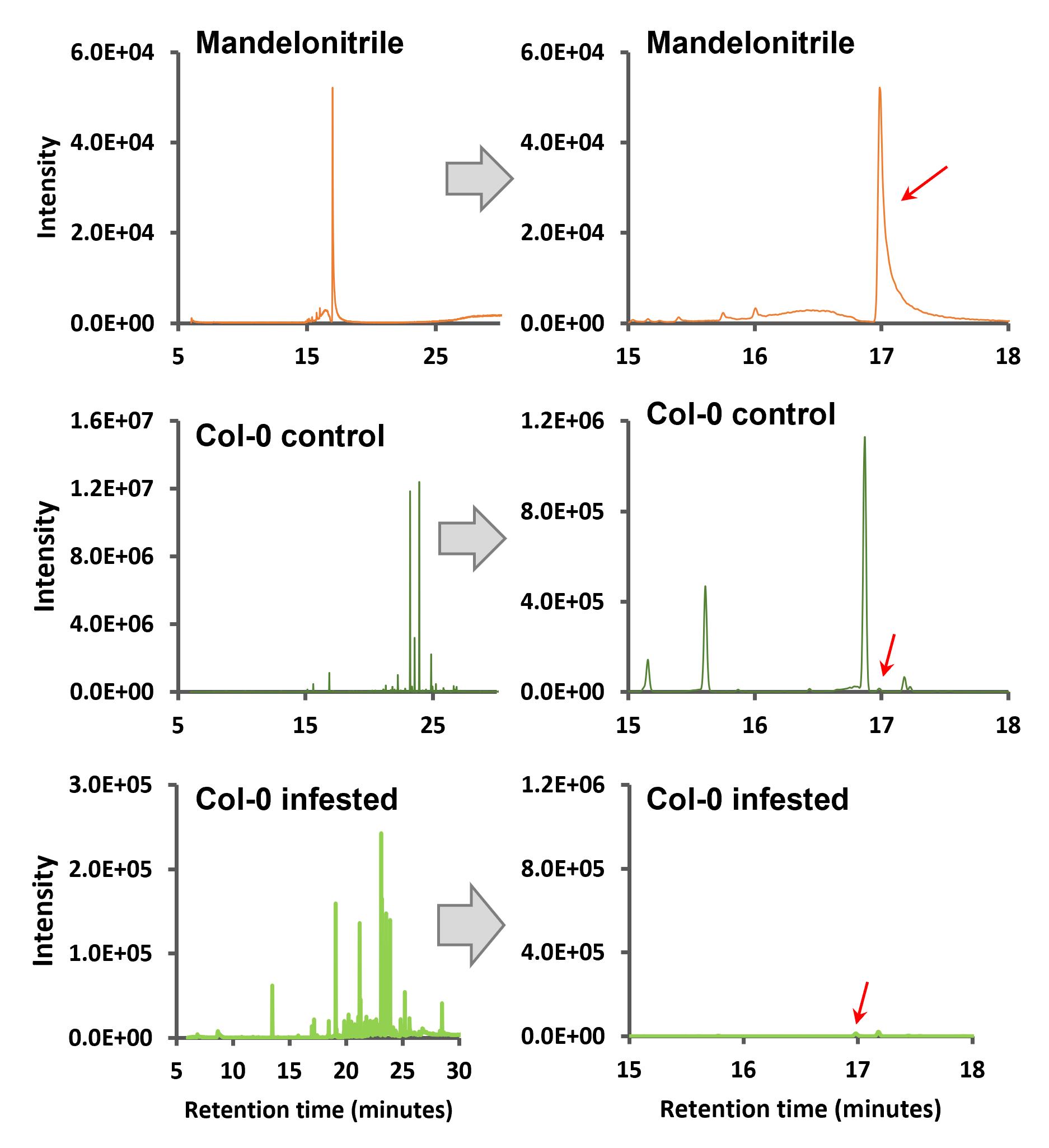

Figure 4. Total ion chromatograms of mandelonitrile and Arabidopsis Col-0 samples with their amplification zone of retention times between 15 and 18 min. Red arrows indicate the corresponding peak of mandelonitrile derivatized.

Subsequently, the corresponding chromatograms of the product ion 105 (m/z) that was selected as the qualifier ion (Figure 5), and the chromatograms of the product ion 190 (m/z) that was selected as quantifier ion (Figure 6) were analyzed.

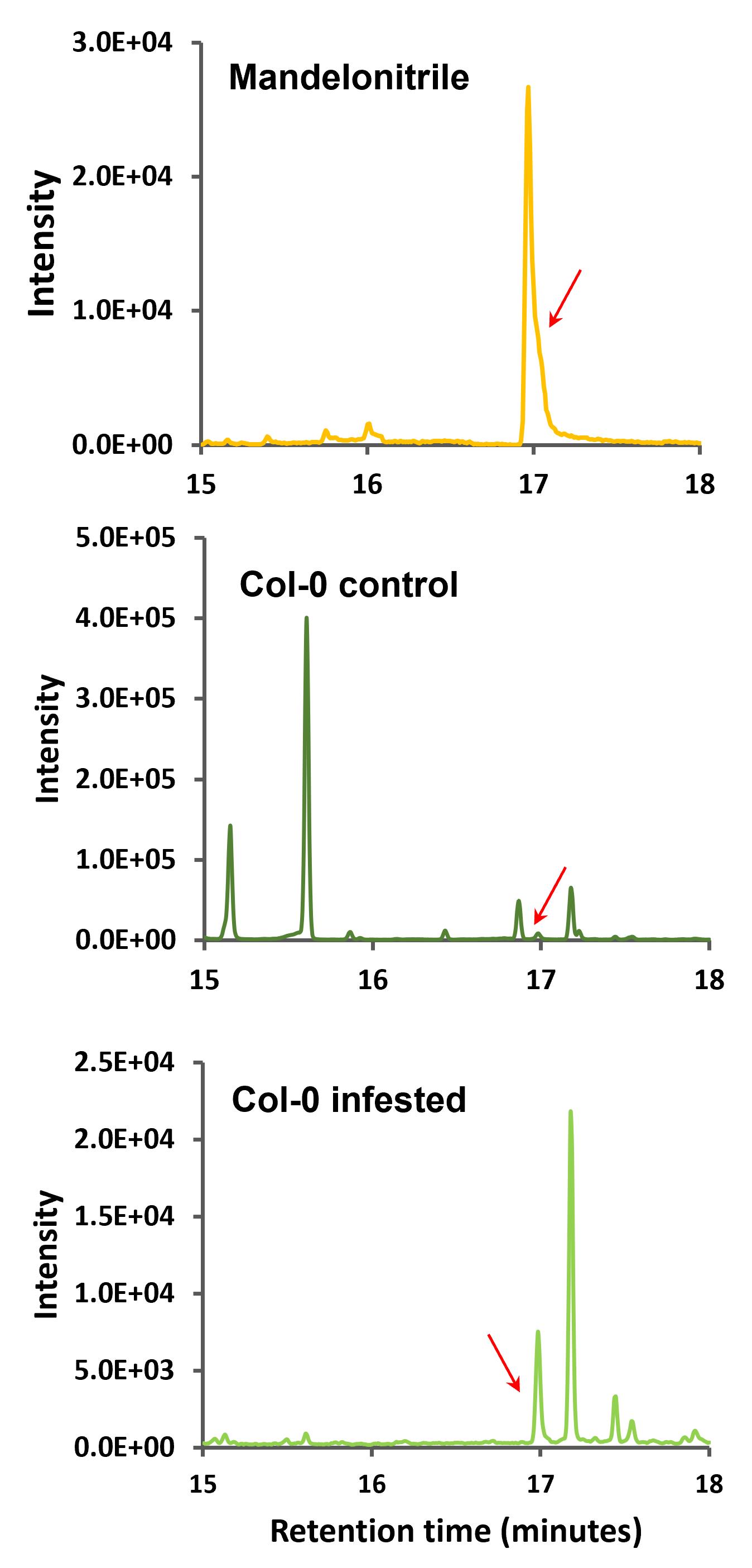

Figure 5. Multiple reaction monitoring (MRM) chromatograms of 205–105 m/z ion transition of mandelonitrile and Arabidopsis Col-0 samples. Retention time zoom between 15 and 18 min is shown, and red arrows indicate the corresponding peak of ion product 105 (m/z) of mandelonitrile derivatized.

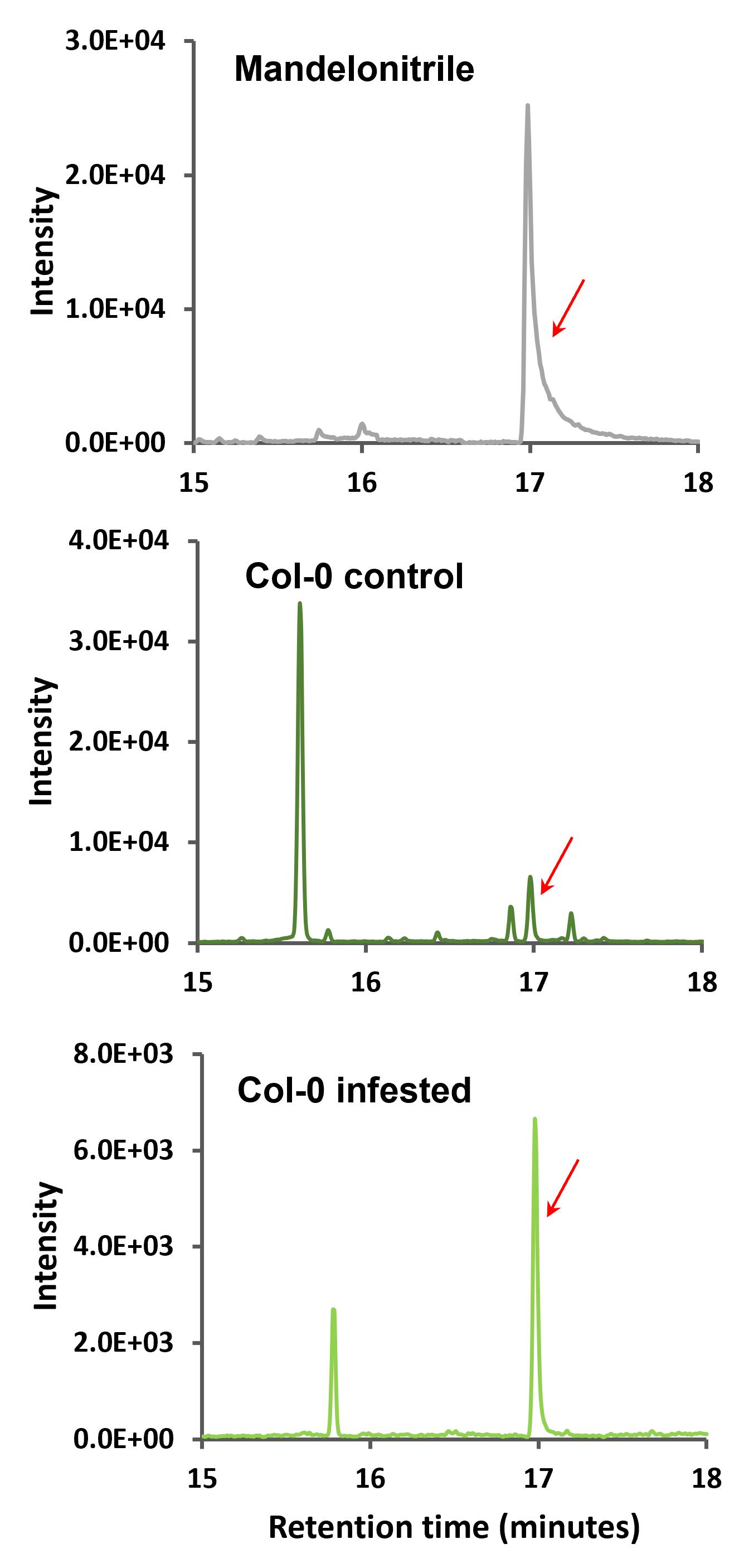

Figure 6. Multiple reaction monitoring (MRM) chromatograms of 205–190 m/z ion transition of mandelonitrile and Arabidopsis Col-0 samples. Retention time zoom between 15 and 18 min are shown, and red arrows indicate the corresponding peak of ion product 190 (m/z) of mandelonitrile derivatized.

Finally, the mandelonitrile concentration data in the A. thaliana samples were obtained and represented (Figure 7). Normality and homoscedasticity of data were analyzed using OriginPro 9.0 software. When the data fulfilled both assumptions, one-way ANOVA followed by Tukey’s test were run.

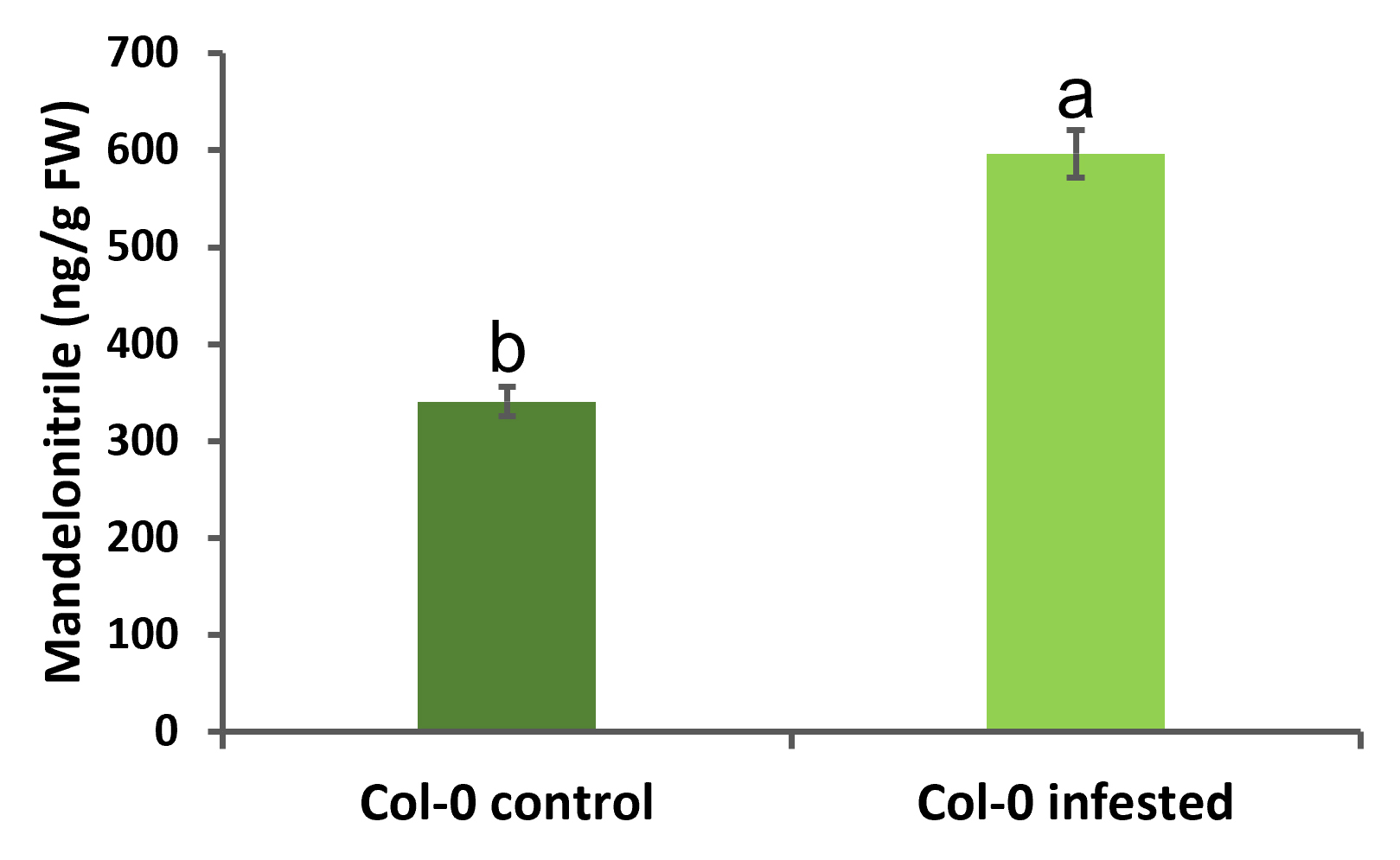

Figure 7. Mandelonitrile quantification in A. thaliana in control and infested with mites. Data are represented as nanograms of mandelonitrile/grams of fresh weight. Data are means ± SE of three biological replicates (p < 0.05, one-way ANOVA followed by Tukey’s test).

Notes

1. T. urticae colony is reared on beans (Phaseolus vulgaris) in a growth chamber at 25 °C ± 1 °C, > 70% relative humidity, and with a 16:8 h day/night photoperiod.

2. Do not leave seeds in water for more than 60 min before sowing. It is better to program the sowing to do it as soon as seed sterilization is completed.

3. Keep an eye on seed germination every two days. When seeds start germinating, perform holes in the plastic film to allow plants to acclimate to the growth chamber environment. Two or three days after making the holes, remove the plastic film. Water the trays every 2–3 days with 15 mL per alveolus (it is important to ensure that there is no humidity excess that causes condensation on the underside of the leaves). When plants have grown, remove them from each alveolus with the help of tweezers, to leave only one plant per alveolus (preferably the most centrally located plant).

4. Usually, with 10 plants, approximately 200 mg of material is obtained. It is recommended to use 100–300 mg of plant material for the mandelonitrile extraction step.

5. It is not necessary to use 15 mL Falcon tubes; other containers, such as glass flasks, can be used.

6. The ultrasonic frequency of the sonicator is 37 kHz. This frequency is a preset ultrasonic frequency of the sonicator model used.

7. 10 mL flasks were used, but smaller vials can also be used taking into account the availability of adapters for the rotary evaporator.

8. Samples have an oily appearance.

9. The use of an oil bath is not mandatory; other options can be used (water bath, incubation chamber, oven) while the sample is incubated at 60 °C. MSTFA is light-sensitive. Therefore, derivatization conditions were established using mandelonitrile; assessing if derivatization was complete was done by nuclear magnetic resonance.

10. It is recommended to include samples with only solvent (acetonitrile) between the standard and the samples to be analyzed to ensure that the system is thoroughly cleaned, in case there are any remains of the retained compound.

    It is not necessary to use a 60 m column; shorter columns (25–30 m) can also be used. Just keep in mind that if the length of the column is reduced, it may be necessary to increase the total run time.

11. The precursor ion presents an m/z of 205. The ion transitions selected as quantifier and qualifier were the product ions with an m/z of 190 and 105, respectively. The collision energy of the product ions was 5 eV and 20 eV for the 190- and 105-product ion, respectively. The product ion with an m/z of 116 was also identified in the analyses. Still, since it has a very low peak intensity, it was not used as a quantifier or a qualifier.

    It is important to analyze the three ions at the same time (triple quad) to rule out false positives or negatives. If one of the three ions does not come out right in a sample, that sample will have to be repeated.

12. Method validation was performed by Arnaiz et al. (2022), with a limit of detection and quantification of 5 ± 1 ng/mL and 12 ± 2 ng/mL, respectively.

Recipes

1. Arabidopsis seeds sterilization solution

   1% SDS, 5% sodium hypochlorite

Acknowledgments

This work was supported by funds of “La Caixa” Foundation (LCF/PR18/51130007) and Ministerio de Universidades-European Union in the frame of NextGenerationEU RD 289/2021 (Universidad Politécnica de Madrid).

This protocol was derived from the original research published in Arnaiz et al. (2022).

Competing interests

The authors declare no financial and non-financial competing interests.
