A Modified Acyl-RAC Method of Isolating Retinal Palmitoyl Proteome for Subsequent Detection through LC-MS/MS

Materials and Reagents

1. Eppendorf 1.5 mL tubes (Thermo Fisher Scientific, catalog number: 05-408-129)

2. 1 M HEPES, pH 7.5 (Thermo Fisher, catalog number: 15630080)

3. 5 M NaCl (Thermo Fisher Scientific, catalog number: 00622643)

4. 500 mM EDTA (Thermo Fisher Scientific, catalog number: AM9260G)

5. Sodium dodecyl sulfate (SDS) (Sigma-Aldrich, catalog number: 8170341000)

6. Hydroxylamine-HCl (Thermo Fisher Scientific, catalog number: 270100010)

7. Pierce protease inhibitor tablet, EDTA free (Thermo Fisher Scientific, catalog number: A32955)

8. Phosphatase inhibitor (Thermo Fisher Scientific, catalog number: J63907.AA)

9. HDSF (Santa Cruz, catalog number: sc-221708A)

10. Methyl methanethiosulfonate (MMTS) (Sigma-Aldrich, catalog number: 2949920)

11. 100% acetone (Thermo Fisher Scientific, catalog number: 186947)

12. 2-Mercaptoethanol (β-ME) (Calbiochem, catalog number: UN2966)

13. 1 M dithiothreitol (DTT) (Sigma-Aldrich, catalog number: D0632)

14. Agarose S3 high-capacity acyl-RAC capture resin (Nanocs, catalog number: AR-SS-2)

15. 0.5 M Tris-HCl, pH 6.8 (Thermo Fisher Scientific, catalog number: J63735.K2)

16. 100% glycerol (Thermo Fisher Scientific, catalog number: 15548224)

17. Bromophenol blue (Sigma-Aldrich, catalog number: B5525)

18. 3 kD cutoff centrifugal filter (Millipore, catalog number: Z677094)

19. Trichloroacetic acid (TCA) (Thermo Fisher Scientific, catalog number:184151000)

20. Coomassie stain (Bio-Rad, catalog number:1610786)

21. Triton X-100 (Sigma-Aldrich, catalog number: 9036195)

22. Sodium hydroxide (NaOH) (Thermo Fisher Scientific, catalog number: A16037.36)

23. Lysis buffer base (see Recipes)

24. Lysis buffer – working solution (see Recipes)

25. Binding buffer (see Recipes)

26. Blocking buffer (see Recipes)

27. 5× Laemmli sample buffer (see Recipes)

28. 1× Laemmli sample buffer (see Recipes)

29. 1 M dithiothreitol (DTT) (see Recipes)

30. 100% TCA stock preparation (w/v) (see Recipes)

31. Tris-glycine SDS running buffer (Thermo Fisher Scientific, catalog number: LC26755) (see Recipes)

32. 70% acetone (see Recipes)

33. 2 M hydroxylamine (see Recipes)

34. 2 M sodium chloride (see Recipes)

35. 5 M sodium hydroxide (See Recipes)

36. 10% Triton X-100 (see Recipes)

Equipment

1. Sonicator (Fisher, Microson Ultrasonic cell disruptor, model: CL-18)

2. Heat block (Thermo Fisher Scientific, catalog number: 11715125D)

3. Vortex (Scientific Industries, model: G-560)

4. Centrifuge, (Eppendorf, catalog number: 0011627)

5. Nutator (Thermo Fisher Scientific, model: 88881001)

Software

1. Excel 2016 (Microsoft)

2. GraphPad Prism (Version 9.0)

3. Adobe Illustrator 2023

4. CSS-Palm 4.0 – Palmitoylation Sites Prediction tool (Ren et al., 2008)

Procedure

1. Tissue lysis

   1. Take four freshly collected or flash-frozen mouse retinae in a 1.5 mL Eppendorf tube and add 300 μL of lysis buffer (see Recipes) (Murphy and Kolandaivelu, 2016).

   2. Sonicate the tissue at 12–15 psi thrice, four seconds each, with 30 s of incubation on ice between pulses.

   3. To solubilize the proteins, add 33 µL of 10% Triton X-100 (to a final concentration of 1% Triton X-100) and nutate the samples at 4 °C for 15 min.

   4. Remove cell and nuclear debris by centrifuging at 200 × g and 4 °C for 3 min and transfer the supernatant into a fresh 1.5 mL tube.




2. Blocking free thiol groups

   1. Prepare blocking buffer containing MMTS (add 4 µL of MMTS per every 300 µL of blocking buffer).

   2. Separate supernatant from step A4 into 100 µL aliquots (in 1.5 mL tubes) and add three volumes of blocking buffer containing MMTS (300 µL).

      Note: Briefly vortex the reaction mixture before each use to keep the solution homogeneous.

   3. Incubate samples in the heat block at 40 °C for 16 min with a 5 s vortex every 2 min.




3. Protein precipitation

   1. Add 1.1 mL of 100% ice-cold acetone into each tube, invert thrice, and incubate at -20 °C for 20 min.

   2. Centrifuge samples at 20,000 × g and 4 °C for 15 min to pellet the proteins.

   3. Discard the supernatant and wash the protein pellet four times with ice-cold 70% acetone by gentle vortexing followed by centrifugation at top speed for 1 min at 4 °C.

      Note: Dislodge the pellet during the first wash to remove the residual MMTS between the pellet and the Eppendorf tube wall.




4. Cleaving thioester bonds with hydroxylamine (HA) & capturing palmitoylated proteins using agarose S3 high-capacity acyl-RAC resin

   1. Air-dry the protein pellet at room temperature (RT) for ~30 min to remove residual acetone.

      Note: Do not over-dry the protein pellet to avoid issues with resuspension.

   2. Resuspend each pellet in 200 µL of binding buffer by brief sonication and pool samples into one tube (e.g., 200 µL × three tubes = 600 µL).

   3. Pipette 40 µL of agarose S3 high-capacity resin into each of the two clean 1.5 mL Eppendorf tubes labeled as Elute + HA (E +HA) and Elute - HA (E -HA) and wash to equilibrate the resin with 500 µL of binding buffer once. Allow the beads to pellet by gravity and discard the wash buffer.

      Note: Make sure the resin is homogeneously resuspended before use.

   4. Pipette 75 µL of the pooled sample to a clean 1.5 mL Eppendorf tube labeled as Total.

   5. Add 250 µL of sample to each of the E +HA and E -HA tubes (if there is more sample volume, add additional beads accordingly and split equal sample volume for +HA and -HA; if there is less sample volume, make it up to 600 µL with elution buffer).

   6. Add 45 µL of 2 M hydroxylamine to the E +HA tube and add 45 µL of 2 M sodium chloride to the E -HA tube.

   7. Nutate all samples, including the total fraction sample at RT for 2 h.

   8. Let the beads fall by gravity and collect 75 µL of the supernatant from each of the E +HA and E-HA tubes into clean 1.5 mL Eppendorf tubes labeled as Unbound +HA (UB +HA) and Unbound -HA (UB -HA), respectively.




5. Elution of bound protein

   1. Wash E +HA and E -HA beads by adding 1 mL of binding buffer and gently inverting the tubes approximately six times. Let the beads fall by gravity and discard the supernatant. Repeat the wash step three more times.

   2. Add 75 µL of binding buffer containing 10 mM DTT to each of the E +HA and E -HA tubes and incubate at RT for 10 min to elute the bound proteins.

      Note: To make the above elution buffer, add 10 µL of 1M DTT in 990 µL of binding buffer and mix thoroughly by vortexing. Scale up as needed.

   3. Repeat the elution step 2–3 times and pool the eluates.

      Note: The majority (90%) of proteins are eluted in the first fraction (i.e., elute 1). Check each eluted fraction by western blotting with known palmitoylated proteins, e.g., Rhodopsin, Goα, and PRCD. If the second and third elute show significant amounts of known palmitoylated proteins, pool the eluates and use TCA precipitation or suitable Microcon cutoff filters to concentrate the samples.

   4. To concentrate the samples, transfer the pooled eluates to Pierce Concentrator 3K MWCO filter and centrifuge at 6,000–9,000 × g for 30 min at RT.

      Notes:

      1. Samples can be stored at -20 °C for approximately one month until further processing.

      2. Optional: Eluates can be further concentrated by using TCA precipitation. See the protocol below.


      TCA precipitation

      1. Add one volume of TCA [50 µL of 100% TCA stock preparation (w/v)] to four volumes of protein samples (200 µL of eluted protein samples) and incubate the tubes for 15 min on ice.

      2. Centrifuge the tubes at 18,400 × g and 4 °C for 5 min to pellet the proteins.

      3. Carefully remove the supernatant, leaving the protein pellet intact.

      4. Wash the pellet with 200 µL of ice-cold acetone and centrifuge the tube at 18,500 × g and 4 °C for 5 min. Discard the supernatant and repeat the wash step.

      5. Air-dry the pellet for 5–10 min to remove residual acetone.




6. Identification of palmitoylated protein by SDS-PAGE/ LC-MS/MS

   1. To perform immunoblotting, add 18.75 µL of 5× Laemmli sample buffer containing a final concentration of 5% 2-mercaptoethanol (β-ME) and 10 mM DTT to 75 µL of Total and Unbound samples.

   2. Add 70 µL of 1× Laemmli sample buffer containing 5% β-ME and 10 mM DTT to both +HA and -HA eluted fractions.

   3. Let the tubes sit at RT for 20 min with intermittent mixing every 5 min.

   4. Boil the samples for 5 min on a floating rack in the water bath and centrifuge at 6,000 × g for 30 s at RT.

   5. To detect palmitoylated proteins by mass spectrometry, run the samples on a 12% SDS-PAGE gel at 80 V for 30 min (Figures 1 and 2).

      Note: Ensure the electrophoresis equipment is thoroughly cleaned with ddH₂O and use fresh SDS-PAGE buffer.

   6. Transfer the gel onto a clean glass tray and perform Coomassie staining (Figure 3A).

   7. After overnight destaining with Milli-Q water (autoclaved), cut the protein bands to perform in-gel digestion (see Figure 3A) and process the samples for LC-MS/MS analysis (Edmonds et al., 2017)

   8. For additional validation, perform immunoblotting and probe the blots with antibodies against the proteins of interest to identify/show their palmitoylation status (Figures 1 and 2).

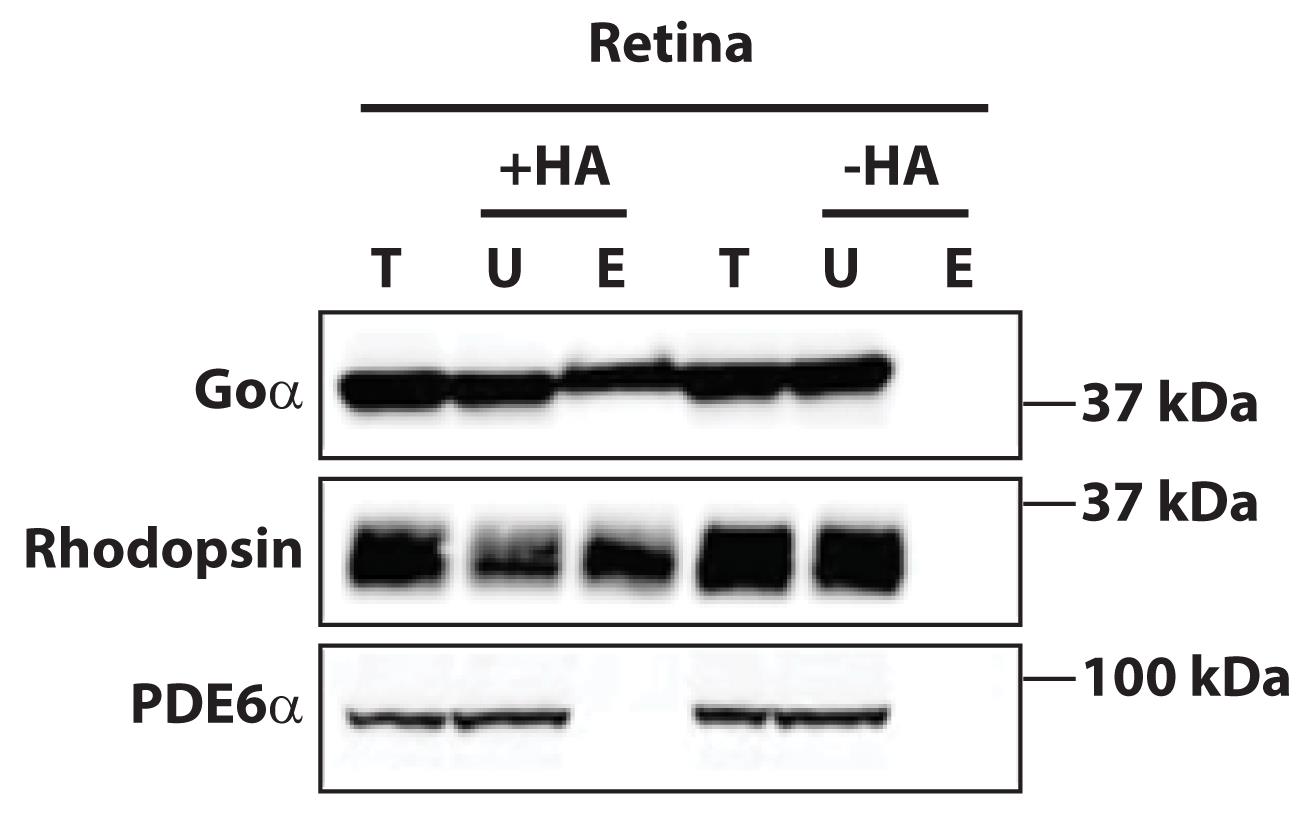

      Figure 1. Acyl resin–assisted capture (Acyl-RAC) validation by immunoblotting of known palmitoylated proteins. Purification and detection of known palmitoylated proteins Goα (top panel) and rhodopsin (middle panel) in the wild-type mice retina using thiopropyl Sepharose 6B beads. Phosphodiesterase-6 (PDE6α), a prenylated protein, is not palmitoylated and serves as a control (bottom panel). HA = Hydroxylamine, T = Total, U = Unbound, E = Eluted. Elution in the presence of HA (+HA) represents the isolation of palmitoylated proteins fraction. Elution in the absence of HA (-HA) is used as an internal control to validate the purification scheme.

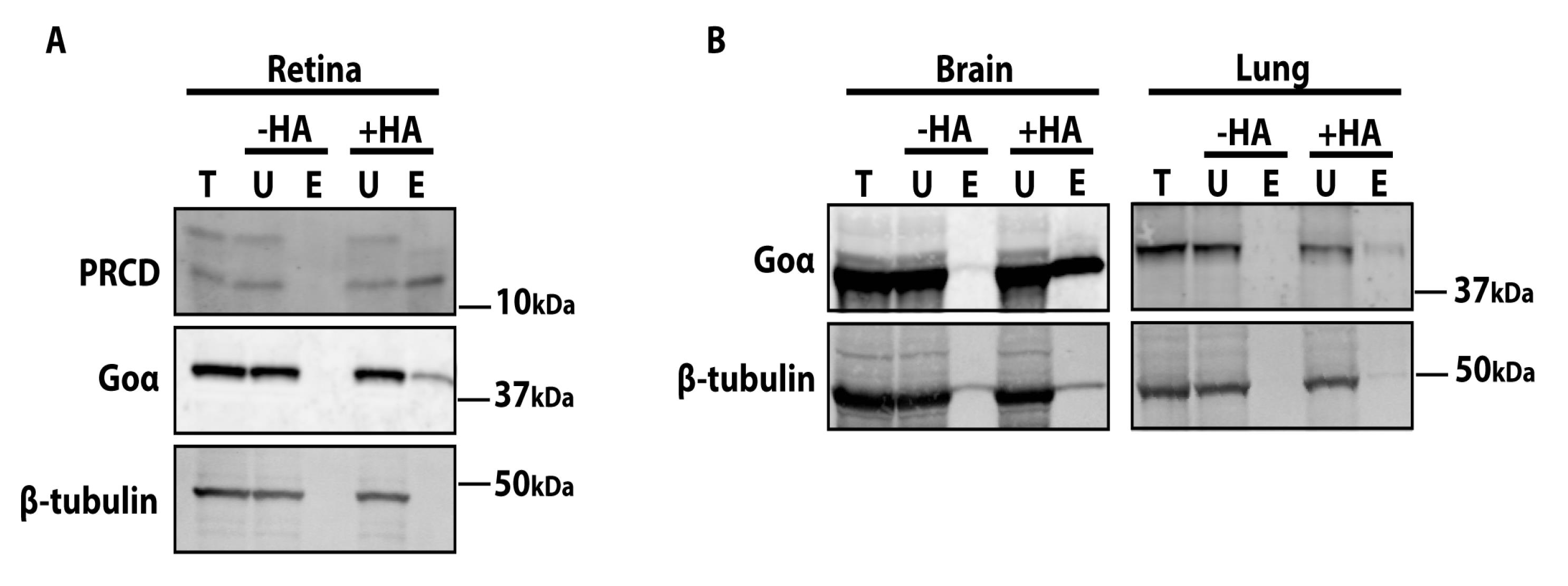

      Figure 2. Western blots demonstrating the purification of palmitoylated proteins using agarose S3 beads. A. Palmitoylated proteins isolated from retinal extracts using agarose S3 high-capacity beads were separated by 4%–20% SDS-PAGE and immunoblotted with known palmitoylated proteins, namely progressive rod-cone degeneration (PRCD, top panel) and Goα (middle panel). β-tubulin (bottom panel) is not palmitoylated and serves as a control. B. Western blots showing efficient isolation of palmitoylated proteins from other tissues (brain and lung) using the present Acyl-RAC protocol. Blots are probed with Goα (positive control, top panel) and β-tubulin (negative control, bottom panel).

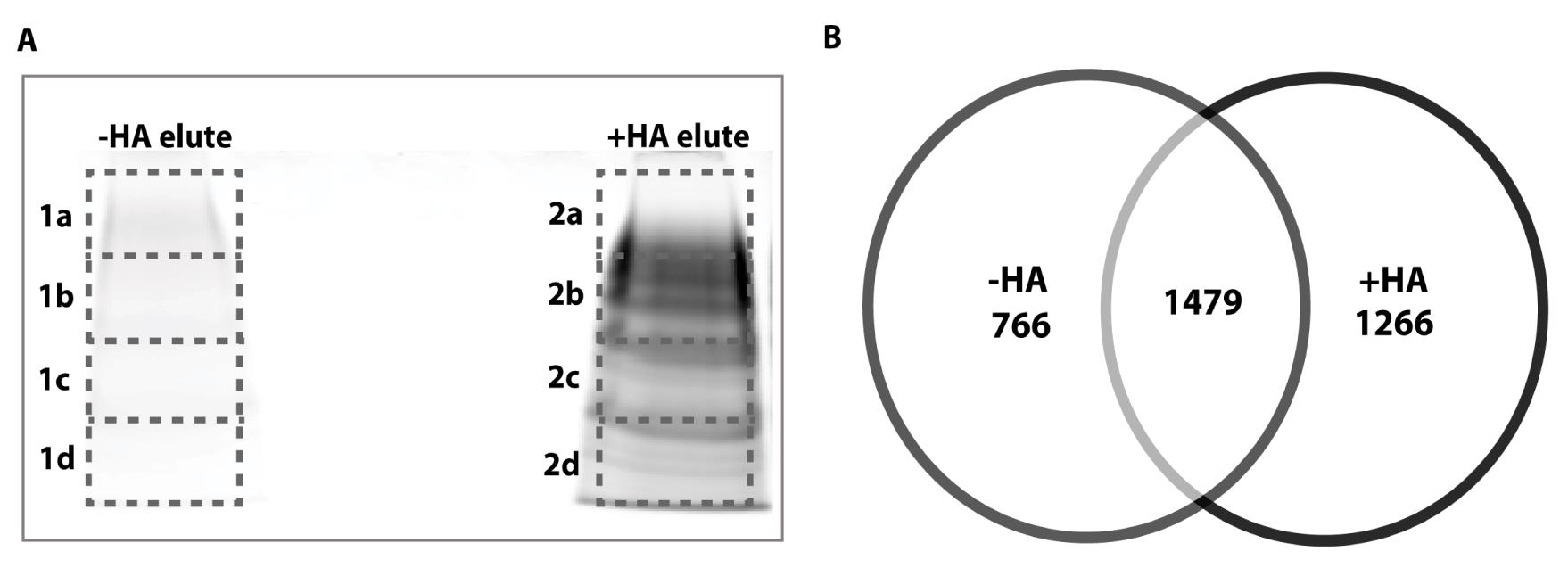

      Figure 3. Retinal palmitoyl proteins identified through LC-MS/MS. A. SDS-PAGE followed by Coomassie staining: elutes from -HA (left lane, control) and +HA (right lane) beads were separated on a 10% polyacrylamide gel and stained with Coomassie blue for 1 h at RT, followed by overnight destaining with autoclaved Milli-Q water to visualize the protein bands. The protein bands were cut (as indicated by dotted lines) with a clean blade to perform in-gel digestion, and samples were sent to Harvard Mass spec core for LC-MS/MS to identify retinal palmitoyl proteins. B. Venn diagram showing the total number of unique proteins detected in -HA and +HA fractions. The overlap indicates non-specific proteins detected in both fractions.

Data analysis

Using Microsoft Excel, we identified potential palmitoylated proteins exclusively present in the +HA fraction. Proteins detected in both +HA and -HA fractions are considered non-specific proteins and were excluded from the analyses. To validate the protocol, we show the list of previously known palmitoylated proteins (Table 1) and uncharacterized palmitoylated proteins (Table 2) that are captured by the assay, based on comparisons with published literature. CSS Palm 4.0 – Palmitoylation Sites Prediction software was used to predict the potential palmitoylation sites, with high/medium confidence thresholds, for all the proteins listed in the tables (Ren et al., 2008).

Table 1. Known palmitoylated proteins captured by Acyl-RAC. A list of retinal palmitoylated proteins detected in the +HA fraction by LC-MS/MS that were compared with published literature to confirm the palmitoylation status

Table 2. Potentially palmitoylated retinal proteins captured by Acyl-RAC.

A list of uncharacterized retinal palmitoylated proteins detected in the +HA fraction by LC-MS/MS.

Recipes

1. Lysis buffer base

   25 mM HEPES (1.25 mL of 1 M HEPES, pH 7.5)

   25 mM NaCl (250 µL of 5 M NaCl)

   1 mM EDTA (100 µL of 500 mM EDTA)

   Up to 50 mL with Milli-Q water

   Store at RT




2. Lysis buffer – working solution

   10 mL of lysis buffer base

   1 Pierce protease inhibitor mini tablet, EDTA-free

   10 µL of phosphatase inhibitor

   10 µL of HDSF (depalmitoylation inhibitor)

   Store at -20 °C




3. Binding buffer

   100 mM HEPES (5 mL of 1 M HEPES, pH 7.5)

   1 mM EDTA (100 µL of 500 mM EDTA)

   1% SDS (5 mL of 10% SDS solution)

   Up to 50 mL with reverse osmosis (RO) water

   Store at RT




4. Blocking buffer

   100 mM HEPES (5 mL of 1 M HEPES, pH 7.5)

   1 mM EDTA (100 µL of 500 mM EDTA)

   2.5% SDS (12.5 mL of 10% SDS solution)

   Up to 50 mL with RO water

   Store at RT




5. 5× Laemmli sample buffer

   3.0 g of SDS

   15 mL of 0.5 M Tris-HCl, pH 6.8

   15 mL of 100% glycerol

   0.02% bromophenol blue

   Aliquot 950 µL per tube and store at -20 °C

   Before use, add 50 µL of β-ME and 10 mM DTT (10 µL of 1 M DTT) to the tube and vortex to mix thoroughly.




6. 1× Laemmli sample buffer

   Dilute 5× Laemmli sample buffer (with β-ME and DTT) with autoclaved distilled/Milli-Q water. Vortex to mix thoroughly. Store at -20 °C.




7. 1 M dithiothreitol (DTT)

   154.2 mg of DTT

   1 mL of autoclaved Milli-Q water

   Aliquot and store at -20 °C




8. 100% TCA stock preparation (w/v)

   Dissolve 27.5 g of TCA in 20 mL of Milli-Q water.

   After dissolving, make up to 50 mL with Milli-Q water

   Store at 4 °C




9. 1× SDS-PAGE running buffer

   500 mL of 10× Tris-glycine SDS running buffer

   4500 mL of RO water

   Mix thoroughly and store at RT




10. 70% acetone

    70 mL of 100% acetone + 30 mL of autoclaved Milli-Q water

    Store at RT




11. 2 M hydroxylamine (freshly prepare for every assay)

    69.49 mg of hydroxylamine-HCl

    Dissolve with 300 µL of autoclaved Milli-Q water

    Adjust to pH 7.5 with NaOH

    Make up to 500 µL with autoclaved Milli-Q water




12. 2 M sodium chloride

    200 µL of 5 M NaCl + 300 µL of autoclaved Milli-Q water

    Store at RT




13. 5 M sodium hydroxide

    Dissolve 10 g of NaOH pellets in 40 mL of autoclaved Milli-Q water and let it cool

    Bring the final volume to 50 mL

    Store at RT in the corrosive cabinet




14. 10% Triton-X 100

    Dissolve 5 mL of Triton X-100 in 45 mL of autoclaved Milli-Q water

    Mix thoroughly and store at 4 °C
