Analysis of Mouse Brain Sections by Live-cell Time-lapse Confocal Microscopy

Materials and Reagents

1. 15 mL Falcon tube for melting the agarose II (Corning, Falcon, catalog number: 14-959-53A)

2. 3.5 × 1.0 cm Petri dish for mounting the fresh brain (Thermo Fisher Scientific, Nunc Petri Dish, catalog number: 150318)

3. Extra thick filter paper, precut (Bio-Rad, catalog number: 1703967)

4. 10 cm Petri dish for carrying the new brain dissection (Thermo Fisher Scientific, Nunc Petri Dish, catalog number: 263991)

5. 1/16’’, 3/16’’ inner diameter (i.d.) tubing to connect medium syringe to the sample chamber in the heater (ValveBank 4 II)

6. 5/16’’ i.d. silicone tubing for bubbling

7. 4 mm with medium-grit sandpaper (3M, catalog number: 9002NA-20-CC)

8. 60 mL syringe

9. Transgenic mouse (Ai14, JAX, catalog number: 007914)

10. Agarose II (low melting point) (Amresco, catalog number: 17856)

11. 2 L flask for carrying 1× artificial cerebral spinal fluid (ACSF)

12. Gas cylinder of 95% O₂/5% CO₂ gas

13. D-(+)-Glucose monohydrate (Millipore, catalog number: 49159)

14. NaCl (Fisher, catalog number: BP358-10)

15. KCl (Fisher, catalog number: BP366-1)

16. MgCl₂·6H₂O (Fisher, catalog number: BP214-500)

17. CaCl₂·2H₂O (Sigma, catalog number: 223506)

18. NaH₂PO₄·H₂O (Sigma, catalog number: S9638)

19. NaHCO₃ (Sigma, catalog number: S6014)

20. Deionized water (Millipore Milli-Q^® Integral 5 Water Purification System, catalog number: ZRXQ005US)

21. Dulbecco’s modified Eagle medium (DMEM), high glucose (Sigma, catalog number: D0822)

22. Matrigel membrane matrix (Corning, Matrigel, catalog number: 356234)

23. 10× ACSF solution I (see Recipes)

24. 10× ACSF solution II (see Recipes)

25. 1× ACSF (see Recipes)

Equipment

1. Electroporation (Harvard Apparatus, ECM 830)

2. Vibratome (Leica VT 1000)

3. ValveBank 4 II perfusion system (or similar systems)

4. Tissue culture incubator (37 °C, 5% CO₂)

5. High pressure gas cylinder of 95% O₂/5% CO₂

6. Homemade sample dish modified from a 3.5 × 1.0 cm Petri dish. The height of the wall of the dish was reduced from 10 to 4 mm by grinding on a medium-grit sandpaper (e.g., 100 grit). The bottom of the dish was thinned by grinding on a fine-grit sandpaper (e.g., 600 grit).

7. Stage sample dish heater (Bioscience Tools, TC-E35)

8. Temperature controller (Bioscience Tools, TC-1-100)

9. Temperature fiber, miniature 0.87 mm (Bioscience Tools, TC-TP)

10. Silicon lid for the sample dish (Bioscience Tools, CSC-10P)

11. Vacuum oil pump (Fisher, VLP-200-115)

12. Confocal microscope (Leica SP5)

Software

1. ImageJ (NIH, https://imagej.nih.gov/ij/)

2. LAS X (Leica Microsystems, https://www.leica-microsystems.com/products/microscope-software/p/leica-las-x-ls/)

Procedure

1. Animal preparation

   The migrating pyramidal neurons can be labeled by in utero electroporation (IUE) or induced by tamoxifen injection, which activates nestin-CreERt2 and tdTomato expression in transgenic mouse. IUE can be performed at 14.5 embryonic (E) days to label the upper cortical pyramidal neurons. The IUE electroporation protocol has been published previously (Yang et al., 2022), and is briefly described below:

   1. A timed pregnant mouse is anesthetized.

   2. An incision is made on the belly cavity to expose the uterus.

   3. 1–2 µL of DNA solution (plasmids for RFP or GFP expression) is injected into the lateral ventricle of the embryonic head, which can be seen easily across the transparent uterus wall.

   4. Five electric pulses (35–50 V) are delivered across the pup brain, whose neural progenitor cells along the lateral ventricle take up the DNA.

   5. The offspring of these progenitors have fluorescently labeled pyramidal neurons.

   Alternatively, the upper cortical pyramidal neurons can also be labeled in an inducible transgenic mouse. At E14.5, intraperitoneal tamoxifen injection into the pregnant mouse induces Cre expression in nestin-CreERt2;Ai14 embryos, which, in turn, induces tdTomato expression in neural progenitor cells and their progeny.




2. Time-lapse imaging

   1. Embedding and sectioning the brain (Video 1)

      1. Before dissecting the embryonic brain out, prepare 1 L of fresh 1× ACSF from 100 mL of 10× ACSF solution I, 100 mL of 10× ACSF solution II, and 800 mL of deionized water. Some precipitation will occur along with a decrease in transparency. Bubble 95% O₂/5% CO₂ gas into 1× ACSF on ice until the solution becomes transparent. Before use, add 5–10 g of D-(+)-Glucose monohydrate (glucose) to the 1 L of freshly prepared 1× ACSF and agitate to dissolve.

      2. Add 0.4–0.5 g of agarose II to 12 mL of 1× ACSF and microwave the suspension 4–5 times for 5 s, to melt the agarose without boiling the 1× ACSF solution. Then, let the agarose cool down to 40–45 °C.

      3. During the agarose cooling period, dissect the embryonic brain and keep it in 1× ACSF on ice.

      4. When the temperature of the agarose solution has reached 40–45 °C, pour it into a 3.5 cm Petri dish and transfer the brain into the agarose solution. Use a spatula to stir the agarose around the brain. This step replaces the 1× ACSF surrounding the brain with agarose solution, which permits the agarose to thoroughly attach to the surface of the brain. There is no particular orientation or position in which the brain should be placed in the Petri dish.

      5. Add the lid to the dish and bury the entire dish in ice for 5 min to solidify the agarose quickly.

      6. Trim the brain out of the Petri dish in trapezoid shape gel with the olfactory bulb facing the short side. Glue the long side of the trapezoid onto the ice-cold steel stage of a vibratome. Keep the steel stage on ice.

      7. Prepare the vibratome by filling the space between the inner and outer chambers with ice. Add ice-cold 1× ACSF to the inner chamber. Insert the steel stage to the slot in the inner chamber and ensure the ice-cold 1× ACSF covers the whole brain sample.

      8. Section the brain coronally into 300 µm slices and keep them in ice-cold 1× ACSF until the next step.

      Tip 1: For the brain slice to survive, the whole sectioning process should be handled at ice-cold temperatures.

      Tip 2: The 1× ACSF should be freshly prepared and always bubbled with 95% O₂/5% CO₂.




      Video 1. Embedding the brain in agarose and sectioning it with a vibratome




   2. Mounting the brain slice into a chamber specially fit for the microscope stage heater

      1. The custom homemade chamber should be prepared ahead of time. Take a 3.5 cm Petri dish and reduce the height of the side wall to approximately 4 mm with medium-grit sandpaper (Figure 1A, middle). Then, use fine-grit sandpaper (Lot Fancy, 600 grit) to grind the bottom to remove 50% thickness. This facilitates heat penetration through the chamber bottom.

      2. Thaw Matrigel on ice before the brain is dissected and dilute it with an equal volume of ice-cold DMEM.

      3. Select the two best labeled brain slices using a fluorescent stereomicroscope.

      4. Cut a thick filter paper into a 0.5 × 1.0 cm rectangle and soak it in ice-cold 1× ACSF. Scoop the filter paper under the brain slices to attach them to the filter paper and lift them out from the 1× ACSF.

      5. Place the filter paper–supported brain slice on the middle of the homemade chamber and then remove the agarose surrounding the brain slice with a spatula (Figure 1A, middle).

      6. Mount the brain slice/filter paper with the DMEM-diluted Matrigel in the middle of the 3.5 cm chamber (Figure 1B). Place the chamber in the tissue culture incubator (37 °C, 5% CO₂) to solidify the Matrigel.

      Tip 1: The mounting agarose II gel is removed because it may block cortical outgrowth.

      Tip 2: Diluted Matrigel is softer and provides the developing brain slice with enough support but more flexibility.

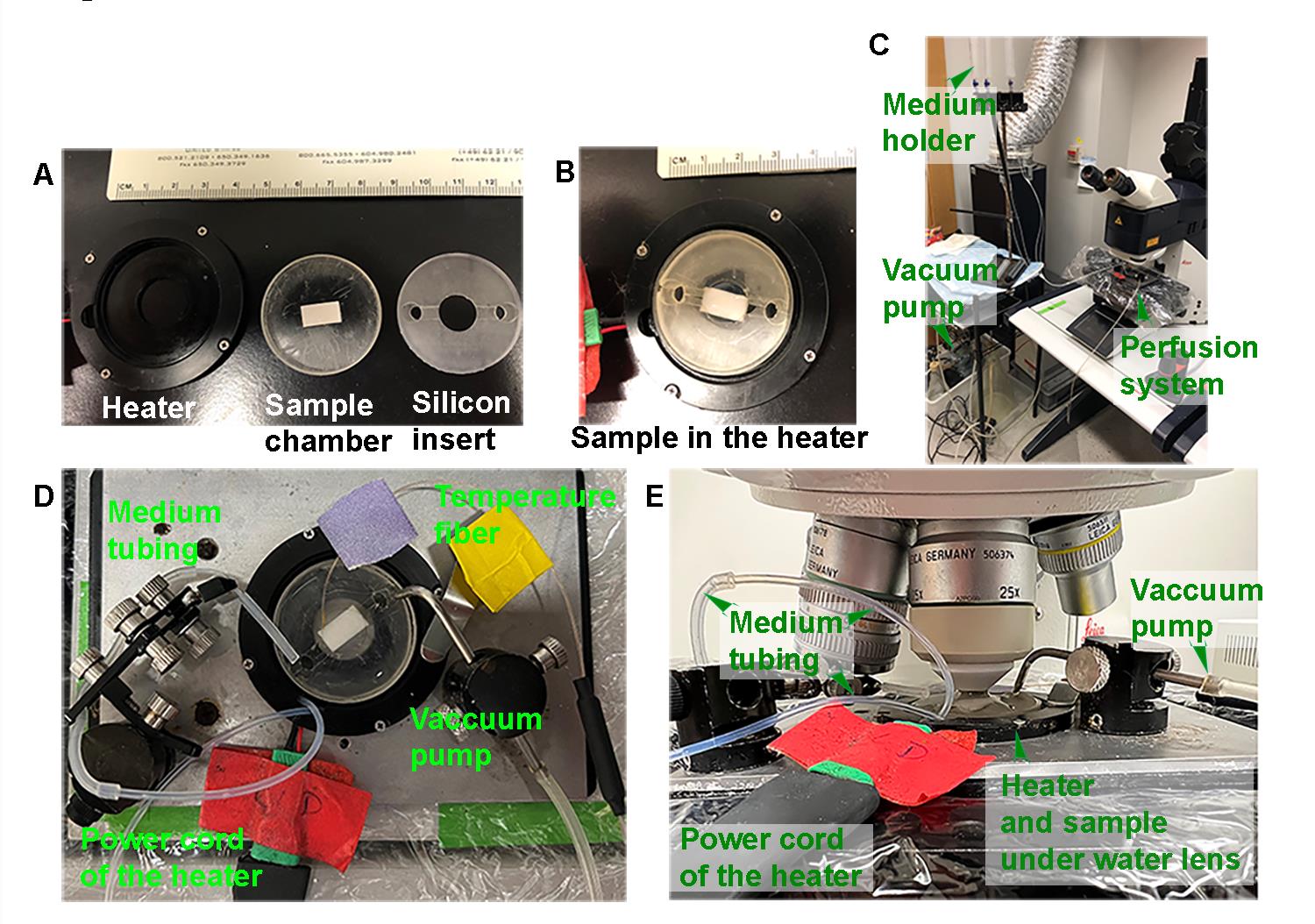

      Figure 1. Assembly of the brain slice and maintenance on a Leica SP5 confocal stage. (A) Size of the stage sample heater, sample chamber, and silicon lid. The brain slice on the filter paper is mounted in Matrigel in the middle of the sample chamber. (B) Cover the brain slice with the silicon lid and place the sample chamber into the stage heater. (C) A picture of the perfusion system. (D) Top view of the assembly for imaging the brain slice. (E) Side view of the assembly for imaging the brain slice. The media tubing, which flows DMEM over the brain slice, and temperature fiber, which records the DMEM (brain slice) temperature, are inserted into the sample chamber through openings in the silicon lid. The vacuum pump removes excess media and is inserted into the sample chamber through an opening in the silicon lid. The power cord connects the stage sample heater to the temperature controller.




   3. Setting up the perfusion system

      1. Turn on the Leica SP5 confocal microscope and software (make sure to choose resonance when turning on the software). Manually move all the lens out of position and adjust the stage to the lowest position. This step protects the lens and makes more space for the setup.

      2. Install the heater on the stage and place a regular 3.5 cm Petri dish on it. Turn on the heater to increase the temperature of the Petri dish to 37 °C; the temperature of dish and stage will equilibrate with the confocal microscope lens, which will affect the focus and x-y position. Therefore, the focus and x-y position must be adjusted once the lens equilibrate with the stage temperature.

      3. Add DMEM to a 60 mL syringe held upright and 1 m above the confocal stage (Figure 1C). Bubble the syringe DMEM with 95% O₂/5% CO₂ and let the media flow down the tubing by gravity into the Petri dish. The tubing is inserted into an opening in the silicon lid covering the Petri dish.

      4. Insert the tubing to the vacuum pump in another opening in the silicon lid (Figures 1D and 1E, see the vacuum pump position). The height of the tubing to the vacuum pump is adjusted to maintain a depth of 5–7 mm of DMEM in the 3.5 cm Petri dish. All the extra media should be removed by the vacuum pump.

      5. Connect the temperature fiber (Figure 1D, see the temperature fiber) to the temperature controller. The detector readout should match the room temperature if it is functioning normally. The temperature fiber is fragile; therefore, it is necessary to confirm it is functioning correctly before proceeding.

      6. Insert the temperature fiber into the DMEM media in the Petri dish (Figure 1D, see the temperature fiber). It is necessary to measure the temperature in the core of the media, where the brain slice will be placed. Adjust the heater to maintain a core temperature of 34–39 °C.

      7. Once the core temperature stabilizes to 34–39 °C, remove the temperature fiber, stop the flow of DMEM, remove the tubing to the vacuum pump, remove the regular 3.5 mm Petri dish, and insert the homemade chamber containing the brain slice/filter paper in Matrigel into the stage heater.

      8. Resume the flow of DMEM, manually move the 25× water lens into position, and adjust the lens to touch the flowing DMEM media. Next, adjust the lens meticulously to focus on the sample.

      9. Reinsert the temperature fiber into the DMEM media between the lens and brain slice to monitor the temperature and adjust the heater output to maintain the DMEM (sample) temperature between 34–39 °C. Reinsert the tubing to the vacuum pump and adjust to maintain a DMEM depth of 5–7 mm, which should completely cover the brain slice.

      Tip 1: Bubbling the DMEM with 95% O₂/5% CO₂ mixed gas helps the brain slice to survive.

      Tip 2: The DMEM temperature should be adjusted between 34 and 39 °C to maintain high activity in the brain slice.

      Tip 3: The heater’s setting temperature is not the same as the DMEM (sample) temperature; use the temperature fiber to measure the DMEM temperature directly.

   4. Setting up the Leica SP5 confocal microscope and recording images

      1. Switch on the confocal microscope, turn on the confocal software, and check the Resonance box.

      2. Adjust the focus of the 25× water lens to find the right z-position and adjust the x/y-axis to find the best position for imaging.

         Confocal settings:

         In Configuration, check the box of Line Average during Live Acquisition.

         In Acquisition, set Line Average to 5 and Frame Average to 2.

         Format (resolution): 512 × 512 pixels; Z-step (optical section thickness): 1.469 µm.

         Use bidirectional scanning, which saves 50% scanning time.

      3. Choose z-stack, set the scanning area along the z-axis, and ensure the scanning depth covers all the signal. The scanning depth should also cover 10 µm of extra space above and under the signal area. Total scanning depth is approximately 120 µm.

      4. Choose time-lapse on the software and select a frequency for imaging anywhere between 2 and 30 min. We chose to image once every 5 min, which means scanning duration must be shorter than 5 min.

      5. Ensure the DMEM in the syringe is continuously bubbled with 95% O₂/5% CO₂ gas. Adjust the flow of the DMEM from the 60 mL syringe into the Petri dish to maintain a flow of perfusion at 50–60 mL/h. Check the level of DMEM in the syringe every hour and refill to keep the flow continuous. It is critical not to allow the culturing system to run out of DMEM during recording.

      6. Monitor the culturing dish on the stage to avoid flooding. Wrap the confocal stage with plastic wrap to protect the confocal microscope from DMEM flooding.

      7. Monitor the sample temperature using the temperature fiber. Maintain the sample temperature at 34–39 °C.

      8. Monitor and adjust the z-scanning, as the confocal microscope may lose focus gradually during long-term time-lapse imaging.

      9. During imaging, the x-y position may change as the stage may drift in various directions, resulting in the sample moving out of focus or view. If imaging for over an hour, adjust the x-y-z axes every hour to prevent compromising the image acquisition. Whenever a problem occurs, e.g., loss of focus or x-y position drift, stop the time-lapse imaging, adjust, and resume time-lapse imaging. This will create another file. Start a new file every 2–3 h; otherwise, the file will become too large to process.

   Tip 1: The syringe holds 60 mL of DMEM; adjust the flow speed such that the 60 mL of DMEM can last an hour. Refill the syringe with fresh DMEM every hour.

   Tip 2: Since the x-y-z positions must be adjusted to image the brain slice, the images are not consecutive during the whole time-lapse imaging. Images need to be aligned using ImageJ.

Data analysis

Combine the files into one

Export all the images of multiple files from the Leica LAS X software. Rename all the images with a serial number to reflect their sequential time point. Save all these images into one folder. Open ImageJ (or FIJI). Choose Input files and select all these images in the folder. Based on the serial number, ImageJ automatically organizes all the images into one time-lapse file. This file is the original time-lapse file. Save the file.

Image alignment

The original time-lapse file is derived from several different Leica files. During time-lapse imaging, the imaging field may consistently move in one direction, so it is common to stop the program and move the image field back. Therefore, it is important to run image alignment to adjust the position to make the time-lapse imaging consistent. There are multiple plugins designed to improve the file’s consistency and new plugins are published based on different mechanisms. You may try multiple plugins, such as StackReg (http://bigwww.epfl.ch/thevenaz/stackreg/), to improve the continuum of the file.

Montage

To analyze an individual neuron’s behavior, select the area containing a neuron’s entire trajectory (see Video 1 for a migrating wild-type neuron). Right click and choose Duplicate to duplicate the selected area.

Choose Image → Stacks → Make Montage (Movie and Figure 2). Then, a window of Make Montage will pop up. Input a proper number of columns, rows, and the scale factor. Then click OK and ImageJ will create a montage image (Figure 2). The montage image in Figure 2 contains six rows, which represent each 5-min interval, starting from the bottom (+0:00) to the top (+0:25). Therefore, it took 30 min to record all six images in a column. In Figure 2, the second row was chosen to represent the whole process with a time interval of 30 min (labeled in green) between two images.

Equations

Migratory distance (pixels) can be measured based on the start and end position of the neuron based on the montage image. Migratory distance = Migratory distance pixels × Known distance per pixel. Known distance per pixel can be found from the confocal microscope.

Migratory duration = (end serial number – start serial number) × time between two images.

Speed = Migratory distance/Migratory duration (Figure 2, right panel).

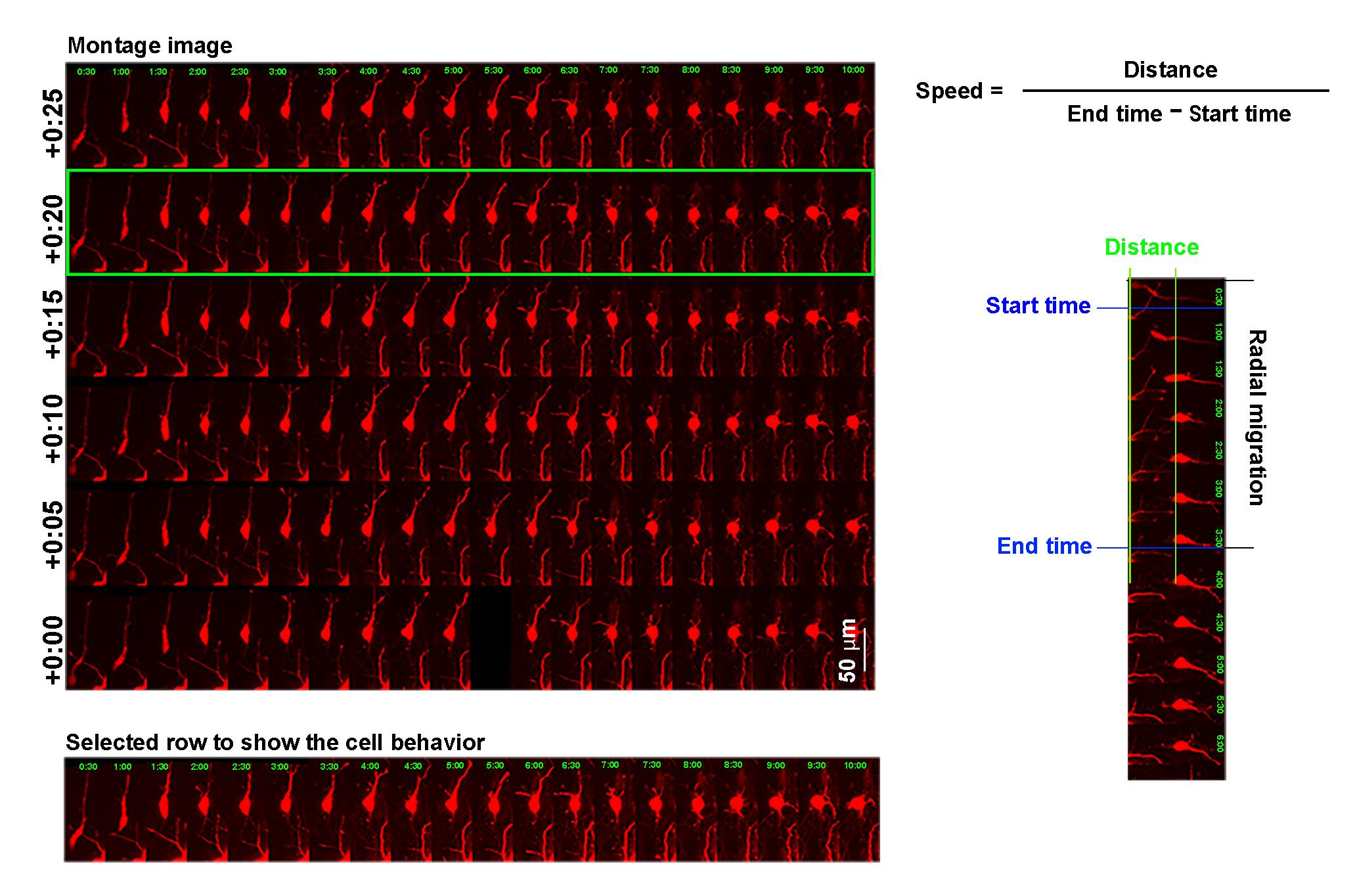

Figure 2. Representative data. Download of a wild-type neuron .avi file. Open the file with ImageJ. Select Image on the ImageJ tool bar, choose z-stack, then choose Make Montage. Input the proper number of rows and columns, then click OK. ImageJ will create a montage file like the upper panel. The first image recorded is in the left bottom corner, the second recorded image is in the second row from the bottom and in the first column, the third recorded image is in the third row from the bottom and in the first column, etc. Because the imaging interval is 5 min, each column contains six images that took 30 min to record. Therefore, the columns from left to right can be labeled from 0:00 to 10:00 hours. Then, use rectangle selection to choose the best row (see the area selected in the green rectangle in the upper panel) and copy it in the lower panel to represent the cell behavior process. The right panel shows how to measure the migratory distance and speed. The black lines mark the start and end points of radial migration; the green lines show the distance of the radial migration from the start to the end; the blue lines label the start and end time. The original figure was published previously (Yang et al., 2022).

Recipes

1. 10× ACSF solution I (1 L)

   NaCl                      73.05 g                    1.25 M

   KCl                        1.86 g                      0.025 M

   MgCl₂·6H₂O           2.03 g                      0.01 M

   CaCl₂·2H₂O           2.94 g                      0.02 M

   NaH₂PO₄·H₂O       1.73 g                      0.125 M

   Dissolve in deionized water to a final volume of 1 L. Store at room temperature.




2. 10× ACSF solution II (1 L)

   NaHCO₃               21 g                        0.25 M

   Dissolve in deionized water to a final volume of 1 L. Store at room temperature.




3. 1× ACSF (1 L)

   100 mL of 10× ACSF solution I

   100 mL of 10× ACSF solution II

   Add deionized water to a final volume of 1 L. The final solution should be 310 mOsm, pH 7.4. The solution will be cloudy but will turn clear after 30 min of bubbling with 95% O₂/5% CO₂. Add 5–10 g of glucose; then, filter before use. 1× ACSF cannot be stored for extended periods after adding glucose.
