A Novel Method of Inducible Directed Evolution to Evolve Complex Phenotypes

Materials and Reagents

1. 0.22 µm filter (Genesee Scientific, catalog number: 25-227 or equivalent), store at room temperature

2. PCR tubes (Thermo Fisher Scientific, Eppendorf, catalog number: E0030124286 or equivalent), store at room temperature

3. 14 mL culture tubes (Thermo Fisher Scientific, Falcon, catalog number: 14-959-1B or equivalent), store at room temperature

4. 50 mL tubes (Thermo Fisher Scientific, Genesee Scientific Corporation, catalog number: NC1259986 or equivalent), store at room temperature

5. 50 mL reactor tubes (Greiner Bio-One CELLSTAR^® CELLreactor Conical Bottom Polypropylene Filter Top Tube 227245 or equivalent)

6. 1.7 mL microtubes (Thermo Fisher Scientific, Genesee Scientific Corporation, catalog number: NC2045332 or equivalent), store at room temperature

7. Serological pipets (Thermo Fisher Scientific, Genesee Scientific Corporation, catalog number: NC0631030 or equivalent), store at room temperature

8. Shake flask (Thermo Fisher Scientific, PYREX, catalog number: 09-552-32 or equivalent), store at room temperature

9. Petri dishes (Genesee Scientific, catalog number: 32-107G or equivalent), store at room temperature

10. 96-deep-well plates (VWR International, catalog number: 10755-248 or equivalent), store at room temperature

11. Pipette tips (Genesee Scientific, catalog number: 23-130RL & 24-150R & 24-160RS or equivalent), store at room temperature

12. Electroporation cuvette 1 mm (Genesee Scientific, catalog number: 40-100), store at room temperature

13. Nuclease-free water (Thermo Fisher Scientific, catalog number: J71786.K2 or equivalent), store at room temperature

14. Virkon (Virkon^TM S Broad Spectrum Disinfectant, Chemours), store at room temperature

15. L-Arabinose (Teknova, catalog number: A2010 or equivalent), store at room temperature

16. Chloroform (Thermo Fisher Scientific, catalog number: J67241.AP or equivalent), store at room temperature

17. Anhydrotetracycline hydrochloride (Thermo Fisher Scientific, catalog number: J66688.MB or equivalent), store at -20 °C

18. Dextrose (D-Glucose) (Thermo Fisher Scientific, catalog number: D16-1 or equivalent), store at room temperature

19. OneTaq 2× Master Mix with Standard Buffer (New England Biolabs, catalog number: M0482S or equivalent), store at -20 °C

20. Q5 Site-Directed Mutagenesis Kit (New England Biolabs, catalog number: E0554S or equivalent), store at -20 °C

21. Q5 Hot Start High-Fidelity 2× Master Mix (New England Biolabs, catalog number: M0494S or equivalent), store at -20 °C

22. SGI-DNA Gibson Assembly^® (GA) HiFi 1-Step Kit (CODEX DNA, Inc., catalog number: GA1200), store at -20 °C

23. NEBuilder^® HiFi DNA Assembly Master Mix (New England Biolabs, catalog number: E2621S), store at -20 °C

24. NEB^® 5-alpha Competent E. coli (New England Biolabs, catalog number: C2987H or equivalent). Store at -80 °C.

25. NEB^® 10-beta Competent E. coli (New England Biolabs, catalog number: C3019H or equivalent). Store at -80 °C.

26. LB broth (Thermo Fisher Scientific, BD Difco, catalog number: DF0446-07-5 or equivalent), store at room temperature

27. Ampicillin sodium salt (Sigma-Aldrich, catalog number: A0166-25G or equivalent), store at room temperature

28. Chloramphenicol (VWR, catalog number: 97061-244or equivalent), store at room temperature

29. Kanamycin monosulfate (TCI America, catalog number: K0047 or equivalent), store at room temperature

30. Magnesium chloride hexahydrate (VWR, catalog number: BDH9244-500G or equivalent), store at room temperature

31. Calcium chloride dihydrate (Thermo Fisher Scientific, catalog number: C79-500 or equivalent), store at room temperature

32. TAE buffer (Tris-Acetate-EDTA) 50× (Thermo Fisher Scientific, catalog number: BP133220 or equivalent), store at room temperature

33. Gel loading dye (New England Biolabs, catalog number: B7024S or equivalent), store at room temperature

34. SYBR^TM Safe DNA Gel Stain (Thermo Fisher Scientific, Invitrogen, catalog number: S33102 or equivalent), store at room temperature

35. Quick-Load^® 1 kb Plus DNA Ladder (New England Biolabs, catalog number: N0469S or equivalent), store at room temperature

36. DpnI (New England Biolabs, catalog number: R0176S or equivalent), store at -20 °C

37. Agarose (Thermo Fisher Scientific, Lonza Inc, catalog number: BMA50004 or equivalent), store at room temperature

38. Plasmid Miniprep Kit (Zyppy Plasmid Miniprep Kit, Zymo Research, catalog number: D4019 or equivalent), store at room temperature

39. DNA Library Prep Master Mix (New England Biolabs, catalog number: E6040S or equivalent), store at -20 °C

40. QIAamp DNA Kit (Qiagen, catalog number: 56304), store at room temperature

41. DNA Clean and Concentrator-5 kit (Zymo Research, catalog number: D4004 or equivalent), store at room temperature

42. 1× DPBS (Thermo Fisher Scientific, Gibco, catalog number: 14-190-136 or equivalent), store at room temperature

43. Glycerol (Thermo Fisher Scientific, catalog number: G33-4 or equivalent), store at room temperature

44. Sodium citrate tribasic dihydrate (Sigma-Aldrich, catalog number: C7254-1KG or equivalent), store at room temperature

45. Super Optimal Broth (Thermo Fisher Scientific, Bioworld, catalog number: 50-254-370 or equivalent), store at room temperature

46. Phagemid backbone (Addgene, catalog number: 40782)

47. MP6 plasmid (Addgene, catalog number: 69669)

48. aTc inducible promoter (Addgene, catalog number: 108529)

49. aTc-MP6 plasmid (Addgene, catalog number: 189935)

50. Primer #1: Forward primer for amplifying phagemid backbone: aggatccgaggcttggattc

51. Primer #2: Reverse primer for amplifying phagemid backbone: atgagatctctatgctactc

52. Primer #3: Mutagenic operon Forward primer: acccgtttttttggacgcgt

53. Primer #4: Mutagenic operon Reverse primer: agtcaaaagcctccgaccgg

54. Primer #5: CloDF13 Forward primer: tacgtgccaagccaaatagg

55. Primer #6: CloDF13 Reverse primer: ggctgacttcaggtgctaca

56. Primer #7: pTet and KanR Forward primer: cagtggaacgaaaaatcaat

57. Primer #8: pTet and KanR Reverse primer: tcagtatctctatcactgat

58. Primer #9: TetR Forward primer: ctcggtaccaaattccagaa

59. Primer #10: TetR Reverse primer: ctcacttccctgttaagtat

    Note: Primers/Oligos can be ordered from Eurofins Genomics or equivalent supplier.

60. Ampicillin sodium salt (100 mg/mL) (see Recipes)

61. Chloramphenicol (34 mg/mL) (see Recipes)

62. Kanamycin monosulfate (50 mg/mL) (see Recipes)

63. 10% glycerol (see Recipes)

64. LB media (see Recipes)

65. PLM (see Recipes), store at room temperature

66. ePLM (see Recipes), store at room temperature

67. Super Optimal Broth with glucose (SOC) containing 200 mM sodium citrate (see Recipes)

Equipment

1. iSeq 100 or equivalent (Illumina, catalog number: 20021532)

2. -80 °C freezer (Thermo Fisher Scientific, Revco RLE Series, model number: RLE50086A)

3. -20 °C freezer (Thermo Fisher Scientific, Isotemp, model number: 20LFEEFSA)

4. 4 °C refrigerator (Jordon Refrigeration)

5. Microplate reader (Agilent BioTek, Synergy H1, catalog number: 11-120-535)

6. I26 shaking incubator (New Brunswick Scientific, Eppendorf, part number: M1324-000)

7. Convection incubator (VWR, Symphony, part number: 414004-610)

8. Incubating microplate shaker (Thermo Fisher Scientific, catalog number: 02-217-759)

9. Centrifuge (Thermo Fisher Scientific, Sorvall Legend X1R, catalog number: 75004261)

10. Microcentrifuge (Thermo Fisher Scientific, Sorvall Legend Micro 21R, catalog number: 75-002-446)

11. Mini Centrifuge (Thermo Fisher Scientific, catalog number: 05-090-100)

12. Thermocycler (Eppendorf, Mastercycler nexus eco, catalog number: 6330000021)

13. Gradient Thermocycler (Eppendorf, Mastercycler nexus gradient, catalog number: 6331000025)

14. Single channel adjustable pipettors, 0.01–1,000 µL (Eppendorf)

15. Multichannel adjustable pipettors 1–1,000 µL (Eppendorf)

16. Flow cytometer (BD Biosciences, Accuri^TM C6 Plus, catalog number: 660517)

17. Digital dry bath heat block (Benchmark Scientific, model number: BSH1001)

18. MicroPulser Electroporator (Bio-Rad, catalog number: 1652100)

19. Spectrophotometer (Thermo Fisher Scientific, NanoDrop^TM 2000c, catalog number: ND-2000C)

20. DNA Electrophoresis Cell (Bio-Rad, Mini-Sub Cell GT Tray, catalog number: 1664400EDU)

21. DNA Electrophoresis Power Supply (Bio-Rad, PowerPac^TM Basic, catalog number: 1645050)

22. Gel Imager (Bio-Rad, Gel Doc^TM EZ Imager, catalog number: 170-8270)

Software

1. Samtools (BSD, MIT, http://www.htslib.org/)

2. BCFtools (BSD, MIT, http://www.htslib.org/)

3. VarScan ( http://varscan.sourceforge.net/)

4. Bowtie ( http://bowtie-bio.sourceforge.net/index.shtml)

5. Benchling ( https://www.benchling.com) or equivalent plasmid management software

Procedure

1. Construction of phagemid (PM)

   Use Gibson assembly (or any appropriate cloning technique) to construct the phagemid containing the pathway of interest.

   1. The phagemid (Addgene #40782) is used as the backbone for all phagemid cloning because without an insert it turns E. coli colonies purple due to the production of violacein.

      1. Primer #1: Forward primer for amplifying phagemid backbone: aggatccgaggcttggattc

      2. Primer #2: Reverse primer for amplifying phagemid backbone: ctatgctactccatcgagcc

         Use tmcalculator.neb.com to calculate annealing temperature.

   2. Design primers to amplify the insert that introduce at least 20 bp homology between the fragments (see NEB Gibson Assembly protocol for instructions).

   3. Amplify the backbone and DNA insert (20–30 ng of template) using NEB Q5 Hot Start High-Fidelity 2× Master Mix, and run the gel to check the size of the amplified fragments. Phagemid backbone amplification is 6.5kbp. Use tmcalculator.neb.com to calculate annealing temperature.

   4. Add 1 μL of DpnI to each PCR reaction, and incubate at 37 °C for 2 h. This reaction will digest template DNA.

   5. Purify PCR reactions using a Clean and Concentrator-5 kit according to the manufacturer’s instructions, and measure the concentration using a NanoDrop spectrophotometer.

   6. Assemble the backbone and the insert together using NEBuilder HiFi DNA Assembly Master Mix or SGI-DNA Gibson Assembly according to the manufacturer’s instructions, except for incubating samples in a thermocycler at 50°C for 30 min instead of 15 min.

   7. Transform the Gibson reactions to NEB 5-alpha or 10-beta Competent E. coli cells according to the manufacturer’s instructions, and grow overnight using chloramphenicol selection.

   8. Colony PCR white colonies (purple colonies are phagemid backbone) to verify successful cloning. Colony PCR examines successful cloning before plasmid extraction. Single colonies are mixed in a PCR reaction according to themanufacturer’s instructions. The PCR reaction is prepared as the following: 0.5 µL of 10 µM forward primer, 0.5 µL of 10 µM reverse primer, 12.5 µL of OneTaq 2× Master mix, and11.5 µL nuclease-free water. Use tmcalculator.neb.com to calculate annealing temperature of the primers. Amplify junctions with NEB OneTaq Hot Start High-Fidelity 2× Master, and run PCR reactions in gel to verify amplification size. Successful amplifications are sentfor Sanger sequencing. Verified constructs with Sanger sequencing are then cultured in 2 mL of LB with appropriate antibiotics overnight in a shaking incubator (37 °C, 250 rpm). Plasmids from overnight culture wereextracted using Zyppy Plasmid Miniprep Kit according to the manufacturer’s instructions. Prepped plasmids can then be sequenced using whole plasmid sequencing services, such as plasmidsaurus (www.plasmidsaurus.com/).




2. Construction of Mutagenesis Plasmid (MP) –aTc-MP6 plasmid (Addgene #189935)

   An Anhydrotetracycline-Inducible Mutagenesis Plasmid (aTc-MP) was constructed as follows:

   1. Amplify the mutagenic operon (danQ926, dam, seqA, emrR, ugi, and cda1) and origin of replication (CloDF13) from the L-arabinose–inducible MP6 plasmid (Addgene #69669).

      1. Primer #3: Mutagenic operon Forward primer: acccgtttttttggacgcgt

      2. Primer #4: Mutagenic operon Reverse primer: agtcaaaagcctccgaccgg

      3. Primer #5: CloDF13 Forward primer: tacgtgccaagccaaatagg

      4. Primer #6: CloDF13 Reverse primer: ggctgacttcaggtgctaca

   2. Amplify the anhydrotetracycline-inducible system (pTet and TetR) and kanamycin resistance gene (KanR) from pAJM.011 (Addgene #108529).

      1. Primer #7: pTet and KanR Forward primer: cagtggaacgaaaaatcaat

      2. Primer #8: pTet and KanR Reverse primer: tcagtatctctatcactgat

      3. Primer #9: TetR Forward primer: ctcggtaccaaattccagaa

      4. Primer #10: TetR Reverse primer: ctcacttccctgttaagtat

   3. Use NEBuilder HiFi to assemble the fragments according to manufacturer’s instructions.

   4. Transform assembly reactions to NEB 10-beta Competent E. coli cells according to the manufacturer’s instructions.

   5. Grow transformations on LB agar plates containing kanamycin and 1% glucose. Glucose is used to repress the mutagenic operon.

   6. Colony PCR (see section Construction of phagemid) 5–10 colonies to verify successful cloning. Amplify junctions with NEB OneTaq Hot Start High-Fidelity 2× Master, and run PCR reactions in gel to verify amplification size. Successfulamplifications are sent for Sanger sequencing. Verified constructs with Sanger sequencing are then cultured in LB containing kanamycin and 1% glucose overnight in a shaking incubator (37 °C, 250 rpm). Plasmids fromovernight culture were extracted using Zyppy Plasmid Miniprep Kit according to the manufacturer’s instructions. Prepped plasmids can then be sequenced using whole plasmid sequencing services, such as plasmidsaurus(www.plasmidsaurus.com/).

   7. Sequence-verified aTc-MP6 can then be transformed into E. coli C600 containing the P1 phage (available upon request from Crook Lab). E. coli C600 containing both P1 phage and aTc-MP is the starting point for the construction of the diversification strain.




3. Preparation and transformation of electrocompetent cells to generate Diversification Strain

   1. Inoculate the selected diversification strain (E. coli C600 strain containing mutagenesis plasmid and P1 phage) into 2 mL of LB media containing 50 µg/mL of kanamycin and grow overnight in a shaking incubator (37 °C, 250 rpm).

   2. Dilute 500 μL of overnight culture into 50 mL of LB media (1:100 dilution), and grow in a shaking incubator (37 °C, 250 rpm) to OD₆₀₀ = 0.8.

   3. Transfer culture to a 50 mL tube and chill on ice for 10–15 min.

   4. Spin down cells at 3,000 × g and 4 °C for 5 min.

   5. Remove supernatant and resuspend pellets in 25 mL of ice-cold 10% glycerol.

   6. Spin down cells at 3,000 × g and 4 °C for 5 min.

   7. Repeat steps 5–6 two times (total 2 washes). Repeat more times if having trouble with arcing during electroporation.

   8. Resuspend washed cells in 1 mL of 10% glycerol in microcentrifuge tubes, and spin at 3,000 × gand 4 °C for 3 min.

   9. Resuspend pellets in 0.5 mL of 10% glycerol.

   10. Place the electroporation cuvette on ice for 2 min.

   11. Transfer 50 μL of the cells to a chilled microcentrifuge tube. Add 1 μL of the phagemid DNA (>50 ng).

   12. Carefully transfer the cell/DNA mix into the chilled cuvette without introducing bubbles, and make sure that the cells deposit across the bottom of the cuvette.

   13. Electroporate cuvette with the transformation mixture on an electroporator (e.g., Bio-Rad EC1). Time constant should be 5.0–6.0 ms for successful transformation.

   14. Immediately add 1 mL of Super Optimal Broth (SOC) medium to the electroporation cuvette, mix by pipetting up and down, and transfer to a 1.5 mL centrifuge tube.

   15. Place the transformation reaction in a shaking incubator (37 °C, 250 rpm) for 1 h.

   16. Centrifuge the cells at 3,000 × g for 2 min and resuspend cells in 100 μL of DPBS.

   17. Spread cells onto a prewarmed selective plate (e.g., LB + kanamycin + chloramphenicol), and incubate at 37 °C overnight.




4. Induction of mutagenesis

   1. Subinoculate overnight culture of diversification strain in LB with 1% glucose, kanamycin, and chloramphenicol into 2 mL of LB containing kanamycin and chloramphenicol (no glucose, 1:100 dilution) in a culture tube.

   2. Induce mutagenesis by adding 200 ng/μL of aTc (2 μL of 100 ng/μL of aTc) to the subinoculated culture.

   3. Grow induced culture in a shaking incubator (37 °C, 250 rpm) for 8–16 h depending on desired mutation rate (3.4 × 10^–7 substitutions per bp per generation).

      1. For the first cycle of IDE, start with one colony for overnight cultures.

      2. For cycles 2 and beyond of IDE, start with a mixed population from overnight outgrowth after infection of the diversification strain.




5. Phage production

   1. Inoculate 2 μL of strains after the mutagenesis step (containing P1, aTc-MP, and the phagemid) or after the screening/selection step (containing P1 and the phagemid) into 2 mL of LB media containing chloramphenicol, andgrow overnight in a shaking incubator (37 °C, 250 rpm).

   2. Dilute 150 μL of O/N culture into 15 mL of ePLM (1:100 dilution) in 50 mL reactor tubes, and grow in the shaking incubator (37 °C, 250 rpm) to OD₆₀₀ = 0.8–1.0.

   3. Add 150 μL of 20% L-arabinose (1/100 culture volume), and place back in the shaking incubator (37 °C, 250 rpm) for 2 h. Cultures should clarify as inFigure 2.

   4. Transfer the cultures to a 50 mL centrifuge tube, and add 400 μL of chloroform (2.5:100 volume).

   5. Place the tubes on ice for 5 min with gentle mixing or pipetting every 1 min.

   6. Centrifuge at 3,000 × g and 4 °C for 10 min, and transfer the supernatant to sterile tubes for storage. Phage lysate is stable at 4 °C for 1 year and indefinitely at -80 °C.

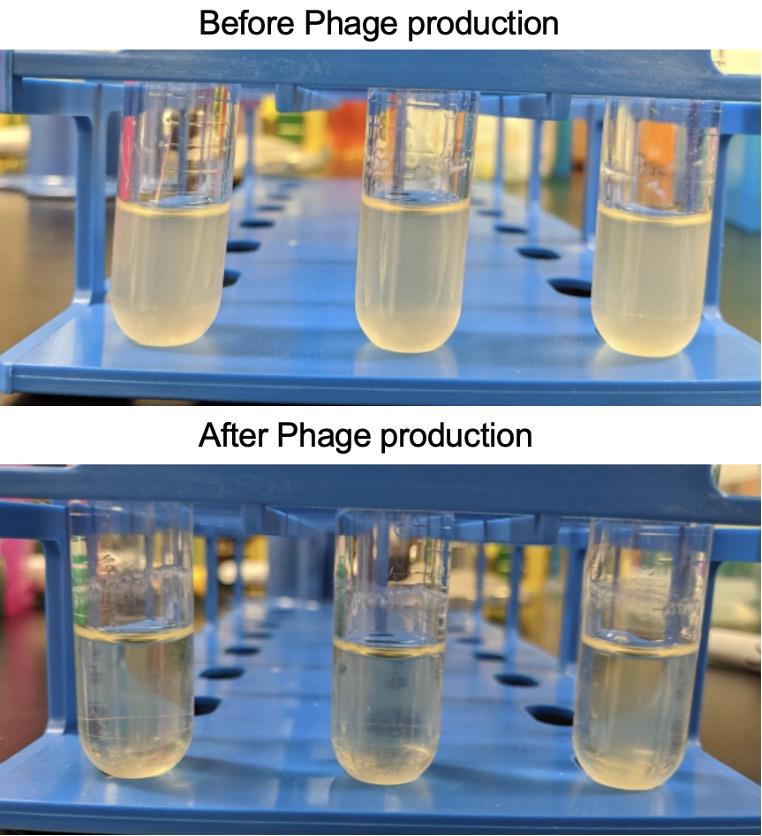

   Figure 2. Cell cultures before and after phage production. Top: Strains after the mutagenesis step or after the screening/selection step are subinoculated into fresh ePLM and grown to OD₆₀₀ = 1.0. Bottom: Cell cultures are lysed after 2 h of induction with L-arabinose.




6. Phage infection

   1. Inoculate the screening/selection strain containing P1 into 2 mL of LB media for the screening step or LB media containing kanamycin for diversification step, and grow overnight in a shaking incubator (37 °C, 250 rpm).

   2. Subinoculate overnight culture into ePLM (1:100 dilution), and grow in a shaking incubator (37 °C, 250 rpm) to OD₆₀₀ = 1.0.

   3. Centrifuge at 3,000 × gand 4 °C for 5 min, and resuspend the pellet in 1/3 volume of fresh ePLM.

   4. Mix 1 mL of cells with 1 mL of phage lysate in a 14 mL culture tube.

   5. Place the infection mixture in a standing incubator (37 °C) for 20 min and then for another 20 min in a shaking incubator (37 °C, 250 rpm).

   6. Add 1 mL of SOC containing 200 mM of sodium citrate to the infection reaction to quench the infection. Place the reaction in a shaking incubator (37 °C, 250 rpm) for 1 h.

   7. To eliminate the uninfected cells, transfer the infection reaction to 50 mL of LB media containing kanamycin and chloramphenicol for the diversification step or LB agar plates containing chloramphenicol for the screening step.

   8. To count the library size of the infection, spot plate on LB agar plates containing the appropriate antibiotics.

      1. In a 96-well plate, perform serial dilutions of the infection reaction with ePLM. Perform five dilutions, from 1:10 to 1:10⁵. Add 180 μL of ePLM to rows A-E. In row A, add 20 μL of the infection reaction.Preform the rest of the dilutions by adding 20 μL of the previous dilution to the next row. Make sure to mix well and change pipette tips after each dilution. This step can be done with multichannel pipettors.

      2. Using a multichannel pipettor, plate 5 μL of each infection reaction dilution on LB agar plates containing kanamycin and chloramphenicol for the diversification step or LB agar plates containing chloramphenicol forthe screening step.

      3. Incubate spotted plates overnight in a standing incubator (37 °C).

      4. Count CFU/mL in the morning to determine library size. Remember to multiply the number of colonies counted by the dilution factor corresponding to that row to obtain CFU/mL.

   9. To check whether phage production and infection steps were carried correctly, run the following controls:

      1. Infect desired strains with another phage lysate that has already generated an expected library size. This control will determine if phage production or infection failed.

      2. Plate uninfected cells on LB agar plates containing chloramphenicol or kanamycin to test whether the infected strain has resistance to either antibiotic.




7. Introduction of P1 phage into P1-free strains for desired screening strains

   1. Produce phage lysate from a strain containing P1 and phagemid.

   2. Induce phage production (see section: Phage production).

   3. Infect the strain of interest (see section: Phage infection).

   4. Streak 10 μL of infection reaction on standard size LB agar plates to obtain single colonies.

   5. Screen 10–20 colonies for P1 using P1-specific primers (fragment size 296 bp):

      1. Forward primers: ACGACCATGAAAGCTCTTCACCCGTAG

      2. Reverse primers: GCTTATTCGCACCTTCCCTAAAAACAAAGATGTTTGTAG

      Note: To increase P1 infection efficiency to a new strain, use 1:10 cells:phage lysate by volume. Note that this ratio differs for infection with phagemid-containing particles that were discussed previously.




8. Screening/Selection

   1. Freshly infected screening/selection strains are directly used from the prior step.

   2. Screening/selection steps are different based on the application.

      1. Example 1: Growth-based selection for increasing the utilization of a specific sugar.

         1. Ensure that the screening/selection strain achieves a low, but nonzero growth rate in minimal media containing the sugar as the sole carbon source.

         2. Select improved variants by culturing the library in minimal media containing the sugar as the sole carbon source.

         3. Subinoculate culture 2–5 times to select rapidly-growing strains before transfer back to the diversification strain. Repeated subinoculations without transfer run the risk of selecting for strains withgenomic mutations.

      2. Example 2: Biosensor-enabled screening for increasing the production of a molecule or protein.

         1. Include a biosensor in the screening/selection strain that couples productivity to fluorescence, where wild-type productivity remains in the linear range of the biosensor.

         2. Culture the screening/selection strain under conditions that favor biomolecule production.

         3. Screen for high-producing variants via Fluorescence-Activated Cell Sorting (FACS).

         4. As above, isolated variants can be grown and re-sorted via FACS several times before transfer back to the diversification strain.

   3. Mutagenesis, Phage production, Phage infection, and Screening/Selection steps are repeated until a satisfactory variant is found.




9. After screening is complete

   1. Plasmids may be extracted from screened/selected libraries and used for next-generation sequencing to measure the frequencies of common mutations. Illumina iSeq 100 was used to achieve 80–100× sequencing depth.Other sequencing machines and services that can reach similar sequencing depth can be used. Illumina whole-genome sequencing kits and IDT^® for Illumina^® DNA/RNA UD Indexes are used for librarypreparation and sequencing. Equivalent NGS primers can be used to index different samples. Plasmid or amplicon-based sequencing via plasmidsaurus (www.plasmidsaurus.com/) can also be used.

      1. Trim reads using Trimmomatic.

      2. Align trimmed reads using Bowtie2.

      3. Identify mutations using VarScan.

      4. A sample computational pipeline is provided below:

         #!/bin/bash

         ##trimming reads
         java -jar trimmomatic-0.38.jar PE Mel1_R1.fastq R2.fastq R1_F_P.fastq R1_F_U.fastq R1_R_P.fastq R1_R_U.fastq ILLUMINACLIP:NexteraPE-PE.fa:2:30:10:2:keepBothReads LEADING:3 TRAILING:3 MINLEN:36 SLIDINGWINDOW:4:15

         ##Mapping to our Genome
         bowtie2-build -f PM.fasta plasmidseq
         bowtie2 --very-sensitive --end-to-end -x plasmidseq -1 R1_F_P.fastq -2 R1_R_P.fastq -U R1_F_U.fastq,R1_R_U.fastq -S R1.sam

         samtools sort -m 10G -o R1.bam -T R1 R1.sam

         samtools index -b R1.bam

         samtools mpileup -f PM.fasta -d 0 R1.bam -o variants.pileup

         ##Calling variants

         java -jar VarScan.v2.3.9.jar mpileup2snp variants.pileup --min-var-freq 0.0001 > snps.txt
         java -jar VarScan.v2.3.9.jar mpileup2indel variants.pileup --min-var-freq 0.0001 > indels.txt



   2. Plasmids may be extracted from individual isolates and used for whole-plasmid sequencing.

      Align whole-plasmid sequencing results to find mutations in isolated variants against the wild-type sequence using https://www.benchling.com or equivalent tools.

   3. Note that the phagemid backbone may accumulate mutations during screening, potentially affecting its copy number. To directly compare evolved pathways to the wild type, evolved pathways may be cloned into a fresh phagemid backbone,or both evolved, and wild-type pathways may be integrated into the genome.

   4. The performance of individual isolates may be compared to the screening/selection strain containing the wild-type phagemid using additional assays (e.g., growth in 96-well plates or productivity in shake flasks, followed byHPLC analysis).

   5. The most productive variants may be used as is or subjected to additional rounds of IDE.




   Appendix 1: Running gels

   Confirm cloning and PCR amplifications using a 1% agarose gel.

   1. Dissolve 300 mg of agarose in 30 mL of 1× TAE buffer by heating until boiling.

   2. Add 3 μL of SYBR Safe DNA gel stain to the liquid gel.

   3. Cast the gel by pouring into gel trays with combs in place and allow to solidify.

   4. Run the loaded gel with 5 μL of Quick-Load 1 kb Plus DNA Ladder at 120 V for 25–30 min. Power is supplied by BioRad PowerPac, and the gel is run in a BioRad DNA electrophoresis chamber.

   5. Image the gel using a Gel Doc EZ Imager or equivalent.




   Appendix 2: Best practices for handling phage:

   1. All steps containing phage lysate should be conducted in the BSL2 hood to avoid contaminating other E. coli experiments. Quarantine your P1 work as much as possible from your other projects. This can be done by designating a separate bench space and materials for projects involving phages.

   2. Use filter tips when pipetting P1 phage lysate.

   3. Use Virkon to wipe off all surfaces and tools after handling phages.

   4. Store phage lysate in screw-top 15 or 50 mL centrifuge tubes. Infections and phage production are also done in these tubes.

   5. If possible, store P1 lysates in a 4 °C fridge that is not used for other E. coli experiments.

   6. Do not keep old plates of bacteria containing P1 as phages can initiate lysis in stationary colonies (<1 week in 4 °C).

Recipes

1. Ampicillin sodium salt (100 mg/mL)

   Dissolve 5 g of ampicillin into a 50 mL Falcon tube of ddH₂O, and filter through a 0.22 µm filter to sterilize. Aliquot 1 mL and store at -20 °C (use at 1:1000 dilution in LB or LB-Agar).

2. Chloramphenicol (34 mg/mL)

   Dissolve 1.7 g of chloramphenicol to 30 mL of 100% ethanol in a 50 mL Falcon tube, and bring volume to 50 mL with 100% ethanol. Aliquot 1 mL into microcentrifuge tubes, and store at -20 °C (use at 1:1,000 dilution in LB or LB-Agar).

3. Kanamycin monosulfate (50 mg/mL)

   Add 2.5 g of kanamycin monosulfate to 30 mL of DI water in a 50 mL Falcon tube, and then bring volume to 50 mL with DI water. Filter through a 0.22 µm filter to sterilize. Aliquot 1 mL into microcentrifuge tubes, and store at-20 °C (use at 1:1,000 dilution in LB or LB-Agar).

4. 10% glycerol

   Reagent	Final concentration	Amount
   Glycerol	10%	10 mL
   Nuclease-free H2O	n/a	90 mL
   Total	n/a	100 mL

5. LB media

   Dissolve 25 g/L of LB broth in DI water, and autoclave the final solution at 121 °C for 20 min. Tighten the caps, and store at room temperature once fully cooled.

6. PLM

   Autoclave the final solution at 121 °C for 20 min.

   Reagent	Final concentration	Amount
   LB broth	n/a	25 g
   MgCl·6HO	100 mM	20.3 g
   CaCl2·2H2O	5 mM	0.7 g
   H2O	n/a	100 mL
   Total	n/a	100 mL

7. ePLM

   Autoclave the final solution at 121 °C for 20 min.

   Reagent	Final concentration	Amount
   LB broth	n/a	25 g
   MgCl·6HO	140 mM	28.4 g
   CaCl2·2H2O	7 mM	1 g
   H2O	n/a	100 mL
   Total	n/a	100 mL

8. Super Optimal Broth with glucose (SOC) containing 200 mM of sodium citrate

   Reagent	Final concentration	Amount
   Super Optimal Broth	n/a	28 g
   Sodium citrate tribasic dihydrate	200 mM	58.8 g
   H2O	n/a	1 L
   Total	n/a	1 L

   Autoclave once dissolved. Allow the solution to cool to 50 °C or below before adding 20 mL of 1 M MgSO₄ and 20 mL of 1 M glucose. Store at room temperature.

Acknowledgments

We thank the labs of Dr Christopher Anderson (UC Berkeley) for phagemid constructs (Addgene #40782), Dr. David R. Liu (Harvard University) for the MP6 plasmid (Addgene #69669), and Dr. Chase Beisel for wild-type and engineered P1 bacteriophages.

This protocol has been adapted from Al’Abri et al. (2022).

Competing interests

I.S.A. and N.C. have a patent pending related to this work.

References

1. Al'Abri, I. S., Haller, D. J., Li, Z. and Crook, N. (2022). Inducible directed evolution of complex phenotypes in bacteria. Nucleic Acids Res 50(10): e58.
2. Crook, N., Ferreiro, A., Gasparrini, A. J., Pesesky, M. W., Gibson, M. K., Wang, B., Sun, X., Condiotte, Z., Dobrowolski, S., Peterson, D., et al. (2019). Adaptive Strategies of the Candidate Probiotic E. coli Nissle in the Mammalian Gut. Cell Host Microbe 25(4): 499-512.
3. Esvelt, K. M., Carlson, J. C. and Liu, D. R. (2011). A system for the continuous directed evolution of biomolecules. Nature 472(7344): 499-503.
4. Wang, H. H., Isaacs, F. J., Carr, P. A., Sun, Z. Z., Xu, G., Forest, C. R. and Church, G. M. (2009). Programming cells by multiplex genome engineering and accelerated evolution. Nature 460(7257): 894-898.
