In vitro Auto- and Substrate-Ubiquitination Assays

Materials and Reagents

1. Tris-HCl (Dot Scientific Inc., catalog number: DST60040-5000)

2. CaCl₂ (Fisher Bioreagents, catalog number: C79-500)

3. Adenosine 5’-triphosphate (ATP) (New England Biolabs, catalog number: P0756S)

4. DTT (Roche, catalog number: 3483-12-3)

5. MES Free acid monohydrate (Gold Biotechnology, catalog number: M-090-500)

6. MgCl₂ (Fisher Bioreagents, catalog number: BP-214-500)

7. 3',5'-Dimethoxy-4'-hydroxyacetophenone (Acetosyringone) (Acros Organics, catalog number: 115540050)

8. P19 plasmid

9. Liquid nitrogen

10. NaCl (Fisher Bioreagents, catalog number: BP358-10)

11. EDTA, pH 8.0 (VWR, catalog number: BDH4528-500GP)

12. Phenylmethaneesulfonyl fluoride (PMSF) (Acros Organics, catalog number: 215740100)

13. Ammonium persulfate (Acros Organics, catalog number: 327085000)

14. TEMED (Invitrogen, catalog number: 15524-010)

15. Glycine (Fisher Bioreagents, catalog number: BP381-5)

16. SDS micropellets (Fisher Bioreagents, catalog number: BP8200-500)

17. KCl (Micron Fine Chemicals, catalog number: 6858-04)

18. Na₂HPO₄ (Dot Scientific Inc., catalog number: DSS23100-1000)

19. KH₂PO₄ (Fisher Bioreagents, catalog number: P285-500)

20. Bromophenol blue free acid (Gold Biotechnology, catalog number: B-092-5)

21. 2-mercaptoethanol (Acros Brganics, catalog number: 125472500)

22. Glycerol (Fisher Bioreagents, catalog number: G31-500)

23. Tween 20 (Fisher Bioreagents, catalog number: BP337-500)

24. Halt^TM Protease inhibitor cocktail, 100× (Thermo Fisher Scientific, catalog number: 78430)

25. Ubiquitin activating enzyme E1 (Enzo Life Science, catalog number: BML-UW9410-0050)

26. Ubiquitin conjugating enzyme E2 (Recombinant Human Ubc5b/UBE2D2; R&D Systems, catalog number: E2-622-100)

27. Recombinant Human Myc-Ubiquitin protein (R&D System, catalog number: U115)

28. Anti-Ubiquitin (P4D1) antibody (Santa Cruz, catalog number: SC-8017)

29. Anti-GFP antibody (Roche, catalog number: 1181446001)

30. Maltose Binding Prtoein polyclonal antibody (Invitrogen, catalog number: PA1-989)

31. Goat-anti-mouse IgG (H+L) secondary antibody, HRP (Invitrogen, catalog number: 31430)

32. Goat-anti-rabbit IgG-HRP secondary antibody (Santa Cruz, catalog number: sc-2030)

33. Pierce^TM Magnetic A/G agarose beads (Thermo Fisher Scientific, catalog number: 88802)

34. SDS-PAGE gel (followed by Bio-Rad recipe)

35. PageRuler prestained protein ladder, 10 to 180 kDa (Thermo Scientific, catalog number: 26617)

36. Amersham Protran Western blotting membrane sandwich, nitrocellulose (Amersham, catalog number: 19240725)

37. Phosphate-buffered saline (PBS)

38. Phosphate-buffered saline with 0.05 % Tween 20 (PBS-T)

39. Skimmed milk powder (MP Biomedicals, catalog number: 0290288705)

40. Chemiluminescent HRP substrate kit (Thermo Scientific, catalog number: 34094)

41. 5× SDS sample buffer (see Recipes)

42. 1×SDS running buffer (see Recipes)

43. 1× Transfer buffer (see Recipes)

44. 1× Phospated Buffered Saline (PBS-T with 0.05% Tween-20) (see Recipes)

45. 3% blocking buffer (see Recipes)

46. Tobacco infiltration buffer (see Recipes)

47. Immunoprecipitation buffer (see Recipes)

Equipment

1. Refrigerated centrifuge (Labnet, model: C2500-R)

2. Sonicator (Fisher brand, model: F1350)

3. Protein electrophoresis apparatus (Bio-Rad, Mini-PROTEAN tetra handcast system and PowerPac Poweer Supplies)

4. Protein transfer system (Trans-Blot Turbo System, model: 1704150)

5. Benchtop rocking shaker (Labnet, model: orbit1000)

6. Benchtop tube rotator (Fisher brand, model: 88861051)

Procedure

1. Auto-ubiquitination analysis of MBP-SINAT2

   1. Prepare ubiquitination reaction mixtures in a total volume of 30 μL, consisting of 40 mM Tris-HCl, pH 7.5, 5 mM CaCl₂, 2 mM ATP, 2 mM DTT, 50 ng of E1, 250 ng of E2, 1 µg of ubiquitin, and 500 ng of purified recombinant protein (MBP, MBP-SINAT2, or MBP-SINAT2^C63S). Set up two ubiquitination control reactions for Maltose-Binding Protein (MBP), MBP-SINAT2, or MBP-SINAT2^C63S, by adding the ubiquitination reaction mixture without E1 or E2 (Figure 1).

      Note: MBP-SINAT2^C63S is an inactive form of SINAT2. The substitution of Cys53 for Ser results in abolishing the E3 ligase activity of SINAT2.

   2. Incubate the mixtures at 30°C with agitation for 1 h, by placing Eppendorf tubes containing the reaction mixture on a benchtop tube rotator.

   3. Add 5× SDS sample buffer to the mixtures to stop the reaction.

   4. Apply the reactions and the prestained protein marker (2.5 µL) to an 8% SDS-PAGE gel. Separate the reaction samples by electrophoresis in 1× SDS running buffer at 120 V for 150 min.

   5. Transfer the proteins in the SDS-PAGE gel to a nitrocellulose membrane in 1× transfer buffer, using the Bio-Rad Transblot Turbo transfer system at room temperature and 25 V for 30 min.

   6. Remove the membrane from the transfer system and place it in a plastic container (7 cm × 9 cm). Briefly, wash the membrane with 1× PBS-T.

   7. Block the membrane with 3% blocking buffer at room temperature with gentle agitation using a rocking shaker for 1 h, and subsequently add the primary anti-MBP or anti-ubiquitin antibody to the blocking buffer, in the following dilutions: 1:10,000 for the anti-MBP, and 1:3,000 for the anti-ubiquitin antibody. Incubate the membrane with the primary antibody solution with gentle agitation using a rocker at room temperature for 1 h.

   8. Rinse the membrane with 1× PBS-T with gentle agitation on a rocker at room temperature four times for 10 min each.

   9. To detect anti-MBP and anti-ubiquitin, place the membrane in a plastic container containing a 3% blocking buffer. Add a dilution of 1:5,000 of secondary antibody, and incubate the membrane with gentle agitation on a rocker at room temperature for 50 min.

   10. Rinse the membrane with 1× PBS-T with gentle agitation on a rocker at room temperature four times for 10 min each.

   11. Place the membrane on plastic wrap, evenly apply the chemiluminescence solution, and incubate for 3 min.

   12. Remove the excess chemiluminescence solution from the membrane, wrap the membrane with plastic wrap, and place it in an X-ray cassette.

   13. Add an X-ray film to the a cassette, and develop the film using a film processor.

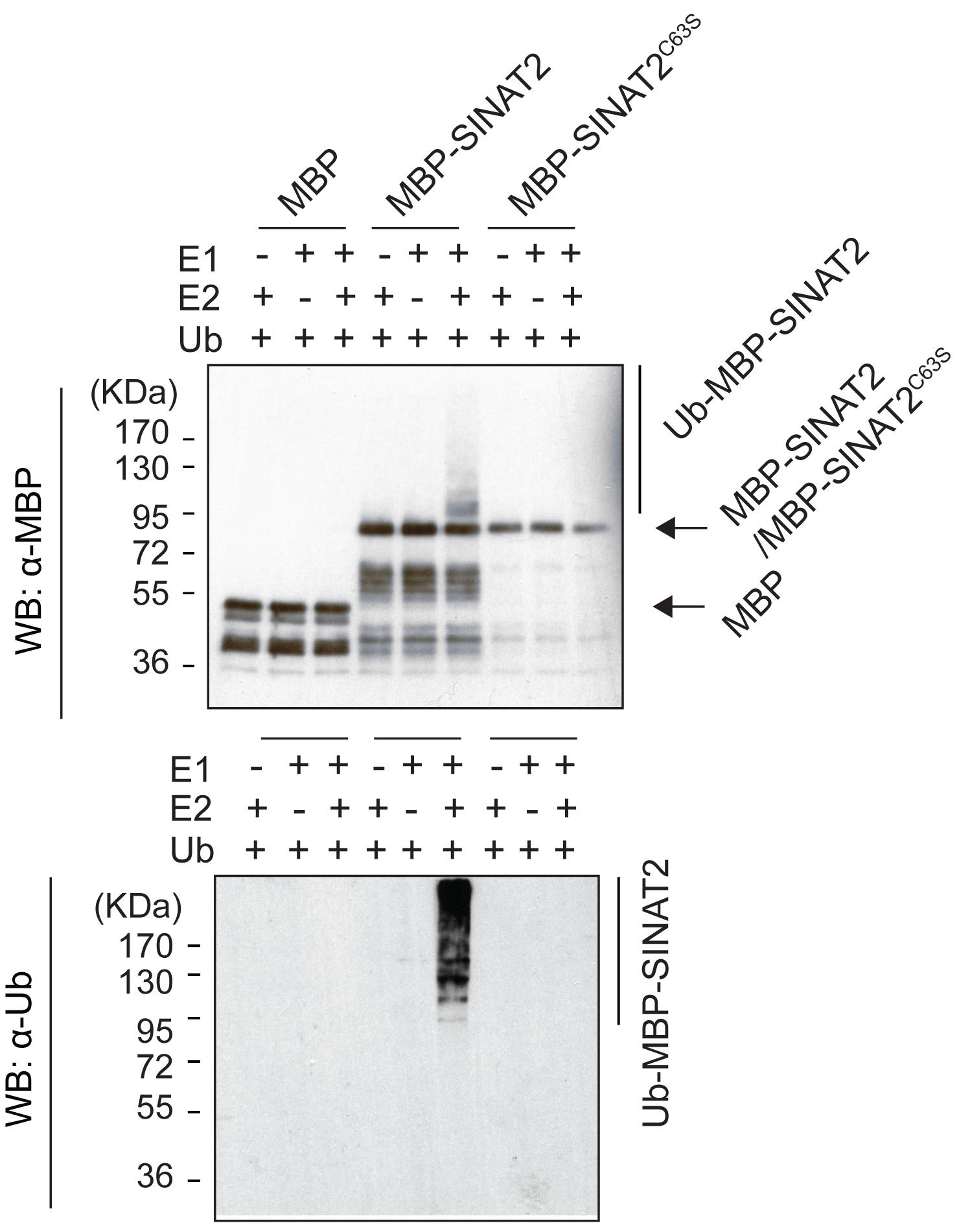

       Figure 1. Auto-ubiquitination of SINAT2. MBP-SINAT2 E3 ligase was auto-ubiquitinated in the presence of E1, E2, and Ubiquitin proteins, whereas free MBP and inactive MBP-SINAT2^C63S failed for autoubiquitination (modified from Lee et al., 2021).




2. Substrate-ubiquitination analysis of immunoprecipitated substrate proteins

   1. Infiltrate tobacco (Nicotiana benthamiana) grown in a growth chamber (16-h-light/8-h-dark cycle; 28°C/28°C) with Agrobacterium tumefaciens transformed with YFP-ACS5 plasmid DNA and P19, and incubate them at 28°C for 3 days.

   2. Excise a portion of the infiltrated tobacco leaves with a laser blade and observe the YFP fluorescence of YFP-ACS5, using an epifluorescence microscope. If the YFP fluorescence is widely observed throughout the infiltrated leaves, proceed to step 3; otherwise, repeat step 1 until YFP fluorescence is observed (Figure 2).

   3. Extract the total protein from two infiltrated tobacco leaves, by grinding the leaves using liquid nitrogen followed by homogenizing the grounded tissue powder in 300 μL of coimmunoprecipitation buffer (see Recipes).

   4. Centrifuge at 12,400 × g and 4°C for 15 min, and transfer 200 μL of the supernatant containing the total protein extract to a new microcentrifuge tube.

   5. The substrate ubiquitination reaction is performed in a total volume of 50 μL, consisting of 40 mM Tris-HCl, pH 7.5, 5 mM CaCl₂, 2 mM ATP, 2 mM DTT, 50 ng of E1, 250 ng of E2, 1 μg of ubiquitin, a total of 40 μL of the protein extract from step 4 containing the YFP-ACS5 protein, and 500 ng of purified MBP-SINAT2 (or MBP, or MBP-SINAT2^C63S). Free MBP and inactive MBP-SINAT2^C63S serve as negative controls. Aliquot 10 µL of each reaction for input analysis (Figure 3).

   6. Incubate the mixture with gentle rotation using a benchtop lab rotator at 30°C for 1 h.

   7. Add 5 µg of anti-GFP and protein A/G agarose magnetic beads (20 µL) into the ubiquitination reaction tubes from step 6, and incubate with gentle agitation at 4°C overnight.

   8. Collect the protein A/G magnetic beads using a magnetic stand, and wash the reaction mixture three times with immunoprecipitation buffer (see Recipes).

   9. Elute the bound proteins from protein A/G agarose magnetic beads with 2× SDS sample buffer.

   10. Perform electrophoresis and western blotting as described in the auto-ubiquitination analysis of MBP-SINAT2 (steps 4 to 13), and detect ubiquitinated YFP-ACS5 and input proteins using anti-MBP, anti-ubiquitin, and anti-GFP antibodies.

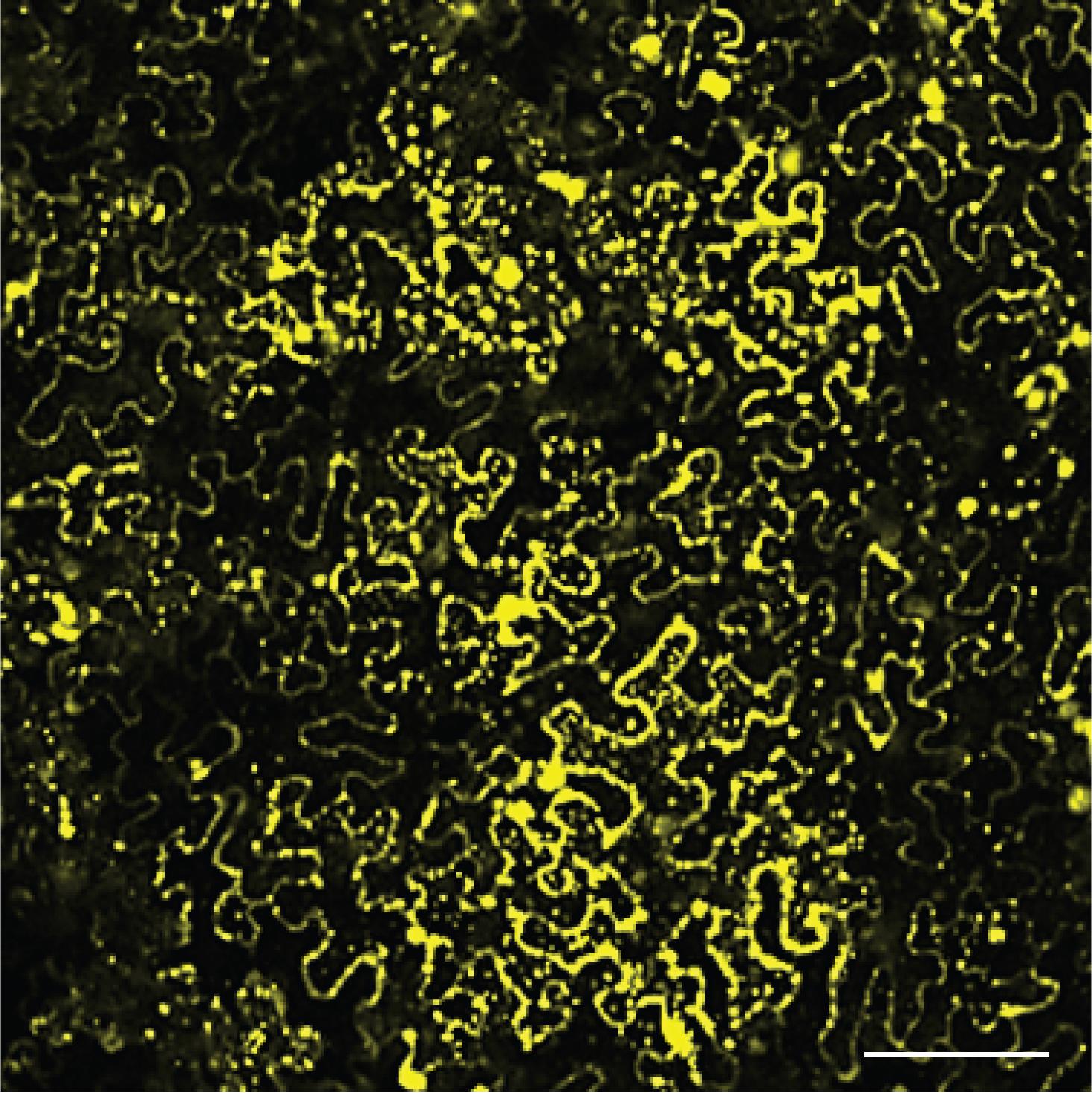

   Figure 2. Expression of YFP-ACS5 in N. benthamiana leaves. N. benthamiana leaves were infiltrated with Agrobacteria transformed with a YFP-ACS5 plasmid and incubated for 3 days. The fluorescence of YFP-ACS5 was widely observed throughout the leaf by confocal microscopy. Scale bar, 50 µm.

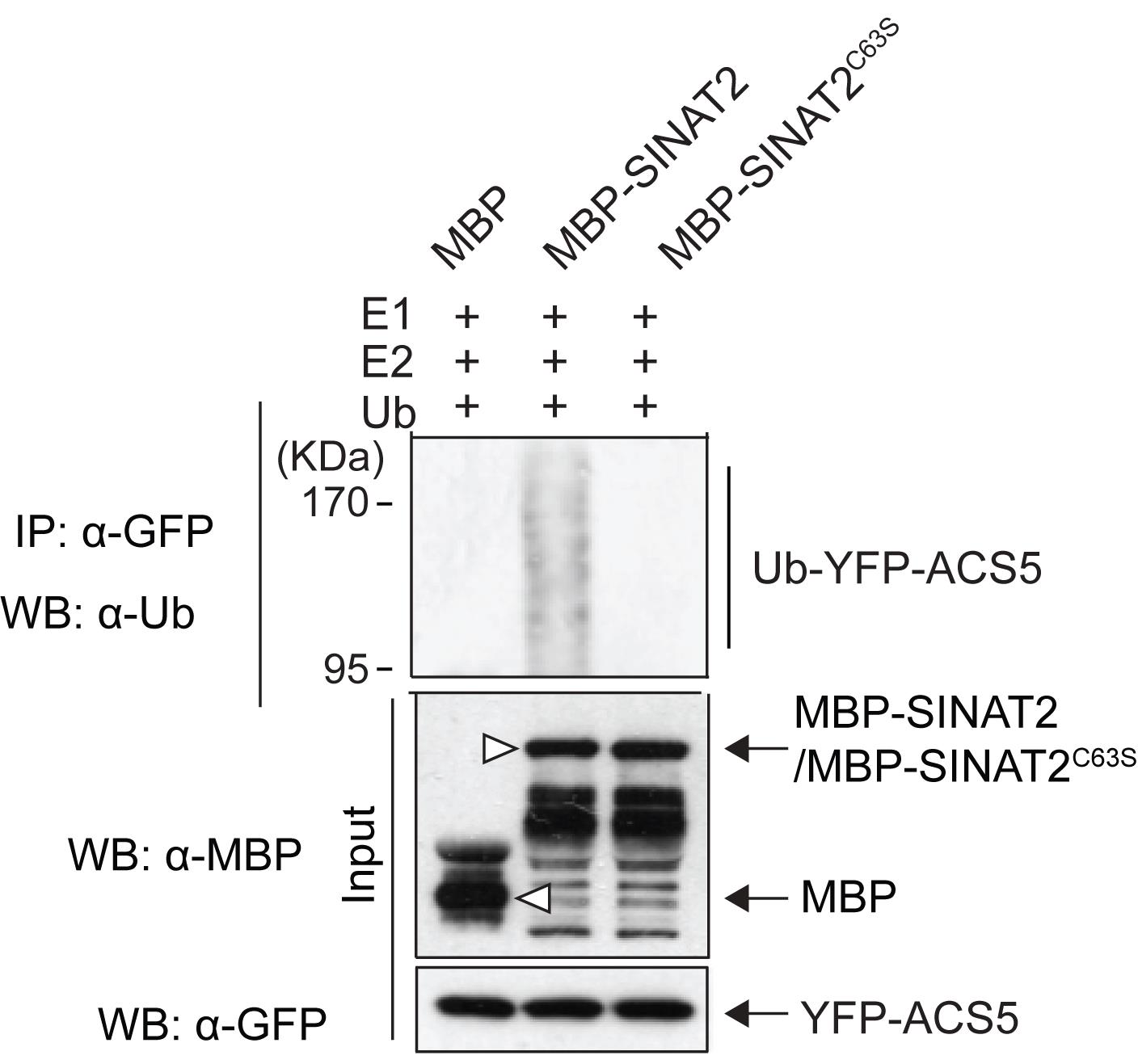

   Figure 3. SINAT2 E3 ligase-mediated substrate ubiquitination of ACS5. The ubiquitination of YFP-ACS5 is only detected in the presence of active MBP-SINAT2 E3 ligase proteins. Free MBP and MBP-SINAT2^C63S, an inactive form of SINAT2, are negative controls. Open triangles indicate free MBP and MBP-fused SINAT2 proteins (modified from Lee et al., 2021).

Recipes

1. 5× SDS sample buffer

   10% SDS

   30% glycerol

   0.02% bromophenol blue

   250 mM Tris-Cl, pH 6.8

   5% 2-mercaptoethanol

2. 1× SDS running buffer

   25 mM Tris

   192 mM Glycine

   0.1% SDS

   pH 8.3

3. 1× Transfer buffer

   25 mM Tris

   192 mM Glycine

   20 % methanol (V/V)

   0.05 % SDS

4. 1× Phospated Buffered Saline (PBS-T with 0.05% Tween-20)

   137 mM NaCl

   2.7 mM KCl

   10 mM Na₂HPO₄

   1.8 mM KH₂PO₄

5. 3% blocking buffer

   3% skimmed milk powder (w/v) in PBS-T

6. Tobacco infiltration buffer

   10 mM MES, pH 5.6

   10 mM MgCl₂

   100 µM Acetosyringone

7. Immunoprecipitation buffer

   25 mM Tris, pH 7.5

   150 mM NaCl

   5 mM EDTA, pH 8.0

   1 mM DTT

   1 mM PMSF

   1× protease inhibitor cocktail
