Differential Analysis of N-glycopeptide Abundance and N-glycosylation Site Occupancy for Studying Protein N-glycosylation Dysregulation in Human Disease

Materials and Reagents

1. Microcon 30-kDa centrifugal filter device (Merck, MRCF0R030)

2. Syringe, 3 ml (BD syringe)

3. VWR universal low-retention pipet tips, 200 μl (VWR, catalog number: 76322-150)

4. Bovine α2-HS-glycoprotein (fetuin) (Sigma, Millipore, catalog number: F3004-25MG)

5. ZIC-HILIC resin (particle size 10 μm, pore size 200 Å; Merck SeQuant, UmeÅ, Sweden)

6. H₂¹⁸O (Sigma-Aldrich, catalog number: 487090)

7. PNGase F (New England Biolabs, catalog number: P0704S)

8. Urea (Sigma, Millipore, catalog number: U1250)

9. Sodium dodecyl sulfate (Sigma, Millipore, catalog number: 71725)

10. DL-dithiothreitol (Sigma, Millipore, catalog number: D0632)

11. Iodoacetamide (Thermo Scientific, catalog number: A39271)

12. Ammonium bicarbonate (Sigma, Millipore, catalog number: 09830)

13. Formic acid (Sigma, Millipore, catalog number: 5330020050)

14. Sequencing grade modified trypsin (Promega, catalog number: V5111)

Equipment

1. Benchmark heat block (Benchmark Scientific)

2. Eppendorf 5424 microcentrifuge (Eppendorf)

3. Mortar and pestle, 150 ml capacity, porcelain (Grainger)

4. NanoDrop spectrophotometer and Quartz cuvettes (Thermo Fisher Scientific)

5. 3M^TM Empore^TM C8 extraction disk (Thermo Fisher Scientific)

6. Pierce^TM C18 tips, 100 μl bed (Thermo Fisher Scientific, catalog number: 87784)

7. Nano-LC UltiMate 3000 high-performance liquid chromatography system (Thermo Fisher Scientific)

8. LTQ-Orbitrap Elite mass spectrometer (Thermo Fisher Scientific)

9. EASY-Spray PepMap C18 column (length, 50 cm; particle size, 2 μm; pore size, 100 Å; Thermo Fisher Scientific)

10. Savant SpeedVac SC210A Plus centrifuge (Thermo Fisher Scientific)

11. Precision general purpose water bath (Thermo Fisher Scientific)

Software

1. Proteome Discoverer version 1.4 or higher (Thermo Fisher Scientific, www.thermofisher.com)

2. Microsoft Excel (https://www.microsoft.com)

3. GraphPad Prism 7 (GraphPad, https://www.graphpad.com/scientific-software/prism/)

4. MetaCore bioinformatics software (https://portal.genego.com)

Procedure

1. Protein extraction and filter-aided sample preparation

   1. Homogenize frozen tissues by grinding with a mortar and pestle under liquid nitrogen. Lyse ground tissues (25 mg per human disease or control case) in 150 µl lysis buffer (4% SDS, 100 mM DTT, and 100 mM Tris-HCl, pH 7.6) at room temperature, followed by incubation at 95°C for 5 min as described (Wisniewski et al., 2009; Wisniewski, 2017). No protease inhibitors are added to the lysis buffer because the presence of SDS efficiently inactivates protease functions (Wisniewski et al., 2009).

   2. After cooling the homogenates to room temperature, perform centrifugation at 16,000 × g for 5 min to obtain supernatants containing extracted proteins.

   3. Determine the concentrations of total protein in protein extracts by UV spectrometry at 280 nm in a cuvette with a 10-mm pathlength using a NanoDrop spectrophotometer with an extinction coefficient of 1.1 for 0.1% (g/L) solution (Wisniewski et al., 2009).

   4. Spike each protein extract by pipetting a small volume of bovine α2-HS-glycoprotein (fetuin) stock solution (0.4 µg/µl bovine fetuin in lysis buffer) to reach a final concentration of 0.1% fetuin (µg/µg total protein). The spiked-in bovine fetuin protein serves as an internal control for technical variations during sample processing and analysis.

   5. Process the protein extracts as described (Zhang et al., 2018) according to the filter-aided sample preparation (FASP) protocol (Wisniewski et al., 2009; Wisniewski, 2017).

      1. Mix 30 µl protein extract with 200 µl UA solution (8 M urea in 100 mM Tris-HCl, pH 8.5).

      2. Transfer the mixture into a Microcon 30-kDa centrifugal filter unit (MRCF0R030, Merck) and centrifuge at 14,000 × g for 15 min. Discard the flow-through.

      3. Add 200 µl UA solution to the filter unit and repeat the centrifugation. Discard the flow-through.

      4. Add 100 μl UA solution containing 50 mM iodoacetamide to the filter unit and incubate in the dark for 30 min at room temperature.

      5. Centrifuge the filter unit at 14,000 × g for 10 min. Discard the flow-through.

      6. Add 100 μl UA solution to the filter unit and centrifuge again at 14,000 × g for 10 min. Repeat this step twice.

      7. Add 100 μl 50 mM NH₄HCO₃ to the filter unit and centrifuge again. Repeat this step twice. Discard the flow-through.

      8. Add 40 μl 50 mM NH₄HCO₃ solution containing sequencing grade trypsin (enzyme to protein ratio 1:100) in the filter unit and incubate at 37°C for 12 h.

      9. Elute the trypsin-digested peptides by adding 100 μl 50 mM NH₄HCO₃ followed by centrifugation at 14,000 × g for 10 min. Collect the flow-through. Repeat this step five times and combine the eluates.

      10. Add trifluoroacetic acid (TFA) to the peptide solution to a final concentration of 0.5% TFA.

      11. Desalt the peptide samples using Pierce^TM C18 tips following the manufacturer’s protocol.

   6. Determine the concentration of the purified peptides in each sample by UV spectrometry at 280 nm in a cuvette with a 10-mm pathlength using a NanoDrop spectrophotometer with an extinction coefficient of 1.1 for 0.1% (g/L) solution at 280 nm (Wisniewski et al., 2009).

   7. Dry the peptide samples completely in a SpeedVac vacuum concentrator at room temperature for 3-6 h.




2. ZIC-HILIC-based glycopeptide enrichment

   1. Prepare ZIC-HILIC microcolumns as described (Ma et al., 2015) by adding a slurry of ZIC-HILIC resin (10 mg) in 100 µl acetonitrile (ACN) to 200-µl tips plugged with a 3M^TM Empore^TM C8 extraction disk at the bottom of each tip (Figure 2A).

   2. Use a 3-ml syringe to generate backpressure inside the tip (Figure 2B). Slowly push down the plunger to allow the solvent to flow through the ZIC-HILIC column without causing resin compression.

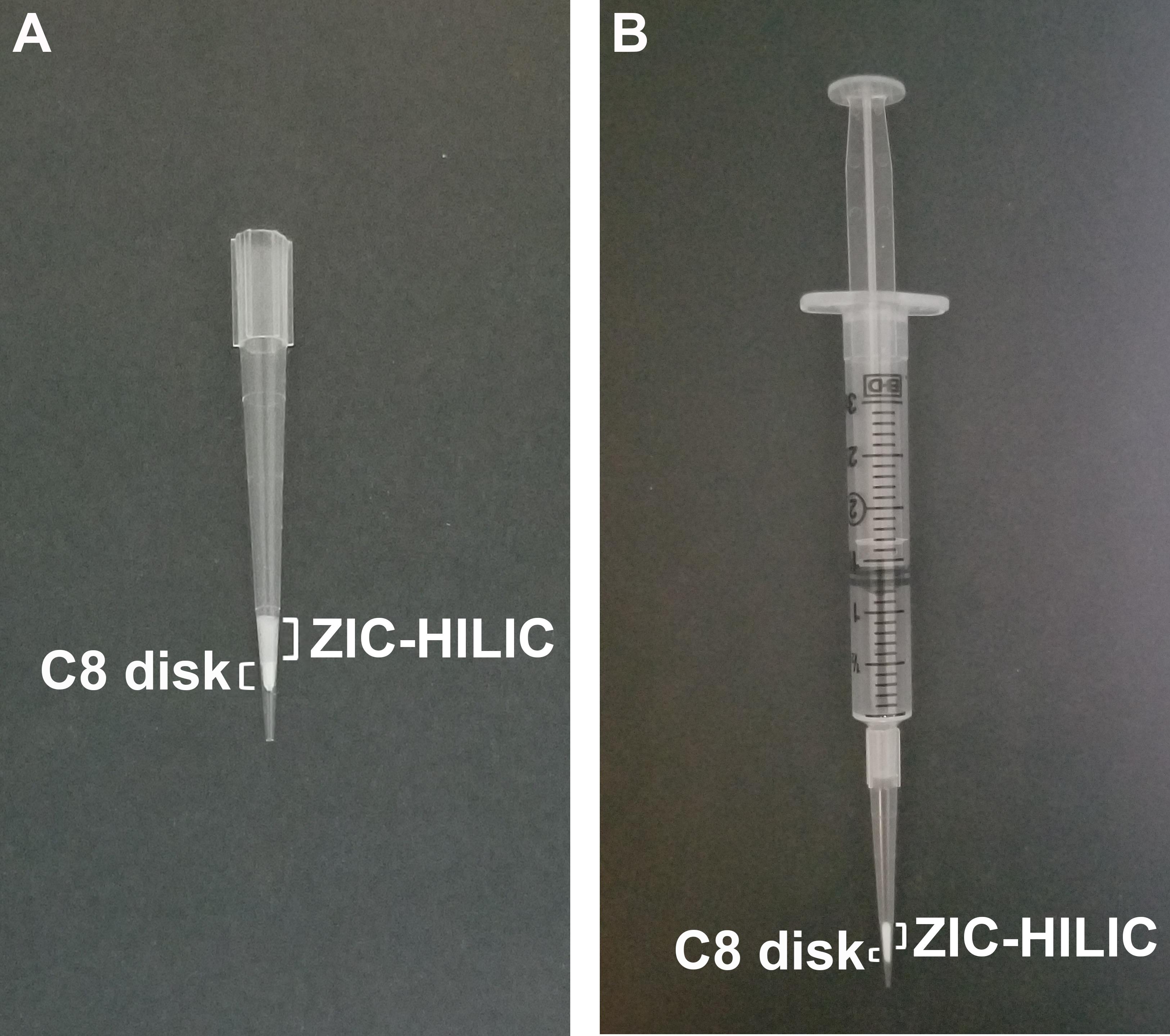

      Figure 2. ZIC-HILIC microcolumn. A. ZIC-HILIC microcolumn in a 200-µl tip plugged with a 3M^TM Empore^TM C8 extraction disk. B. Use of a 3-ml syringe to aid the flow through the ZIC-HILIC column.




   3. Equilibrate the ZIC-HILIC microcolumn by adding 100 µl binding buffer [80% ACN and 5% formic acid (FA)] and slowly pushing the solution down using a 3-ml syringe as described in Step B2.

   4. Reconstitute dry peptides (100 µg peptides per sample) in 200 µl binding buffer.

   5. Load the reconstituted peptide samples onto pre-equilibrated ZIC-HILIC microcolumns. Slowly push the solution down using a 3-ml syringe as described in Step B2. Discard the flow-through.

   6. Wash each ZIC-HILIC microcolumn five times with 100 µl binding buffer, using the syringe to slowly push the solution down as described in Step B2. Discard the flow-through.

   7. Add 80 µl elution buffer (99.5% H₂O and 0.5% FA) to the ZIC-HILIC microcolumn, and slowly push down using the syringe to elute the bound glycopeptides into a 1.5-ml tube. Repeat this step three times and collect the eluates in the same tube.

   8. Dry the glycopeptide samples completely in the SpeedVac concentrator at room temperature for 3-6 h.




3. ¹⁸O-labeling of in vivo N-glycosylation sites

   1. Reconstitute dry glycopeptides in 50 µl 50 mM NH₄HCO₃ prepared with H₂¹⁸O.

   2. Add 0.5 µl (250 units) PNGase F to each sample tube and incubate in a water bath at 37°C overnight to allow ¹⁸O-labeling of the asparagine residues at in vivo N-glycosylation sites as described in Kuster and Mann (1999).

   3. Desalt the ¹⁸O-labeled peptide samples using self-packed C18 ZipTips or Pierce^TM C18 tips following the manufacturer’s protocol.

   4. Dry the ¹⁸O-labeled peptides samples completely in the SpeedVac concentrator at room temperature for 3-6 h.




4. LC-MS/MS analysis of ¹⁸O-labeled N-glycosite-containing peptides

   1. Reconstitute dry ¹⁸O-labeled peptides (2 µg per sample) in 5 µl 0.1% fomic acid (FA).

   2. Separate peptides of each sample as described in Zhang et al. (2018) by online reversed phase-HPLC fractionation on an EASY-Spray PepMap C18 column, using a 240-min gradient from 2% to 50% solvent B at a flow rate of 300 nl/min (mobile phase A, 1.95% ACN, 97.95% H₂O, 0.1% FA; mobile phase B, 79.95% ACN, 19.95% H₂O, 0.1% FA).

   3. Perform mass spectrometric analysis as described in Zhang et al. (2018) using data-dependent acquisition with full MS scans (m/z range, 375-1600; automatic gain control target, 1,000,000 ions; resolution at 400 m/z, 60,000; maximum ion accumulation time, 50 ms) in the Orbitrap mass analyzer. The ten most intense ions in each full scan are fragmented by collision-induced dissociation with a maximum ion accumulation time of 100 ms in the LTQ mass spectrometer (automatic gain control target value, 10,000) to acquire MS/MS spectra.

Data analysis

1. Database search and quantitation of N-glycopeptide abundance

   1. Analyze LC-MS/MS raw data files using Proteome Discoverer and search the data against the human UniProt TrEMBL database (2016_02 Release, 20,198 reviewed entries) plus the bovine α2-HS-glycoprotein (fetuin).

   2. Perform the database search using the following parameters: 20-ppm precursor ion mass tolerance; 0.5-Da fragment ion mass tolerance; trypsin digestion with up to two missed cleavages; fixed modification: cysteine carbamidomethylation (+57.0215 Da); variable modifications: asparagine deamidation in H₂¹⁸O (¹⁸O tag of Asn, +2.9890 Da), asparagine and glutamine deamidation (+0.9840 Da), methionine oxidation (+15.9949 Da), and N-terminal acetylation (+42.0106 Da). Set the false discovery rate (FDR) to 1%.

   3. Select and accept the peptides with an ¹⁸O-tagged asparagine residue within the N-glycosylation sequon N-X-S|T|C (X ≠ P) as the in vivo N-glycosite-containing peptides (referred to as N-glycopeptides).

   4. Perform quantitative analysis of N-glycopeptide abundance using Proteome Discoverer to quantitate the peak area (i.e., area under the curve) of each ¹⁸O-labeled N-glycosite-containing peptide.

   5. Determine the normalized N-glycopeptide abundance by normalizing the peak area of each ¹⁸O-labeled N-glycosite-containing peptide to the corresponding peak area of the ¹⁸O-labeled internal standard N-glycopeptide KLCPDCPLLAPLN(¹⁸O)DSR derived from the spiked-in bovine fetuin protein in each sample.




2. Differential analysis of N-glycopeptide abundance

   1. Since a limitation of quantitative N-glycoproteomics is that glycopeptide identifications or abundance values can be missing from some samples (Karpievitch et al., 2012), only the N-glycopeptides with valid abundance values detected in ≥50% of disease or control samples are included in the differential analysis.

   2. Perform differential analysis of N-glycopeptide abundance in Microsoft Excel using an unpaired Student’s t-test to compare the normalized N-glycopeptide abundance values for each ¹⁸O-labeled N-glycosite-containing peptide in disease samples with those values in control samples.

   3. Identify N-glycopeptides with significantly altered, normalized N-glycopeptide abundance in the disease state using the thresholds of ±1.3-fold change over the control group (i.e., disease/control ratio >1.3 or <0.77) and P < 0.05.

   4. Generate a volcano plot using GraphPad Prism to visualize the results of the differential analysis of N-glycopeptide abundance (e.g., Figure 2A in Zhang et al., 2020).




3. Integrative N-glycoproteomics and proteomics analysis of N-glycosylation site occupancy

   1. Perform integrative analysis by comparing the N-glycoproteome data with the proteome data from the same samples measured using the same instrument for LC-MS/MS analysis.

   2. Analyze the proteome data by performing differential expression analysis as described in Zhang et al. (2018) to identify proteins with significantly altered normalized protein abundance in the disease state using the thresholds of ±1.3-fold change over the control group and P < 0.05.

   3. Determine the fold change in N-glycosylation site occupancy for each N-glycosite in disease versus control as the fold change in the normalized N-glycopeptide abundance of the N-glycosite-containing peptide divided by the fold change in the normalized protein abundance of the corresponding glycoprotein.

   4. Identify N-glycosites with altered N-glycosylation site occupancy in the disease state using the thresholds of ±1.3-fold change in N-glycosylation site occupancy in disease versus control.

   5. Perform qualitative assessment of whether an N-glycosite is exclusively occupied in either disease or control samples to identify N-glycosites with a complete loss or gain of N-glycosylation in the disease state.




4. Identification of differentially N-glycosylated proteins and dysregulated N-glycosylation-affected processes

   1. Identify differentially N-glycosylated proteins in a disease as the N-glycoproteins containing in vivo N-glycosites with altered N-glycosylation site occupancy and/or a complete loss or gain of N-glycosylation in the disease state.

   2. Define hyperglycosylated proteins in a disease as the N-glycoproteins containing N-glycosites with increased N-glycosylation site occupancy and/or a gain of N-glycosylation in the disease state.

   3. Define hypoglycosylated proteins in a disease as the N-glycoproteins containing N-glycosites with decreased N-glycosylation site occupancy and/or a complete loss of N-glycosylation in the disease state.

   4. Define aberrantly N-glycosylated proteins as the N-glycoproteins containing both hyper-glycosylated and hypoglycosylated N-glycosites.

   5. Perform Gene Ontology (GO) enrichment analysis of the generated datasets of differentially N-glycosylated proteins using the MetaCore bioinformatics software as described in Zhang et al. (2020) to reveal dysregulated N-glycosylation-affected biological processes in the disease state.
