Determination of Antibacterial Activity of Film Coatings against Four Clinically Relevant Bacterial Strains

Materials and Reagents

1. 50 ml sterile Erlenmeyer flasks (DWK Life Science, Duran^®, catalog number: 2121617 )

2. 5 ml sterile Borosilicate tubes (IVA^®, catalog number: VID-01548 )

3. 1.5 ml sterile Eppendorf centrifuge tubes (Eppendorf, catalog number: 022364111 )

4. 2-20 µl, 20-100 µl, 100-1,000 µl Kartell pluripet micropipettes (Kartell LABWARE, catalog numbers: 13000 , 13210 , 13220 ) and 1-10 ml Acura^® manual micropipette (Socorex Swiss, catalog number: 825/835 )

5. Sterile pipette tips 1-200 µl, 100-1,000 µl (Corning^®, catalog numbers: S4860 , S9032)

6. Sterile 50, 100 and 1,000 ml borosilicate measuring cylinders (VILABO, catalog numbers: 3501114 , 3501115 , 3501118 )

7. Sterile Petri dish glass plates (80 mm diameter) (Brand^®, catalog number: BR455732 )

8. Bacterial strains Salmonella typhimurium (LT2), Escherichia coli K12, Pseudomonas aeruginosa (PAO1) and Staphylococcus aureus (ATCC 29213 )

9. Neutral detergent (Extran^®, Merck Millipore, catalog number 140000 )

10. Milli-Q Water

11. Acetone (Merck, catalog number 67-64-1 )

12. Isopropanol (Merck, catalog number 3979-51-9 )

13. Titanium tetrachloride (Merck, catalog number , 7550-45-0 )

14. Pluronic^® F-127 (Sigma-Aldrich, catalog number 9003-11-6 )

15. Pluronic^® P-123 (Carbo synth, catalog number 9003-11-6 )

16. Glass slides (YEGREN^® , catalog number: 7101 )

17. Cover glasses (Merck, catalog number C9056-1CS )

18. Cell culture plate (Sigma^®, catalog number SIAL0516-50EA )

19. Plastic box (15 cm x 20 cm x 5 cm)

20. Paper towel (WypAll* X 60 Jumbo Roll, KCWW, Kimberly-Clark, catalog number: 30218593 )

21. Inoculating loop (Decon^TM, catalog number: MP 19025 )

22. Glycerol for molecular biology, ≥ 99.0% (Sigma-Aldrich, catalog number: G5516-500ML )

23. Distilled water (G-BIOSCIENCES, catalog number: 786-1713 )

24. Immersion oil (Leica, standar and type “F”, CAS Number: 195371-10-9 )

25. Tryptone (OXOID, catalog number: LP0042 )

26. Yeast extract (Merck, catalog number: 103753 )

27. Granulated agar (Difco, catalog number 214530 )

28. Sodium Chloride (NaCl) (Biopack, catalog number: 1646.08 )

29. SYTO^TM 9 Green Fluorescent Nucleic Acid Stain (Invitrogen, catalog number S34854 )

30. Propidium Iodide (Invitrogen, Catalog number P1304MP )

31. LB medium (see Recipes)

32. LB agar solid medium (see Recipes)

33. 4 M NaCl solution (see Recipes)

34. Saline solution (see Recipes)

35. Staining SYTO 9/PI solution (see Recipes)

36. Titania mesostructured thin film coatings (see Recipes)

Equipment

1. 50 ml Erlenmeyer flasks

2. Inoculation loop

3. Conventional incubator shaker (New Brunswick Scientific Co., INC, model: G25 )

4. UV-Vis Spectrophotometer (Biotraza, model: 752 )

5. Autoclave (Hirayama HICLAVE^TM, model: HVE-50 )

6. Hot air oven sterilizer (Dalvo Instrumentos, model: OHR/T )

7. Vortex (Velp, model: ZV3, 201251076 )

8. Epifluorescence microscope (Olympus, model: BX51 )

9. Incubation stove (Precision, Scientific Group, model 4, catalog number: 31483 )

10. Bunsen burner (Eisco^TM, catalog number CH0091B )

11. Nanodrop 2000 (Thermo Scientific, NanoDrop^®, catalog number: ND-2000 )

12. Refrigerated centrifuge (Hanil Scientific, model: Combi 514R )

13. Spin coater (Laurell Technologies Corporation, model: WS-650-23B )

Procedure

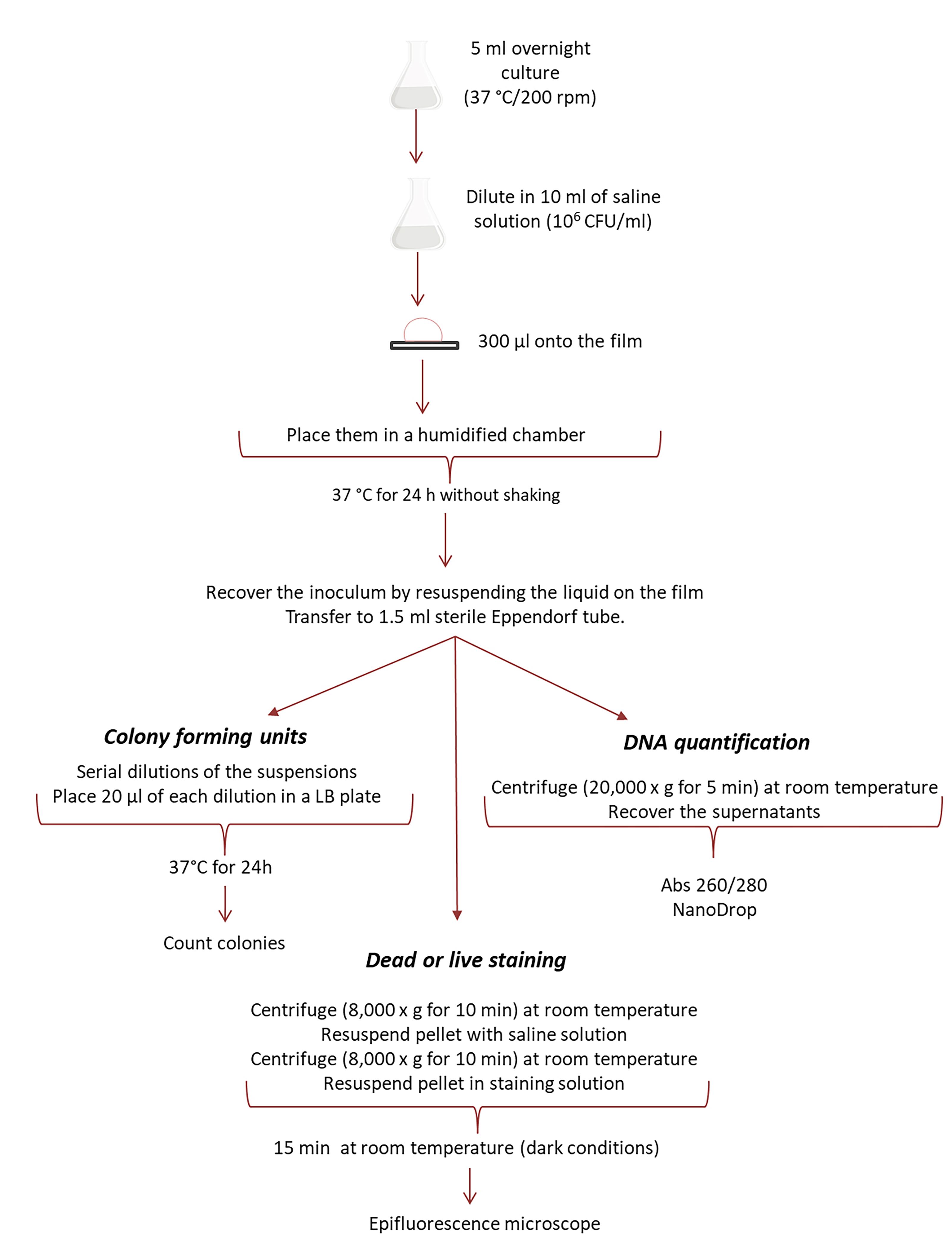

A schematic diagram depicting the whole experimental procedure is shown in Figure 1.

1. Bacterial incubation on film coating

   1. Salmonella typhimurium (LT2), Escherichia coli K12, Pseudomonas aeruginosa (PAO1) and Staphylococcus aureus (ATCC 29213 ) strains are maintained in glycerol stocks in liquid nitrogen. Prepare stocks by mixing by inversion or vortexing 130 µl of sterile glycerol and 770 µl of 5 ml overnight bacterial cultures grown in LB medium at 37 °C in sterile 50 ml Erlenmeyer flasks.

   2. Prepare fresh LB agar plates by pouring 25 ml of LB agar medium in the Petri dishes. After solidification, allow them to dry by leaving them opened and upside down in a stove for at least 30 min at 55 °C.

   3. Plate bacteria with a sterile inoculating loop from glycerol stocks onto solid LB plates and grow them overnight at 37 °C in an incubation stove.

   4. Pipet 5 ml of LB in sterile 50 ml Erlenmeyer flasks. Then, by using an inoculation loop, pick colonies from the LB media plate and shake the loop in the liquid LB medium. Grow overnight at 37 °C with shaking (200 rpm) in an incubator shaker. To work in sterile conditions, keep the Bunsen burner on during the entire procedure.

   5. Check OD₆₅₀ by using a spectrophotometer (1 OD₆₅₀ = 10⁸ CFU/ml).

   6. Take an aliquot of the overnight culture and dilute in 10 ml of sterile saline solution in a new sterile 50 ml Erlenmeyer flasks to reach 1 x 10⁶ CFU/ml. To work in sterile conditions, keep the Bunsen burner on during the entire procedure.

   7. Place the film-coated glass substrates on a cell culture plate and add 300 µl of the bacterial suspension on the surface of the films, avoiding leaking out of the films. The inoculum should stay on the surface of the coatings for the whole incubation time.

   8. Place the cell culture plate in a plastic box with wet paper to create a humidified chamber.

   9. Incubate at 37 °C in an incubation stove for 24 h without shaking.

   10. Recover the inoculum from incubation by resuspending the liquid on the film surface to capture bacteria potentially attached to the surface. Place in a 1.5 ml sterile Eppendorf tube.




2. Viability evaluation

   Counting for colony forming units (CFU)

   1. Vortex the bacterial suspensions recovered from the incubation on film surfaces (2,000 rpm) for a few seconds.

   2. Make serial dilutions of the suspensions (10^-1, 10^-2, 10^-3, 10^-4). For this, add 50 µl of the initial suspension to a sterile borosilicate glass tube carrying 450 µl of saline solution and vortex to mix it. Then take 50 µl of the first dilution 10^-1 and pass to a new tube with 450 µl of saline solution, and so on until 10^-4 dilutions. Vortex briefly before successive dilutions.

   3. Take 20 µl from each dilution and pour them as a drop onto sterile dried LB solid medium plates. Wait for the drops to be absorbed into the agar and then flip the plates.

   4. Incubate the plates at 37 °C for 24 h in an incubation stove. This incubation time could be modified in order to evaluate bacterial survival at other time points.

   5. Count the colonies formed onto the LB agar plate of each dilution. Only plates containing about 3-30 colonies per drop should be considered.

   6. The total CFU/ml is calculated as follows: the number of colonies corresponding to each drop x dilution factor x total volume (1,000 µl) /volume plated (20 µl). At least three independent films and three independent experiments are needed for statistical analysis.



   Dead or live staining

   1. Centrifuge the bacterial suspensions recovered from the incubation on film surfaces at 8,000 x g for 10 min at room temperature. Separate the pellets from the supernatants.

   2. Resuspend the pellet with 500 µl of saline solution and centrifuge at 8,000 x g for 10 min. Discard the supernatant.

   3. Resuspend the pellet in 200 µl of a staining solution of SYTO 9 and PI.

   4. Incubate in the dark for 15 min at room temperature.

   5. Place 50 µl of the staining suspension in a glass slide and cover it with a cover glass.

   6. Visualize under a fluorescence microscope with 100x objective lens and immersion oil.

   7. Take at least 6 representative photographs per sample.



   DNA quantification

   1. Centrifuge the bacterial suspensions recovered from the incubation on film surfaces at 20,000 x g for 5 min at room temperature.

   2. Recover the supernatants and place them in a new 1.5 ml sterile Eppendorf tube.

   3. Place 1 µl of the supernatants in the NanoDrop to measure the DNA concentration. Read at 260/280 nm. At least three independent films and three independent experiments are needed for statistical analysis.

Data analysis

As an example of the described methodologies, results of the antibacterial activity of mesostructured titania thin film coatings on Salmonella typhimurium are shown (Scilletta et al., 2019). For this purpose, hybrid titania-Pluronic mesostructured thin films were synthesized by the sol-gel method in combination with evaporation-induced self-assembly of the pluronic micelles, according to protocols described in the literature (Crepaldi et al., 2003; Soler-Illia et al., 2011). Briefly, films were deposited by spin-coating on glass substrates, starting from water/alcohol acidic solutions with the inorganic precursor (TiCl₄) and the Pluronic templates. The use of Pluronic F127 and Pluronic P123, and the systematic variation of the titania:Pluronic mol ratios allowed to modulate the mesophase structure. Pluronic P123 indeed presents practically half the molecular weight of Pluronic F127.

Note: Data presented in Figures 2, 3 and 4 were reported in Scilletta et al. (2019).

Bacterial viability was assessed after 24 h of incubation on the surfaces (Figure 2). The results showed that hybrid coatings possess bactericidal activity, while the titania control films (without Pluronic) presented no antibacterial activity. Indeed, the data evidenced that to one tuned amount of template, the antibacterial activity increases for both Pluronic F127 and P123. Besides, at the extremes of Ti:Pluronic ratio the surfaces become slightly active.

Figure 2. Bactericidal activity of the mesostructured surfaces: Pluronic F127 (A) and Pluronic P123 (B) loaded films with variable concentrations of surfactant were challenged with 10⁶ CFU ml⁻¹ of Salmonella typhimurium. Survival fraction of bacteria after 24 h was calculated by dividing the CFU at 24 h respect to initial time. ND: Non-detectable. [Reproduced from Scilletta et al. (2019) by permission from Elsevier].

The analysis of coating effects on the bacterial membrane evidenced that bacteria membrane integrity was considerably disrupted, so bacteria died after the incubation on the hybrid Pluronic F127-loaded coatings. Nevertheless, they remained mainly intact when they were incubated on the Pluronic-free titania films (Figure 3).

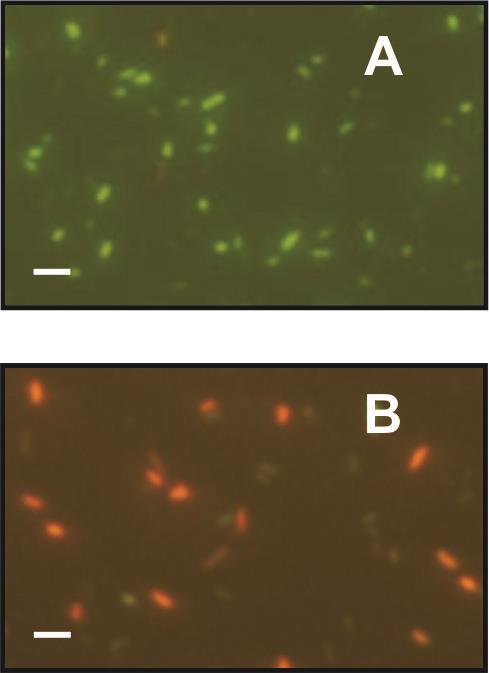

Figure 3. Cell membrane integrity: Fluorescence microscopy images of the bacteria suspension of Salmonella typhimurium after 24 h inoculating F127-free films (A) and F127-loaded films (B). Bacteria that have damaged membranes are labelled in red and cell with intact membranes in green. Scale bars represent 10 μm. [Reproduced from Scilletta et al. (2019) by permission from Elsevier].

DNA present in the bacteria suspension after incubation on the Pluronic-loaded films supports the results observed in the survival fraction and microscopy assays on cell membrane disruption occasioned by these mesostructured surfaces (Figure 4).

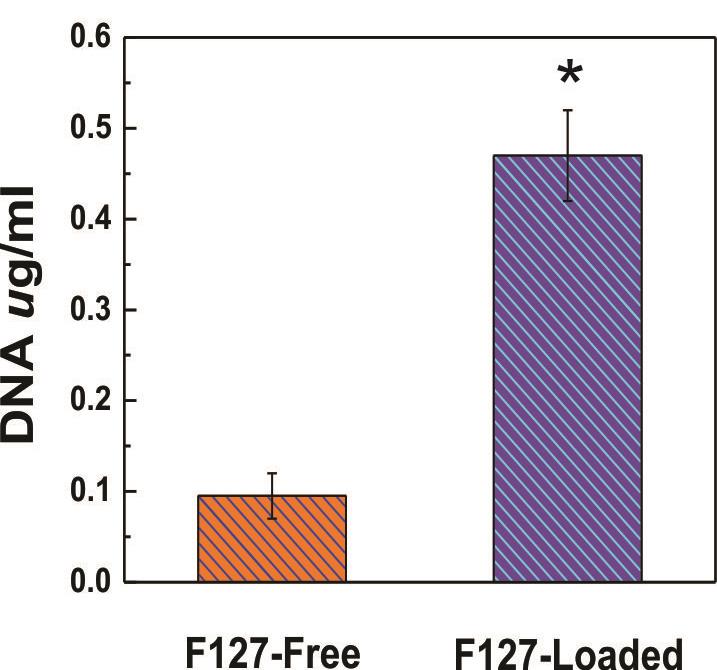

Figure 4. The amount of DNA present in the bacteria suspension of Salmonella typhimurium after incubation on the surfaces. t-test, P < 0.005, * significantly different from F127-free coatings. [Reproduced from Scilletta et al. (2019) by permission from Elsevier].

Recipes

1. LB medium

   1. Dissolve:

      10 g tryptone

      5 g yeast extract

      5 g NaCl

   2. Bring the volume up to 1,000 ml in distilled water

   3. Autoclave at 1atm for 20 min

2. LB solid medium

   1. Dissolve:

      10 g tryptone

      5 g yeast extract

      5 g NaCl

      15 g agar

   2. Bring the volume up to 1,000 ml in distilled water

   3. Autoclave at 1atm for 20 min

3. 4 M NaCl

   1. Dissolve 46.7 g NaCl in 200 ml of distilled water

   2. Autoclave at 1atm for 20 min

4. Saline solution

   Mix 7.5 ml sterile 4 M NaCl in 300 ml of sterile distilled water

5. Staining SYTO 9/PI solution

   0.7 μl of 5 mM SYTO 9 (stock solution; stored at -20 °C protected from the light)

   26 μl of 0.77 mM PI (stock solution; stored at 4 °C protected from the light)

   1,000 ml of distilled water

   Prepare fresh for every experiment

   The solution can be kept in the dark at room temperature during the experiment

6. Glass coating with titania mesostructured thin film

   1. Wash microscope slides (26 mm x 20 mm x 1 mm) with neutral detergent, and then rinse sequentially with MilliQ water, acetone, and isopropanol

   2. Starting from a TiCl₄/ethanol solution (1:40), add Pluronic F127 or Pluronic P123 and water to achieve a final composition of TiCl₄:ethanol:H₂O:Pluronic equivalent to 1:40:10:S mol ratios. S varies between 0.0025 and 0.02 mol ratios

   3. Perform the spin-coating at 2,500 rpm, 35 °C and relative humidity of 15%

   4. Place the films in a chamber with 50% relative humidity for 24 h

   5. Perform a consolidation thermal treatment including three consecutive steps of 1 h at 60 °C, 130 °C and 180 °C
