Flow Cytometry of CD14, VDR, Cyp27 and Cyp24 and TLR4 in U937 Cells

Materials and Reagents

1. 25 cm² cell culture flask (Sigma-Aldrich, catalog number: SIAL0168 ), storage: room temperature
2. Coverslip: 18 x 18 mm Thickness 0.13-0.17 mm (Amscope, catalog number: CS-S18-100 , storage: room temperature
3. U937 human monocytic lineage cell (ATCC, catalog number: TIB-202 ), storage: Liquid Nitrogen
4. APC-VDR secondary antibody, clone mouse (Invitrogem, catalog number: Z25151 ), storage: 8 °C
5. CD14-FITC anti-human monoclonal antibody, clone 61D3 (eBioscience, catalog number: 11014942 ), storage: 8 °C
6. RPMI 1640 culture medium, pH 7.4 (Sigma-Aldrich, catalog number: R4130 ), storage: 8 °C
7. Pen Strep Solution 100 ml (Penicillin Streptomycin) (Gibco by Life Technologies, catalog number: 15140-122 ), storage: -20 °C
8. PMA (Phorbol 12-myristate 13-acetate) (Sigma-Aldrich, catalog number: P1585 ), storage: -20 °C
9. PBS (Phosphate buffered saline pH 7.4) (Sigma-Aldrich, catalog number: P3744-1 PAK ), storage: room temperature
10. Trypsin EDTA solution (Sigma-Aldrich, catalog number: T4049 ), storage: -20 °C
11. FBS (Fetal Bovine Serum) (Sigma-Aldrich, catalog number: 12103C ), storage: -20 °C
12. Trypan Blue solution (Sigma-Aldrich, catalog number: T8154 ), storage: room temperature
13. 25(OH)D (25-Hydroxyvitamin D3 solution 50 µg/ml in ethanol) (Sigma-Aldrich, catalog number: 739642 ), storage: -20 °C
14. TLR4-PE anti-human monoclonal antibody, clone HTA125 (eBioscience, catalog number: 12991742 ), storage: 8 °C
15. VDR anti-human monoclonal antibody, clone H1512 (Santa Cruz, catalog number: SC13133 ), storage: 8 °C
16. CYP27B1 anti-human monoclonal antibody, clone K2911 (Santa Cruz, catalog number: SC49642 ), storage: 8 °C
17. Alexa Fluor 647-CYP27B1 secondary antibody, clone goat (Invitrogem, catalog number: Z25608 ), storage: 8 °C
18. CYP24 anti-human monoclonal antibody, clone D0811 (Santa Cruz, catalog number: SC66851 ), storage: 8 °C
19. Alexa Fluor 488-CYP24 secondary antibody, clone rabbit (Invitrogem, catalog number: Z5302 ), storage: 8 °C
20. Fixation/permeabilization buffer–Cytofix/Cytoperm (1x) (BD Pharmingen, catalog number: 554722 ), storage: 8 °C
21. Wash buffer containing saponin–Perm/Wash buffer (BD Pharmingen, catalog number: 554723 ), storage: 8 °C
22. DMSO (dimetilsulfoxide) (Synth, catalog number: 01D1011.01.BJ ), storage: room temperature
23. Sodium azide (Merckmillipore, catalog number: 247-852-1 ), storage: room temperature
24. Anticoagulants EDTA (Disodium ethylenediaminetetraacetate dihydrate) (Sigma-Aldrich, catalog number: ED2SS-100g ), storage: room temperature
25. Azide sodium (Sigma-Aldrich, catalog number: S2002-100g ), storage: room temperature
26. PMA (PhorboI12-Myristate 13-Acetate) (see Recipes)
27. 500 ng/ml 25(OH)D (see Recipes)
28. 1% Azide PBS solution (see Recipes)


Equipment

1. -80 °C freezer
2. Hemocytometer/Neubauer chamber (Microyntech, catalog number: MT-BCC-BL , storage: room temperature)
3. Flow Citometer: FacsCanto I four parameters (BD Biosciences, San Diego, USA)
4. CO₂ incubator 4110 (Thermo Fisher Scientific, USA)
5. Centrifuge 5804 R (Eppendorf, Germany)


Software

1. BD FACSDiva^TM (BD Biosciences, San Diego, USA; www.bdbiosciences.com)
2. SPSS version 22 statistics software (SPSS, Chicago, USA)


Procedure

1. Preparation of healthy and uremic human serum pool
   1. Healthy Serum Pool: Collect blood samples (20 ml) from 20 healthy volunteers in tubes with anticoagulants and centrifuge at 500 x g for 10 min at 4 °C.
      Note: The supernatant should be separated in aliquots, put in a box and storage in vertical freezer at -80 °C.
   2. Uremic Serum Pool: Collect blood samples with anticoagulant tubes from 30 patients in hemodialysis treatment immediately before the beginning of the second session of the week. Centrifuge at 500 x g for 10 min at 4 °C. Store the supernatant in a -80 °C freezer.
      Exclusion criteria: patients that had any type of infections, have used any immunosuppressive drugs, vitamin D supplementation or had diabetes mellitus or neoplasia.

2. U937 (human monocytic lineage) culture assay
   1. Culture 1 x 10⁵ U937 cells (human monocytic lineage) in 25 cm cell culture flask (Sigma) with 10 ml of RPMI 1640 culture medium, pH 7.4, supplemented with 100 U/ml penicillin and 100 μg/ml streptomycin (Gibco, BRL, Life Technologies) and 10% FBS (fetal bovine serum). And then incubate in an incubator with 5% CO₂ at 37 °C. Change the culture medium (RPMI 1640) each 24 h until the culture achieves confluence.
   2. Remove old RPMI from cell culture flask and add a 10 ml of fresh culture medium RPMI with 5 µM/ml of PMA (add 10 µl of 5 mM/ml PMA-stock solution to 10 ml fresh RPMI 1640 culture medium). Maintain the culture in a 5% CO₂ incubator at 37 °C for 24 h until U937 cells differentiate into monocytes cells.
   3. After differentiation, wash the cells with 10 ml of PBS (Sigma) to remove the PMA. Then incubate in 5 ml of trypsin 0.5% for 3 min at room temperature, in order to detach the cells from the surface of the cell culture flask to obtain a homogeneous cell suspension.
   4. Next wash with 5 ml of RPMI 1640 culture medium for trypsin neutralization. Transfer cells from the cell culture flask to a 15 ml tube and centrifuge for 5 min at 500 x g, 4 °C.
   5. Remove the supernatant and add 10 ml of fresh RPMI 1640 to test cell viability using Trypan Blue.


3. Trypan blue viability assay
   1. Clean the hemocytometer.


      Figure 1. Fill 5 or 10 µl cell suspendsion into both sides of the chamber in Hemocytometer


   2. Moisten the coverslip with water or exhaled breath. Slide the coverslip over the chamber back and forth using slight pressure until Newton’s refraction rings appear (Newton’s refraction rings are seen as rainbow-like rings under the coverslip).
   3. Under sterile conditions take out 100-200 µl of cell suspension, transfer it in a micro tube and staining with an equal volume of Trypan Blue solution (dilution factor = 2) and mix by gentle pipetting. The maximum time of trypan blue staining is until 30 seconds (Figure 1).
   4. Fill both sides of the chamber with cell suspension (approximately 5-10 µl) (Figure 1) and view under an inverted phase contrast microscope using 20x magnification.
   5. Count the number of viable (seen as bright cells) and non-viable cells (stained blue). Ideally >100 cells should be counted in order to increase the accuracy of the cell count (see note below) (Figure 2).
      Note: The number of squares counted to obtain your count of > 100.

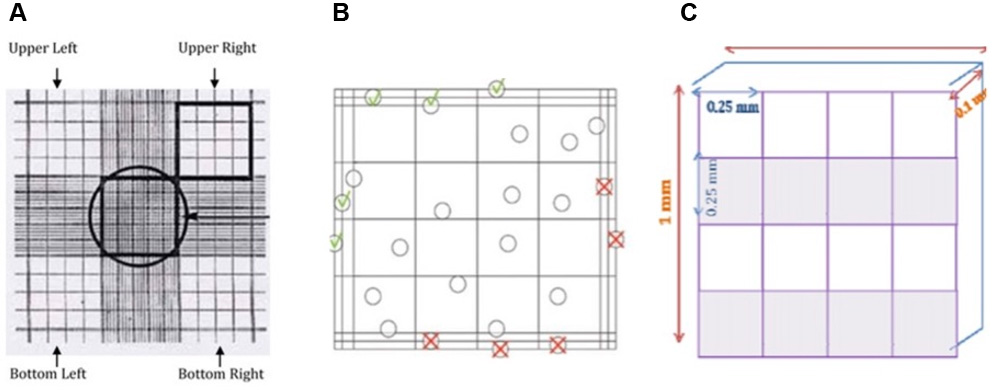

      Figure 2. Hemocytometer design. A. Image from hemocytometer by inverted phasecontrast. B. Count viable Cells (bright/clear cells) and dead cells (blue) on four squares (upper left + right + bottom left + right ( ), but not the upper and bottom right border ( ) and not the upper and bottom left border ( ). C. Hemocytometer area


   6. Calculate the concentration of viable and non-viable cells and the percentage of viable cells using the example below and as illustrated above:

      Volume hemacytometer = 1 × 1 × 0.1 = 0.1 mm³

      Calculate the concentration of viable and non-viable cells per ml.
      For example: there are 120 counted viable cells or non-viable cells on the hemacytometer, then

      the concentration of viable cells per ml = 120 cells /0.1 mm³ × 2 × 1,000 mm³/1 ml =2.4 × 10⁶ cells/ml

      which 2 is the dilution factor (V cell suspension/V trypan Blue);
      1 ml corresponds 1,000 mm³.


      Percentage Viability=(N⁰ of viable cells)/(Total N⁰ of cells)×100


4. Treatment with or without 25(OH)D and with or without uremic pool serum assay
   After calculating the viability (that must be around 95%), use the tube of 15 ml with cell suspension in the RPMI (that is used to calculate viability) and transfer 1 x 10⁶ cells for each condition to cell culture flask described allow: (In order to adjust the 1 x 10⁶ cell to each condition of treatment described below, it is needed cell count by hemocytometer).
   1. Treatment with healthy pool serum: Transfer 1 x 10⁶ cells to 25 cm² cell culture flask with 2.5 ml of RPMI 1640 and with 2.5 ml of healthy pool serum. Incubate for 24 h with 5% CO₂ at 37 °C.
   2. Treatment with 25(OH)D and healthy pool serum: Transfer 1 x 10⁶ cells to a 25 cm² cell culture flask with 2.5 ml of RPMI 1640 and 2.5 ml of healthy pool serum and add 50 ng/ml of 25(OH)D. Incubate for 24 h, 5% CO₂ at 37 °C.
   3. Treatment with uremic pool serum: Transfer 1 x 10⁶ cells to a 25 cm² cell culture flask with 2.5 ml of RPMI 1640 and 2.5 ml of uremic pool serum. Incubate for 24 h, 5% CO₂ at 37 °C.
   4. Treatment with 25(OH)D and uremic pool serum: Transfer 1 x 10⁶ cells to a 25 cm² cell culture flask with 2.5 ml of RPMI 1640 and with 2.5 ml of uremic pool serum and add 50 ng/ml of 25(OH)D. Incubate for 24 h, 5% CO₂ at 37 °C.


5. Detection of TLR4, VDR, CYP27 and CYP24 human monoclonal antibodies

   1. After incubation for each condition, transfer cells of each condition of treatment with or without 25(OH)D described above, centrifuge 10 min, 500 x g at 4 °C. Discard supernatant and add to pellet 1 ml of PBS.
   2. To each conditions of treatment with or without 25(OH)D and healthy pool serum or uremic pool serum, add 3 x 10⁵/100 µl of PBS in 3 (three) tubes to stain with antibodies, respectively. Add each monoclonal antibody according to Table 1.

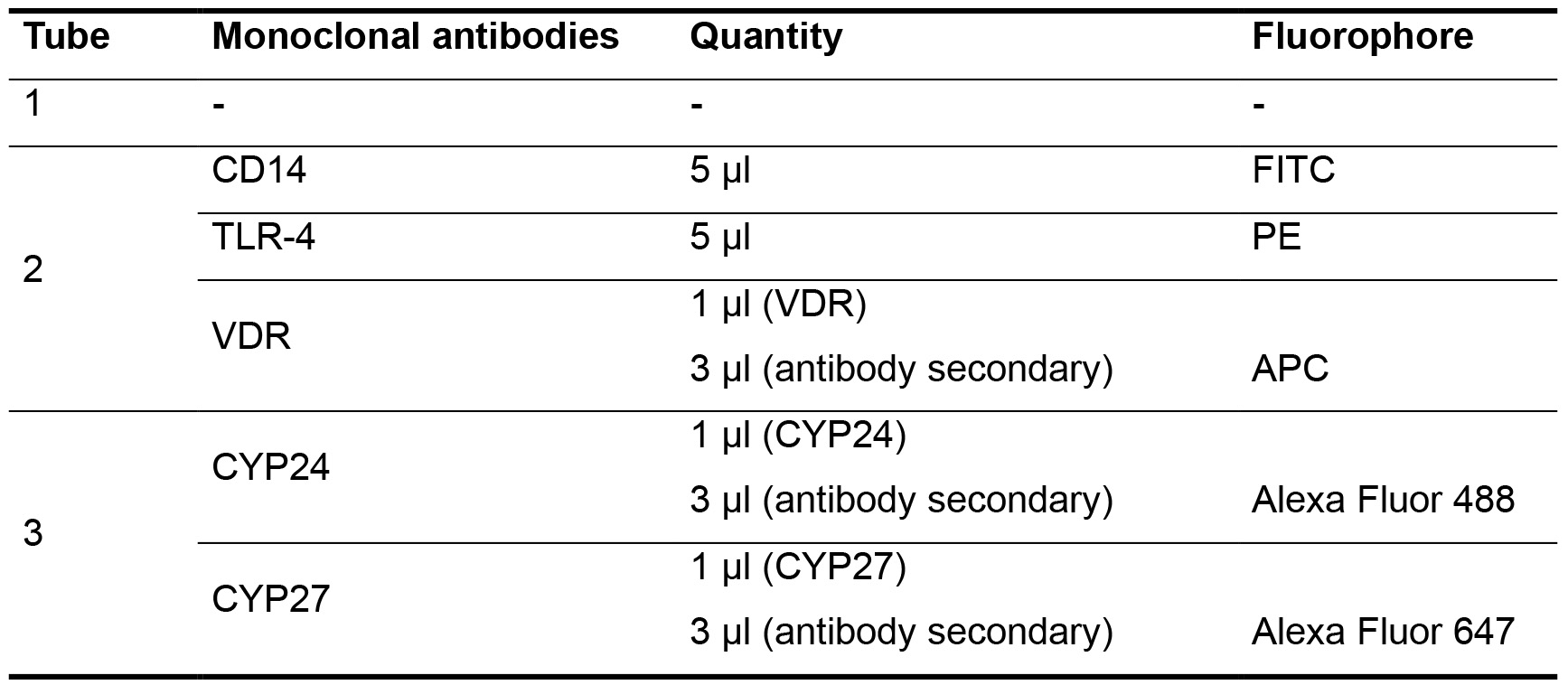

      Table 1. Monoclonal antibody protocol



   3. Tube 1: 3 x 10⁵ cells + 100 µl of PBS. Ready to analyze in flow cytometry.
   4. Tube 2: 3 x 10⁵ cells + 100 µl of PBS + 5 µl CD14 + 5 µl TLR4, incubate for 15 min in the dark at room temperature. After, centrifuge 5 min, 500 x g at 4 °C. Remove supernatant and add 1 ml with Fixation/permeabilization buffer for 20 min. After, add 1 µl of VDR antibodies at concentration of 1 μg/ml (Santa Cruz, San Diego, USA) and incubate for 30 min at fridge (2-8 °C). After, washing 3 times with Wash buffer containing saponin–Perm/Wash buffer and incubate with 3 μg/ml of respective secondary antibodies (APC-conjugated anti-human VDR) for 15 min at fridge (2-8 °C) Centrifuge and discard the supernatant. Add 300 µl of 1% azide PBS solution. Ready to analyze in flow cytometry.
   5. Tube 3: 3 x 10⁵ cells + 100 µl of PBS, add 1 ml with Fixation/permeabilization buffer for 20 min. After, add 1 µl of CYP27B1 + 1 µl CYP24 antibodies at concentration of 1 μg/ml (Santa Cruz, San Diego, USA) and incubate for 30 min at fridge (2-8 °C). After, washing 3 times with Wash buffer containing saponin–Perm/Wash buffer and incubate with 3 μg/ml of respective secondary antibodies (Alexa-Fluor 647-conjugated anti-human CYP27B1 and Alexa-Fluor 488-conjugated anti-human CYP24)) for 15 min at fridge (2-8 °C). Centrifuge and discard the supernatant. Add 300 µl of 1% azide PBS solution. Ready to analyze in flow cytometry.
   Note: This protocol may be simplified if you have a flow cytometer that can detect five or more parameters of fluorescence. For this, you can put 3 x 10⁵ cell only in one tube and stain with all monoclonal antibodies conjugated with different fluorescence to be detect in each channel of detection by flow cytometry.


6. Flow cytometry analysis (BD FacsCanto I)
   1. Use a forward scatter plot versus side scatter plot to make a gate for the CD14⁺ (monocytes cells) and to exclude debris (Figures 3A-3D). Use DOT-PLOT graphs to analyze the CD14⁺ (Figure 3E), CD14⁺TLR4⁺ (Figure 3F) and CD14⁺VDR⁺ (Figure 3G).
   2. Use DOT-PLOT graphs to analyze the CD14⁺ (Figure 4A) and use histograms to analyze the CYP27⁺ (Figure 4D) and CYP24⁺ (Figure 4E). Describe results as mean fluorescence intensity (MFI), such that the higher the MFI the greater the expression of these receptors. For each sample, acquire 30,000 events/cells.

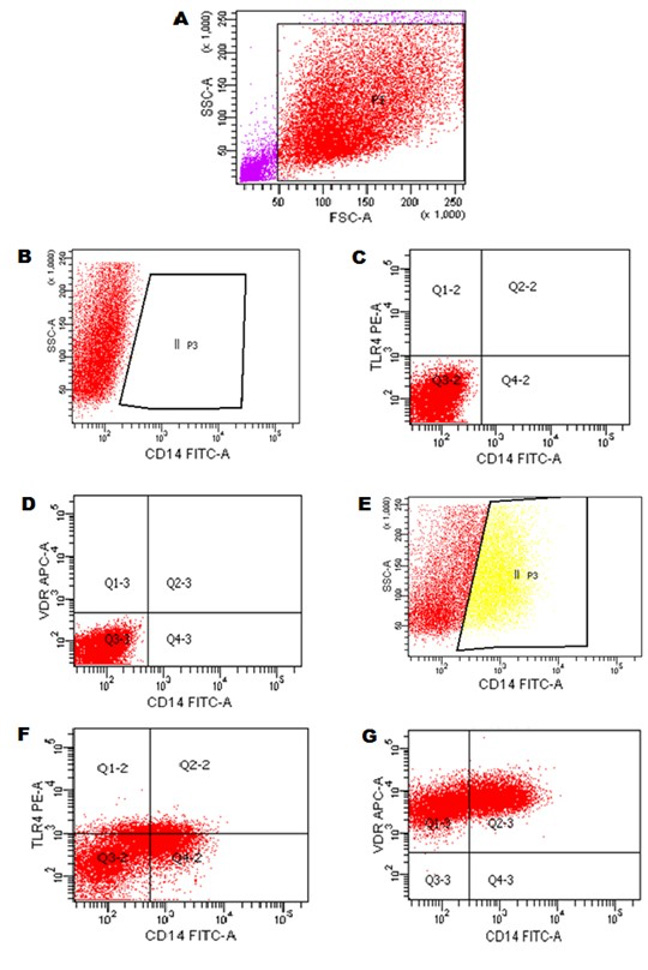

      Figure 3. Flow cytometry gating strategy of CD14⁺, TRL4 and VDR expression in monocytes cells. A. Monocytes cells were selected at gate P1 according to the characteristics of size (Foward Scatter–FSC) and internal complexity (Side Scatter–SSC). B-D. Adjustment of the autofluorescence of monocytes cells in the detection channels for the respective antibodies marked with the respective fluorochromes FITC, PE and APC. E. II P3 = Expression of CD14 FITC⁺ in monocytes cells. F. Q2-2 = Expression of TLR4 PE⁺ and CD14 FITC⁺ in monocytes cells. G. Q2-3 = Expression of VDR APC⁺ and CD14 FITC⁺ in monocytes cells.

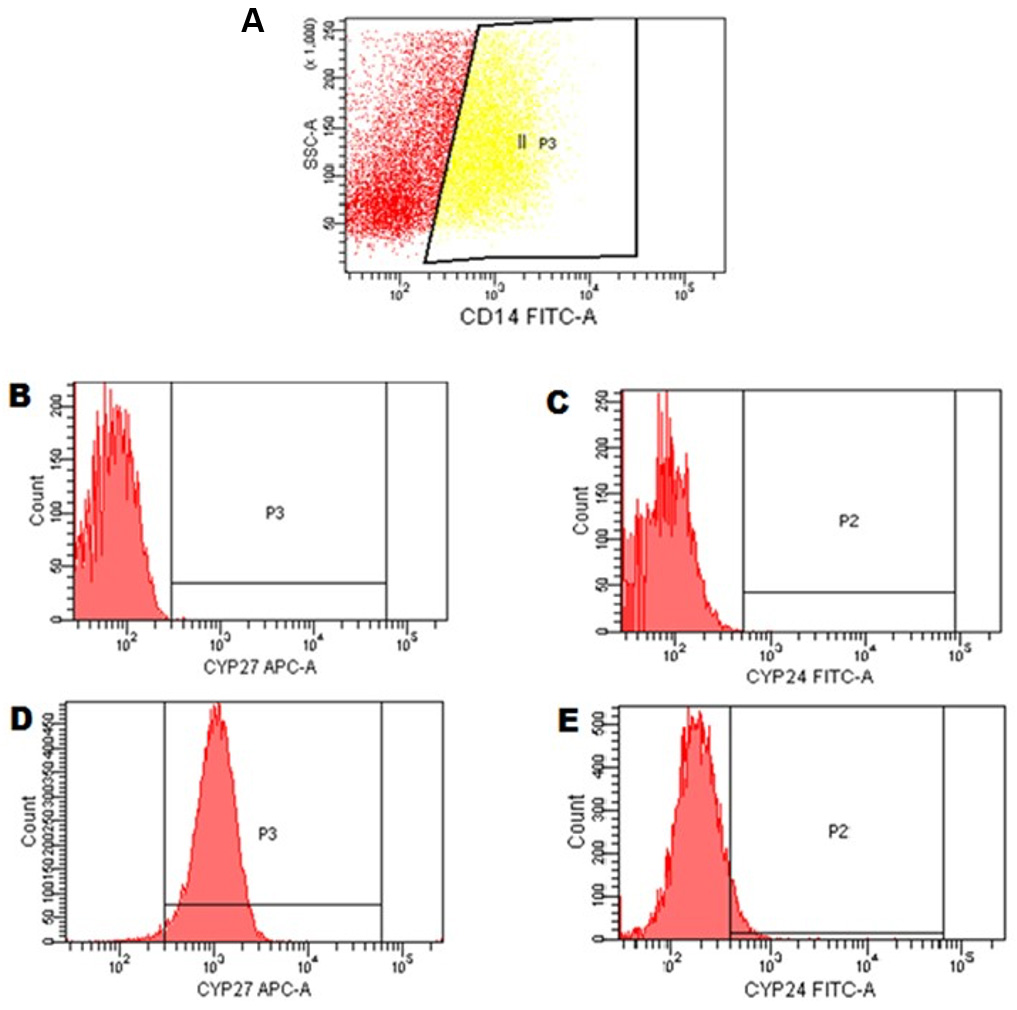

      Figure 4. Flow cytometry strategy for CYP27 and CYP24 in monocytes cells. A. Gate II P3 = monocytes cells CD14⁺ were selected based on previous experiments. Histogram type graphics were created (number of cells in relation to the detected fluorescence intensity). B and C. Cell autofluorescence adjustment for monoclonal antibody detection channels conjugated to the respective fluorochromes: Alexa fluor 647 is detected in APC flow cytometry channel and Alexa Fluor 488 is detected in FITC flow cytometry channel. D and E. monocytes positive for expression of CYP27 and CYP24 as shown in the quadrants P3 and P2, respectively.

Data analysis

Twenty (20) replicates were used in each experiment. The results according to each group (healthy, uremic, with 25-vitamin D supplementation and without 25-vitamin D supplementation) were expressed as median (minimum and maximum), and the differences tested by Kruskal Wallis. Relationships between independent variables were performed in the entire group. Kolmogorov-Smirnov test was used to test normality of data. We used Pearson or Spearman correlation coefficient, as appropriate. The value of P < 0.05 was considered for statistical significance. The analyses were performed using SPSS (Statistical Package Social Sciences) software version 22.0 for Windows. These analyses have already appeared in the text from original article (Brito et al., 2020).

Recipes

1. PMA (PhorboI12-Myristate 13-Acetate); 5 mg; FW 616.8
   1 M dilution = 616 mg/ml
   5 x 10^-3 M dilution (5 mM) = 5 mg in 1.62 ml in DMSO
   1. To prepare a 5 mM dilution of PMA stock, dilute 5 mg in 1.62 ml of DMSO
   2. Light protect during preparation as PMA is light sensitive
   3. Store at -20 °C in 10 µl aliquots (approx. 160 Eppendorfs) till use (shelf life: 6 months)
   4. For the protocol, a further 10^-3 dilution of this stock aliquot is made in RPMI to achieve a final dilution of 5 µM, which is then used in the experiments)
2. 500 ng/ml 25(OH)D
   Dilute the purchased solution in ethanol (Sigma-Aldrich, 50 µg/ml) at a ratio of 1:100. For example: dilute 50 µl of stock solution in 5 ml of ethanol. Store at -20 °C in 120 µl aliquots (approx. 40 Eppendorfs) untill use
   Note: For this protocol, a further 10^-1 dilution of this stock aliquot is made directly in Cell culture flask with RPMI to achieve a final dilution of 50 ng/ml, which is then used in the experiments for 25(OH)D treatment.
3. 1% Azide PBS solution (storage in refrigerator 2-8 °C)
   Dissolve 1 g of azide sodium in 10 ml of PBS
