RNA Extraction from Ears and Draining Lymph Nodes of Mice Infected with Leishmania amazonensis

Materials and Reagents

1. 60 x 15 mm, Cell culture-treated Permanox Petri Dish sterile (Thermo Fisher Scientific, Nunc^TM, catalog number: 150340 )
2. Pipette Barrier (Filter) tips (Certified Free for RNases, DNases, sterile) (Thermo Fisher Scientific, Invitrogen, catalog numbers: AM126-45 (10 μl), AM126-35 (20 μl), AM126-50 (200 μl), AM126-60 (1,000 μl)
3. 2 ml and 1.5 ml tubes (Eppendorf, Fisher Scientific, catalog number: 3810X )
4. 2 ml hard tissue homogenizing tubes, containing 2.8 mm ceramic (zirconium oxide) beads CK28 (Bertin Instruments, catalog number: P000911-LYSK0-A , for Precellys tissue homogenizer, see Equipment 1)
5. Glass Pasteur Pipettes (Merck, catalog number: CLS7095D5X )
6. Adult C57BL/6J and B6(Cg)-Spp1t^m1Blh/J mice (8-12 weeks of age)
7. Phosphate buffered saline (PBS BioPerformance Certified, pH 7.4, Sigma-Aldrich, catalog number: P5368-10PAK , storage at room temperature)
8. β-Mercaptoethanol (β-ME), Molecular Biology Grade (Millipore, Merck, Calbiochem, catalog number: 444203-250ML or alternatively dithiothreitol (DTT) may replace β-ME [Mommaerts et al., 2015])
9. RLT (RNA lysis buffer, containing guanidine thiocyanate) (Qiagen, catalog number: 79216 )
10. RW1 (RNA wash buffer containing ethanol) (Qiagen, catalog number: 74134 )
11. RPE (RNA wash buffer) (Qiagen, catalog number: 74134 )
12. RNeasy^R Plus Mini Kit (Qiagen, catalog number: 74134 )
13. Alternatively the Qiagen RNeasy Kit not including the gDNA separation columns may be used (Qiagen, catalog number: 75154 )
14. RNase-free DNase Set (Qiagen, catalog number: 79254 )
15. Buffers and separation columns (RNeasy Plus Mini Kit) (Qiagen, catalog number: 74134 )
16. Ethanol (CH₃CH₂OH) (Merck, catalog number: 02851-1L )
17. Ethanol 70% in H₂O (see Recipes)
18. RLT + β-ME or instead RLT-DTT buffer (see Recipes)


Equipment

1. Adjustable Pipettes (Sartorius Biohit Proline France), or Micropipettes PIPETMAN L (GILSON, catalog number: 070053-070058 )
2. Reagent Vessel (Sartorius, catalog number: 783500 )
3. Surgical instruments (including a pair of scissors, two pair of fine scissors, and two tweezers) (Figure 1i-iv)
4. Mice dissecting table and dissecting glass plate (Figure 1v).
5. Precellys 24 System tissue homogenizer (Bertin Technologies, catalog number: P000669-PR240-A.0 )
6. Precellys^® 2 ml Hard Tissue homogenizing ceramic beads kit (CK28) (Bertin Instruments, catalog number: 10011151 , 230 Rockville, MD 20850 USA)
7. 4 °C fridge and -20 °C freezer
8. Centrifuge Eppendorf 5415R or 5424R (Eppendorf, catalog number: 5404000410 , Radius 8.3 cm)
9. NanoDrop 1000 Spectrophotometer (Thermo Fisher Scientific, catalog number: ND-1000 ) (Schroeder et al., 2006)


   Figure 1. Instruments used for tissues dissection and lymph node isolation. i. Scissors; ii. Curved scissors; iii. Tweezers; iv. Fine scissors; v. Tissue dissection glass plate.


Procedure

Special safety conditions should be applied when working with Leishmania spp. parasites in the laboratory. The main route of exposure is through the use of needles for infecting the ears of the animals. Therefore protective measures should be taken in consideration, i.e., wearing gloves, needle precautions and working under a hood in a P2 plus laboratory. All instruments used for dissection of the tissues should be placed in alcohol 70% recipients and then washed in the presence of chlorine and sterilized.

1. Preparation
   1. Prepare 2 ml hard tissue homogenizing tubes containing the ceramic beads and label with the samples identification.
   2. Prepare RLT-β-ME buffer (see Recipes).
   3. Complement RPE wash buffer with 4 volumes of ethanol (100%).
   4. Prepare a dilution of 70% Ethanol using sterile nuclei acids-free water.
   5. Label the tubes to be used for the next steps of RNA isolation from the fragmented tissues.
   6. Prepare cell culture Petri dish and add 3 ml PBS.


2. Dissection of tissues
   1. Adult C57BL/6J and B6(Cg)-Spp1t^m1Blh/J mice at various ages selected for the experiments are anesthetized with CO₂.
   2. After washing with Ethanol and subsequently with PBS the areas from which the tissues will be isolated, cut the infected with the parasites ear (left ear) and discard the surrounding tissue of the infected area. Isolate a similar area from the right ear (non-infected) to be used for control (Figure 2).


      Figure 2. Sites of inoculation with Leishmania amazonensis parasites of the ear dermis of C57BL/6J mice. A. Ear lesions are shown on the infected (INF) ear pinna, (i and ii). Control non-infected ear pinna, (iii). Circles show the ear areas isolated for total RNA preparation. B-C. Hematoxylin and Eosin (H&E) staining of histology sections of ear pinna from C57BL/6J mice. B. Infected with Leishmania amazonensis (INF): a: epidermis with acanthosis; b: inflamed dermis; c: cartilage. C. Non infected (Non INF) ears: a: epidermis; b: dermis; c: cartilage. D. Bioluminescence imaging of luciferase expressing Leishmania amazonensis parasites in infected ear dermis of mice. The color bar indicates the density of the luciferase emission delineating the number of parasites present in the infected area of the ear pinna.


   3. Wash rapidly each tissue fragment with PBS and place it in separate homogenizing tubes.
   4. After shaving the hair, cut through the skin at the area on the side of each ear and isolate the ear draining lymph nodes from both sides (left side infected and right side to be used as control). Clean the lymph nodes from the surrounding tissue using the glass dissection dish (Figure 1vi).
   5. Place the lymph node in a new homogenizing tube.
   6. The dissection procedure of the tissues is described on Figure 3.

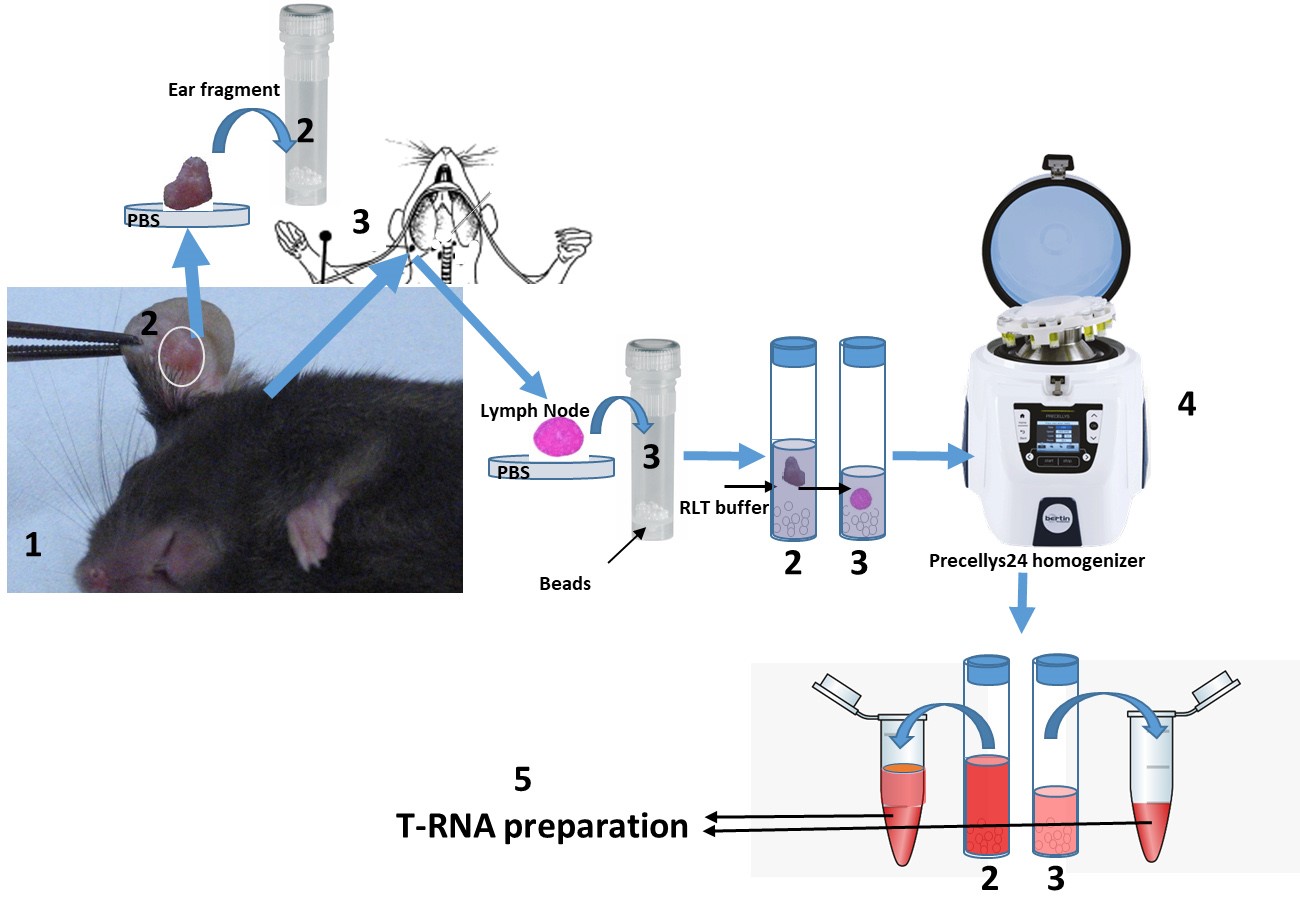

      Figure 3. Step by step procedure for isolation of tissues from mice. Mice, after various times of infection with Leishmania amazonensis parasites at the ear pinna, were sacrificed (1). The infected area of the ear tissue is excised and after a brief wash with PBS in a Petri dish plate, the ear fragment is placed in a Precellys 24 tube containing the beads and the RLT buffer (2). The auricular, ear draining lymph node is surgically removed and placed in a new tube containing the beads and the RLT buffer (3). The lymph node is dense and sinks into the tube liquid. The tissues are homogenized in the Precellys 24 homogenizer (4) and then the homogenate is placed into two new Eppendorf 2 ml tubes for total RNA preparation (5). All procedures involving animals have been approved by the Institutional Committees on animal Welfare under strict accordance with the European guidelines.


3. RNA isolation from tissues
   Note: The description of our procedure for Total RNA preparation follows the protocol of RNA isolation with the RNeasy Plus Mini Kit as supplied by Qiagen with minor modifications. Our starting material was always one ear fragment or one lymph node per preparation. These tissues yielded approximately 10-50 μg of total RNA, depending on the tissue. 1 μg of total RNA yields 1 μg of cDNA. From these cDNA preparations we used 10 ng per Real time PCR reaction.



   1. Prepare the tubes that will contain the tissues by adding 1 ml of RLT + β-ME buffer for the ear fragment and 400 μl of the same buffer for the lymph nodes.
   2. Add the tissues into the tubes and proceed in tissue fragmentation in the Precellys 24 apparatus. Tissues were homogenized at 600 x g for 60 s, in accordance with the manufacturer’s instructions.
   3. Take out the tubes from the Precellys 24 and centrifuge at 15,000 x g (13,000 rpm), at room temperature for 2 min.
   4. Place 250 μl from the ear homogenate and the entire lymph node homogenate (400 μl) on separate for each tissue DNA retention columns (gDNA Eliminator Spin Column, Qiagen). Centrifuge at 9,000 x g (10,000 rpm) for 90 s.
   5. Keep the effluent and discard the DNA separation tubes.
   6. Add 175 μl of ethanol 70% into the tubes containing the ear homogenate and 280 μl into the tubes containing the lymph nodes. Use a P1000 Pipetman to well homogenize the samples.
   7. Transfer the samples on the RNA retention column (RNeasy spin column, Qiagen) and centrifuge at 9000 x g (10,000 rpm) for 90 s.
   8. Eliminate the tube containing the effluent and place the column on a new collection tube (1.5 ml). If DNase treatment is not used continue as in Step C10.
   9. If DNase digestion is performed (with Qiagen kit for RNA preparation), samples (Step C4) are placed directly on the RNA retention columns and additional Steps D1 to 4 are followed.
   10. Add on the column 700 μl of RW1 RNA binding buffer (Qiagen) and centrifuge at 9,000 x g (10,000 rpm) for 60 s. Eliminate the effluent but use for the next step the same collector tube.
   11. Add on the column 500 μl of RPE + ethanol buffer (ensure that it is at room temperature).
   12. Centrifuge the samples at 9,000 x g (10,000 rpm) for 60 s. Eliminate the effluent and reuse the collector tube.
   13. Repeat Steps C10 and C11 once more and eliminate the collector tube.
   14. Place the column onto a new collector tube and centrifuge at 9,000 x g (10,000 rpm) for 2 min to dry out completely the column.
   15. Repeat the centrifugation step once more at 15,000 x g (13,000 rpm) for 2 min.
   16. Replace collector tube with a 1.5 ml Eppendorf new tube and proceed to the RNA elution step by adding 30 μl of RNase/DNase-free sterile water on the center of the column for each sample.
   17. Centrifuge at 15,000 x g (10,000 rpm) for 60 s.
   18. Dilute 1.5 μl of each RNA sample in 20 μl of sterile water in a new tube.
   19. 1 μl of each diluted sample is used for RNA quantification and quality evaluation, by measurements of the Optical Density (OD) in a NanoDrop ND-1000 micro spectrophotometer (Thermo Fisher Scientific) (Figure 4).
   20. Keep all RNAs at -80 °C until use.

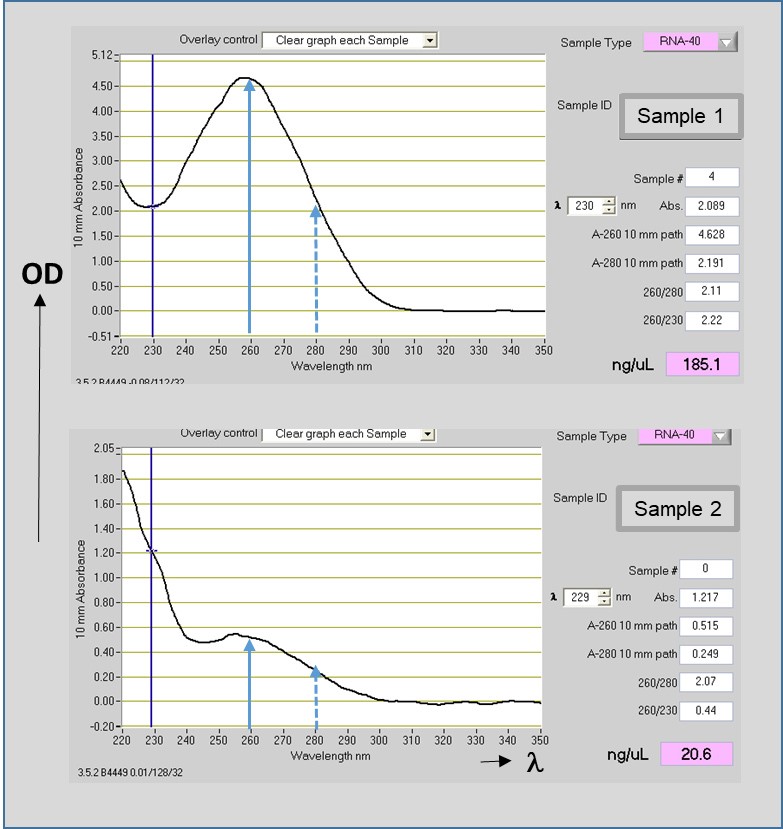

       Figure 4. Total RNA concentration and quality evaluation. Representative images of Optical Densities (OD) of RNAs measured by the NanoDrop ND-1000 micro spectrophotometer. Non-degraded RNA preparation (Sample 1, upper panel) and poor quality (degraded) RNA preparation (Sample 2, lower panel) are shown. The wavelengths (λ) of 260 nm for nucleic acid (solid blue lines) and 280 nm for protein (dashed blue lines) are indicated. The ratios of absorbance A_260/280 (~2.0) and 260/230 (≥ 2.0) indicate the purity of the RNA (ex. absence of organic compounds and protein contaminants respectively). RNAs concentrations are given in ng/μl, taking in consideration 1 OD A₂₆₀ unit of ssRNA = 40 μg/ml. Low A_260/280 concentrations (lower panel) indicate residual contamination of reagents in the preparation and absence of a clear pick of absorbance at A₂₆₀ indicates a poor quality of RNA (see Note 2).


4. DNase treatment of the samples (Qiagen kit cat. N° 79254 )
   1. Add to the RNeasy spin column 350 μl Buffer RW1, close the lid gently and centrifuge at 8,000 x g, for 15 s to wash the spin column membrane. Discard the flow-through.
   2. Prepare 70 μl buffer RDD (supplied with the RNase-free DNase Set) in a tube and add 10 μl DNase I stock solution. Mix gently as DNase is sensitive to physical denaturation. Do not vortex.
   3. Add 80 μl of the DNase I incubation mix directly into the membrane of the RNeasy spin column and leave on the benchtop for 15 min (20-30 °C).
   4. Add 350 μl buffer RW1 to the RNeasy spin column, close the lid gently and centrifuge at 8,000 x g for 15 s. Discard the flow-through and continue with the first RPE buffer wash (Step C11).


Data analysis

According to our protocol we have isolated RNAs from animals infected and non-infected with the Leishmania amazonensis parasites. Our method allowed for the preparation of good quantity, non-degraded total RNA sufficient for RT-PCR experiments of several genes (Giraud et al., 2019b).
  The data obtained from these preparations are described on Figure 6d and Figure S8 in the original published article (Giraud et al., 2019b).
  As mentioned above on section C (RNA isolation from tissues), we have taken in consideration that 1 μg of RNA yields 1 μg of cDNA. For the cDNA preparation we used random hexamers (Roche Diagnostics) and MMLTV-RT reverse transcriptase (Invitrogen, Life technologies). 10 ng of cDNA was used per RT-PCR reaction (with QuantiTect SYBR Green Kit, Qiagen) as described in the Methods section of the original article (Giraud et al., 2019b). Raw Crossing Point (Cp) values were used as input for the qBase software program (https://www.qbaseplus.com/). Calculation of relative quantification values are corrected by appropriate normalization using the qPCR quantification values of the house keeping genes. This normalizations were performed for each experimental tissue. qBase software can calculate the normalized and rescaled quantities in a logarithmic scale. This is an automated process supplied by the integrated algorithm of the qBase program as described by Hellemans et al. (2007).
  In our experiments described on Figure 6 and Figure S8 of the manuscript (Giraud et al., 2019b), the relative expressions (quantities) of the opn gene and the genes encoding for the inflammasome multicomplex were calculated on log-transformed ratios by comparison of the fold differences in expression of the Leishmania infected tissues in the osteopontin mutant mice (C57BL/6^-/-) versus the wild type osteopontin positive (C57BL/6^+/+) mice.

Notes

1. The following formula:
   g Force (RCF) = (rpm)² x 1.118 x 10^-5 x r is used for the conversion of rpm (revolutions per minute) to g Force or Relative Centrifugal Force (RCF). RCF or g is the acceleration applied to a sample during centrifugation (see: details).
     This conversion is dependent on the radius r of the rotor.
2. RNA concentration and quality are important for the optimum performance of reactions using this nucleic acid. The average concentration of RNA and its purity is measured by spectrophotometric quantification. In the NanoDrop spectrophotometer is included a preset program for RNA concentrations measurements, that automatically reads the OD at 230, 260 and 280 nm and calculates the above discussed ratios (Figure 4). In addition only 1 to 2 μl of sample are required. A Blank is used with the same solution in which the RNA is diluted prior to RNA measurements with the spectrophotometer. RNA has a maximum absorbance (Optical Density) at 260 nm and the absorbance unit used as conversion factor for RNA concentration is A₂₆₀ ssRNA = 40 μg/ml. For the evaluation of RNA purity OD₂₆₀ and OD₂₃₀ measurements also should be taken in consideration. A_260/280 ratio of ~2 is accepted for pure RNA. Low 260/280 ratios usually indicates the presence of protein contaminants. A high pick at A₂₃₀ absorbance indicates the presence of other than proteins contaminants such as residual phenol, guanidine or other reagents. A_260/230 ratio values for pure RNA are often higher that the respective A_260/280 values. Commonly 260/230 ratios are in the range of 2.0-2.2. Lower than 1.5 ratios indicate the presence of contaminants. RNA integrity can be checked by a run of the RNA on a 1% agarose gel and assess for the integrity of the ribosomal RNA bands. For non-degraded RNA the intensity of the 28S band (upper rRNA band) in eukaryotic cells should be twice the intensity of the lower rRNA band (18S). Both bands should be clear and tight, otherwise the presence of a smear indicates RNA degradation. The presence of high molecular weight bands shows contamination by the DNA. Another possible method for checking RNA integrity is by using the Agilent Bioanalyzer (See Application Notes). This analyzer measures the sizes of the rRNA bands and determines by comparison a RNA integrity number (RIN).


Recipes

1. Ethanol 70%
   Add 30 ml of sterile (RNase/DNase-free) water in 70 ml of Ethanol (CH₃CH₂OH) (Merck) in a 200 ml glass bottle. Mix
2. RLT + β-ME buffer
   Note: RNeasy Lysis Buffer (Qiagen RLT or supplied with the Qiagen RNeasy Kits) contains guanidine isothiocyanate (GITC). In order to reduce RNases activity, β-mercaptoethanol (β-ME) is added to the RLT buffer before use.

   1. Add 20 μl of β-ME per 1 ml of RLT buffer. This β-ME containing RLT buffer is stable for up to one month
      Warning: β-ME is a toxic chemical and should be dispensed in a fume hood and appropriate protective clothing should be worn.

   2. Alternatively, β-ME may be replaced by 20 μl of Dithiothreitol 2M (DTT) per ml of RLT buffer

   3. RLT complemented buffer with β-ME or DTT, as described, is added in the homogenization tubes that will contain the ear pinna (1 ml/tube) and the lymph node (400 μl/tube) (Mommaerts et al., 2015)
