Determination of Storage (Starch/Glycogen) and Total Saccharides Content in Algae and Cyanobacteria by a Phenol-Sulfuric Acid Method

Materials and Reagents

1. Safe-lock tubes 1.5 ml SafeSeal (SARSTEDT, catalog number: 72.706.400 )
2. Rotilabo^® Sealing clips for the safe-lock tubes tubes (Carl Roth, catalog number: N217.1 )
3. Holders for the safe-lock tubes (VWR, catalog number: 30128-282 )
4. 96-well microplates (type P) with the original lids (Cole-Parmer, catalog numbers: EW-07903-80 and EW-07903-86 )

5. Pipette tips

   1. Standard tips: 20-200 μl, 100-1,000 μl (Mettler-Toledo International, catalog numbers: 17001118 and 17001129 )

   2. Tips with filters: 20-200 μl (Mettler-Toledo International, catalog number: 17014963 )
6. Reservoir for a multichannel pipette 60 ml (BrandTech Scientific, catalog number: 703459 )
7. Aluminum foil (optional)
8. Cyanobacterial/algae culture
9. Methanol ≥ 99.9% (Alfa Aesar, catalog number: 41467.K7 )
10. Phenol (Sigma-Aldrich, catalog number: P1037 )
11. Potassium hydroxide p.a. (Ing. Petr Švec - PENTA, catalog number: 15520-31000 )
12. Ethanol 96% (Merck, catalog number: 1590102500 )
13. Sulfuric acid 96% (Ing. Petr Švec - PENTA, catalog number: 20370-11000 )
14. D-glucose (Sigma-Aldrich, catalog number: G8270 )
15. Distilled/double deionized water
16. Sodium hydroxide (Ing. Petr Švec - PENTA, catalog number: 15760-31000 )
17. Hydrochloric acid (Ing. Petr Švec - PENTA, catalog number: 19360-11000 )
18. Glucose calibration series (see Recipes)


Equipment

1. Pipettes

   1. 20-200 μl (Mettler-Toledo International, catalog number: 17014391 )

   2. 100-1,000 μl (Mettler-Toledo International, catalog number: 17014382 )

   3. Multichannel pipette 20-200 μl (Mettler-Toledo International, catalog number: 17013805 )
2. Fridge 4 °C, freezer -20 °C (LIEBHERR, model: LCexv 4010 , catalog number: 9005382197172), optionally -80 °C (Revco^TM ExF -86 °C Upright Ultra-Low Temperature Freezer, Thermo Fisher Scientific, catalog number: EXF24086V )
3. Fume hood (MERCI, model: M 1500 , catalog number: 2D100110200001)
4. Refrigerated centrifuge (Sigma Laborzentrifugen, model: Sigma 1-16K , catalog number: 10030)
5. Vacuum Concentrator (Eppendorf, model: Concentrator plus , catalog number: 5305000100)
6. Analytical balances with an accuracy of 10 μg (Sartorius, catalog number: SECURA225D-1OBR )
7. Microplate spectrophotometer (Thermo Fisher Scientific, model: Multiskan^TM GO , catalog number: 51119300)


Procedure

1. Harvesting biomass

   1. Harvest 1 ml of cyanobacterial culture suspension of OD₇₃₀ 0.1-0.5 (Note 1).
   2. Centrifuge the cells at 15,000 x g, laboratory temperature for 5 min and thoroughly discard the supernatant (Figure 1.1).
   3. For long-term storage, keep the samples at -80 °C and thaw on ice before further analysis.



2. Extracting chlorophyll and carotenoids from the cells (Note 2)

   1. Add 1 ml of methanol, precooled to 4 °C.
   2. Homogenize the sample by gentle pipetting up and down.
   3. In case of pigments quantification, cover the samples with aluminum foil.
   4. Extract pigments from the cells by allowing the samples to sit at 4 °C in the dark for 20 min.
   5. Centrifuge the samples at 15,000 x g, 4 °C for 5 min and visually check pellet; it should be bluish (or purple) with no green color. If the pellet is green, repeat Steps B3-B4.
   6. Thoroughly discard all methanol supernatant by pipette (Figure 1.2). Keep the pellets for further analysis of total saccharides or starch/glycogen.
   7. Optionally, measure the concentration of chlorophyll and carotenoids in the methanol supernatant using a spectrophotometer according to Zavřel et al. (2015a).
   8. For long-term storage, keep the pellets without chlorophyll and carotenoids at -80 °C and thaw on ice before further analysis.


      Figure 1. Individual steps of total carbohydrates and glycogen determination in Synechocystis sp. PCC 6803. The protocol begins with cells harvesting and centrifugation (1) and extraction of chlorophyll a and carotenoids to methanol (2). For total saccharides determination, the pellet is resuspended in 500 μl of distilled water and 500 μl of 5% phenol (3). For glycogen determination, the pellet is resuspended in 400 μl of 30% KOH (4), and the samples are incubated for 60 min at 95 °C to remove free glucose. After incubation, 1.2 ml of precooled ethanol is added (5) for overnight glycogen precipitation at -20 °C. After precipitation, samples are intensively centrifuged for 60 min, ethanol is discarded, pellet (6) is dried for 60 min under vacuum at 60 °C (7), and glycogen is hydrolyzed to glucose in 100 μl of 1 N HCl (8) at 95 °C. After hydrolysis, the samples are neutralized by addition of 100 μl of 1 N NaOH (9), diluted with 300 μl of distilled water (10) and mixed with 500 μl of 5% phenol (11). For quantification of free glucose, 8 x 60 μl of each sample is transferred to 96-well plate according to scheme in Figure 2 (12), and 150 μl of 96% sulfuric acid is added to each well for chromophores establishing (13). Cellular pellets after intensive centrifugation in ethanol (6) and drying (7) are marked by red arrows. The blue color of sample in step (3), originating in phycobiliproteins, does not influence the spectrophotometric quantification of total carbohydrates content.




3. Preparing samples for determination of total cellular saccharides

   1. Sample the culture and extract chlorophyll and carotenoids from the cells as described in Procedure A and B.
   2. Add 500 μl of distilled water to each safe-lock tube with cellular pellet and mix well with a pipette.
   3. Move to the fume hood.
   4. Prepare 5% phenol (w/w) by dissolving 1 g of phenol in 19 ml of distilled water.
   5. Add 500 μl of 5% phenol to each safe-lock tube with cellular pellet and 500 μl of distilled water and mix well with a pipette (Figure 1.3).
   6. Keep the samples at laboratory temperature for 15 min (phenol will penetrate to the cells).
   7. Transfer 8 x 60 μl of each sample to the 96-well plate with a pipette according to the scheme in Figure 2 (positions A4-H12, each sample will have 8 technical replicates, Figure 1.12 and 1.13). In case of evaluating more than 9 samples, use an additional 96-well plate (Note 3).
   8. Continue with Procedure E.


      Figure 2. Schematic organization of the 96-well plate for measurement of total saccharides and starch/glycogen content. The first 24 wells (A1-H3) are designated for 6 points of glucose calibration (each calibration point will have 4 technical replicates), the remaining 72 wells (A4-H12) are designated for 9 samples (each sample will have 8 technical replicates).



4. Preparing samples for starch/glycogen content determination

   1. Sample the culture and extract chlorophyll and carotenoids from the cells as described in the Procedure A and B.
   2. Prepare 30% KOH (w/w) by diluting 6 g of potassium hydroxide in 14 ml of distilled water.
   3. After thawing the cellular pellets on ice, add 400 μl of 30% KOH to each safe lock tube with cellular pellets and mix well with a pipette.
   4. Seal the safe-lock tubes with the sealing clips (Note 4).
   5. Incubate the samples at 95 °C for 90 min to remove free glucose and other alkali-sensitive saccharides (Evans, 1942; Whistler and BeMiller, 1958) (Figure 1.4).
   6. Cool down the samples at laboratory temperature for 10 min.
   7. Add 1.2 ml of ethanol precooled to 4 °C and mix well with a pipette (Figure 1.5).
   8. Store the samples overnight at -20 °C (Note 5).
   9. Centrifuge the samples at 4 °C, 20,000 x g for 60 min.
   10. Discard ethanol and keep the pellet for further analysis (Note 6, Figure 1.6).
   11. Dry the remaining ethanol under vacuum at 60 °C for 60 min (Figure 1.7).
   12. Add 100 μl of 1 N HCl to the dry pellet and mix well with a pipette (Figure 1.8).
   13. Seal the safe-lock tubes with the sealing clips (Note 4).
   14. Incubate the samples at 95 °C for 30 min to hydrolyze starch/glycogen.
   15. Cool down the samples at laboratory temperature for 10 min.
   16. Add 100 μl of 1 N NaOH and mix well with a pipette to neutralize 1 N HCl (Figure 1.9).
   17. Add 300 μl of distilled water and mix well with a pipette (Figure 1.10).
   18. Centrifuge at 15,000 x g at laboratory temperature for 10 min and transfer 500 μl of supernatant to a new safe-lock tube. Discard the safe-lock tube with pellet.
   19. Move to the fume hood.
   20. Add 500 μl of 5% phenol to each safe-lock tube with supernatant and mix well with a pipette (Figure 1.11).
   21. Keep the samples at laboratory temperature for 15 min (phenol will react with glucose).
   22. Transfer 8 x 60 μl of each sample to the 96-well plate with a pipette according to the scheme in Figure 1 (positions A4-H12, each sample will have 8 technical replicates, Figure 1.12 and 1.13). In case of evaluating more than 9 samples, use additional 96-well plate (Note 3).




5. Preparing glucose calibration curve

   1. Prepare 6 x 500 μl of glucose calibration solutions (D-glucose: 25-500 μg ml^-1) according to Table 1.

      Table 1. Preparation of calibration series of D-glucose in distilled water



   2. Move to the fume hood.
   3. Add 500 μl of 5% phenol solution to each tube with calibration solution and mix well with a pipette.
   4. Keep the tubes at laboratory temperature for 15 min (phenol will react with glucose)
   5. Transfer 4 x 60 μl of each glucose calibration solution to the 96-well plate with a pipette according to the scheme in Figure 1 (positions A1-H3, each calibration point will have 4 technical replicates) (Note 3, Figure 1.12 and 1.13).




6. Spectrophotometric determination of saccharides content

   1. Pour 20 ml of 96% sulfuric acid to the reservoir for a multichannel pipette.
   2. Add 150 μl of 96% sulfuric acid to each well with the calibration solution or the sample using a multichannel pipette and mix well by pipetting up and down several times (Note 7).
   3. Cover the 96-well plate with the plastic lid.
   4. Incubate the samples at laboratory temperature for 5 min (Note 8).
   5. Measure the carbohydrates concentration by a microplate spectrophotometer.
   6. Recalculate the concentration of carbohydrates based on D-glucose calibration (Figure 3).


      Figure 3. Representative calibration of D-glucose (dissolved in distilled water) mixed with 5% phenol and 96% sulfuric acid, measured at 490 nm according to this protocol. Each calibration point represents the average of 4 technical replicates, the error bars represent standard deviations. The dotted line represents linear fit of the measured points calculated by the least squares method. The linear regression equation (y = αx + β) represents calibration equation slope (α) and intercept (β). The R² coefficient was calculated by the least squares method.


Data analysis

The protocol provides 8 technical replicates of each sample and 4 technical replicates of each calibration solution. For reproducibility, it is strongly recommended to measure each sample at least in biological triplicates that should originate from independent experiments.
To determine the total carbohydrates and/or starch/glycogen concentration in the samples, the final absorbance at 490 nm (A₄₉₀) should fit to the linear absorbance range of the spectrophotometer (Note 10). For the microplate spectrophotometer (Multiskan^TM GO, Thermo Scientific), this linear absorbance range is 0.1-3.0. The final A₄₉₀ of each sample should also fit to the range of the calibration curve. For glucose concentration 25-500 μg ml^-1 as represented in Figure 3, this A₄₉₀ range is 0.2-2.3.

Carbohydrates determination:
Calculate slope (α) and intercept (β) coefficients of the linear regression model (y = αx + β) from the calibration data (representative calibration curve is shown in Figure 3) and use these coefficients to calculate carbohydrates concentration in every sample and replicate according to equation (1) (Note 11):

In case of using lower or higher volumes of algae/cyanobacteria suspension than 1 ml (Step A1), and/or in case of diluting the samples by lower or higher volumes of distilled water than 500 μl (Step C2) or 300 μl (Step D17), and/or in case of adding lower or higher volumes of 5% phenol than 500 μl (Steps C5 and D20), calculate the final carbohydrates concentration according to the equation (2):

Representative results of glycogen content in Synechocystis sp. PCC 6803 that was cultivated under wide range of light intensities and sampled in exponential growth phase is shown in Figure 4.

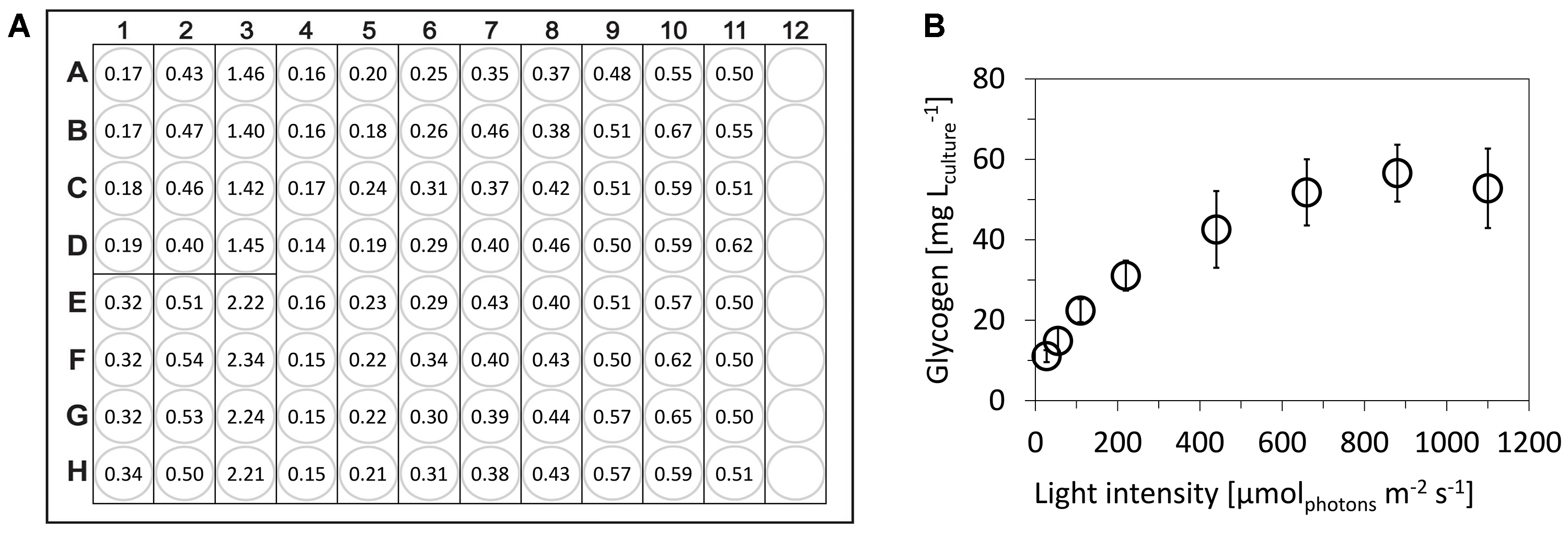

Figure 4. Determination of glycogen content in cyanobacterium Synechocystis sp. PCC 6803. A. Representative measurement (raw data) of A₄₉₀ within single 96-well plate, following scheme from Figure 2: A1-H3: six points of glucose calibration (25-500 μg ml^-1), A4-H11: eight independent samples of Synechocystis cells that were cultivated under 27.5-1,100 μmol_photons m^-2 sec^-1 of red light. B. Final glycogen content in Synechocystis cells: the open circles represent averages from five independent experiments, the error bars represent standard deviations. Synechocystis was cultivated in a flat-panel photobioreactor (Nedbal et al., 2008) in a quasi-continuous cultivation regime under growth saturated conditions as described previously (Zavřel et al., 2015b). Glycogen was measured within five independent 96-well plates. The wells filled only with water (blanks, not used in this particular case) have A₄₉₀ around 0.06.

Notes

1. The amount of cell suspension required for analysis can vary with the culture density. Sample volume of 1 ml is optimized for cultures of Synechocystis sp. PCC 6803 with cell density approximately 1-2 x 10⁷ cells ml^-1. Such dense cultures of Synechocystis sp. PCC 6803 contain approximately 5-100 mg of both glycogen and total saccharides per liter culture. With diluted cultures, it is recommended to harvest bigger culture volume. On the contrary, for dense cultures lower sample volume is recommended–with high cellular densities, some pigments can remain in the cells after the methanol extraction, which can affect spectrophotometric quantification of total saccharides or starch/glycogen.
2. This step should be omitted for eukaryotic algae, since pigment extraction by methanol without mechanic disruption of the robust cell walls is usually ineffective. For eukaryotic algae, pigments can be removed by overnight incubation of cellular pellets in ethanol, as described in Steps D7-D10.
3. In case of analyzing more than 9 samples, perform the calibration for each single 96-well plate to secure identical conditions for both calibration solutions and samples.
4. Sealing the safe-lock tubes with the sealing clips is critical since without this treatment the tubes will open during incubation at 95 °C and the samples will burst out.
5. The precipitated starch/glycogen can be stored in ethanol at -20 °C for up to several months.
6. The color of the precipitated starch/glycogen pellet can be ranging between yellow/brown and transparent. If the pellet is transparent, it is recommended to keep 100-200 μl of ethanol in the safe-lock tubes in order to avoid discarding of precipitated starch/glycogen together with ethanol (Step D10).
7. Use pipette tips with filters to protect the pipette from the sulfuric acid aerosols. The reaction of 96% sulfuric acid with the samples releases significant amount of heat. It is therefore critical to pipette slowly to avoid spurting out of the final mixture from the wells. It is recommended to mix the phenol solution with sulfuric acid using the multichannel pipette for at least 8 times to secure reproducible conditions for all technical replicates and for all samples.
8. The samples can be incubated for up to 40 min without significant loss of the final mixture color (Figure 5).


   Figure 5. Kinetics of reaction of D-glucose (dissolved in distilled water), 5% phenol and 96% sulfuric acid color in time, as measured by decrease of A₄₉₀ signal. The dashed line represents linear fit of the measured points, calculated by the least squares method. The A₄₉₀ slope (α) was calculated from the linear regression equation: y = αx.


9. Absorption maximum of mixture of D-glucose (dissolved in distilled water), 5% phenol and 96% sulfuric acid is at 490 nm (Figure 6).


   Figure 6. Spectrum of mixture of D-glucose (dissolved in distilled water), 5% phenol and 96% sulfuric acid as prepared according to this protocol. The peak maximum is at 490 nm.


10. In case A₄₉₀ (the final carbohydrates concentration) is too high to fit to the linear absorbance range of the spectrophotometer, it is necessary to dilute the samples with 5% phenol (and equal amount of distilled water) before the chromophores establishing, i.e., before Step F2. Diluting the samples after chromophores establishing (after Step F2) can lead to incorrect spectrophotometric quantification of saccharides content.
11. In case of starch concentration evaluation, divide the final value by factor 0.9, since the ratio of molar mass of starch (C₆H₁₀O₅) and glucose (C₆H₁₂O₆) is 0.9. For the representative calibration curve as shown in Figure 3, the carbohydrates concentration in the samples will be calculated as: carbohydrates [μg ml^-1] = (A₄₉₀-0.0727)/0.0045.


Recipes

1. Glucose calibration series

   1. Prepare 500 μg ml^-1 D-glucose (w/w) by dissolving 5 mg of D-glucose in 9.995 ml of distilled water
   2. Dilute the 500 μg ml^-1 D-glucose solution by distilled water into 6 safe-lock tubes according to Table 1
