In vitro Flow Adhesion Assay for Analyzing Shear-resistant Adhesion of Metastatic Cancer Cells to Endothelial Cells

Materials and Reagents

1. Flow chamber: µ-Slide I 0.4 Luer (ibidi, catalog number: 80176 )

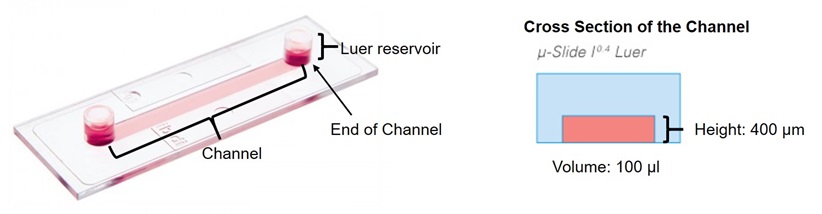

   Figure 1. Flow chamber: µ-Slide I 0.4 Luer (modified the picture from www.ibidi.com)


2. Serial Connector for µ-Slides (ibidi, catalog number: 10830 )

3. Syringe (10 ml, 30 ml)

4. Silicone Tubing (0.8 mm ID) (ibidi, catalog number: 10841 )

5. 50 ml tube with line connection (SARSTEDT AG & Co, catalog number: 60.596 )

6. Y tube fitting (ibidi, catalog number: 10828 )

7. Weight (SP Scienceware, Bel Art, catalog number: F183240000 )

8. Hose clips (ibidi, catalog number: 10821 )

9. Human microvascular endothelial cells (HMVEC) (Lonza, catalog number: CC2543 )

10. Cancer cells
    Cell line or primary cancer cells [e.g., human breast cancer cell line, MDA-MB-231 (ATCC, catalog number: CRM-HTB-26 )]

11. Endothelial basal medium-2 (Lonza, catalog number: CC-3156 )

12. EGM SingleQuot Kit (Lonza, catalog number: CC-4133 )

13. Dulbecco's Modification of Eagle's Medium (DMEM) (Thermo Fisher Scientific, Mediatech, Cellgro^®, catalog number: 13-013 ) supplemented with 1% fetal bovine serum (FBS)

14. Heat Inactivated Fetal Bovine Serum (FBS) (Life Technologies, catalog number: 10082-147 )
    Note: Currently, it is “Thermo Fisher Scientific, Gibco^TM, catalog number: 10082-147”.

15. Glutamax (Life Technologies, catalog number: 35050 )
    Note: Currently, it is “Thermo Fisher Scientific, Gibco^TM, catalog number: 35050 ”.

16. Antibiotic-antimycotic (Life Technologies, catalog number: 15240 )
    Note: Currently, it is “Thermo Fisher Scientific, Gibco^TM, catalog number: 15240 ”.

17. Collagen I, Rat Tail (Life Technologies, catalog number: A1048301 )
    Note: Currently, it is “Thermo Fisher Scientific, Gibco^TM, catalog number: A1048301”.

18. Fibronectin from human plasma (Sigma-Aldrich, catalog number: F0895 )

19. Cell culture medium for HMVEC (see Recipes)

20. Cell culture medium for Cancer cells (see Recipes)


Equipment

1. Glass beaker (1,000 ml)

2. Stir bar

3. 37 °C, 5% CO₂ cell culture incubator (NuAire, model: In-VitroCell ES NU-5800 )

4. Cell culture centrifuge (Eppendorf, model: 5702 )

5. Inverted Microscope with camera (Nikon, model: Eclipse TS100 )

6. Camera (McCrone, model: MicroPublisher 3.3 RTV )

7. KDS Legato^TM 200 syringe pump (KD Scientific)

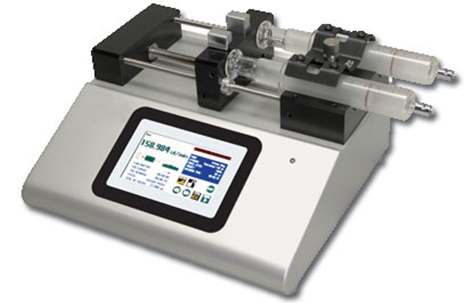

   Figure 2. KDS Legato^TM 200 syringe pump (modified picture from http://www.kdscientific.com/products/pumps/Legato200.asp)


8. Ibidi Heating System [Ibidi Temperature Controller ©ibidimodel (ibidi, model: Version 3.3)]

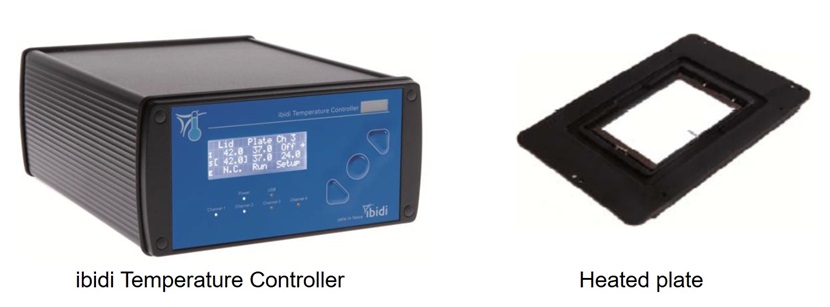

   Figure 3. Ibidi Heating System (modified picture from http://ibidi.com/xtproducts/en/Instruments-Accessories/Heating-Incubation-Systems/ibidi-Heating-System-Universal-Fit)


9. Magnetic hot stir (Thermo Fisher Scientific, catalog number: 200-48SH)

10. Thermometer (Thermo Fisher Scientific, catalog number: 13-201-695 )

11. Level (Stanley Black & Decker, catalog number: 43-511)


Software

1. Q-capture pro 7.0 (Qimaging)

Procedure

1. Grow HMVEC monolayer in flow chamber (µ-Slide I 0.4 Luer)

   1. Dilute collagen (250 µg/ml) and fibronectin (75 µg/ml) with sterilized PBS. Fill the flow chamber with the collagen and fibronectin mixture solution and incubate for 1-3 h in a culture hood at RT (e.g., 100 µl of collagen and fibronectin mixture solution for µ-Slide I 0.4 Luer).

   2. To wash the flow chamber, add sterilized water into one channel end of flow chamber and take out the same volume from the other side channel end. Use 5 times the volume of flow chamber (e.g.,500 µl for µ-Slide I 0.4 Luer).

   3. Fill the chamber with 100 µl of fresh culture medium.

   4. Infuse HMVEC cells (1 x 10⁵ of HMVEC cells in 100 μl HMVEC cells culture medium) into the collagen/fibronectin-coated flow chamber and remove pre-filled culture medium from the opposite side channel end. Do not remove culture medium from step 3 before infusing HMVEC cells to avoid the formation of air bubbles. Fill both Luer reservoirs of flow chamber (Figure 1). Incubate culture until HMVEC cells have grown to 100% confluence, approximately 2-3 days. It is critical to use 100% confluent endothelial monolayer to avoid cancer cells to be stuck in between the endothelial cells. To prevent drying of medium and keep sterile conditions, put caps (provided with flow chamber from manufacturer) on both Luer reservoirs. To change the culture medium inside the flow chamber, first, remove the old medium from both Luer reservoirs not inside the channel. Then, add fresh culture medium into one channel end of the flow chamber and remove the same volume of old medium from the opposite side channel end. Refill both Luer reservoirs of flow chamber (Figure 2).

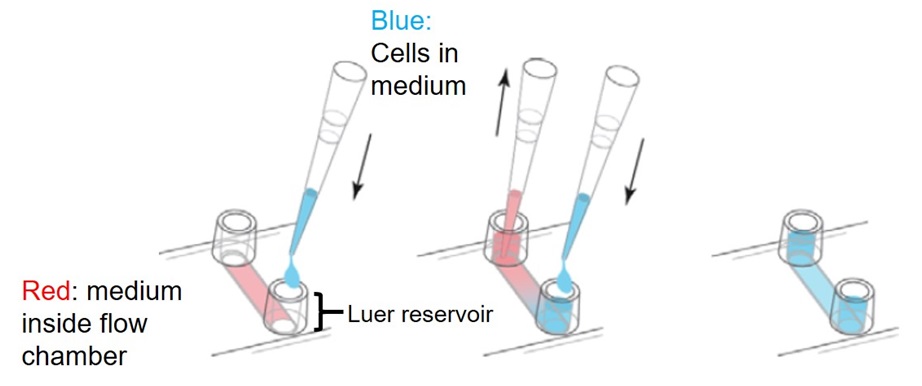

      Figure 4. Cell seeding in flow chamber-Modified from Ibid Application Note 3 (http://ibidi.com/fileadmin/support/application_notes/AN03_Growing_cells.pdf)

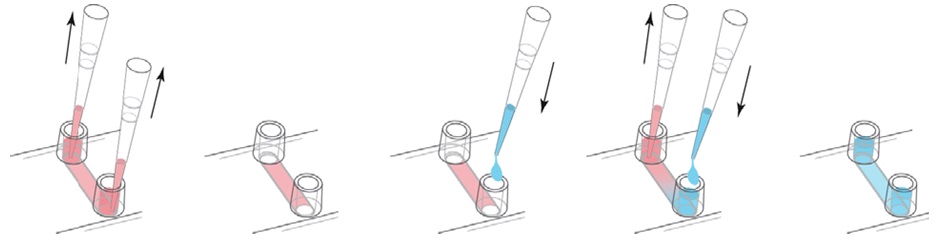

      Figure 5. Change medium in flow chamber. (http://ibidi.com/fileadmin/support/application_notes/AN03_Growing_cells.pdf)


2. Assemble the flow chamber with pump and perform the flow adhesion assay

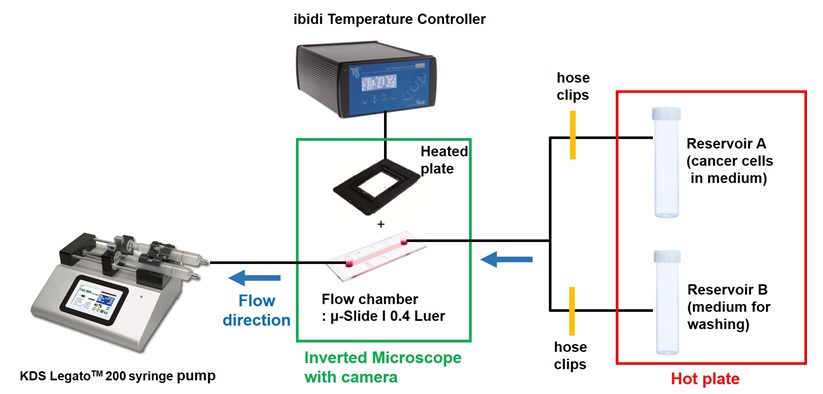

   Figure 6. The diagram of overall setting for flow adhesion assay


   1. Assemble reservoirs and turn on the hot plate to warm the water to 37 °C.

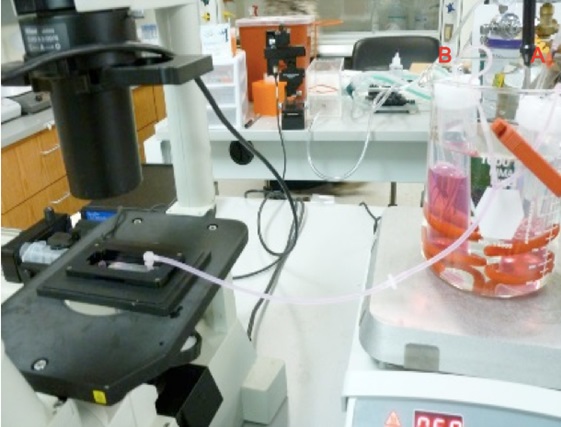

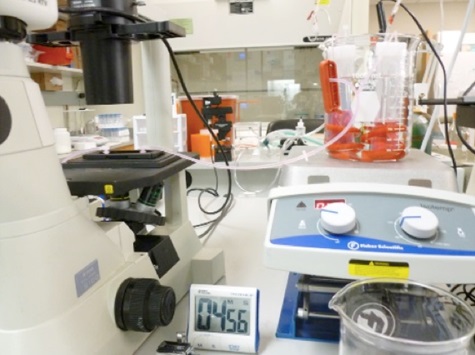

      Figure 7. Assemble reservoirs (step B1)


   2. Set the syringe pump next to the inverted microscope and turn ibidi heating system on at 37 °C.

   3. Fill reservoirs A and B with tissue culture medium and wash the line by plunging out with DMEM containing 1% FBS, ensuring there are no air bubbles. Close both tubings with hose clips.

   4. Prepare single cell suspension of cancer cells (MDA-MB-231 cells: 1 x 10⁵ cell/ml in 10 ml of DMEM containing 1% FBS) and add to reservoir A with magnetic stir bar. (Concentration of cells may vary).

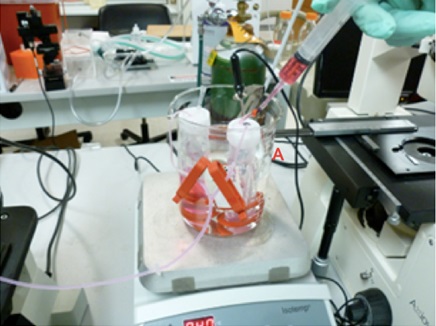

      Figure 8. Addition of cells into Reservoir A, corresponding with step B4


   5. Place the flow chamber with HMVEC monolayer onto the ibidi heating system.


      Figure 9. The process of line washing with culture medium via line connected to Reservoir B


   6. Release the hose clip for reservoir B and drip culture media from this reservoir. Attach the serial connector end of tubing to Luer connector (IN). Avoid letting any air bubbles enter the channel.

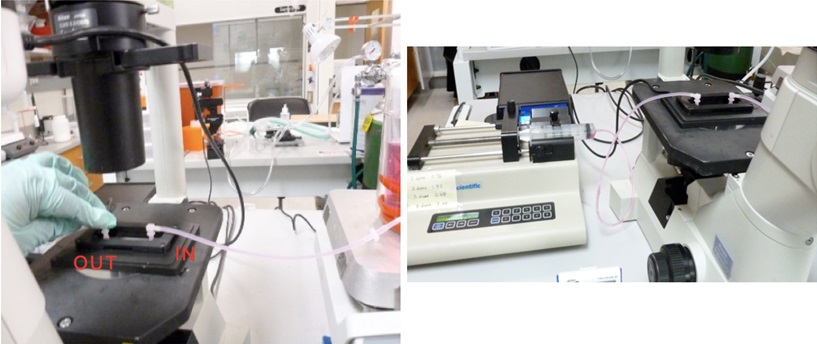

      Figure 10. Connecting the line to the syringe pump (step B6)


   7. Once the channel is filled with culture media, attach the serial connector from the syringe pump to Luer connector (OUT).

   8. Set the pump for syringe withdrawal at a constant flow rate. The flow rate will vary depending on shear stress calculations for each type of flow chamber. (e.g., for shear stress of 1 dyn/cm² using µ-Slide I 0.4 Luer, the flow rate setting is 0.76 ml/min. For more information about flow rate and shear stress in different types of flow chambers, check Application Note 11 in http://ibidi.com/fileadmin/support/application_notes/AN11_Shear_stress.pdf). Different shear stresses should be tested. (*See Notes following procedure)

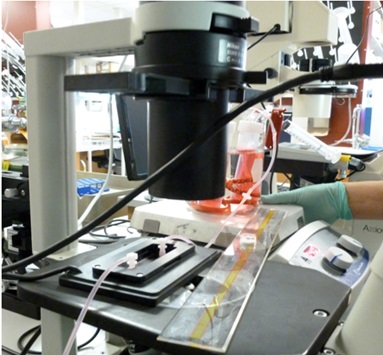

      Figure 11. Leveling the heights of chamber and reservoir


   9. To avoid gravity-based infusion, use a level to ensure the bottom of reservoir A and the flow are at the same height.


      Figure 12. Start of flow adhesion assay


   10. Run the syringe pump and check fluid flow inside the channel under microscope. Ensure there are no bubbles in the route or channel.

   11. Open the hose clip for reservoir A and close the hose clip for reservoir B. Infuse cancer cells (MDA-MB-231 cells: 1 x 10⁵ cell/ml in 10 ml of DMEM containing 1% FBS) for 5 min.

   12. Close reservoir A and open B to wash the line with culture medium.

   13. Count the cancer cells adherent to HUMVEC under the inverted microscope or take photos (at least 5 fields) using Q-capture pro 7.0 and count the adherent cancer cells. Red arrow in Figure 13 shows MDA-MB-231 cells adhering to human endothelial cells at 1 dyn/cm² for 5 min at 37 °C.

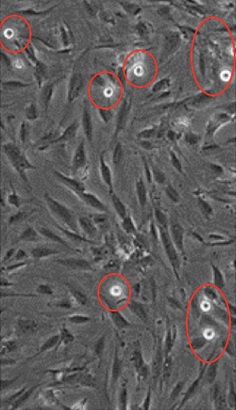

       Figure 13. Image of cancer cell adhesion to monolayer of endothelial cells. Red arrow indicates cancer cells adhering to endothelial cells.

Notes

1. The adhesion of each cell line is different. Experimental conditions may need to be optimized based on the cells of interest.

2. It is worthwhile to test different flow rates. We usually use 1-5 dyn/cm².

3. It is important that endothelial cells are fully confluent with no empty space in between cells.


Recipes

1. Cell culture medium for HMVEC
   Endothelial basal medium-2 supplemented with 2% FBS
   EGM SingleQuot Kit containing:
   Epidermal growth factor (EGF) 10 ng/ml
   Hydrocortisone 1 μg/ml
   Gentamicin 30 μg/ml
   Amphotericin B (GA-1000) 15 ng/ml

2. Cell culture medium for cancer cells (e.g., MDA-MB-231)
   Dulbecco's modification of Eagle's medium (DMEM) supplemented with 10% fetal bovine serum (FBS)
   1% glutamax
   1% antibiotic-antimycotic


Acknowledgments

This work was supported by the Department of Defense (W81XWH-11-1-0238 to T. T), the National Institutes of Health (1R01CA160271-01A1 to T. T), the American Cancer Society (IRG-08-060-04), and the Pennsylvania Breast Cancer Coalition (T. T). Images were shared by ibidi USA, Inc., Madison WI (ibidi.com).

References

1. Kang, S. A., Hasan, N., Mann, A. P., Zheng, W., Zhao, L., Morris, L., Zhu, W., Zhao, Y. D., Suh, K. S., Dooley, W. C., Volk, D., Gorenstein, D. G., Cristofanilli, M., Rui, H. and Tanaka, T. (2015). Blocking the adhesion cascade at the premetastatic niche for prevention of breast cancer metastasis. Mol Ther 23(6): 1044-1054.
