Materials and reagents

Biological materials

Fly strains

1. Cas9 driver lines: Tissue-specific, ubiquitous, or inducible Cas9 transgenic lines (Table 1)

Table 1. Cas9 driver lines

2. MAGIC gRNA-marker lines: Positive MAGIC (pMAGIC) or negative MAGIC (nMAGIC) lines from a genome-wide kit covering all chromosomal arms (X, 2L, 2R, 3L, 3R, and 4)

Note: The complete list of Bloomington Drosophila Stock Center (BDSC) catalog numbers and corresponding target sequences for all lines are provided in Table S1.

3. Fluorescent reporter lines (required for pMAGIC, optional for nMAGIC): Standard Gal4/UAS reporter lines (e.g., tub-Gal4, UAS-mCD8-GFP, UAS-tdTom)

4. User-defined mutant lines: Any Drosophila line carrying a mutation of interest or a chromosomal deletion

Critical: The mutation or deleted segment must be located on the same chromosomal arm and distal to the chosen MAGIC gRNA target site.

Materials and reagents

1. Flies can be cultured on any commonly used Drosophila medium, such as the Bloomington formulation yeast–cornmeal–molasses medium (e.g., Nutri-Fly, Genesee Scientific, catalog number: 66-112) and commercial ready-made medium (such as LabExpress fly food B)

2. Genetic crosses can be set up in standard fly culture vials (e.g., Genesee Scientific, catalog number: 32-113)

3. 60 mm Petri dishes (VWR, catalog number: 25373-085)

4. PYREX^® 9-depression glass spot plate (Corning, catalog number: 7220-85)

Equipment

1. Standard stereomicroscope for sorting genetic markers and balancing flies

2. Fluorescence-equipped stereomicroscope (e.g., Nikon, model: SMZ18) for in vivo prescreening and direct visualization of fluorescent clones in live animals

3. Incubators (capable of maintaining 18 and 25 °C) with a 12/12 light/dark cycle; 18 °C is used for preventing activation of hs-Cas9, while 25 °C is for the standard culture of Drosophila

4. Water bath (e.g., VWR, catalog number: 10128-126) set to 37 °C for activating hs-Cas9

5. Fly pushing pads (e.g., Genesee Scientific, catalog number: 59-172) connected to CO₂ delivery systems and fine-tipped paintbrushes (e.g., Thermo Fisher Scientific, catalog number: 03-665A) for fly sorting

Procedure

A. Experimental design and component selection

Note: The success of MAGIC relies on correctly pairing four genetic components: Cas9, gRNA-marker, fluorescent reporters, and the test mutation. This system does NOT require FRT sites on the test chromosome.

1. Define the crossover site: Determine the chromosomal location of your mutant gene. Select a MAGIC gRNA-marker line targeting a pericentromeric region proximal to your gene.

Note: The genome-wide kit provides three target sites per arm with varying efficiencies. Select a high-efficiency gRNA for dense clone generation or a low-efficiency gRNA for sparse clones.

2. Select the Cas9 driver: Choose a Cas9 line expressed in the precursor cells of your target tissue (Table 1).

a. Use ubiquitous Cas9 (vas-Cas9, Act5C-Cas9) for broad multi-tissue clones.

b. Use enhancer-driven Cas9 (e.g., ey-Cas9, zk-Cas9) for tissue-specific induction.

c. Use hs-Cas9 for precise temporal control of mitotic recombination.

3. Choose the MAGIC modality (pMAGIC vs. nMAGIC):

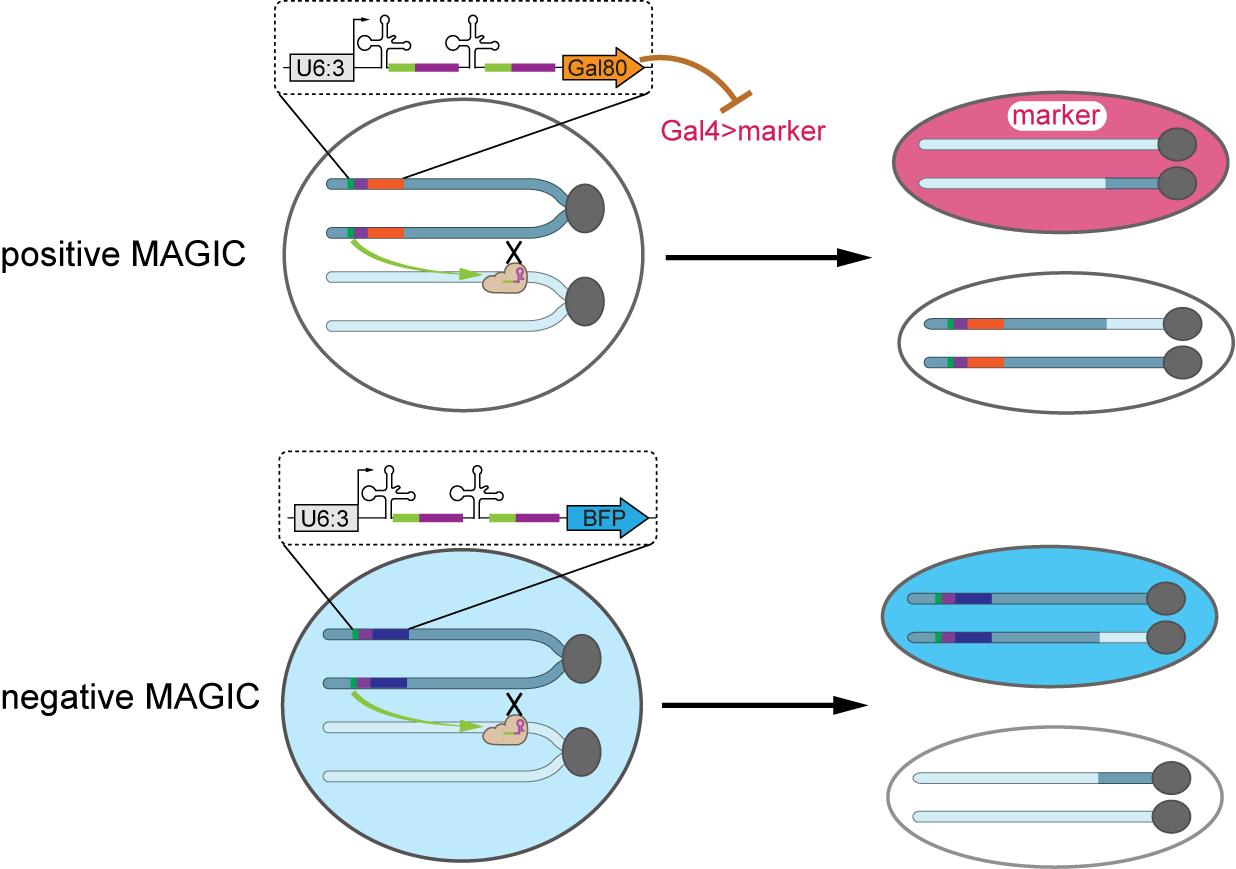

a. pMAGIC (positive labeling) uses a Gal80 marker [e.g., tub-Gal80(DE)] to repress Gal4 in heterozygous cells. Clones homozygous for the mutant arm lose Gal80 and become positively labeled by the Gal4-driven fluorescent reporter.

b. nMAGIC (negative labeling) uses a ubiquitously expressed BFP or IFP (e.g., tub-3xHA-BFP). Clones homozygous for the mutant arm are identified by the absence of the fluorescent marker (loss of BFP/IFP).

B. Genetic crossing schemes

Caution: Do not maintain Cas9 and gRNA transgenes together in the same stock long-term, as leaky germline Cas9 activity can prematurely mutate the gRNA target site.

Scheme 1: Generating pMAGIC clones

1. P0 cross (building the components): Place 10–15 virgin females carrying the gRNA-marker and reporter components into a vial alongside 5–8 males carrying the Cas9 and the user-defined mutant allele. Allow the flies to mate and reproduce at 25 °C. Transfer the flies to a new vial after three days initially and then every day to prevent crowding of progeny in the vials.

a. Female genotype example: gRNA-marker(Gal80)/Balancer 1; Gal4, UAS reporter/Balancer 2

b. Male genotype example: mutant_allele/Balancer 1; Cas9/Balancer 2

2. F1 generation (clone induction): Maintain the P0 cross at 25 °C. The somatic crossing-over events will occur during the development of the F1 progeny.

a. Target F1 genotype: gRNA-marker(Gal80)/mutant_allele; Gal4, UAS reporter/Cas9

b. Mechanism: In the precursor cells of the F1 animal, Cas9 induces a DSB at the gRNA target site. Following G2-X segregation, the resulting homozygous mutant cell (mutant_allele/mutant_allele) will lack the gRNA-marker (Gal80) transgene. Without Gal80, the Gal4 component activates the UAS reporter, permanently illuminating the mutant clone.

Scheme 2: Generating nMAGIC clones

1. P0 cross: Following the same physical setup parameters as in Scheme 1, place 10–15 virgin females carrying the gRNA-marker into a vial with 5–8 males carrying the Cas9 and the mutant allele. Transfer the flies to new vials as needed.

a. Female genotype example: gRNA-marker(BFP)/gRNA-marker(BFP)

b. Male genotype example: mutant_allele/Balancer 1; Cas9/Balancer 2

2. F1 generation (clone induction):

a. Target F1 genotype: gRNA-marker(BFP)/mutant_allele; Cas9/+

b. Mechanism: Homozygous mutant clones generated via somatic recombination will lack the gRNA-marker (BFP) transgene and will be visualized as distinct "dark" (BFP-negative) patches amidst the intermediate (heterozygous) and bright (homozygous wild-type twin spot) background.

Genetic crossing schemes and expected visual readouts for MAGIC clone induction are shown in Figure 1.

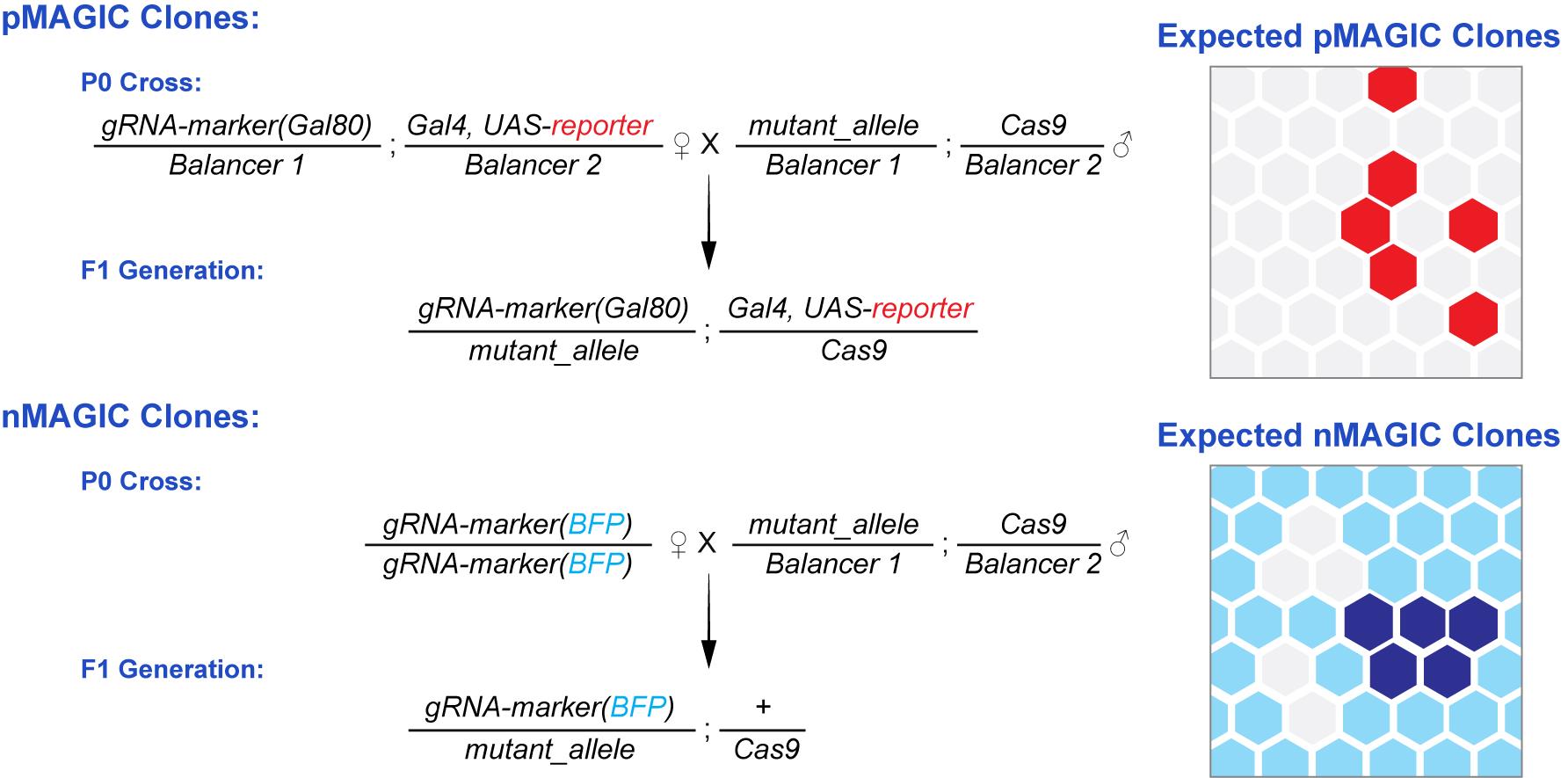

Figure 1. Genetic crossing schemes and expected visual readouts for pMAGIC and nMAGIC. (Top) Positive MAGIC (pMAGIC). The schematic details the P0 cross and the resulting F1 genotype. In F1 somatic cells, Cas9-induced homologous recombination generates homozygous mutant cells that lose the gRNA-marker (Gal80) transgene. As illustrated in the right panel, the de-repression of Gal4 activates the UAS reporter, allowing the mutant clones to be "positively" labeled (e.g., brightly fluorescent red cells) against a non-fluorescent heterozygous background. (Bottom) Negative MAGIC (nMAGIC). The lower panel outlines the crossing strategy to generate nMAGIC clones. Following somatic recombination in the F1 progeny, the resulting homozygous mutant clones lack the gRNA-marker (BFP) entirely. The schematic on the right demonstrates this "negative" labeling readout: mutant clones appear as distinctly dark (BFP-negative) cell patches, which are easily distinguishable from the intermediate (heterozygous, light blue) background and the bright (homozygous wild-type twin spot, white) cells. MAGIC, mosaic analysis by gRNA-induced crossing-over.

C. Temporal clone induction via heat shock (optional)

Note: Temporal control of clone induction is achieved by activating hs-Cas9 via heat shock. Consult Table 2 to determine the timing of the heat shock based on the specific developmental stage at which you wish to activate Cas9. Since hs-Cas9 has leaky activity at room temperature, for tight temporal control, the target genotype should be kept at 18 °C until the desired developmental stage has been reached.

Table 2. Heat shock timing at different developmental stages

1. Allow the F1 animals from the P0 cross to develop at 18 °C until they reach the desired developmental stage (e.g., first instar larvae).

2. Submerge the vials in a 37 °C water bath for 1 h. Extend this duration if too few clones are induced; shorten this duration if too many animals die after the heat shock.

3. Immediately return the vials to an 18 °C incubator and allow the F1 animals to continue development.

D. Animal screening and downstream assay

1. To prepare F1 larvae for screening, gently pick them up from the culture medium using a pair of forceps. Rinse the larvae with water in a 60 mm Petri dish to remove food debris. Transfer the cleaned larvae into a water-filled well on a 9-depression glass spot plate. Screen for larvae that do not contain any balancer chromosome under a standard or fluorescence stereomicroscope. Transfer the larvae of the correct genotype to another well for downstream assays.

2. To screen F1 pupae, examine them under a standard or fluorescence stereomicroscope while they are attached to the wall of the culture vial. Mark those that do not contain any balancer chromosome. Gently pick them up using a pair of forceps or a moistened brush for downstream assays.

3. To screen F1 adults, knock them out on a CO₂ flypad. Examine them under a standard or fluorescence stereomicroscope. Pick those that do not contain any balancer chromosome for downstream assays.

4. Proceed with your desired downstream phenotypic assay on these mosaic animals (e.g., confocal imaging of intact larvae or dissected tissues).

Data analysis

1. Clone frequency assessment: To evaluate the efficiency of a specific Cas9/gRNA-marker combination, count the number of independent fluorescent (pMAGIC) or non-fluorescent (nMAGIC) clones within a defined anatomical region (e.g., segments A1–A7 in larvae) using a fluorescence stereomicroscope.

2. Phenotypic comparison: Compare the phenotype (e.g., viability, developmental timing, structural morphology) of mosaic animals carrying homozygous mutant clones against control mosaic animals generated using wild-type chromosomes.

3. Statistical analysis: Analyze clone counts or phenotypic penetrance using standard statistical software (e.g., RStudio). Apply Student's t-tests for pairwise comparisons or one-way ANOVA for multiple gRNA efficiency comparisons.

Validation of protocol

This protocol (or parts of it) has been used and validated in the following research articles:

• Shen et al. [8]. A genome-wide MAGIC kit for recombinase-independent mosaic analysis in Drosophila. eLife (2026). DOI: 10.7554/eLife.108453. To view the functional validation strategy—including quantitative comparisons of clone induction frequencies across different chromosomal arms and tissue types (such as wing discs and larval brain)—refer specifically to Figures 2, 3, and Supplementary Figure S1 in this publication.

• Allen et al. [1]. Versatile CRISPR/Cas9-mediated mosaic analysis by gRNA-induced crossing-over for unmodified genomes. PLOS Biology 19(1): e3001061 (2021). DOI: 10.1371/journal.pbio.3001061. Validation of the core MAGIC principle, mapping its efficiency in sensory dendrite arborization (da) neurons, was documented in Figures 1–4 of this study.

General notes and troubleshooting

General notes

1. Transgene variegation on chromosome 4: Transgenes inserted on the fourth chromosome (such as the nMAGIC tub-3xHA-BFP marker) may exhibit uneven or variegated expression in certain tissues due to heterochromatin silencing. pMAGIC is generally recommended for neuronal analysis on the fourth chromosome as the Gal80 repressor remains highly efficient.

2. Off-target considerations: Because perfect DSB repair recreates the gRNA target site, Cas9 will repeatedly cut until an indel forms. Even cells that do not undergo mitotic recombination will likely carry an indel at the gRNA locus. Therefore, the gRNA target sites in this kit were specifically selected within non-critical intergenic sequences to prevent confounding phenotypic artifacts.

Troubleshooting

Problem 1: The desired genotype is difficult to obtain in the F1 generation.

Possible cause: Too many homozygous clones of a lethal mutation in critical tissues could kill animals at an early developmental stage.

Solution: Switch to a tissue-specific Cas9 driver to restrict DSB induction solely to the somatic tissue of interest.

Problem 2: No clones observed in the F1 generation.

Possible cause 1: The chosen gRNA target sequence has inherently low cleavage efficiency.

Solution: Switch to a different MAGIC gRNA-marker line targeting a different locus on the same chromosomal arm (e.g., switch from gRNA-40E1 to gRNA-40D2).

Possible cause 2: The Cas9 driver is not expressed in the appropriate precursor cells during the G2 phase.

Solution: Validate the temporal and spatial expression pattern of your chosen Cas9 driver, or switch to an inducible hs-Cas9 and optimize the timing of the heat shock.

Problem 3: Difficulty in identifying larvae of the correct genotype-carrying clones.

Possible cause: Identifying clone-carrying larvae can be difficult if the clones are not brightly labeled. Additionally, unlike traditional FRT-based mosaic methods, mitotic recombination can be induced between a gRNA-marker chromosome and a balancer chromosome in the MAGIC system. Therefore, simply observing a clone in a larva does not guarantee it has the correct experimental genotype.

Solution: When screening at the larval stage, it is critical to use balancer chromosomes equipped with markers that can be easily distinguished in larvae (such as Tubby or specific fluorescent reporters). This allows for accurate negative selection; without these larval-specific balancers, there is no reliable way to distinguish the desired experimental larvae from those carrying the balancer chromosome.

Supplementary information

The following supporting information can be downloaded here:

1. Table S1. Comprehensive list of genome-wide MAGIC gRNA-marker lines, target sites, and BDSC catalog numbers.

Acknowledgments

Conceptualization: Y.S., C.H.; Methodology: Y.S., C.H.; Visualization: Y.S.; Supervision: C.H.; Funding acquisition: C.H.; Writing—original draft: Y.S., C.H.; Writing—review & editing: Y.S., C.H.

This work and the generation of the MAGIC toolkit were supported by the NIH Office of the Director (R24OD031953) to C.H. Previous development of the MAGIC methodology was supported by NIH grants (R01NS099125, R21OD023824, R01/R37-HD038921, and R03-HD101732) and Cornell University start-up funds.

This protocol is a detailed methodological extension of the original research article in which the genome-wide MAGIC kit was described and validated: Shen et al. [8] eLife (2026) (DOI: 10.7554/eLife.108453). The core MAGIC principles and initial methodology were originally developed and modified from Allen et al. [1] PLOS Biology (2021) (DOI: 10.1371/journal.pbio.3001061). We acknowledge the Bloomington Drosophila Stock Center (NIH P400D018537) and the Drosophila Genetic Reference Panel for providing essential fly stocks.

Competing interests

The authors declare no competing interests.

Ethical considerations

The research described in this protocol utilizes the fruit fly, Drosophila melanogaster, which is an invertebrate model organism. According to institutional and national guidelines in the United States, specific approval from an Institutional Animal Care and Use Committee (IACUC) or equivalent ethics committee is not required for research involving Drosophila. All laboratory practices and animal husbandry were conducted following standard ethical guidelines for the humane care and handling of invertebrate model organisms.
