In situ Hybridization of miRNAs in Human Embryonic Kidney and Human Pluripotent Stem Cell-derived Kidney Organoids

在人胚肾和人多能干细胞衍生的肾类器官中微小RNA的原位杂交

FL Filipa M. Lopes
SK Susan J. Kimber
Ioannis Bantounas Ioannis Bantounas

发布: 2021年09月05日第11卷第17期 DOI: 10.21769/BioProtoc.4150 浏览次数: 3544

评审: Giusy TornilloAnonymous reviewer(s)

download pdf PDF PDF
ask Q&A
引用
收藏
Cited by

参见作者原研究论文

The authors used this protocol in:

Cover of Stem Cell Reports, featuring study using the protocol.

Jan 2021

Advertisement

“科研可重复性与创新”系列网络研讨会
Special Issue on Protocols for Organoid Research
Technologies for RNA Detection
Presubmission Inquiry

实验方案合集

专注于特定技术或应用的、详细的、经过同行评审的实验方案合集

Cancer Research
Immunology
Developmental Biology
Microbiology
Neuroscience
Cell Imaging - A Special Collection for Cell Bio 2023
查看更多 more

相关实验方案

基于多功能点击化学的人细胞内DNA/RNA G-四链体成像方法

基于多功能点击化学的人细胞内DNA/RNA G-四链体成像方法

Angélique Pipier and David Monchaud

2025年02月05日 2843 阅读

基于肽核酸连接臂提升 RNA 成像平台性能

基于肽核酸连接臂提升 RNA 成像平台性能

Aleksandra J. Wierzba [...] Amy E. Palmer

2026年06月20日 1964 阅读

一种利用自体血浆凝胶生成马源肌性祖细胞的简化三维培养方法

一种利用自体血浆凝胶生成马源肌性祖细胞的简化三维培养方法

Hélène Graide [...] Didier Serteyn

2025年12月05日 1532 阅读

Abstract

MicroRNAs are small RNAs that negatively regulate gene expression and play an important role in fine-tuning molecular pathways during development. There is increasing interest in studying their function in the kidney, but the majority of studies to date use kidney cell lines and assess the total amounts of miRNAs of interest either by qPCR or by high-throughput methods such as next generation sequencing. However, this provides little information as to the distribution of the miRNAs in the developing kidney, which is crucial in deciphering their role, especially as there are multiple kidney cell types, each with its own specific transcriptome. Thus, we present a protocol for obtaining spatial information for miRNA expression during kidney development by in situ hybridization (ISH) of anti-miRNA, digoxigenin-labelled (DIG), Locked Nucleic Acid (LNA®) probes on (i) native human embryonic tissue and (ii) human pluripotent stem cell (hPSC)-derived 3D kidney organoids that model kidney development. We found that the method reveals the precise localization of miRNA in specific anatomical structures and/or cell types and confirms their absence from others, thus informing as to their specific role during development.

Keywords: Kidney development (肾脏发育) search Organoids (类器官) search hESC (人类胚胎干细胞) search hPSC (人胰腺星状细胞) search MicroRNA (微小rna) search In situ hybridization (原位杂交) search LNA probe (LNA探针) search

Background

MicroRNAs (miRNAs) are small (20-25 nucleotides) RNAs that regulate gene expression by binding predominantly to the 3’ UTRs of their target genes’ mRNAs and inhibiting their translation and/or causing their degradation (Bartel, 2018). An increasing number of studies now show that miRNAs play a crucial role in fine-tuning molecular pathways in the kidney, both in normal development and in disease (Jones et al., 2018; Trionfini et al., 2015; Zhao et al., 2019). The majority of these studies have been conducted on animal models, which do not always faithfully recapitulate the developmental events or disease phenotypes in humans. To overcome these limitations, we recently reported using human pluripotent stem cell (hPSC)-derived kidney organoids (Bantounas et al., 2018; Takasato et al., 2015) as a model to study the role of the miR-199a/214 cluster during human kidney development (Bantounas et al., 2021). In that study, we used in situ hybridization of miRNAs with digoxigenin-labelled locked-nucleic acid (LNA®) probes to detect the precise localization of the miRNAs of this cluster in paraffin sections of both native kidney and organoids. LNA® probes have a chemically modified backbone to afford a higher melting temperature (Tm) per nucleotide than conventional DNA or RNA probes (Singh et al., 1998). They are, thus, ideally suited to the detection of smaller RNAs for which conventional probes would have too low a Tm to bind efficiently. After binding to the tissue, the probes are detected by application of an alkaline phosphatase (AP)-linked, anti-digoxigenin antibody, followed by the addition of an AP substrate, which is converted to a coloured product, visible under a light microscope. Using this method, we discovered that miR-199a-3p and miR-214-3p were both present in the kidney stroma and in developing glomeruli but were largely absent from mature glomeruli. One of the miRNAs, miR-214-3p, also exhibited strong tubular expression. In addition, we observed differences in the extent and distribution of expression between embryonic/fetal kidney and organoids (particularly in the case of miR-199a-3p), possibly indicating that the two represented different developmental stages (Bantounas et al., 2021). This example demonstrates the main advantage of this method, which is the acquisition of spatial information regarding the expression of the miRNAs of interest within a given tissue. This information would be lost if one were to rely exclusively on transcriptional detection methods [e.g., qPCR or Next Generation miRNA Sequencing (miRseq)]. The hybridization steps of the protocol presented here (see below) were adapted from Jørgensen et al. (2010) and were optimized for kidney/kidney organoids and the particular miRNAs we studied (Bantounas et al., 2021). However, the method can in principle be used with formalin-fixed, paraffin-embedded (FFPE) sections of any tissue and for any miRNA or other small RNA of similar size.

Materials and Reagents

  1. 1.5 ml Eppendorf tubes (Starlab, catalog number: S1615-5550)

  2. Plastic pipette tips (preferably filtered) (Starlab, catalog numbers: S1122-1830 [1,000 μl]; S1120-8810 [200 μl]; S1123-1810 [20 μl]; S1121-3810 [10 μl]; or equivalent)

  3. Vacuum filter units, pore size 0.2 μm (Thermo, catalog number: 568-0020)

  4. 6-well plates (Costar, catalog number: 3516, or equivalent)

  5. 3 ml plastic Pasteur pipettes (Starlab, catalog number: E1414-0311, or equivalent)

  6. Tissue processing/embedding cassettes (Simport, catalog number: M490-4) (Figure 1, Left)

  7. Stainless steel or plastic tissue processing capsules (Figure 1, Right)

    Note: The capsules depicted in Figure 1 were the ones used by the authors but have now been discontinued. Therefore, alternative options are proposed here: Simport, catalog number: M470; or Fisher, catalog number: 15-182-219; or equivalent.

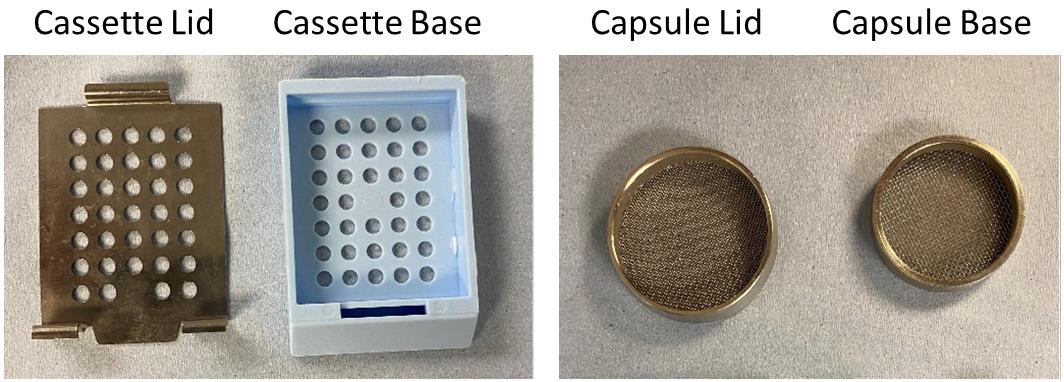

    Figure 1. Tissue processing cassette and capsule


  8. Metal molds for paraffin embedding of tissue (Leica, catalog number: 3803081E)

  9. RNaseZap® wipes for disinfection of working surfaces (Invitrogen/Ambion, catalog number: AM9788)

  10. Superfrost® Plus slides (ThermoFisher Scientific, catalog number: J1800AMNZ)

  11. Human embryonic kidney tissue was provided by the MRC and Wellcome Trust Human Developmental Biology Resource (http://www.hdbr.org/)

  12. hPSC-derived kidney organoids can be produced according to published protocols (Takasato et al., 2015; Bantounas et al., 2018 and 2021). In our study (Bantounas et al., 2021), we differentiated the MAN13 human embryonic stem cell (hESC) line (Ye et al., 2017), but any hESC or induced pluripotent stem cell (iPSC) line can be used in principle

  13. Paraffin wax for embedding tissue, melting point 61°C (Pfm Medical, catalog number: 9000)

  14. Nuclease-free water (not DEPC-treated) (ThermoFisher Scientific, catalog number: AM9930)

  15. Phosphate buffered saline (PBS), without Ca2+ and Mg2+ (Sigma, catalog number: D8537-500 ml)

  16. 5’-Digoxigenin-labelled miRCURY® LNA® miRNA detection probes (1 nmol) (see Note 1) (QIAGEN, catalog number: 339111; see below for individual probe codes). In this example, we used probes targeting:

    1. miR-199a-3p (QIAGEN, catalog number: YD00615410)

    2. miR-214-3p (QIAGEN, catalog number: YD00611471)

    3. scrambled probe (negative control; QIAGEN, catalog number: YD00699004)

    4. U6 snRNA (positive/optimization control; QIAGEN, catalog number: YD00699002)

  17. miRCURY® LNA® miRNA ISH Buffer Set (FFPE) (QIAGEN, catalog number: 339450), which includes:

    1. 2× Formamide-free miRNA ISH buffer

    2. Proteinase K solution

  18. UltraPureTM 20× SSC Buffer (Invitrogen, catalog number: 15557-044)

  19. Tween-20 (Sigma, catalog number: P1379-250ML)

  20. Sheep anti-DIG-AP (alkaline phosphatase linked) antibody (Roche/Sigma-Aldrich, catalog number: 11093274910)

  21. Sheep serum (Sigma-Aldrich, catalog number: S3772-10ML)

  22. Bovine serum albumin (BSA) (Sigma-Aldrich, catalog number: A1470-100G)

  23. Nitro blue tetrazolium/5-bromo-4-chloro-indolyl-phosphate (NBT/BCIP) ready-to-use tablets (Roche, catalog number: 1 1 697 471 001)

  24. Levamisol (Fluka, catalog number: 31742), diluted in water to make a 100 mM stock solution

  25. Nuclear Fast Red solution (Merck, catalog number: N3020)

  26. Industrial methylated spirit (IMS) (various suppliers)

  27. Xylene (various suppliers)

  28. 100% Ethanol (various suppliers)

  29. KCl (various suppliers)

  30. KP Marker Plus (Histolab, catalog number: 98307-R) or similar hydrophobic marking pen (various suppliers)

  31. 4% Paraformaldehyde (PFA) Solution (see Recipes)

  32. 1 M Tris Buffer (see Recipes)

  33. 0.5 M EDTA Solution (see Recipes)

  34. 5 M NaCl Solution (see Recipes)

  35. 1× Proteinase K Buffer (see Recipes)

  36. SSC Buffer dilutions (see Recipes)

  37. PBS-T 0.1% (see Recipes)

  38. Blocking solution (see Recipes)

  39. Antibody dilution buffer (see Recipes)

  40. KTBT Buffer (see Recipes)

Equipment

  1. Tissue Processor (Leica, model: ASP300S; or equivalent)

  2. Heated Paraffin Embedding Station (Leica HistoCore Arcadia H or equivalent)

  3. Cold Plate (Leica, HistoCore Arcadia C or equivalent)

  4. Microtome (Leica, model: RM225; or equivalent)

  5. Hybridization oven or other variable temperature incubator (e.g., Hybaid, Midi Dual 14 or equivalent)

  6. Microscope slide rack (Simport, catalog number: M905-12DGY)

  7. Jars for immersing the slide rack into solvents/buffers (Simport, catalog number: M900-12G)

  8. Heating block (up to 90°C) (Eppendorf ThermoMixer F1.5 or equivalent)

  9. Microcentrifuge (Labnet, Prism or equivalent)

  10. Gilson® or equivalent pipettes (various suppliers)

  11. Staining tray for holding the slides during hybridization and staining (see Figure 2).

    Note: The tray depicted in Figure 2 was the one used by the authors but has now been discontinued. An alternative is proposed here: Fisher, catalog number: 22-045-035.

  12. Waterbath (Grant SUB6, catalog number: P266; or equivalent)

  13. Autoclave (various suppliers)

  14. Optionally, for imaging: 3D-Histech Panoramic-250 microscope slide-scanner, with a 40×/0.95 Plan Apochromat objective (Zeiss)

Software

  1. Optional: CaseViewer (3DHISTECH Ltd.; www.3dhistech.com), to capture images following scanning with a 3D-Histech slide-scanner (see point 14, in Equipment)

  2. Fiji/ImageJ (http://imagej.net/Fiji/Downloads) (for image processing following capture)
