Materials and Reagents

1. 24 x 60 mm coverslips (Deltalab, Euroturbo^®, catalog number: D102460 )
2. 200 µl pipette tips (Daslab, catalog number: 162006 )
3. Microscope slides (Avantor, VWR^TM, catalog number: 631-1553 )
4. Rolled cotton 100% (Acofarma, Acofar^®, catalog number: 4957051 )
5. Iodine-povidone (Meda Pharma SAU, Betadine^®, catalog number: 716720.4 )
6. No. 15 Sterile Disposable Scalpels (Swann Morton, catalog number: 0 505 )
7. Petri dishes (BD, Falcon^TM, catalog number: 353001 )
8. 0.7 METRIC, 45 cm (6-0 18’’) silk sutures (Alcon, catalog number: 184801 )
9. 26 G needles (BD, Microlance^TM, catalog number: 300300 )
10. 1 ml syringes (BD, Plastipak^TM, catalog number: 303172 )
11. Reaction tubes, 1.5 ml (Sarstedt, catalog number: 72.690.001 )
12. Isoflurane-absorbing charcoal filter (Bickford, OMNICON f/air, catalog number: 80120 )
13. 8-week-old female C57Bl/6J mice (Charles Rivers Laboratories, JAX^TM, strain code: 632)
    Note: Housed in cages of four to five mice with water and food available ad libitum. Housing conditions are maintained at 21 ± 1 °C and 55 ± 10% relative humidity in a 12 h light/dark cycle (light on from 8 AM to 8 PM).
14. Saline solution 0.9% sodium chloride (ERN, Vitulia, catalog number: 999791.5 )
15. Distilled water (dH₂O)
16. Medical Oxygen (Abelló Linde, Conoxia^®, catalog number: 652547 .0)
17. Isoflurane (Virbac, Vetflurane^®, catalog number: 575837-4 )
18. Ophthalmic ointment (Nicox, Xilin, catalog number: 171324 )
19. Optimal cutting temperature compound (O.C.T) (Sakura Finetek, Tissue-Tek^® O.C.T.^TM, catalog number: 4583 )
20. Cryomolds (Sakura Finetek Tissue-Tek^® Cryomold^®, catalog number: 4565 )
21. Papanicolaou's solution 1a Harris' hematoxylin solution (Merck Millipore, catalog number: 104302 )
22. Eosin G or Y 0.5% alcoholic (Diapath, catalog number: C0353 )
23. Xylene Cyanol FF (Sigma-Aldrich, catalog number: X4126 )
24. Mounting medium for microscopy (Deltalab, VITROCLUD^®, catalog number: A20250 )
25. Gelatin (Sigma-Aldrich, catalog number: G9391 )
26. KCr(SO₄)₂•12H₂O (Merck Millipore, EMSURE^®, catalog number: 101036 )
27. NaH₂PO₄•2H₂O (Sigma-Aldrich, catalog number: 71505 )
28. Na₂HPO₄•12H₂O (Sigma-Aldrich, catalog number: 71649 )
29. NaCl (Sigma-Aldrich, catalog number: S7653 )
30. PFA (Merck Millipore, catalog number: 104005 )
31. NaOH (Merck Millipore, catalog number: 109137 )
32. Sodium azide (Sigma-Aldrich, catalog number: S2002 )
33. Sucrose (Merck Millipore, catalog number: 107687 )
34. 100% ethanol (Merck Millipore, EMSURE^®, catalog number: 1009831 )
35. Gentamicin (Laboratorios Normon, Genta-Gobens^®, catalog number: 999037.7 )
36. Meloxicam (Boehringer Ingelheim, Metacam^®, catalog number: 210028 )
37. Methylene blue (Scharlau, EsssentQ^®, catalog number: AZ02030025 )
38. Gelatinized microscope slides (see Recipes)
39. 0.3 mg/ml gentamicin (see Recipes)
40. 0.2 mg/ml meloxicam (see Recipes)
41. 0.01 M phosphate buffered saline (PBS) (see Recipes)
42. 4% paraformaldehyde (PFA) (see Recipes)
43.  Cryoprotectant solution: 30% sucrose with 0.1% sodium azide (see Recipes)
44. 96% and 70% ethanol (see Recipes)
45. 0.01% methylene blue in saline solution (see Recipes)


Equipment

1. P20 pipette (Gilson, model: PIPETMAN^® P20, catalog number: F123600 )
2. Plastic staining jars and baskets (Brand, Brand^®, catalog number: 471800 )
3. Light microscope (Leica Microsystems, model: DM6000 B ) with camera (Leica Microsystems, model: DFC300 FX )
4. Anesthesia circuit including isoflurane vaporizer (Midmark, Isoflurane VIP 3000^®-Well-Fill, catalog number: 91305430 ), tubing, regulating valves, nose cones and induction chamber (Midmark, catalog number: 93805108 ) (Figure 1)
5. Cold light source (Leica Microsystems, model: CLS 50 X )
6. Electric hair-clipper (BBraun, Aesculap^®, model: ISIS , catalog number: GT421 )
7. Heating pads (Daga, catalog number: N2P 220-230 )
8. Small serrated-semi curved tip forceps (Allgaier Instrumente, A-line endoscopy, catalog number: 08-515-005 )
9. Haemostatic forceps (Allgaier Instrumente, A-line endoscopy, catalog number: 13-028-120 )
10. Rounded tip scissors (Medicon, catalog number: 02.50.62 )
11. Dissection scissors (Medicon, catalog number: 02.70.14 )
12. Microdissection scissors (Dimeda, catalog number: 09.102.11 )
13. Cryostat (Leica Biosystems, model: CM3050 )
14. Macro Zoom Microscope (Olympus, model: MVX10 ) with camera (Olympus, model: DP71 )
15. -80 °C freezer (Thermo Fisher, -86 C ULT Freezer, model: 917 )


    Figure 1. Anesthesia circuit. A. Isoflurane vaporizer. B. Nose cone. C. Induction chamber.


Software

1. Leica Application Suite software v4.0 (Leica Microsystems, www.leica-microsystems.com)
2. Cell^D Life Science documentation software (Matrix Optics, www.matrixoptics.com)


Procedure

1. Selection of donors in diestrus: estrous cycle determination

   1. Place the mouse on the cage grid, and gently pull the tail backwards to induce the mouse gripping the grid and pulling forward. With the other hand, grasp the mouse by the scruff of the neck and pin the tail between the palm and the fourth finger of the hand holding the scruff.
   2. Place the pipette tip at the opening of the vaginal canal and flush the vagina 5 times with 20 μl of saline solution in and out.
   3. Place the resulting fluid onto a gelatinized slide.
   4. Let the drop air-dry.
   5. Stain with 0.01% methylene blue for 2 min.
   6. Wash twice in distilled water for 2 min.
   7. Let air-dry.
   8. Take images of stained cells using the 40x objective of a light microscope to determine the stage of the estrous cycle (Figure 2):

   1. In proestrus, most cells are nucleated.
   2. In estrus, mostly cornified epithelial cells are present.
   3. In metestrus, cornified epithelial cells and leukocytes are found.
   4. In diestrus, leukocytes are predominant, and some nucleated and cornified epithelial cells are present.

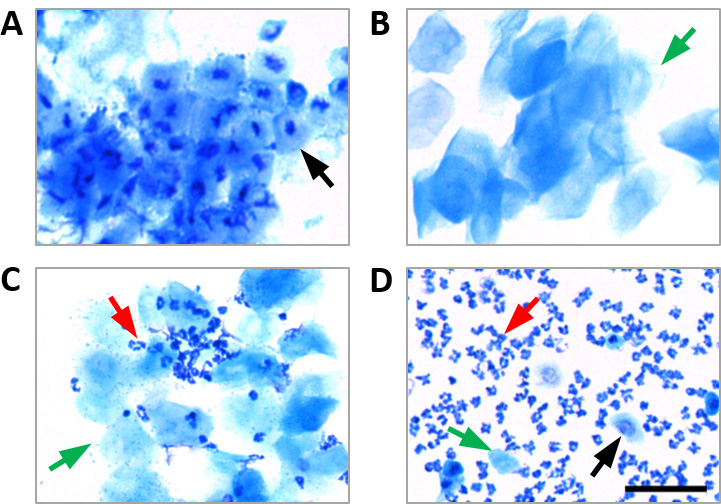

   Figure 2. Vaginal cytology from mice in each stage of the estrous cycle. A. Proestrus. B. Estrus. C. Metestrus. D. Diestrus. Nucleated epithelial cells, cornified epithelial cells, and leukocytes are indicated by black, green and red arrows, respectively. Scale bar = 50 μm.


2. Obtention of endometrial and control tissues: excision of uterine fragments and abdominal fat

   1. Euthanize the donor mouse in diestrus by cervical dislocation.
   2. Make a midline incision on the abdomen using a scalpel and excise the uterus (Figures 3A and 3B).
   3. Place the uterus in a Petri dish containing cold saline solution (4 ºC, on ice) (Figure 3C).
   4. Place abdominal fat of a size similar to the uterus in another Petri dish containing cold saline solution (Figure 3D).
   5. Strip one excised uterine horn and open it longitudinally with microdissection scissors, exposing the endometrium (Figures 3E and 3F).
      Note: Keep the other uterine horn unopened and in cold saline solution until used to induce endometriosis on a second recipient mouse.
   6. Use a new scalpel to cut the uterine horn or the fat in four squares with each side measuring 2 x 2 mm (Figures 3G and 3H).
   7. Keep the uterine fragments in cold saline solution until needed.



   Figure 3. Excision of uterine fragments and abdominal fat. A. A midline incision (dashed line) is made on the abdomen of the euthanized donor mouse. B. The uterus (blue arrow) and the abdominal fat (black arrow) are exposed through the incision. C. The uterus is excised and placed in a Petri dish containing cold saline solution. D. Abdominal fat tissue is also excised and placed in another Petri dish containing cold saline solution. E. The uterine horns are stripped. F. One uterine horn is opened longitudinally, exposing the endometrium. G. The opened uterine horn is cut in four fragments of 2 x 2 mm that are used for the endometriosis surgery. H. Abdominal fat is also cut in similar-sized fragments that are used for the control surgery.


3. Surgical induction of endometriosis: peritoneal implantation of ectopic endometrium

   1. Anesthetize the recipient mouse with 4% V/V isoflurane in medical oxygen (2 L/min) in the induction chamber.
   2. Once anesthetized, place the mouse on top of a heating pad and maintain anesthesia with 2.5% V/V isoflurane in medical oxygen (2 L/min) using a nose cone.
   3. Apply ophthalmic ointment to avoid drying of the eyes.
   4. Shave the abdomen of the mouse using an electric hair-clipper.
   5. Clean the skin with a piece of cotton soaked in iodine-povidone solution (Figure 4A).
   6. Make a 1 cm midline incision on the skin using a scalpel, ending approximately 0.5 cm cranial to the vaginal ending.
   7. Insert closed rounded tip scissors between the skin and the abdominal wall and open them to detach the skin from the muscle.
   8. Make a 1 cm incision on the abdominal wall using the small scissors and use blunt forceps to expose its inner surface (Figure 4B).
   9. Suture the uterine fragments into the abdominal wall (two on each side of the incision) with loose square knots of 6-0 black silk. Uterine fragments must be sutured with the endometrial surface facing the peritoneal cavity (Figures 4C and 4D).
   10. Close the muscular abdominal wall with three loose square knots of 6-0 black silk (Figure 4E).
   11. Close the skin with three square knots of 6-0 black silk.
   12. Clean the skin with a piece of cotton soaked in povidone-iodine solution (Figure 4F).
   13. Leave the animal lying over one side in a clean cage partially placed over a heating pad until it recovers.

   Notes:

   1. Whenever the use of analgesics and antibiotics does not interfere with the purpose of the experiment, give meloxicam (2 mg/kg, subcutaneously, injection volume 10 ml/kg) and gentamicin (1 mg/kg, intraperitoneally, injection volume 3 ml/kg) right after surgery and 24 h later.
   2. To induce endometriosis to a second recipient mouse, repeat the procedure from Step B4 using the remaining uterine horn excised from the same donor mouse.



   Figure 4. Surgical induction of endometriosis. A. The abdomen of an anesthetized recipient mouse is shaved and cleaned with iodine-povidone solution. B. The inner surface of the abdominal wall is exposed through a 1 cm incision. C and D. Two fragments of uterine tissue or fat from a donor mouse are sutured on each side of the incision. E. The muscular abdominal wall is closed with three loose square knots. F. The skin is closed with three square knots and cleaned with iodine-povidone solution.


4. Control mice: peritoneal implantation of abdominal fat
   To obtain control mice repeat the procedure from Section C, substituting the Step C9 by suturing the fat fragments into the abdominal wall (two on each side of the incision) with loose square knots of 6-0 black silk.


5. Confirmation of endometriosis: histology of endometriotic lesions
   Note: Establish the time of necropsy according to the purpose of the experiment. Control mice should not develop endometriotic lesions.

   1. Perform a vaginal lavage as described in Section A if the stage of the estrous cycle at the time of sample collection needs to be considered.
   2. Euthanize the mouse by cervical dislocation.
   3. Use dissection scissors to make a dorsal incision in the back of the mouse at the level of the pelvis and peel the skin (Figure 5A).
   4. Remove the spine from S1 to L1 by making a first cut at the level of the most caudal rib and a second cut 1 cm caudal to the first one. Then, cut both sides along the spinal column (Figure 5A).
      Note: Spinal cord and dorsal root ganglia can be isolated from the extracted fragment of spinal column and used for biochemical and immunohistochemical analyses.
   5. Carefully pull out the intestines to allow the examination of the abdominal wall (Figure 5B).
   6. Excise the cystic endometriotic lesions and remove the surrounding fat tissue using dissection scissors and forceps. Special care should be taken to avoid lancing the fluid-filled cysts (Figure 5C).
   7. Place the endometriotic lesions in reaction tubes with paraformaldehyde 4% and allow tissue fixation for 4 h at 4 °C.
   8. Wash 3 x 5 min with 0.01 M PBS at room temperature.
   9. Keep samples in sucrose 30% with 0.1% sodium azide for 6 days to cryoprotect the tissue.
   10. Take the samples out of the sucrose solution, remove sucrose excess with filter paper, embed in cryomolds filled with O.C.T. and store at -80 °C.
   11. Section samples at 20 μm with a cryostat and mount onto gelatinized slides. Store at -20 °C.
   12. Stain with hematoxylin and eosin:
   1. Leave the slides in staining baskets and allow them to thaw.
   2. Sink in 100% ethanol for 5 min.
   3. Sink in 96% ethanol for 5 min.
   4. Sink in 70% ethanol for 5 min.
   5. Wash with distilled water.
   6. Immerse in Papanicolaou's solution 1a Harris' hematoxylin solution for 5 min.
   7. Wash in distilled water for 2 min.
   8. Immerse in Eosin G or Y 0.5% alcoholic for 30 s.
   9. Sink in 70% ethanol for 5 min.
   10. Sink in 96% ethanol for 5 min.
   11. Sink in 100% ethanol for 5 min.
   12. Clear with Xylene Cyanol FF for 5 min.
   13. Mount coverslip with mounting medium for microscopy.
   14. Allow to dry horizontally for 3 days.
   13. Capture images of stained sections using a macro zoom microscope for assessment of diameter and histological features (Figure 5D).
        


   Figure 5. Endometriotic lesions recovered 32 days after surgical induction of endometriosis. A. Removal of the spine from S1 to L1 (dashed lines). B. Uterine fragments implanted into the abdominal wall develop into cysts. C. Endometriotic cyst of approximately 2.5 mm diameter. D. Hematoxylin and eosin stained section of an endometriotic lesion showing the presence of stroma (orange arrow) and glandular epithelium (blue arrow). Scale bar = 1 mm.


Notes

1. Use different scalpels and silk sutures for uterine fragments or fat, and for muscle and skin.
2. Mice should be monitored daily for at least 3 days after surgeries. If a mouse removes the skin sutures, briefly anesthetize with isoflurane (4% V/V for induction, 2.5% V/V for maintenance), wash the incision site with saline solution and close the skin with 6-0 black silk square knots. Afterwards, disinfect with iodine-povidone solution.
3. Mice should be supervised following an adaptation of the Morton and Griffiths guidelines on the recognition of pain, distress and discomfort (Morton and Griffiths, 1985). This adapted protocol considers four variables, and a score is assigned for each variable:
1. Weight loss:
   0 Normal. There is no weight loss or the animal grows normally.
   1 Weight loss less than 10%.
   2 Weight loss between 10 and 20%. Alteration in the appearance or amount of stool.
   3 Weight loss greater than 20%. The animal does not consume water or food.
2. Coat appearance:
   0 Normal.
   1 Hair in poor condition.
   2 Hair in poor condition and ocular or nasal secretions.
   3 Piloerection.
3. Movement/posture/behavior of the animal:
   0 Normal.
   1 Small changes.
   2 Moderate changes.
   3 Inactivity, aggressiveness, self-mutilation or vocalizations.
4. Aspect of the incision site:
   0 Normal.
   1 Slight redness.
   2 Local edema.
   3 Infection, darkening (signs of necrosis).
The final score is calculated as the sum of the scores obtained for each variable, and it determines the application of corrective actions:

1. 0 to 3. The mouse does not require any corrective action.
2. 4 to 7. The mouse requires the application of corrective actions.
3. Equal to 8. The mouse should be euthanized.
*Euthanasia will be practiced if the score for any of the variables is 3.
Corrective measures include cleaning the wound with disinfectant and applying topical antibiotic, placing the cage on top of a heating pad and supplying nutrient-enriched hydrating gel or food pellets soaked in water to facilitate feeding.

Recipes

1. Gelatinized microscope slides

   1. Prepare 0.5% gelatin-coating solution
      0.5 g gelatin
      0.5 g KCr(SO₄)₂•12H₂O
      dH₂O up to 400 ml
      stir at 50 °C until dissolved
   2. Gelatinize slides
      Place the slides in staining baskets
      Soak the baskets 3 x 30 s in 0.5% gelatin-coating solution, waiting 30 s between immersions
      Blot excess solution onto filter paper and cover the baskets containing the slides
      with aluminum foil
      Dry in an incubator at 37 °C for 24 h

2. 0.3 mg/ml gentamicin
   31.25 µl gentamicin
   5 ml saline solution 0.9% sodium chloride
3. 0.2 mg/ml meloxicam
   0.2 ml meloxicam
   4.8 ml saline solution 0.9% sodium chloride
4. 0.01 M phosphate buffered saline (PBS)

   1. Prepare Solution A: 0.2 M sodium phosphate monobasic
      3.12 g NaH₂PO₄•2H₂O
      dH₂O up to 100 ml
   2. Prepare Solution B: 0.2 M sodium phosphate dibasic
      28.65 g Na₂HPO₄•12H₂O
      dH₂O up to 400 ml
   3. Prepare 0.1 M phosphate buffer (PB), pH 7.4
      100 ml Solution A
      400 ml Solution B
      500 ml dH₂O
   4. Prepare 0.1 M PBS
      9 g NaCl
      1,000 ml 0.1 M PB
   5. Prepare 0.01 M PBS
      100 ml 0.1 M PBS
      1,000 ml dH₂O

5. 4% paraformaldehyde (PFA)
   10 g PFA
   1 ml 1 M NaOH
   0.1 M PB (see Recipe 3) up to 250 ml
6. Cryoprotectant solution: 30% sucrose with 0.1% sodium azide

   1. Prepare 0.01 M PBS (see Recipe 3)
   2. Prepare 20% sodium azide solution
      2 g sodium azide
      dH₂O up to 10 ml
   3. Prepare cryoprotectant solution
      30 g sucrose
      0.5 ml 20% sodium azide
      0.01 M PBS up to 100 ml

7. 96% and 70% ethanol

   1. 96% ethanol
      480 ml 100% ethanol
      20 ml dH₂O
   2. 70% ethanol
      350 ml 100% ethanol
      150 ml dH₂O

8. 0.01% methylene blue in saline solution
   2 mg methylene blue
   20 ml saline solution 0.9% sodium chloride
