Arabidopsis Metabolome Analysis Using Infusion ESI FT-ICR/MS

融合ESI FT-ICR/MS法分析拟南芥代谢组

Reiko Motohashi Reiko Motohashi
MS Masakazu Satou
Fumiyoshi Myouga Fumiyoshi Myouga
Akira Oikawa Akira Oikawa
DO Daisaku Ohta

发布: 2015年05月05日第5卷第9期 DOI: 10.21769/BioProtoc.1463 浏览次数: 8917

评审: Arsalan DaudiSekhar KambakamAnonymous reviewer(s)

download pdf PDF PDF
ask Q&A
引用
收藏
Cited by

参见作者原研究论文

The authors used this protocol in:

Cover of Plant Molecular Biology, featuring study using the protocol.

Jul 2014

Advertisement

Submit your protocol to the Special Issue on Technologies for RNA Detection
Presubmission Inquiry

实验方案合集

专注于特定技术或应用的、详细的、经过同行评审的实验方案合集

Cancer Research
Immunology
Developmental Biology
Microbiology
Neuroscience
Cell Imaging - A Special Collection for Cell Bio 2023
查看更多 more

相关实验方案

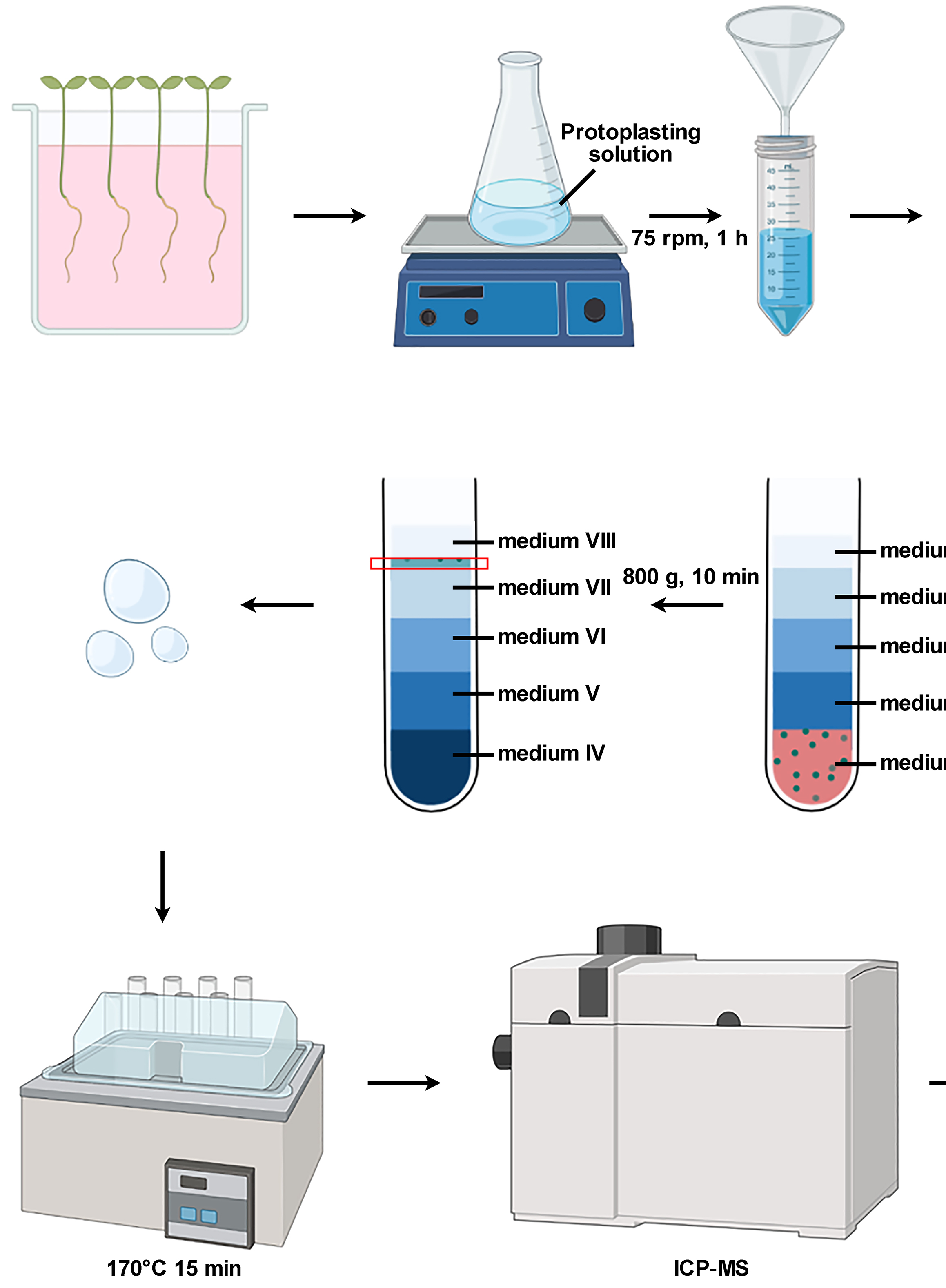

拟南芥根原生质体完整液泡的分离及元素分析

拟南芥根原生质体完整液泡的分离及元素分析

Chuanfeng Ju [...] Zhenqian Zhang

2023年03月05日 1940 阅读

基于广泛靶向代谢修饰组学的植物修饰代谢产物分析

基于广泛靶向代谢修饰组学的植物修饰代谢产物分析

Jianing Zhang [...] Jun Yang

2025年04月05日 1379 阅读

高效液相色谱法检测培养基及微藻细胞中草甘膦、氨基甲基膦酸和抗坏血酸的含量

高效液相色谱法检测培养基及微藻细胞中草甘膦、氨基甲基膦酸和抗坏血酸的含量

Juan Manuel Ostera [...] Gabriela Malanga

2025年04月05日 1121 阅读

Abstract

We made the method for Arabidopsis metabolome analysis based on direct-infusion Fourier transform ion cyclotron resonance mass spectrometry (FT-ICR/MS) (IonSpec). This method was sufficiently applied to metabolic phenotyping of Arabidopsis. This method is simple in that after homogenizing samples, powdered samples are dissolved in extraction solvents (acetone and methanol) to 20% fresh weight/volume. Extracted sample solutions are dried and dissolved in 50% (v/v) acetonitrile. Mass analysis using FT-ICR/MS (IonSpec) is performed in positive and negative ionization operation modes. Mass spectra are acquired over the 100-1,000 m/z range and accumulated to improve the S/N ratio.

Keywords: Metabolome (代谢组学) search Arabidopsis (拟南芥) search Albino (白化) search ESI FT-ICR/MS (ESI FT-ICR质谱) search

Materials and Reagents

  1. 3-week-old Arabidopsis plants
  2. Liquid nitrogen
  3. Acetone (HPLC grade) (Wako Chemicals USA, catalog number: 014-08681 )
  4. Methanol (HPLC grade) (Wako Chemicals USA, catalog number: 134-14523 )
  5. Nitrogen gas
  6. EN1-16 (TAITEC, catalog number: 0076417-000 )
  7. Formic acid (HPLC grade) (Wako Chemicals USA, catalog number: 063-04192 )
  8. Lidocaine (anaesthetic) m/z 235.18104 (Wako Chemicals USA, catalog number: 120-02691 )
  9. Prochloraz (agricultural chemical) m/z 376.03863 (Wako Chemicals USA, catalog number: 164-25131 )
  10. Reserpine (alkaloid sedative drug) m/z 609.28121 (Wako Chemicals USA, catalog number: 184-00691 )
  11. Bombesin (peptide) m/z 810.41479 (Wako Chemicals USA, catalog number: 339-40861 )
  12. 28~30% ammonia solution (Wako Chemicals USA, catalog number: 016-03146 )
  13. Negative mode internal standards: 2.4-D (plant hormone) m/z 218.96157 (Wako Chemicals USA, catalog number: 040-18532 )
  14. Ampicillin (antibiotic) m/z 348.10180 (Wako Chemicals USA, catalog number: 017-20531 , CHAPS 8 detergent) m/z 613.388865 (Wako Chemicals USA, catalog number: 341-04721 )
  15. Tetra-N-acetylchitotetraose [(GluNAc)4] m/z 829.32023 (Tokyo Chemical Industry, catalog number: T2910 )
  16. 50% (v/v) acetonitrile (HPLC grade) (Wako Chemicals USA, catalog number: 018-19853 ) [use distilled water to dilute acetonitrile to 50%(v/v)]
  17. Acetic acid (Wako Chemicals USA, catalog number: 014-20063 )
  18. 28~30% ammonia solution (Wako Chemicals USA, catalog number: 016-03146 )
  19. Ultrapure water (recommended but not required)

Equipment

  1. An IonSpec Explorer FT-ICR/MS equipped with a 7-tesla actively shielded superconducting magnet (Agilent, Ionspec)
  2. Glass vial and teflon cap (GL Biochem, catalog number: 1030-46716 )
  3. Glass pipette
  4. 0.45 µm filters (PTFE) (ADVANTEC®, catalog number: 13HP045AN )
  5. Heat block

Procedure

English
中文翻译

文章信息

版权信息

© 2015 The Authors; exclusive licensee Bio-protocol LLC.

如何引用

Motohashi, R., Satou, M., Myouga, F., Oikawa, A. and Ohta, D. (2015). Arabidopsis Metabolome Analysis Using Infusion ESI FT-ICR/MS. Bio-protocol 5(9): e1463. DOI: 10.21769/BioProtoc.1463.
