Spindle Angle Measurements

Cell Biology > Cell staining > Protein
Authors: Julien Cau
Julien CauAffiliation: IGH, CNRS UPR1142, Montpellier, France
For correspondence: julien.cau@igh.cnrs.fr
Bio-protocol author page: a895
Nathalie Morin
Nathalie MorinAffiliation: CRBM, CNRS UMR5237, Universités Montpellier 1 et 2, Montpellier, France
Bio-protocol author page: a894
 and Guillaume Bompard
Guillaume BompardAffiliation: IGH, CNRS UPR1142, Montpellier, France
For correspondence: guillaume.bompard@igh.cnrs.fr
Bio-protocol author page: a890
Vol 3, Iss 19, 10/5/2013, 2991 views, 0 Q&A, How to cite
DOI: http://dx.doi.org/10.21769/BioProtoc.925

[Abstract] Spindle angles measures derive from the measures of spindle poles positions that were taken from fixed and immunostained adherent cells. To determine spindle angles (α), z-stack images of metaphasic cells immunostained with anti γ-tubulin (spindle poles) and anti β-tubulin antibodies (mitotic spindle) were acquired. A very simple ImageJ software macro was developed to measure the spindle angle using spindle pole coordinates (see Figure 1).

Keywords: Spindle, Angle, Mitosisi

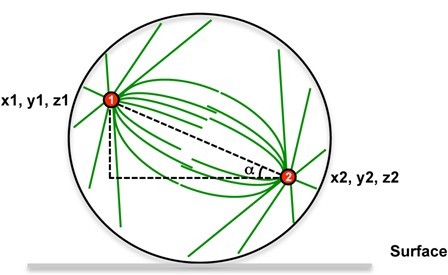

Figure 1. Spindle angle measurement principle. Spindle poles coordinates are measured, then the spindle angle alpha is calculated.

Materials and Reagents

  1. Fixed cells
  2. Antibodies
    For example, for mitotic spindle poles, an antibody against γ-tubulin antibody (clone AK-15) (e.g. Sigma-Aldrich, catalog number: T3320)
    For mitotic spindle using an antibody directed against α-or β-tubulin (clone TUB 2.1) (e.g. Sigma-Aldrich, catalog number: T4026)
    Anti-rabbit coupled to Alexa Fluor® 555 (Life Technologies, Invitrogen™, catalog number: A21429)
    Anti-mouse coupled to Alexa Fluor® 488 (Life Technologies, Invitrogen™, catalog number: A11029)
    Note: Primary (AK-15 and TUB 2.1) and secondary (Anti-rabbit coupled to Alexa Fluor® 555 and anti-mouse coupled to Alexa Fluor® 488) antibodies were used after a 1,000 time dilution in 1x PBS/1% BSA.
  3. 10x PBS (Life Technologies, Invitrogen™, catalog number: AM9625)
  4. 4′,6-Diamidino-2-phenylindole dihydrochloride (DAPI) (Sigma-Aldrich, catalog number: D9542)
  5. BSA (Sigma-Aldrich, catalog number: A4503)
  6. 1x PBS (see Recipes)
  7. 1x PBS/1% BSA (see Recipes)

Equipment

  1. We use a Zeiss Axioimager Z1 with 63x Plan-Apochromat 1.4 oil lens and using an Axiocam Mrm camera with a Grid Projection Illumination (apotome). The system is driven by Axiovision software. Images can also be obtained from any confocal microscopes/widefield microscope + deconvolution.
  2. 12 mm round coverslips (#1.5)
  3. Glass slides
  4. Vectashield® Mounting Media (Vector Laboratories, catalog number: H-1000) or ProLong® Gold (Life Technologies, Invitrogen™, catalog number: P36934)

Software

  1. Axiovision software
  2. Open source software ImageJ 1.47q (http://rsbweb.nih.gov/ij/index.html)
  3. Macro for spindle angle measurements

Procedure

  1. Stain cells for spindle poles and mitotic spindle using the above-mentioned antibodies and according to the following protocol
    1. Cells grown on 12 mm round coverslips (#1.5) are fixed for 5 minutes at -20 °C in MeOH.
    2. Rehydrated in 1x PBS for 5 minutes and saturated in 1x PBS/1% BSA for at least 30 minutes at room temperature.
    3. Incubated for 2 hours at room temperature with primary antibodies in 1x PBS/1% BSA.
    4. After 3 washes of few seconds in 1x PBS/1% BSA, cells are incubated for 1 hour at room temperature with secondary antibodies coupled to fluorophores and DAPI (to stain DNA, DAPI was used at 0.5 μg/ml) in 1x PBS/1% BSA.
    5. After 3 washes in 1x PBS/1% BSA, coverslips are mounted onto glass slides using either Vectashield® or ProLong® Gold.

  2. Imaging analysis
    1. Acquire Z stacks with a 63x/100x PLAN APO lens. Use Nyquist/Shannon criterion for Z step calculation (0.24 μm for this lens). Image quality must be good enough so that poles are clearly identified.
    2. Make sure the acquisition software calibrates the image (i.e. voxel size is included in the image Metadata). If not, the macro will request to calibrate the Image. XY pixel size can be derived from (physical camera pixel size*camera binning)/(Objective Magnification*tube lens magnification).
    3. Save the Macro text into a 3Dangle.txt file in the Macro subfolder in the ImageJ directory. Install the macro using Plugins>Macros>Install. Select the point selection tool (if multipoint selection tool is selected, right click to switch). Double click on the point tool icon to select the automeasure option. Alternatively, run the macro once (Plugins>Macros>3Dangle).
    4. Using the point selection tool set as indicated in step B3, click on the two spindle poles. Then run the macro (Plugins>Macros>3Dangle). The macro uses the first two lines of the result table to compute the angle. The calculated angle is indicated in the log window. Then, the result table is cleared.

  3. Macro
    run("Point Tool...", "mark=0 auto-measure label selection=yellow");
    run("Set Measurements...", " redirect=None decimal=3");
    IsCalibratedImage();
    x1=getResult("X", 0);
    y1=getResult("Y", 0);
    z1=getResult("Slice", 0);
    x2=getResult("X", 1);
    y2=getResult("Y", 1);
    z2=getResult("Slice", 1);
    xmag1=x1;
    ymag1=y1;
    zmag1=0;
    xmag2=(x1-x2);
    ymag2=(y1-y2);
    zmag2=(z1-z2);
    // scalar product
    product = (xmag1*xmag2) + (ymag1*ymag2) + (zmag1*zmag2);
    // magnitude horizontal vector 1 (points 1- to (0,0,z1)
    length1 = sqrt(xmag1 * xmag1 + ymag1*ymag1 + zmag1*zmag1);
    // magnitude vector 2 (points 1-2)
    length2 = sqrt(xmag2 * xmag2 + ymag2*ymag2 + zmag2*zmag2);
    degrees = acos(product/length1/length2);
    print("3d angle is " + degrees + " degrees");
    run("Select None");
    run("Clear Results");
    exit();
    }

    function IsCalibratedImage()
    {
    um="um";
    getVoxelSize(width, height, depth, unit);
    if(unit=="pixels" || unit=="microns" || unit=="micron")
                 {
                 if (width==0 || width==1)
                             {
                             Dialog.create("Image Calibration:");
                             Dialog.addMessage("Image has to be calibrated \nPlease enter the following parameters");
                             Dialog.addNumber("x , y pixel size: ", 0, 3, 5, um);
                             Dialog.addNumber("Z step: ", 0, 3, 5, um);
                             Dialog.show();
                             XYscale=Dialog.getNumber();
                             Zscale=Dialog.getNumber();
                             n=nSlices;
                             run("Properties...", "channels=1 slices=n frames=1 unit=um pixel_width="+XYscale+"
                             pixel_height="+XYscale+" voxel_depth="+Zscale+" frame=[0 sec] origin=0,0");
                             return;
                             }
                 }
    }

Recipes

  1. 1x PBS
    Made by diluting 10x PBS in MilliQ water
  2. 1x PBS/1% BSA
    Made by addition of 1% (weight/volume) into 1x PBS

Acknowledgments

This protocol is adapted from: Bompard et al. (2013). GB was supported by a grant from ‘Fondation pour la Recherche Médicale’ (Université Montpellier 2). This work was supported by a grant MEGAPAK to NM from the ANR (Agence Nationale pour la Recherche) GENOPAT.

References

  1. Bompard, G., Rabeharivelo, G., Cau, J., Abrieu, A., Delsert, C. and Morin, N. (2013). P21-activated kinase 4 (PAK4) is required for metaphase spindle positioning and anchoring. Oncogene 32(7): 910-919.
