Differential and Simultaneous Visualization of Cells and Airspaces in Plant Leaves

Plant Science > Plant physiology > Phenotyping
Authors: Takashi Kawase
Takashi KawaseAffiliation: Department of System Science, Graduate School of Informatics, Kyoto University, Kyoto, Japan
Bio-protocol author page: a3169
Shigeo S. Sugano
Shigeo S. SuganoAffiliation: Center for Collaboration among Agriculture, Industry and Commerce, Tokushima University, Tokushima, Japan
Bio-protocol author page: a3170
Tomoo Shimada
Tomoo ShimadaAffiliation: Department of Botany, Graduate School of Science, Kyoto University, Kyoto, Japan
Bio-protocol author page: a3171
 and Ikuko Hara-Nishimura
Ikuko Hara-NishimuraAffiliation: Department of Botany, Graduate School of Science, Kyoto University, Kyoto, Japan
For correspondence: ihnishi@gr.bot.kyoto-u.ac.jp
Bio-protocol author page: a3172
Vol 6, Iss 11, 6/5/2016, 494 views, 0 Q&A, How to cite
DOI: http://dx.doi.org/10.21769/BioProtoc.1826

[Abstract] This protocol is to differentially and simultaneously visualize both cells and airspaces in intact leaves and to create 3D structures of cells and airspaces from confocal images using the software DSLT_Demo (https://github.com/nslab2000/DSLT). Leaves stained with Nile Red in silicone-oil solution provide red color to cell membranes and green color to airspaces filled with silicone oil solution. This method is applicable to any tissues (except for dry seeds) of various plants including Arabidopsis, Nicotiana, Lemna and moss, and applicable even to hard leaves of plants such as switchgrass and Cinnamomum. Repeated use of this method enables time-lapse imaging of leaves over days and weeks because both Nile Red and silicone oil are harmless to plant tissues.

Materials and Reagents

  1. >100 ml container to hold the staining solution (see procedure A) during rotational incubation
  2. An incubation container for staining (e.g., 1.5 ml micro tube, petri dish)
  3. Super frost slide glass (Matsunami Glass Ind., catalog number: S2441)
  4. NEO microscope coverslip, 24 x 32 mm (Matsunami Glass, catalog number: C024321)
  5. Parafilm M® (Bemis Company, Inc., catalog number: PM-996)
  6. Pipetman p200 or 1 ml disposable transfer pipette
  7. Silicone oil (Shin-Etsu Chemical Co., catalog number: KF96L-1.0 cs or KF96L-1.5 cs)
    Note: It is named “Dimethyl Silicone Fluid” on Shin-Etsu Chemical Co. website.
  8. Nile Red (Invitrogen, catalog number: N-1142)
    Note: Currently, it is “Thermo Fisher Scientific, Molecular Probes™, catalog number: N-1142”.

Equipment

  1. Tube rotator or shaker
  2. Electronic scale
  3. Confocal microscope (Carl Zeiss Microscopy, model: LSM-780) or fluorescence microscope (Carl Zeiss Microscopy, model: Axioskop2 plus)
  4. Sonication bath (HONDA ELECTRONICS Co., model: W-113)
    Note: This is not absolutely necessary.

Procedure

  1. Preparation of staining solution
    1. Add 0.318 mg of Nile Red and 100 ml of silicone oil (KF96L-1.0 cs or KF96L-1.5 cs) to a container. The final concentration of this solution is 10 μM. About 100 samples can be prepared from this amount of staining solution if you use 1.5 ml micro tubes for staining.
    2. Tightly seal the container with Parafilm M®.
    3. (Optional) Sonicate the suspended Nile Red using a sonication bath (10 min, 100 kHz) to make Nile Red dissolved faster.
    4. Wrap the container with aluminum foil, place the tube on a tube rotator and rotate for 1-2 d.
    5. (Optional) Undissolved dye can be removed via filtration or centrifugation.

  2. Staining
    1. Remove a small (5 x 5 ~ 10 x 10 mm) section of the leaf tissue to be examined.
      Note: When you conduct time-lapse imaging, skip this step and stain a whole plant.
    2. Add the specimen and staining solution to an incubation container.
    3. Incubate specimen in staining solution for 5 min (adaxial side) or 15 min (abaxial side).

  3. Slide preparation
    Prepare slides according to Figure 1

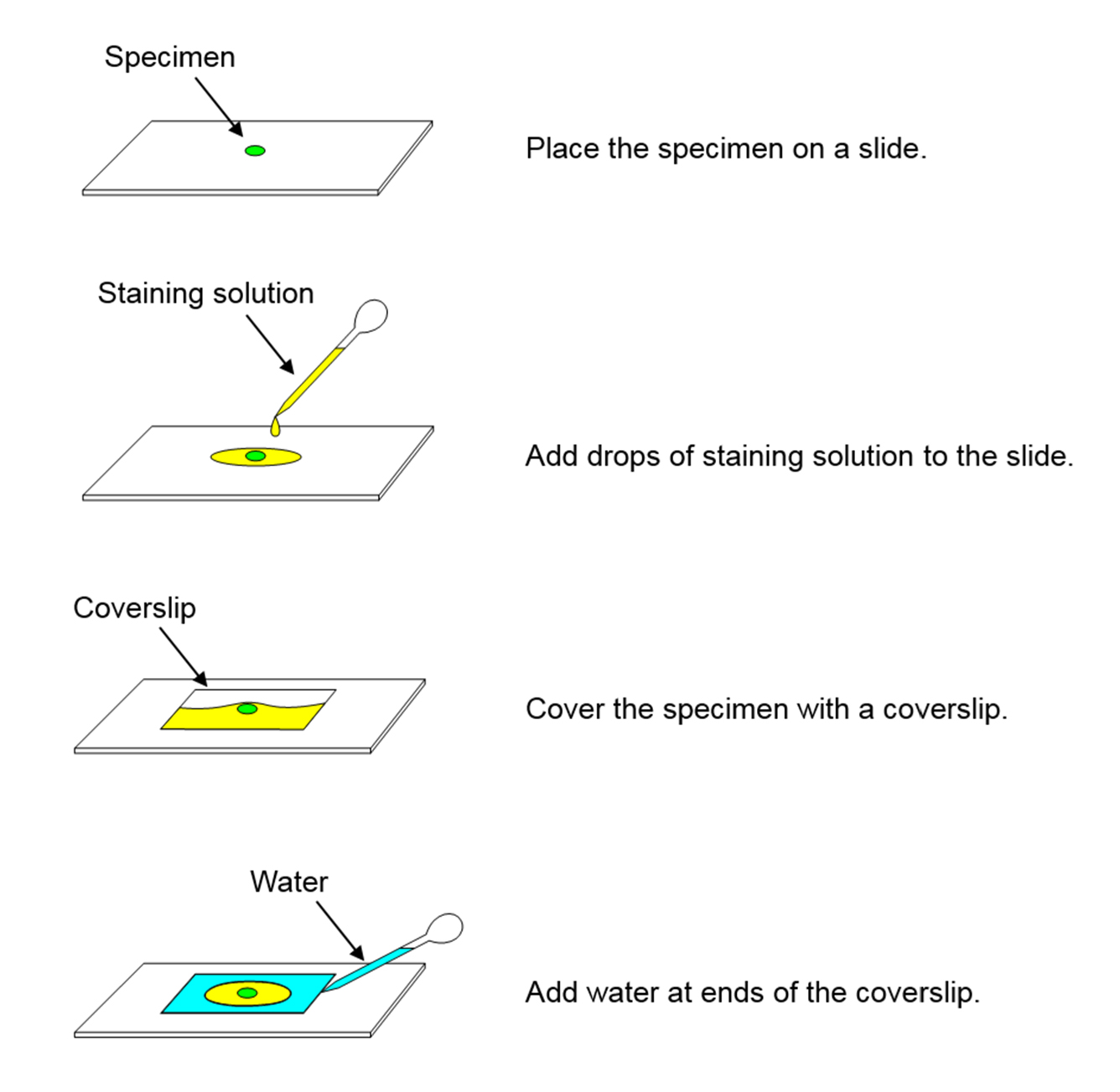

    Figure 1. Procedure of slide preparation

  4. Microscopy
    The steps B-C fill airspaces with Nile Red in silicone oil. Image airspaces (excitation wavelength 488, emission wavelength 490-560) and cells (excitation wavelength 561, emission wavelength 563-639). Representative data is shown in Figure 2.

  5. (Optional) Procedures for time-lapse imaging
    After observation, shake the plants in silicone oil (KF96L-1.0 cs) gently at 30~60 rpm for 1 min twice to remove Nile Red. Put the plants on culture beds until the next observation. Repeat the steps B-E. Representative data of time-lapse imaging is shown in Figure 3.

  6. Image segmentation
    You can extract shapes of cells and airspaces from acquired 3D images by using DSLT_Demo. Step by step instructions for segmentation are available at http://dslt.bot.kyoto-u.ac.jp/DSLT_manual_v111.pdf.

Representative data

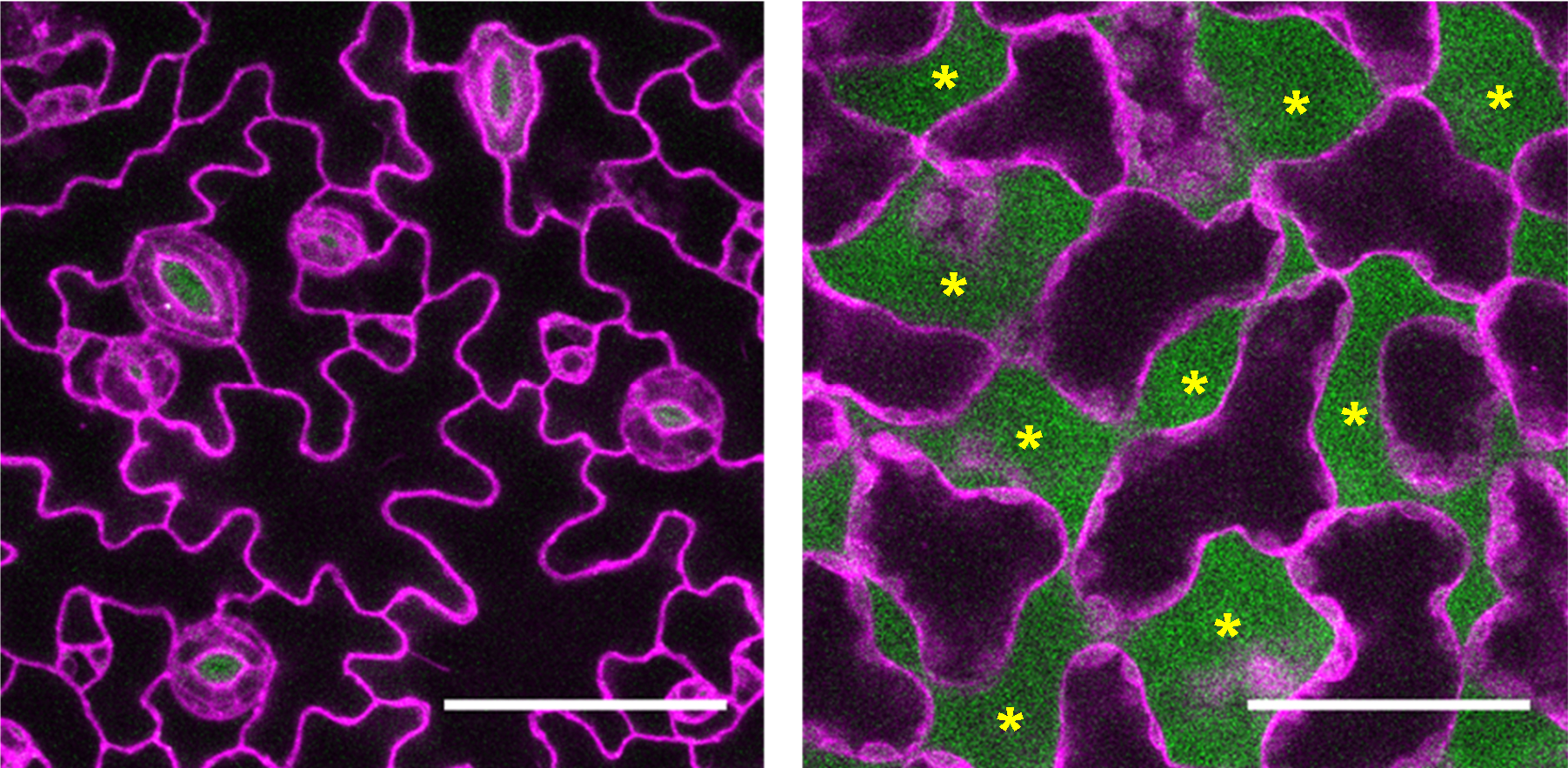

Figure 2. Visualizing cells and airspaces in an Arabidopsis thaliana leaf. Confocal images of the epidermis (left) and mesophyll (right) of an Arabidopsis thaliana leaf. The abaxial side of the leaf was stained with solution of Nile Red in silicone oil and imaged with 488 nm excitation for Nile Red in silicone oil (airspace, green) and 561 nm excitation for Nile Red in lipid (cellular membrane, magenta). Asterisks indicate airspaces. Scale bars: 50 μm

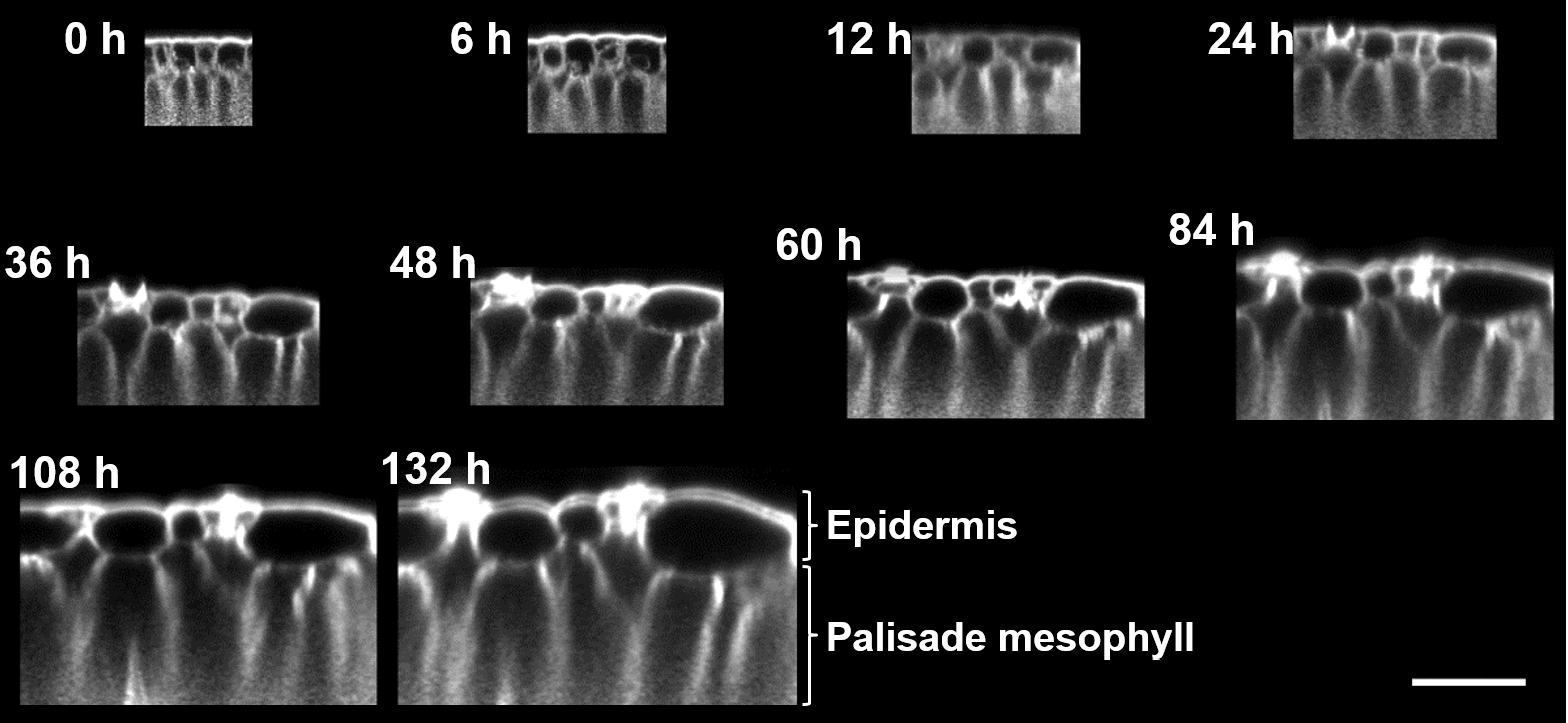

Figure 3. Time-lapse imaging of a developing Nicotiana glauca leaf. Cross-sectional views of 3D images of the adaxial side of an Nicotiana glauca leaf. Confocal images were taken over 5 days of leaf development (times indicated in white above each image). Shown is the fluorescence of Nile Red in the lipid bilayer membrane. Bar is 50 μm.

Acknowledgements

This protocol was adapted from the research article Kawase et al. (2015). The work was supported by a Specially Promoted Research of Grant-in-Aid for Scientific Research to I. H. -N. (no.22000014) from the Japan Society for the Promotion of Science (JSPS).

References

  1. Kawase, T., Sugano, S. S., Shimada, T. and Hara-Nishimura, I. (2015). A direction-selective local-thresholding method, DSLT, in combination with a dye-based method for automated three-dimensional segmentation of cells and airspaces in developing leaves. Plant J 81(2): 357-366.


How to cite this protocol: Kawase, T., Sugano, S. S., Shimada, T. and Hara-Nishimura, I. (2016). Differential and Simultaneous Visualization of Cells and Airspaces in Plant Leaves. Bio-protocol 6(11): e1826. DOI: 10.21769/BioProtoc.1826; Full Text
