Isolation and Characterization Procedure for Indole Alkaloids from the Marquesan Plant Rauvolfia Nukuhivensis

Plant Science > Plant biochemistry > Other compound
Authors: Nicolas J. Martin
Nicolas J. MartinAffiliation 1: Institut de Pharmacognosie et Phytochimie, Université de Lausanne, Lausanne, Switzerland
Affiliation 2: Laboratoire EIMS UMR 241 EIO, Université de Polynésie française, Faa’a, Tahiti, French Polynesia
For correspondence: nicolas.martin@unige.ch
Bio-protocol author page: a2647
Maël Nicolas
Maël NicolasAffiliation: Laboratoire EIMS UMR 241 EIO, Université de Polynésie française, Faa’a, Tahiti, French Polynesia
Bio-protocol author page: a2648
Gaël Lecellier
Gaël LecellierAffiliation: Laboratoire d’Excellence ‘‘CORAIL’’-Centre de Recherches Insulaires et Observatoire de l’Environnement (CRIOBE), Papetoai, Moorea, French Polynesia
Bio-protocol author page: a2649
 and Phila Raharivelomanana
Phila RaharivelomananaAffiliation: Laboratoire EIMS UMR 241 EIO, Université de Polynésie française, Faa’a, Tahiti, French Polynesia
For correspondence: phila.raharivelomanana@upf.pf
Bio-protocol author page: a2650
Vol 5, Iss 20, 10/20/2015, 1219 views, 0 Q&A, How to cite
DOI: http://dx.doi.org/10.21769/BioProtoc.1625

[Abstract] A plethora of natural products, mostly secondary metabolites, are isolated and purified from many different organisms, like plants, fungi, algae, marine invertebrates, etc. The extraction procedure is specific to each organism, but some guidelines are usually followed for any purification procedure regarding targeted metabolites, such as alkaloids. Alkaloids are secondary metabolites that contain basic nitrogen in their structures and they are often associated with interesting biological properties especially in pharmacology field. This protocol describes the isolation procedure of indole alkaloids from Rauvolfia nukuhivensis directly from the ethanol extract of the plant material yielding different skeleton-type compounds including non-basic derivatives (ajmaline, sarpagine, macroline and β-carboline). The procedure details the guidelines and the steps to characterize new or known isolated compounds, beginning from the plant collection to the molecule level with the use of spectroscopic techniques (NMR, MS, UV). We detailed the extraction and fractionation procedures followed by the purification of compounds, as well as their physico-chemical characterizations. The procedure is illustrated by the example of the purification of a large array of indole alkaloids from the bark of Rauvolfia nukuhivensis.

Materials and Reagents

  1. Rauvolfia nukuhivensis (Voucher JFB 2808): In our example, the bark of Rauvolfia nukuhivensis was collected at Maauu in “Terre Déserte” area on Nuku Hiva Island, Marquesas archipelago, French Polynesia, at an altitude of 477 m and identified by Dr Jean-François Butaud. A voucher specimen (JFB 2808) has been deposited at the Herbarium of French Polynesia. The sample was dried after collection at 30 °C using an air dryer device and stored in the room until grinding and extraction.
  2. Ethanol (95%) (Thermo Fisher Scientific, Fisher chemical)
  3. Methanol (HPLC grade from Fisher chemical)
  4. Dichloromethane (HPLC grade from Fisher chemical)
  5. Cyclohexane (HPLC grade from Fisher chemical)
  6. Ethyl acetate (HPLC grade from Fisher chemical)

Equipment

  1. SEB Prep'line grinder (SEB)
  2. Semi-preparative HPLC column Luna 5 μm C18 (50 mm x 10 mm) (Phenomenex, model: RP-C18 )
  3. Vacuum liquid chromatography (Buchner filter from Buchi, chromatography performed with vacuum pump) (BÜCHI Labortechnik AG)
  4. High Pressure Liquid Chromatography (HPLC) Waters 600 system equipped with a Waters 717 Plus autosampler, a Waters 998 photodiode array detector (WATERS, model: Waters 998 photodiode array detector), and a Sedex 75 evaporative light-scattering detector (SEDERE, model: Sedex 75)
  5. NMR spectrometer (Bruker Corporation, model: Bruker Avance 500 MHz)
  6. Polarimeter (jascoinc, model: Jasco P-2000)
  7. Spectropolarimeter (jascoinc, model: Jasco J-810)
  8. Mass spectrometer (Bruker Corporation, model: Bruker ESQUIRE 3000 plus)
  9. Thermo Finnigan LTQ Orbitrap mass spectrometer (Thermo Fisher Scientific)

Procedure

  1. Sample collection
    The isolation procedure starts with the collection of the sample which is identified by a botanist and certified with the record of a voucher specimen. In our example, the bark of Rauvolfia nukuhivensis was collected at Maauu in “Terre Déserte” area on Nuku Hiva Island, Marquesas archipelago, French Polynesia, at an altitude of 477 m and identified by Dr Jean-François Butaud. A voucher specimen (JFB 2808) has been deposited at the Herbarium of French Polynesia. The sample was dried after collection at 30 °C using an air dryer device and stored in the room until grinding and extraction.

  2. Extraction and isolation
    Prior to extraction, batches of 50 g of bark pieces were ground into powder during at least 5 periods of 1 min repeated grinding with the rotor setting at 10,000 rpm. In order to avoid overheating of the grinder, the system was covered with plastic and cooled in ice between each grinding process.
    The procedure can be divided into three steps, the extraction process, one or more fractionation steps, according to the chemical complexity of the crude extract, and finally the isolation process. For our samples, two successive fractionations were performed, with a range of solvents described in Tables 1 and 2.

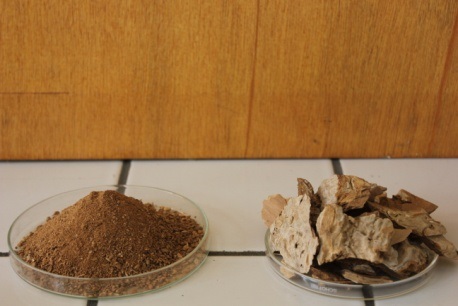

    Figure 1. Bark of Rauvolfia nukuhivensis after and before the grinding process

    Table 1. Solvent composition of the first fractionation
    Fraction
    Solvent
    Proportion
    FA
    Water
    -
    FB
    Water/Methanol
    1:1
    FC
    Methanol
    -
    FD
    Methanol/Dichloromethane
    1:1
    FE
    Dichloromethane
    -

    1. For our example of the plant Rauvolfia nukuhivensis, its dried bark (250 g) was ground by industrial equipment.
    2. The dried ground bark was macerated in 750 ml of ethanol during 16 h at room temperature and then the solvent was filtered (0.45 µm) and concentrated by evaporation to yield a crude oil.
    3. The resulting extract (21 g) was dissolved by sonication for 10 min in a mixture of 200 ml methanol/dichloromethane (1:1) and then filtered.
    4. The fractionation was carried out by vacuum liquid chromatography on RP-C18 column and eluted with solvents of decreasing polarity as shown in Table 1.
    5. Fraction FC provided 8.43 g of an oily residue and showed the presence of indole alkaloids by HPLC-DAD.
    6. Consequently, a portion of fraction FC (600 mg) was further fractionated by normal phase (diol) flash column chromatography using solvents of increasing polarity as shown in Table 2.

      Table 2. Solvent composition of the second fractionation
      Sub-fraction
      Solvent
      Proportion
      f1
      Cyclohexane
      -
      f2
      Cyclohexane/Ethyl acetate
      3:1
      f3
      Cyclohexane/Ethyl acetate
      1:1
      f4
      Cyclohexane/Ethyl acetate
      1:3
      f5
      Ethyl acetate
      -
      f6
      Ethyl acetate/Methanol
      3:1
      f7
      Ethyl acetate/Methanol
      1:1
      f8
      Ethyl acetate/Methanol
      1:3
      f9
      Methanol
      -
      f10
      Methanol/Dichloromethane
      1:1
    7. Each obtained fraction contains a lower compound diversity than the extract and thus facilitates the isolation and purification procedure.
    8. Fraction FCf7 was selected for final purification on HPLC mainly because of its weight but also the high chemical diversity.
    9. Purification of FCf7 (50.2 mg) major compounds was performed by RP-C18 semi-preparative HPLC (Phenomenex, Luna 5 μm C18, 250 mm x 10 mm) with a gradient of water/methanol/trifluoro acetic acid (from 70:30:0.1 to 30:70:0.1, flow 3 ml/min) to afford, after a drying step under nitrogen gas flow, pure compound 1 (4.7 mg), 2 (2.8 mg) 3 (1.83 mg), 4 (2.17 mg), 5 (3.25 mg), 6 (3.24 mg), 7 (1.23 mg), 8 (6.43 mg), 9 (1.82 mg), 10 (1.71 mg), 11 (1.39 mg), 12 (2.00 mg) and 13 (2.20 mg).

  3. Characterization
    The last step of the procedure involves different spectral and chromatographic techniques for a full description of the purified compound. To date, Nuclear Magnetic Resonance (NMR) spectroscopy is the most common technique to elucidate the structure of a compound. However, other techniques are needed to along with NMR for a better characterization, including high-resolution mass spectroscopy, UV spectra, optical rotation, infrared spectra, and circular dichroism if needed. NMR spectroscopy is frequently used in two major ways, 1D and 2D. For a better understanding of NMR spectroscopy see for example Keeler (2011); Lewitt (2001) and Fan (1996).
    In our case, we chose to study and describe several physicochemical characteristics of each compound, listed here: UV-Vis spectra were recorded by HPLC-DAD. NMR spectra were measured on a Bruker Avance 500 MHz spectrometer with pulsed field gradient and signals were referenced to the residual solvent signals (CD3OD, at δH 3.31 and δC 49.0 ppm). For this step, each was diluted in 700 µl of CD3OD. Electrospray Ionization Mass spectrometry (ESIMS) and High Resolution ESIMS (HRESIMS) data were measured with a Bruker ESQUIRE 3000 plus mass spectrometer and a Thermo Finnigan LTQ Orbitrap mass spectrometer, respectively. HPLC purification was carried out on a Waters 600 system equipped with a Waters 717 Plus autosampler, a Waters 998 photodiode array detector, and a Sedex 75 evaporative light-scattering detector (Sedere, France). Optical rotation and circular dicroism were measured on a Jasco P-2000 polarimeter and a Jasco J-810 spectropolarimeter, respectively.
    The structures for some compounds have been reported in Martin et al. (2012) and Martin et al. (2015). Some examples are provided here (Figure 2). We have also provided NMR spectroscopic data summarized in Tables 3 and 4.

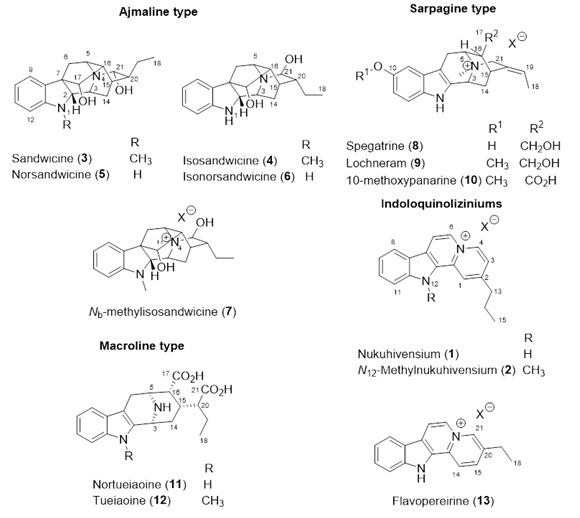

    Figure 2. Structure of compounds 1-13 isolated from the bark extract of Rauvolfia nukuhivensis. Nukuhivensium (1). Yellow-coloured amorphous powder; UV measured by HPLC/DAD (MeOH/H2O/TFA) λmax 223,6 ; 241,3 ; 289,9 ; 340,0 ; 381,7 nm; 1H and 13C NMR see Table 3; HRESIMS m/z 261.13953 [M]+ (calcd for C18H17N2+, 261.13917). N12-methylnukuhivensium (2). Yellow-coloured amorphous powder; UV measured by HPLC/DAD (MeOH/H2O/TFA) λmax 224,8 ; 236,6 ; 248,4 ; 286,7 ; 335,2 ; 392,6 nm; 1H and 13C NMR see Table 3; HRESIMS m/z 275.15417 [M]+ (calcd for C19H19N2+, 275.15482). Nortueiaoine (11): Light yellow amorphous powder; [α]20D - 1.1 (MeOH); 1H NMR and 13C NMR spectroscopic data, see Table 4; ESIMS m/z 343.1 [M+H]+ ; HRESIMS m/z 343.16611 [M+H]+ (calcd for C19H23N2O4+, 343.16578). Tueiaoine (12) Light yellow amorphous powder ; [α]20D + 1.2 (MeOH); 1H NMR and 13C NMR spectroscopic data, see Table 4; ESIMS m/z 357.2 [M+H]+ ; HRESIMS m/z 357.18289 [M+H]+ (calcd for C20H25N2O4+, 357.18143).

    Table 3. 1H (500 MHz) and 13C (125 MHz) NMR data for indoloquinolizinium derivatives 1 and 2 in CD3OD

    Nukuhivensium (1)
    N12-methylnukuhivensium (2)
    Position
    δC in ppm
    δH in ppm, mult. (J in Hz)
    δC in ppm
    δH in ppm, mult. (J in Hz)
    1
    120.5
    8.65, s
    121.5
    8.96, s
    2
    154.4
    -
    154.1
    -
    3
    124.4
    7.83, d (7.0)
    123.9
    7.86, d (7.0)
    4
    137.6
    9.19, d (7.0)
    138.4
    9.24, d (7.0)
    6
    128.1
    8.84, d (7.0)
    128.1
    8.90, d (7.0)
    7
    117.2
    8.61, d (7.0)
    116.8
    8.66, d (7.0)
    7a
    125.0
    -
    125.6
    -
    7b
    122.5

    128.9

    8
    123.3
    8.36, d (8.0)
    122.8
    8.41, d (8.0)
    9
    122.9
    7.50, dd (8.0; 7.0)
    123.5
    7.54, dd (8.0, 7.0)
    10
    131.0
    7.74, dd (8.0; 7.0)
    131.2
    7.83, dd (8.0,7.0)
    11
    113.6
    7.84, d (8.0)
    112.1
    7.95, d (8.0)
    11a
    143.3

    144.9

    12


    34.6
    4.58, s
    12a
    131.7, C

    131.4

    12b
    134.3, C

    135.2

    13
    38.6, CH2
    3.06, t (7.7)
    38.7
    3.09, t (7.7)
    14
    23.9, CH2
    1.94, tq (7.7; 7.5)
    24.4
    1.93, tq (7.7, 7.5)
    15
    14.0, CH3
    1.12, t (7.5)
    14.0
    1.12, t (7.5)

    Table 4. 1H (500 MHz) and 13C (125 MHz) NMR data for macroline derivatives 11 and 12 in CD3OD

    Nortueiaoine (11)
    Tueiaoine (12)
    Position
    δC in ppm
    δH in ppm, mult. (J in Hz)
    δC in ppm
    δH in ppm, mult. (J in Hz)

    128.9
    -
    n.d.
    -
    3
    49.1
    4.89, br s
    47.8
    5.08, br s
    5
    50.9
    4.31, d (8.0)
    51.2
    4.26, d (7.5)

    25.5
    3.52, dd (17.5, 7.5)
    25.0
    3.50, dd (17.5, 7.5)

    2.99, d (17.5)

    7
    107.7
    -
    108.2
    -
    8
    127.0
    -
    127.2
    -
    9
    119.2
    7.51, d (8.0)
    119.8
    7.51, d (8.0)
    10
    120.8
    7.09, ddd (8.0, 7.0, 1.0)
    121.3
    7.09, br dd (8.0, 7.0)
    11
    123.7
    7.18, ddd (8.0, 7.0, 1.0)
    124.2
    7.25, br dd (8.0, 7.0)
    12
    112.5
    7.38, br d (8.0)
    110.9
    7.43, d (8.0)
    13
    138.1
    -
    139.8
    -
    14α
    28.4
    2.16, td (12.5, 3.0)
    28.3
    2.20, td (12.5, 3.0)
    14β
    2.02, br d (12.5)

    15
    30.2
    2.17, m
    30.6
    2.11, br t (11.5 Hz)
    16
    48.0
    3.08, br s
    49.3
    2.93, m
    17
    177.1
    -
    n.d.
    -
    18
    10.3
    0.66, t (7.5)
    10.7
    0.71, t (7.5)
    19
    23.1
    1.64, m
    22.9
    1.58, m
    1.38, m
    1.31, m
    20
    49.0
    2.42, br t (7.5)
    50.2
    2.41, m
    21
    177.9
    -
    n.d.
    -
    CH3-N1


    29.3
    3.73, s

Conclusion

Our protocol shows a significant improvement for the isolation of indole alkaloids. Indeed, with the classical extraction, the non–basic compounds would not have been extracted such as ionic compounds like nukuhivensiums. In a continuous work for improvements of structural, physical and-chemical characteristics, additional NMR spectroscopy can be performed, in order to describe the relative configuration of some compounds, like NOESY experiments.
This protocol allowed the characterization of different structure of indole alkaloids different skeletons as well as stereoisomers (normal and iso compounds such as sandwicine and isosandwicine) and analogous series (normal and Nor- compounds such as sandwicine and Norsandwicine). Therefore, the method described here is more efficient and requires less time solvent consuming.

Acknowledgments

We would like to thank Fanglian He for inviting us to write this manuscript. The authors are grateful to Diren (Direction de l’Environnement de la Polynésie française) department for financial aid. This protocol have been written with the great help of Pr. Olivier P. Thomas, and the authors thank him for his work and advice.

References

  1. Fan, T. (1996). Metabolite profiling by one-and two-dimensional NMR analysis of complex mixtures. Prog Nucl Mag Res Sp 28(2): 161-219.
  2. Keeler, J. (2011). Understanding NMR spectroscopy. John Wiley & Sons.
  3. Lewitt, M. H. (2001). Spin dynamics: basics of nuclear magnetic resonance. John Wiley & Sons.
  4. Martin, N. J., Ferreiro, S. F., Barbault, F., Nicolas, M., Lecellier, G., Paetz, C., Gaysinski, M., Alonso, E., Thomas, O. P., Botana, L. M. and Raharivelomanana, P. (2015). Indole alkaloids from the Marquesan plant Rauvolfia nukuhivensis and their effects on ion channels. Phytochemistry 109: 84-95.
  5. Martin, N. J., Prado, S., Lecellier, G., Thomas, O. P. and Raharivelomanana, P. (2012). Nukuhivensiums, indolo[2,3-a]quinoliziniums from the Marquesan plant Rauvolfia nukuhivensis. Molecules 17(10): 12015-12022.


How to cite this protocol: Martin, N. J., Nicolas, M., Lecellier, G. and Raharivelomanana, P. (2015). Isolation and Characterization Procedure for Indole Alkaloids from the Marquesan Plant Rauvolfia Nukuhivensis. Bio-protocol 5(20): e1625. DOI: 10.21769/BioProtoc.1625; Full Text
