Cytokinin Analysis: Sample Preparation and Quantification

Materials and Reagents

1. Plant tissue

2. MeOH

3. 1 N HCOOH

4. 0.35 N NH₄OH

5. 0.35 N NH₄OH in 60% MeOH

6. 0.1% (v/v) acetic acid

7. 0.05% (v/v) HCOOH (for mass spectrometry) in Milli-Q H₂O

8. Acetonitrile (gradient grade)

9. [²H₅] tZ (Olchemim, catalog number: 030 0301 )

10. [²H₅] tZR (Olchemim, catalog number: 030 0311 )

11. [²H₅] tZROG (Olchemim, catalog number: 030 5131 )

12. [²H₅] tZ7G (Olchemim, catalog number: 030 5111 )

13. Extraction buffer (see Recipes)

14. Extraction buffer + deuterated standards (see Recipes)


Equipment

1. 96-well BioTubes (1.1 ml individual tubes) (Arctic White LLC, catalog number: AWTS-X22100 )

2. Steel balls (ASKUBAL, catalog number: 3 MM-G100-1.4034 )

3. Caps for 96-well BioTubes (strips of 8 plug caps) (Arctic White LLC, catalog number: AWSM-T100-30 )

4. Pipet

5. ArctiSeal 96 Round Well Sealing Mats for 96-well BioTubes (Arctic White LLC, catalog number: AWSM-2002RB )

6. Nunc 96-well Deep Well Plates (Thermo Fisher Scientific, catalog number: 278752 )

7. Nunc 96-Well Cap Mats (Thermo Fisher Scientific, catalog number: 276002 )

8. 96-well PCR plates (Kaneka Corporation, Eurogentec, catalog number: RT-PL96-MQ )

9. Sealing film (OMNILAB-LABORZENTRUM, Schubert & Weiss, catalog number: 5420203 )

10. Machery Nagel Multi 96 HR-X (96 x 25 mg) (MACHEREY-NAGEL, catalog number: 738530.025M )

11. Machery Nagel Multi 96 HR-XC (96 x 25 mg) (MACHEREY-NAGEL, catalog number: 738540.025M )

12. Chromabond Multi 96 vacuum manifold (MACHEREY-NAGEL, catalog number: 738630.M )

13. Evaporator system (Glas-Col, catalog number: 099A EV9624S )

14. Geno/Grinder 2000 (SPEX SamplePrep)

15. Eppendorf Centrifuge 5804 R equipped with a Swing-bucket rotor A-2-DWP (Eppendorf)

16. Ultrasonic bath Bransonic Models 1200 (BRANDSON^TM)

17. Agilent 1200 HPLC system (Agilent)

18. Zorbax Eclipse XDB-C18 column (50 x 4.6 mm, 1.8 µm) (Agilent)

19. API 5000 tandem mass spectrometer (Applied Biosystems^®) equipped with a Turbospray ion source


Procedure

1. Preparation of plant material
   1. Collect plant tissue and immediately freeze it in liquid nitrogen. Stored at -80 °C.
   2. Homogenize plant tissue under liquid nitrogen.
   3. Aliquot 100 mg plant tissue per sample in liquid nitrogen-precooled 96-well BioTubes (with two steel balls per tube, closed with caps).
      Note: Make small holes in the caps to prevent tubes from exploding.
   4. Keep at least for 30 min at -20 °C (for longer storage at -80 °C) before starting with the extraction to evaporate liquefied gases from the tubes.


2. Extraction
   Note: In-between the steps, while buffer addition and sample collection samples are kept on ice.
   1. Add 800 µl precooled (-20 °C) extraction buffer + deuterated standards to each tube, and cover with a precooled sealing mat.
   2. Shake in Geno/Grinder for 60 s (1,150 strokes *min^-1).

   3. Incubate over night at -20 °C.
   4. Shake in the Geno/Grinder for 60 s (1,150 strokes *min^-1).
   5. Centrifuge (20 min, 1,913 x g, 4 °C).
   6. Collect 600 µl supernatant in 96-well BioTubes and keep it at -20 °C.
   7. Add 600 µl extraction buffer to the pellet.
   8. Shake in the Geno/Grinder for 60 s (1,150 strokes *min^-1).
   9. Incubate for 30 min at -20 °C.
   10. Centrifuge (20 min, 1,913 x g, 4 °C).
   11. Collect 600 µl supernatant and combine it with the supernatant from the first extraction steps. Cover samples with a sealing mat.
   12. Centrifuge supernatants (20 min, 1,913 x g, 4 °C) and continue with the sample purification.


3. Purification
   Note: If not further mentioned the following steps are performed at room temperature.

   HR-X

   1. Condition the HR-X column with 0.6 ml MeOH. Discard flow-through.
      Note: Use the Vacuum manifold to suck the samples and buffers through the column. Same accounts for the following steps.
   2. Condition the column with 0.6 ml extraction buffer. Discard flow-through.
   3. Load the samples to the column (collect flow-through) and subsequent wash with 0.2 ml extraction buffer (collect flow-through). Collection of both flow-through can be done in a Nunc 96-well Deep Well Plate.
   4. Evaporate the samples at 45 °C under a constant nitrogen stream to remove MeOH from the samples, utilizing the evaporator system (see Equipment).
      Note: MeOH evaporates fastest and after evaporation of the MeOH, approximately 350 µl liquid should be left, which can be tested with a pipet. Samples only have to be evaporated until this point.
   5. Add 850 µl 1 N HCOOH per sample.
   6. Cover the plate with a sealing mat and shake in the Geno/Grinder for 30 s (1,000 strokes *min^-1).
   7. Centrifuge (20 min, 1,913 x g, 4 °C).


   HR-XC

   8. Condition the HR-XC column with 0.6 ml MeOH. Discard flow-through.
   9. Condition the column with 0.6 ml 1 M HCOOH. Discard flow-through.
   10. Load the samples to the column. Discard flow-through.
   11. Wash column with 1 ml 1 M HCOOH. Discard flow-through.
   12. Wash column with 1 ml MeOH. Discard flow-through.
   13. Wash column with 1 ml 0.35 N NH₄OH. Discard flow-through.
   14. Elute cytokinin-nucleobases, -ribosides and -glucosides from the column with 0.35 N NH₄OH in 60% MeOH. Collect flow-through in 96-well BioTubes.
   15. Completely evaporate the samples at 45 °C under a constant nitrogen stream utilizing the evaporator system.
   16. Reconstitute samples in 50 µl 0.1% (v/v) acetic acid.
   17. Cover the plate with a sealing mat and shake in the Geno/Grinder for 60 s (1,000 strokes *min^-1).
   18. Sonicate the samples for 10 min in an Ultrasonic bath.
       Note: Remove the bottom plate of the 96-well rack and place the whole rack in the Ultrasonic bath. Do not use 96-well racks without bottom plate for shaking and centrifugation!
   19. Centrifuge (20 min, 1,913 x g, 4 °C).
   20. Fill samples in 96-well PCR plates and cover with the sealing film.
   21. Centrifuge (20 min, 1,913 x g, 4 °C) and continue with Ultra-performance LC coupled MS/MS.


4. Ultra-performance LC coupled MS/MS
   Inject 2 µl per sample in an Agilent 1200 HPLC system equipped with a Zorbax Eclipse XDB-C18 column. The mobile phase comprises of 0.05% (v/v) HCOOH in Milli-Q H₂O as solvent A and acetonitrile as solvent B with following settings:
   Flow rate: 1.1 ml min^–1
   Column temperature: 25 °C

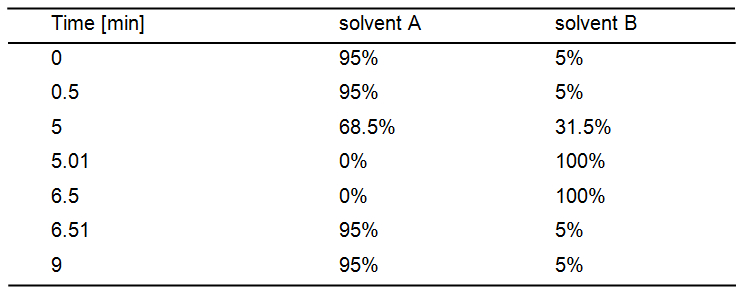

   Solvent gradient for chromatographic separation:

   Analysis is done with an API 5000 tandem mass spectrometer equipped with a Turbospray ion source. Multiple-reaction-monitoring mode is used with following settings for quantification:
   Ionization mode: positive
   Ion spray voltage: 5,500 eV
   Turbo gas temperature: 700 °C
   Nebulizing gas: 70 psi
   Curtain gas: 25 psi
   Heating gas: 60 psi
   Collision gas: 6 psi

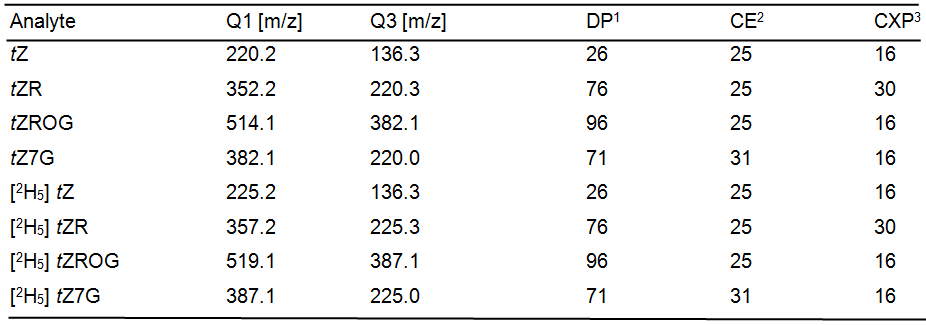

   Precursor-to-product ion transitions used for cytokinin analysis:

   tZ, trans-zeatin, tZR, trans-zeatin riboside, tZROG, trans-zeatin riboside O-glucoside, tZ7G, trans-zeatin N7-glucoside
   ¹Declustering potential, ²Collision energy, ³Collision cell exit potential


Representative data

1. Chromatograms

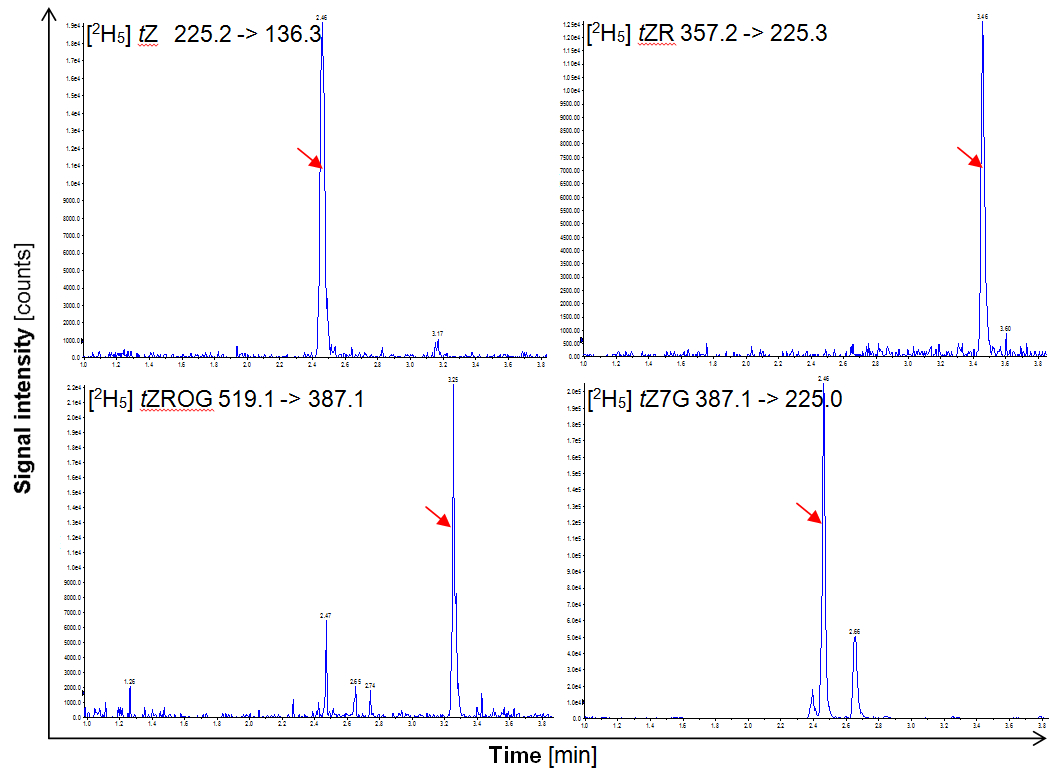

   Figure 1. Separation of deuterated internal standards in the ultra-performance LC coupled MS/MS analysis. The red arrows indicate the respective peaks.

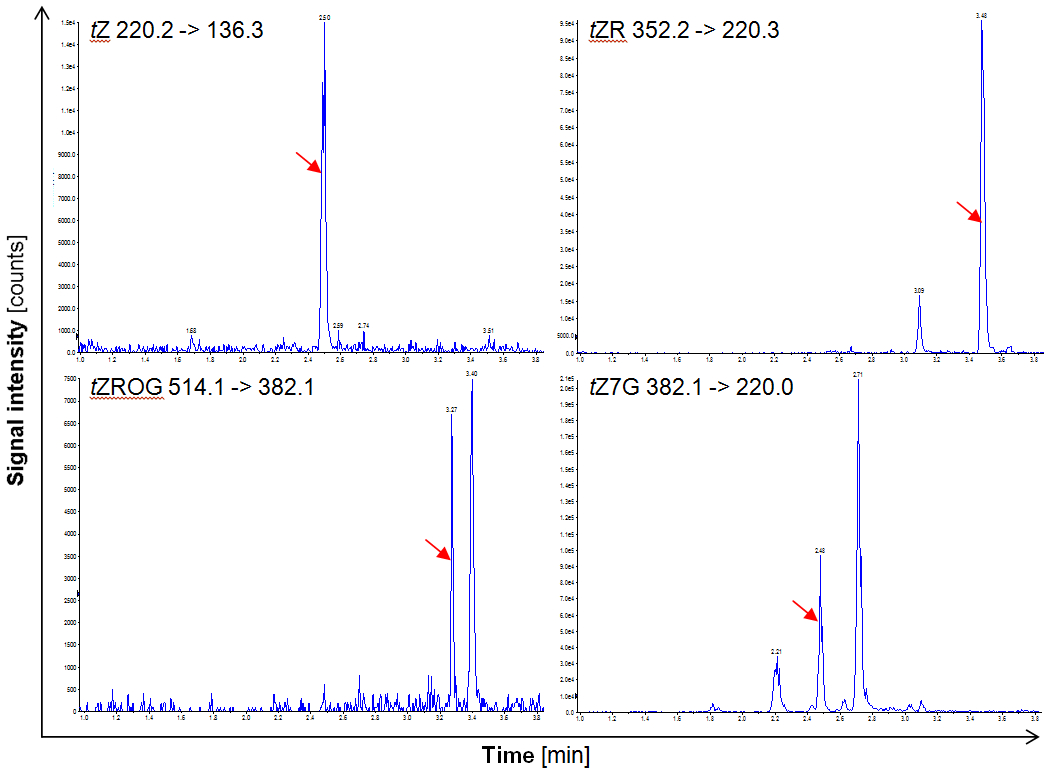

   Figure 2. Separation of cytokinins from the plant tissue in the ultra-performance LC coupled MS/MS analysis. The red arrows indicate the respective peaks.


2. Calculation
   Exemplary tZ quantification in 0.1 g leaf tissue, supplemented with 1 ng deuterated tZ as internal standard. The obtained peak areas were 23,700 counts and 38,400 counts for tZ and [²H₅] tZ, respectively.
   Concentration_Compound = Peak area_Compound/Peak_{areaInternal Standard}/m_{Extracted tissue} * m_{Internal Standard}
   Concentration_tZ = Peak area_tZ/Peak area_[²H5] tZ/m_{Leaf tissue} * m_{[²H5] tZ}
   Concentration_tZ = 23,700 counts/38,400 counts/0.1 g * 1 ng = 6.2 ng tZ per g leaf tissue


Recipes

1. Extraction buffer
   750 ml MeOH
   200 ml ddH₂O
   50 ml HCOOH

2. Extraction buffer + deuterated standards
   Prepare Extraction buffer spiked with 1 ng [²H₅] tZ, 0.1 ng [²H₅] tZR, 4 ng [²H₅] tZROG and 2 ng [²H₅] tZ7G per 800 µl extraction buffer.
   Note: Deuterated cytokinins are used as internal standards for quantification.
