Isolation and 3-dimensional Culture of Primary Murine Intestinal Epithelial Cells

Cell Biology > Cell isolation and culture > 3D cell culture
Authors: Agnieszka Pastuła
Agnieszka PastułaAffiliation: II. Medizinische Klinik, Klinikum rechts der Isar, Technische Universität München, Munich, Germany
For correspondence: agnieszka.pastula@tum.de
Bio-protocol author page: a1359
 and  Michael Quante
Michael QuanteAffiliation: II. Medizinische Klinik, Klinikum rechts der Isar, Technische Universität München, Munich, Germany
Bio-protocol author page: a1360
Vol 4, Iss 10, 5/20/2014, 6469 views, 2 Q&A, How to cite
DOI: https://doi.org/10.21769/BioProtoc.1125

[Abstract] The intestine, together with skin and blood, belongs to the organs with the highest cell turnover, which makes it a perfect model to study cellular processes, such as proliferation and differentiation. Epithelial cell turnover in intestine is possible due to the presence of intestinal stem cells, which are located at the bottom of the crypt. Here, we recapitulate a detailed protocol for the isolation and culture procedures of primary epithelial intestinal cells in a three - dimensional (3D) in vitro system, described for the first time by Hans Clevers group (Sato et al., 2009). This specific 3D culture preserves intestinal stem cells, which give rise to differentiated progeny for example goblet cells. The culture has many applications and represents a useful model to study stem cell biology, epithelial cell regeneration, and transplantation studies. Moreover, the presented 3D culture can be used to investigate the barrier function of intestinal epithelial cells, as well as heterotypic cell interactions between epithelial cells and stromal cells.

Keywords: Intestinal epithelium, Intestinal stem cells, Organoid, Three-dimensional cell culture, Small intestine

Materials and Reagents

  1. Mouse (4 weeks-16 weeks old)
  2. Advanced DMEM/F12 (Life Technologies, Gibco®, catalog number: 12634-010)
  3. Heat Inactivated Fetal Bovine Serum (FBS) (Life Technologies, Gibco®, catalog number: 10500-064)
  4. PBS without Ca2+ and Mg2+ (Life Technologies, Gibco®, catalog number: 14190-094)
  5. Penicillin/Streptomycin (10,000 Units/ml Penicillin; 10,000 µg/ml Streptomycin) (Life Technologies, Gibco®, catalog number: 15140-22)
  6. 70% ethanol
  7. 100x GlutaMAXTM-I (Life Technologies, Gibco®, catalog number: 35050-038)
  8. 1 M HEPES (Life Technologies, Gibco®, catalog number: 15630-080)
  9. 50x B-27 Supplement (Life Technologies, Gibco®, catalog number: 17504-044)
  10. 100x N-2 Supplement (Life Technologies, Gibco®, catalog number: 17502-048)
  11. BD Matrigel Basement Membrane Matrix (10 ml) (BD Biosciences, catalog number: 354234)
  12. Gentamicin Reagent Solution (50 mg/ml) (Life Technologies, catalog number: 15750-060)
  13. Sterile 0.1% BSA (in PBS)
  14. Sterile 2 mM EDTA (see Recipes)
  15. Washing solution (see Recipes)
  16. N-Acetyl-L-cysteine (Sigma-Aldrich, catalog number: A9165-5G) (see Recipes)
  17. Recombinant Murine EGF (Pepro Tech, catalog number: AF-315-09) (see Recipes)
  18. Recombinant Murine Noggin (Pepro Tech, catalog number: 250-38) (see Recipes)
  19. Recombinant Human R-Spondin-1 (Pepro Tech, catalog number: 120-38) (see Recipes)

Equipment

  1. Forceps and short, sharp-point scissors (e.g. Hardened Fine Iris Scissors, Fine Science Tools, catalog number: 14090-09)
  2. 70 µm cell strainer (BD Biosciences, Falcon®, catalog number: 352350)
  3. Centrifuge 5702R (Eppendorf)
  4. Cover glass
  5. Microscope
  6. 24-well tissue culture plate (Sarstedt AG, catalog number: 83.1836)
  7. Petri dishes
  8. Falcon tubes (50 ml, 15 ml)
  9. Pipettes (20 ml, 10 ml, 1 ml, 100 µl)
  10. Pipetboy
  11. 37 °C, 5% CO2 cell culture incubator

Procedure

Part I. Isolation
Before starting: put matrigel on ice in order to thaw it.
Note: For the matrigel handling, please follow the manufacturer’s instructions.

  1. Harvesting
    1. The small intestine is harvested from a mouse.
    2. The intestine is placed in a Petri dish containing ice-cold washing solution and then fat and the adjacent tissue are removed.
      Note: Both tissue and Washing solution should be stored on ice during the whole procedure.
    3. The intestine is opened lengthwise and washed out from the luminal contents using washing solution.
    4. The villi of an intestine are scraped off using a cover glass.
      Note: From this step the procedure should be continued under sterile conditions. To be on a safe side it is recommended to perform scraping on both sides of an intestine. Detached villi are seen as cloudy solution.
    5. The intestine is washed with washing solution and then cut with sharp-point scissors into 2-4 mm pieces.
    6. The material is transferred into a 50 ml falcon tube containing 10-20 ml of washing solution.
      Note: Tissue fragments might stick to the pipette. To avoid this, pre-wetting of the pipette is recommended.
    7. The material is pipetted up and down a few times with a 10 ml pipette.
    8. After sedimentation of tissue fragments, the supernatant is removed.

  2. Washing
    1. For the washing, 10-20 ml of washing solution is added. Then, tissue fragments are sedimented. After that, the supernatant is removed.
    2. Step B1 is being repeated until the supernatant is clear (approximately 10 times).
    3. 25 ml of 2 mM EDTA is added to the tissue fragments.
    4. The falcon tube that contains tissue fragments and EDTA is placed on a shaker and incubated for 15 min at 4 °C.
    5. Tissue fragments are sedimented followed by the removal of the supernatant.
    6. 10-20 ml of washing solution is added. Then, tissue fragments are sedimented. After that, the supernatant is removed.
    7. The Washing solution is added to the tissue fragments, pipetted up and down 3-5 times and passed through a 70 µm cell strainer.
    8. The flow-through (I fraction) is stored on ice and will be further proceeded in step C3 of Elution.
      Note: Crypts are present in the supernatant and go through the pores of the cell strainer, whereas the tissue fragments stay on the top of the cell strainer.
    9. Tissue fragments that remained on the cell strainer are proceeded further.
    10. On a pipette tip the tissue fragments are transferred into a 50 ml falcon tube containing 25 ml of 2 mM EDTA.
    11. The falcon tube is placed on a shaker and incubated for 30 min at 4 °C.

  3. Elution
    1. After tissue sedimentation, the supernatant is discarded.
    2. Washing solution is added to the tissue fragments, gently pipetted up and down 3-5 times and passed through a 70 µm cell strainer (II fraction).
      Note: This step is repeated; as a result fraction III will be collected (optional). Tissue fragments might stick to the pipette. To avoid that, pre-wetting of the pipette is recommended.
    3. Crypts from certain fractions are observed under the microscope. Presence of finger-like structures (= crypts, see Figure 1) indicates a successful isolation.


      Figure 1. A representative of a freshly isolated crypt. Objective 10x, scale bar 100 µm

    4. Crypts are spin down at 600 rpm for 5 min at 4 °C to remove single cells. A 24-well plate is pre-warmed by placing it into the cell culture incubator.
    5. After centrifugation the supernatant is discarded.
      Note: If the pellet is not visible, the centrifugation should be repeated.
    6. The pellet is resuspended in 10 ml of ice-cold Basal Medium 2 (BM2; see Table 1). Crypts are counted under the microscope.

      Table 1. Composition of BM2 (50 ml)
      Component
      Volume
      50x B27
      100x N2
      N-Acetyl-L-cysteine (500 mM)
      1 ml
      0.5 ml
      125 µl
      BM1 (see Table 2)
      To final volume of 50 ml
      Stored at 4 °C or -20 °C (avoid repeated freeze thaw cycles)

    7. The crypts are centrifuged at 800 rpm for 5 min at 4 °C.
    8. Crypt pellet is resuspended in matrigel:
      1. Use 100-500 crypts per 50 µl of matrigel
      2. Pipette gently, avoid bubbles
    9. 50 µl of matrigel is pipetted per well into the pre-warmed 24-well plate and then the plate is left for 2-3 min at room temperature.
      Note: Pipette matrigel exactly in the middle of the well, so that as a result matrigel drop is formed (see Figure 2).

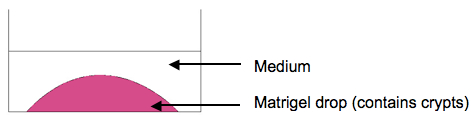

      Figure 2. Scheme of the organoid culture

    10. The plate is transferred into the cell culture incubator and incubated at 37 °C for 5-10 min (until the matrigel solidifies completely).
    11. 0.5 ml of crypt culture medium (CCM; see Table 3) is added per well.
    12. The plate is transferred back to the cell culture incubator.

Part II. Culture

2-3 times per week the medium is removed and 0,5 ml/well of fresh medium (CCM, see Table 3) is added. When organoids are big (see Figure 3C), they should be passed. Usually the passage is performed once a week. Organoids should be splitted in 1:4 ratio.


Figure 3. Isolated small intestinal crypts in 3D culture. A, B, C - 48 h/5 days/12 days in culture, respectively. A and B, passage 0. C, passage 1. Phase contrast, objective 10x, scale bars 100 µm

Passage procedure:

  1. Medium is removed.
  2. 0.5 ml of ice-cold Basal medium 1 (see Table 1) well is added.
  3. Plate is incubated on ice for at least 5 min.
    Note: Starting from this step organoids will be kept on ice for the whole time.
  4. Organoids are pipetted up and down several times (1 ml pipette is used.).
  5. All organoids are transferred into one ice-cold 15 ml falcon tube and fill up with Basal Medium 1 (BM1; see Table 2) to final volume of 15 ml.

    Table 2. Composition of BM1 (500 ml)
    Component
    Volume
    Advanced DMEM/F12
    100x GlutaMax
    100x Pen/Strep
    Hepes (1 M)
    485 ml
    5 ml
    5 ml
    5 ml
    Stored at 4 °C

  6. Organoids are centrifuged for 600 rpm for 5 min at 4 °C. During centrifugation a 24-well plate is pre-warmed at 37 °C.
  7. The supernatant is carefully removed.
    Note: Remove as much supernatant as possible. Be careful not to remove organoids.
  8. 10 ml of ice-cold BM1 is added to the organoid pellet.
  9. The organoids are centrifuged for 800 rpm for 5 min at 4 °C.
  10. The supernatant is carefully removed.
    Note: During this step nice pellet should be visible and the supernatant should be removed completely.
  11. The organoids are mixed with matrigel and pipetted up and down.
    Note: Avoid bubbles during pipetting. Use 4x volume of matrigel used for the first time.
  12. 50 µl matrigel/well is pipetted into the pre-warmed 24-well plate.
    Note: Pipette matrigel exactly in the middle of the well, so that as a result matrigel drop is formed.
  13. The plate is left for 2-3 min at room temperature.
  14. The plate is transferred into the cell culture incubator and incubated at 37 °C for 5-10 min (until the matrigel solidifies completely).
  15. 0.5 ml of CCM (see Table 3) is added per well.
  16. The plate is transferred back to the cell culture incubator.

    Table 3. Composition of CCM (20 ml)
    Component
    Volume
    BM2
    EGF (50 ng/µl)
    Noggin (100 ng/µl)
    R-Spondin-1 (1 µg/µl)
    20 ml
    10 µl
    20 µl
    10 µl
    Stored short-term at 4 °C or -20 °C (avoid repeated freeze thaw cycles)

Notes

  1. The percentage of viable crypts in the culture is approximately 90-95%. Crypt viability in vitro strictly depends on the quality of the growth factors used for preparation of the culture medium. Moreover, medium should be either freshly prepared (and stored at 4 °C up to 5 days) or single-use aliquots should be made and stored at -20 °C for one month.
  2. Viable and healthy organoid culture is characterized by the presence of buds and increase in organoid size over the time. Just after the passage, organoids are small, but then they grow again into structures as seen in the Figure 3C. Crypt culture contains intestinal stem cells, which represent a multipotent stem cell population, as they have potential to differentatiate only into intestinal epithelial cells. There are certain types of intestinal epithelial cells and they can be identified by stainings: stem cells (e.g. Lgr5 staining), Goblet cells (e.g. periodic acid-Schiff staining), Paneth cells (e.g. lyzozyme staining), enterocytes (e.g. intestinal alkaline phosphatase staining), enteroendocrine cells (e.g. chromogranin A staining) (Sato et al., 2009). Some other possible stainings are: b-catenin (active Wnt signaling) and Ki-67 (proliferation marker).

Recipes

  1. 2 mM EDTA
    500 ml PBS
    2.5 ml 0.5 M EDTA (pH 8) in distilled water (sterile filtered)
    Stored at 4 °C
  2. Washing solution
    50 ml FBS
    450 ml PBS
    0.5 ml gentamicin, stock 50 mg/ml (optional)
    Stored at 4 °C
  3. 500 mM N-Acetyl-L-cysteine
    Dissolve 407.5 mg of N-Acetyl-L-cysteine in 5 ml of distilled water
    Sterile filter
    Make qliquots
    Stored at 4 °C
  4. EGF, Noggin, R-Spondin-1
    Prepare stock solutions (EGF 50 ng/µl; Noggin 100 ng/µl; R-Spondin 1 µg/µl) according to the manufacter´s instructions
    Example:
    Noggin 100 ng/µl
    Add 1 ml of 0.1% BSA (in PBS) into a vial with 100 µg Noggin
    Mix by pipetting
    Make aliquots
    Stored at -20 °C

Acknowledgments

This protocol was adapted from Sato et al. (2009).

References

  1. Sato, T., Vries, R. G., Snippert, H. J., van de Wetering, M., Barker, N., Stange, D. E., van Es, J. H., Abo, A., Kujala, P., Peters, P. J. and Clevers, H. (2009). Single Lgr5 stem cells build crypt-villus structures in vitro without a mesenchymal niche. Nature 459(7244): 262-265.


How to cite this protocol: Pastuła, A. and Quante, M. (2014). Isolation and 3-dimensional Culture of Primary Murine Intestinal Epithelial Cells. Bio-protocol 4(10): e1125. DOI: 10.21769/BioProtoc.1125; Full Text



Share Your Feedback:

  • Add Photo
  • Add Video

Bio-protocol's major goal is to make reproducing an experiment an easier task. If you have used this protocol, it would be great if you could share your experience by leaving some comments, uploading images or even sharing some videos. Please login to post your feedback.

Q&A and Troubleshooting:

  • Add Photo
  • Add Video

Please login to post your questions/comments. Your questions will be directed to the authors of the protocol. The authors will be requested to answer your questions at their earliest convenience. Once your questions are answered, you will be informed using the email address that you register with bio-protocol.
You are highly recommended to post your data (images or even videos) for the troubleshooting. For uploading videos, you may need a Google account because Bio-protocol uses YouTube to host videos.


Login | Register
2/24/2015 3:04:40 AM

Bingwei Wang
Immunology Institute of Maynooth University

Sorry, forget to say thank you.
Bingwei

Reply

Please login to post your questions/comments. Your questions will be directed to the authors of the protocol. The authors will be requested to answer your questions at their earliest convenience. Once your questions are answered, you will be informed using the email address that you register with bio-protocol.
You are highly recommended to post your data (images or even videos) for the troubleshooting. For uploading videos, you may need a Google account because Bio-protocol uses YouTube to host videos.

Login | Register

2/24/2015 3:04:14 AM

Bingwei Wang
Immunology Institute of Maynooth University

Hi, why Crypts need to be spin down at 4 °C in C Elution step 4 the and also in the passage procedure it is using cold medium?
Also I notice in the CCM there is no FBS, do B27 and N2 the job of nourish the cells?

2/24/2015 4:39:39 PM

Agnieszka Pastuła (Author)
II. Medizinische Klinik,Klinikum rechts der Isar, Technische Universität München

Dear Bingwei, it is mainly about matrigel. At room temperature and 37°C matrigel is solid. At 4°C matrigel is in liquid form. During passage procedure crypts need to get out of matrigel, so cold medium is used + incubation on ice. For the centrifugation, temperature 4°C is used to limit temperature fluctuactions and to prepare crypts for seeding in ice-cold matrigel.

FBS may induce differentiation of stem cells.
Yes, supplements B27 and N2 are to nourish the crypts.

3/9/2015 4:29:01 AM

Bingwei Wang
Immunology Institute of Maynooth University

Thank you, Agnieszka.
I tried your protocol on colon crypts culture. The crypts looked great at the beginning 4 days, but on day 5 they started to die. I don't understand what's wrong with them, do you think I used the CCM frozen in -20 °C for changing cause the trouble? But for small culture at beginning it's impossible to prepare fresh and the supplements like Noggin, R-Spondin are so expensive.

3/10/2015 2:30:04 AM

Agnieszka Pastuła (Author)
II. Medizinische Klinik,Klinikum rechts der Isar, Technische Universität München

Dear Bingwei, the protocol is optimized for the crypts from small intestine. Murine colon crypts require more growth factors for the culture. I would advise you to add to the medium Wnt3a and BSA, as it was previously published (*). Good luck!

*Functional engraftment of colon epithelium expanded in vitro from a single adult Lgr5⁺ stem cell.
Yui S, Nakamura T, Sato T, Nemoto Y, Mizutani T, Zheng X, Ichinose S, Nagaishi T, Okamoto R, Tsuchiya K, Clevers H, Watanabe M. Nat Med. 2012.

3/10/2015 3:36:09 AM

Bingwei Wang
Immunology Institute of Maynooth University

Thank you so much Agnieszka. I thought the crypt from colon and small intestine were same. Really appreciate for your advice and paper. I will follow this paper and try again.
