Immuno-electrophysiology on Neuromuscular Junctions of Drosophila Third Instar Larva

果蝇三龄幼虫神经肌肉连接的免疫电生理研究

RK Raffaella Klima
Giulia Romano Giulia Romano
MG Monsurat Gbadamosi
AM Aram Megighian
FF Fabian Feiguin

发布: 2021年02月05日第11卷第3期 DOI: 10.21769/BioProtoc.3913 浏览次数: 4068

评审: Alexandros AlexandratosPradeep Kumar BhaskarFilipa Vaz

download pdf PDF PDF
ask Q&A
引用
收藏
Cited by

参见作者原研究论文

The authors used this protocol in:

Cover of BMC Biology, featuring study using the protocol.

Mar 2020

Advertisement

Submit your protocol to the Special Issue on Technologies for RNA Detection
Presubmission Inquiry

实验方案合集

专注于特定技术或应用的、详细的、经过同行评审的实验方案合集

Cancer Research
Immunology
Developmental Biology
Microbiology
Neuroscience
Cell Imaging - A Special Collection for Cell Bio 2023
查看更多 more

相关实验方案

果蝇胚胎组织成体肌肉干细胞的双色实时成像

果蝇胚胎组织成体肌肉干细胞的双色实时成像

Monika Zmojdzian [...] Rajaguru Aradhya

2023年02月05日 1614 阅读

体外果蝇睾丸中吞噬作用的实时成像

体外果蝇睾丸中吞噬作用的实时成像

Diana Kanaan [...] Hila Toledano

2023年03月20日 1739 阅读

在不同发育阶段成像同一类IV型神经元的操作步骤

在不同发育阶段成像同一类IV型神经元的操作步骤

Sonal Shree and Jonathon Howard

2024年08月20日 1276 阅读

Abstract

Alterations in synaptic transmission are critical early events in neuromuscular disorders. However, reliable methodologies to analyze the functional organization of the neuromuscular synapses are still needed. This manuscript provides a detailed protocol to analyze the molecular assembly of the neuromuscular synapses through immune-electrophysiology in Drosophila melanogaster. This technique allows the quantification of the molecular behavior of the neuromuscular synapses by correlating the structural configuration of the synaptic boutons with their electrical activity.

Keywords: Neuromuscular synapses (神经肌肉突触) search Synaptic boutons (突触束) search Neurological disorders (神经障碍) search Electrophysiology (电生理学) search Immunocytochemistry (免疫细胞化学) search Third instar larvae (三龄幼虫) search Drosophila melanogaster (黑腹果蝇) search

Background

The functional organization of the neuromuscular junctions (NMJ) in Drosophila melanogaster third instar larva present prominent advantages to study the molecular mechanisms of synaptic formation and function (Feiguin et al., 2009; Godena et al., 2011; Romano et al., 2014 and 2015; Strah et al., 2020), which appears conserved in other species including humans. In that respect, the anatomical organization of the Drosophila NMJs is made of multiple synaptic boutons, formed at the final arborizations of the motor axons. The differentiation and maintenance of these structures are responsible for the innervation of the skeletal muscles and implicate the coordinated action of different molecules, specialized in the establishment of cell contacts and the machinery required to release, receive and integrate the neurotransmitter signaling. In addition, the powerful genetic tools developed in Drosophila together with the anatomical resolution of the nervous system to individual neurons, provide the rare opportunity to perform genome wide unbiased searches for molecular phenotypes in well distinguish cell tissues. Despite individual protocols to visualize the establishment of the neuromuscular synapses already exist in Drosophila (Sabeva and Bykhovskaia, 2017; Goel et al., 2019), in this manuscript (Figure 1) we provide a precise set of rules to bring together the simultaneous analysis of the molecular and physiological events that take place during the innervation of the skeletal muscles in vivo.

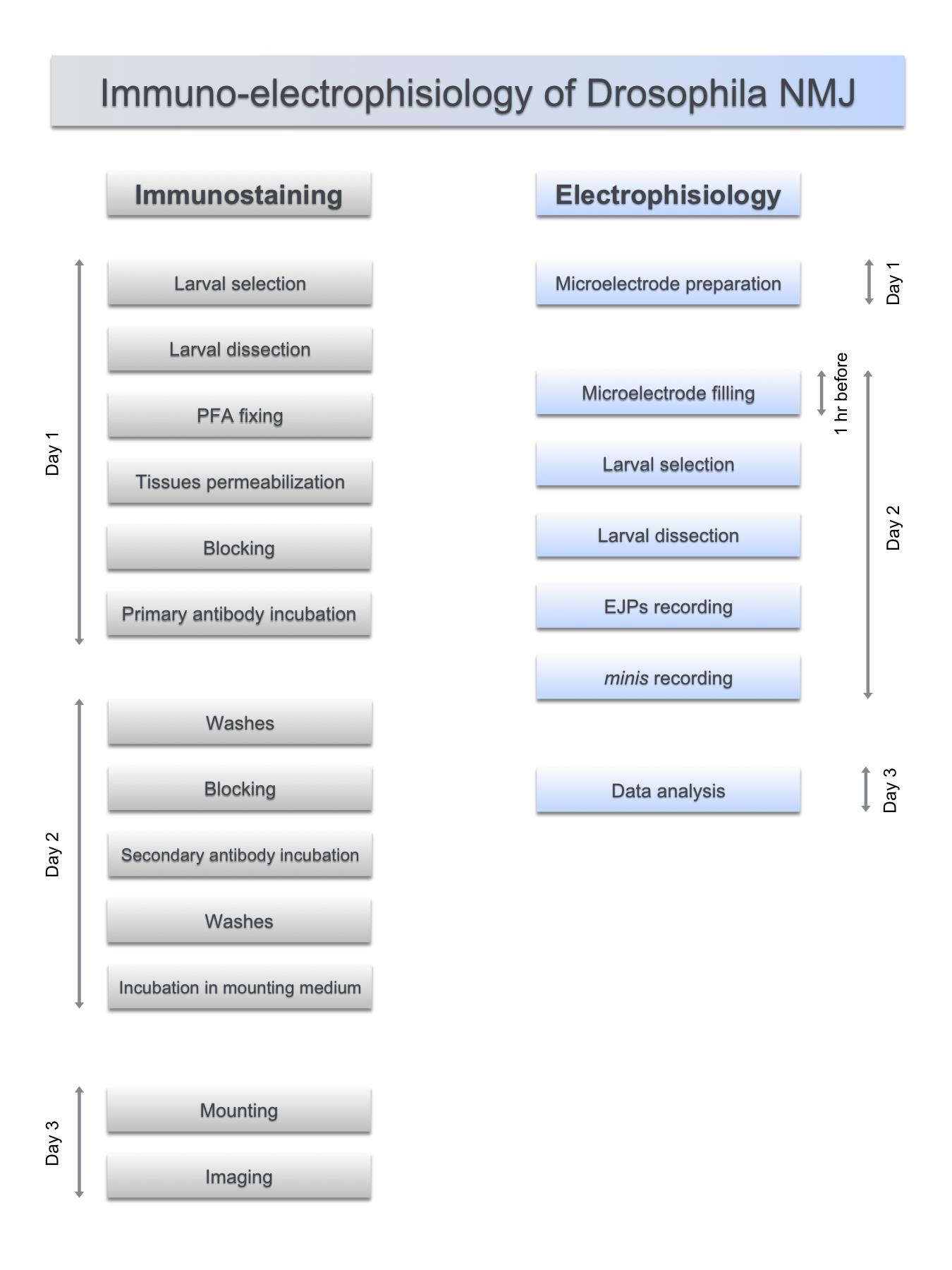

Figure 1. Synchronized steps in the functional analysis of the neuromuscular junctions

Materials and Reagents

  1. Material and Reagents for NMJ immunohistochemistry

    1. 0.5 ml tubes (Sarstedt, catalog number: 72.699 )

    2. 2.0 ml tubes (Eppendorf, catalog number: 00 30120094 )

    3. Whatmann qualitative filter paper (Sigma-Aldrich, catalog number: WHA1001917 )

    4. Microscope slides Superfrost Plus (Thermo Fisher Scientific, catalog number: J1800AMNT )

    5. Glass cover slips (Electron Microscopy Science, catalog number: 72210-10 )

    6. Polystyrene Petri dish (94 mm, Greiner, catalog number: 633180 )

    7. Small polystyrene dish (35 mm, CytoOne, catalog number: CC7672-3340 )

    8. Drosophila melanogaster third instar larvae

      Note: Wild type strains like Canton S or Oregon R or specific lines can be obtained from Bloomington Drosophila Stock Center (https://bdsc.indiana.edu/), from Kyoto stock Center DGRR (https://kyotofly.kit.jp/cgi-bin/stocks/index.cgi), from VDRC (https://stockcenter.vdrc.at/control/main) and from FlyORF (https://www.flyorf.ch/).

    9. 0.7% agarose plates to keep selected larvae (tissue culture dishes 60 x 15 mm (Falcon, catalog number: 353004 ), Ultra pure agarose (Thermo Fischer, catalog number: 16500100 ). Plates should be stored, well wrapped in plastic bags in fridge at 4 °C

    10. 16% paraformaldheyde (Electron Microscopy Science, catalog number: 15710 ), keep 500 μl aliquots in 2 ml tubes at -20 °C

    11. Tween-20 (Sigma-Aldrich, catalog number: P9416 )

    12. Calcium chloride dihydrate (CaCl2·2H2O) (Sigma-Aldrich, catalog number: C5080 )

    13. HEPES (Sigma-Aldrich, catalog number: H3375 )

    14. HEPES sodium salt (Sigma-Aldrich, catalog number: H7006 )

    15. Magnesium Chloride solution (Sigma-Aldrich, catalog number: M1028 )

    16. Potassium Chloride (KCl) (Sigma-Aldrich, catalog number: P3911 )

    17. Sodium Chloride (NaCl) (Sigma-Aldrich, catalog number: S9888 )

    18. Sodium bicarbonate (NaHCO3) (Sigma-Aldrich, catalog number: S6014 )

    19. Sucrose (Sigma-Aldrich, catalog number: S1888 )

    20. Trehalose (Sigma-Aldrich, catalog number: T9531 )

    21. Normal Goat Serum (VectorLabs, catalog number: S-1000 ), keep aliquoted at -20 °C

    22. AffiniPure Rabbit Anti-Horseradish Peroxidase (Jackson Immunoresearch, catalog number: 323-005-021 )

    23. Cy3-Affinipure Goat Anti-HRP (Jackson Immunoresearch, catalog number: 123-165-021 )

    24. Goat anti-Rabbit IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 555 (Thermo Fisher Scientific, catalog number: A21428 ), store 4 °C aliquoted, light protected

    25. Goat anti-Rabbit IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 488 (Thermo Fisher Scientific, catalog number: A11008 ), store 4 °C aliquoted, light protected

    26. Goat anti-Rabbit IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 647 (Thermo Fisher Scientific, catalog number: A21244 ), store 4 °C aliquoted, light protected

    27. Goat anti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 555 (Thermo Fisher Scientific, catalog number: A21422 ), store 4 °C aliquoted, light protected

    28. Goat anti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 488 (Thermo Fisher Scientific, catalog number: A11001 ), store 4 °C aliquoted, light protected

    29. Goat anti-Mouse IgG (H+L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 647 (Thermo Fisher Scientific, catalog number: A21235 ), store 4 °C aliquoted, light protected

    30. Alexa Fluor Phalloidin 555 (Thermo Fisher Scientific, catalog number: A34055 ), store -20 °C, aliquoted, light protected

    31. Alexa Fluor Phalloidin 350 (Thermo Fisher Scientific, catalog number: A22281 ), store -20 °C, aliquoted, light protected

    32. Alexa Fluor Phalloidin 488 (Thermo Fisher Scientific, catalog number: A12379 ), store -20 °C, aliquoted, light protected

    33. Slow Fade Gold (Thermo Fisher Scientific, catalog number: S36936 ), store -20 °C

    34. Elastomer (Sylgard 184 curing agent elastomer, Down Corning, catalog number: DOWC6341655 )

    35. Charcoal-Darco-100 mesh powder (Aldrich, catalog number: 242276 )

    36. Sylgard dissection plates, both transparent and black (see Recipes)

    37. HL-3-Ca2+ free solution (see Recipes)

    38. 4% PFA (see Recipes)

    39. PBS 1× (see Recipes)

    40. PBT (see Recipes)

    41. 5% NGS (see Recipes)


  2. Material and Reagents for NMJ electrophysiology

    1. Silver wire (World Precision Instruments, catalog number: AGW2030 )

    2. Flexible needle electrode Microfil (World Precision Instruments, catalog number: MF34G-5 )

    3. Glass capillaries for intracellular microelectrodes (length 100 mm, inner diameter 0.86 mm, outer diameter 1.50 mm; Science Products, catalog number: GB150F-10 )

    4. Glass capillaries for stimulating suction microelectrode (length 100 mm, inner diameter 1.05 mm, outer diameter 1.50 mm; Science Products, catalog number: GB150TF-10 )

    5. Microelectrode holder with pressure port for suction microelectrodes (WPI, catalog number: MEH6SFW )

    6. Microelectrode holder for intracellular microelectrodes (ALA Scientific Instruments, catalog number: BNC-PPH-0P-1.5 )

    7. Iron (III) chloride (FeCl3) (Sigma-Aldrich, catalog number: 451649 )

    8. Silver chloride (AgCl) (Sigma-Aldrich, catalog number: 204382 )

    9. Potassium chloride (KCl) (Sigma-Aldrich, catalog number: P9333 )

    10. Sodium chloride (NaCl) (Sigma-Aldrich, catalog number: S3014 )

    11. Magnesium chloride, standard solution 1 M (MgCl2) (Honeywell International, Fluka, catalog number: 63020 )

    12. Calcium chloride dihydrate (CaCl2·2H2O) (Sigma-Aldrich, catalog number: C5080 )

    13. Hydrogen chloride (HCl) (Sigma-Aldrich, catalog number: H1758 )

    14. Potassium acetate (CH3COOK) (Sigma-Aldrich, catalog number: P3542 )

    15. HEPES (Sigma-Aldrich, catalog number: H3784 )

    16. Threalose (Sigma-Aldrich, catalog number: T9531 )

    17. Sucrose (Sigma-Aldrich, catalog number: S1888 )

    18. Intracellular microelectrode filling solution (see Recipes)

    19. Sylgard dissection plates (see Recipes)

Equipment

  1. Equipment for NMJ Dissection

    1. Stainless Steel Minutien Pins (FST, catalog number: 26002-10 )

    2. One tweezer Dumont n.°5 student standard tip 0.1 × 0.06, for larvae and pin manipulation (FST, catalog number: 91150-20 )

    3. Two tweezers Dumont n.°5 fine forceps tip 0.05 × 0.01 (FST, catalog number: 11254-20) for dissection

    4. Spring Scissor 2.5 mm Blades Straight (FST, catalog number: 15000-08 )

    5. Pipetman Classic P200 (Gilson, catalog number: F123601 )

    6. Pipette Tip 200 (Sarstedt, catalog number: 70.760.002 )

    7. Stereomicroscope for dissection (Leica, catalog number: MZ7.5 )

    8. Goose neck 2 arms (Leica, catalog number: 30130021 )

    9. Fluorescence stereomicroscope with UV light for larval selection if needed (Leica, catalog number: MZ12.5 )


  2. Equipment for NMJ immunohistochemistry

    1. Nutating mixer (LabNet, GyroMini, catalog number: S0500 )

    2. Pipetman Classic P10 (Gilson, catalog number: F144802 )

    3. Pipetman Classic P200 (Gilson, catalog number: F123601 )

    4. Pipetman Classic P1000 (Gilson, catalog number: F123602 )

    5. Pipette Tip 10 (Sarstedt, catalog number: 70.113 0)

    6. Pipette Tip 200 (Sarstedt, catalog number: 70.760.002 )

    7. Pipette Tip 1000 (Sarstedt, catalog number: 70.762.100 )

    8. Confocal laser microscope (Zeiss, model: LSM880 )


  3. Equipment for NMJ electrophysiology

    Electrophysiology setup

    1. Antivibration table (Vision IsoStation, Newport, https://www.newport.com.cn/)

    2. Stereomicroscope for the electrophysiology setup (Leica Microsystem, model: Leica MZ125 , numeric aperture 0.8 with plan apochromatic objective 1.6×)

    3. Hydraulic micromanipulator for intracellular recording electrode (NARISHIGE, model: MHW-103 , Three-axis Water Hydraulic Micromanipulator)

    4. Stimulation electrode micromanipulators (Manual Micromanipulator, MARZHAUSER WETZLAR, model: MM 33 )

    5. Faraday cage

    6. Stimulator: S88 stimulator (Grass, Warwick, RI, USA)

    7. Amplifier: intracellular bridge mode amplifier (Npi Electronic, model: BA-01X )

    8. Pipette puller ( P-97 Flaming/Brown Micropipette Puller) (Sutter Instruments, model: P-97 )

    9. A/D interface (National Instruments, model: PCI-6221 ) and computer compatible with the software

    10. PC for online visualization of recorded signals and offline analysis of recorded traces

Software

  1. ImageJ ( Wayne Rasband, NIH, https://imagej.nih.gov/)

  2. Prism (GraphPad, https://www.graphpad.com/scientific-software/prism/)

  3. WinEDR software (http://spider.science.strath.ac.uk/sipbs/software_ses.htm)
