Reverse Zymmogram Analysis for the Detection of Protease Inhibitor Activity

Plant Science > Plant biochemistry > Protein > Activity
Authors: Lilia Bernal*
Lilia BernalAffiliation: Departamento de Bioquímica, Universidad Nacional Autónoma de México, Mexico City, Mexico
Bio-protocol author page: a747
Florencia García-Campusano*
Florencia García-CampusanoAffiliation: Departamento de Bioquímica, Universidad Nacional Autónoma de México, Mexico City, Mexico
Bio-protocol author page: a748
Edgar Nájera
Edgar NájeraAffiliation: Departamento de Bioquímica, Universidad Nacional Autónoma de México, Mexico City, Mexico
Bio-protocol author page: a749
 and Felipe Cruz-García
Felipe Cruz-GarcíaAffiliation: Departamento de Bioquímica, Universidad Nacional Autónoma de México, Mexico City, Mexico
For correspondence: fcg@unam.mx
Bio-protocol author page: a449
 (*contributed equally to this work)
Vol 3, Iss 16, 8/20/2013, 3838 views, 0 Q&A
DOI: https://doi.org/10.21769/BioProtoc.856

[Abstract] This protocol describes a gel-based procedure to detect protease inhibitor activity. In this method gelatin is used as a substrate for proteolysis and is copolymerized within the polyacrylamide matrix. Protein extracts are fractioned by SDS-PAGE and then the gel is treated with the protease of interest, which degrades gelatin, except in the areas where inhibitory activity is present. Inhibition of protease activity appears as colored bands against a clear background after staining with Coomassie Brilliant Blue (Figure 1). The effectiveness of the assay is dependent on the capacity of the protease inhibitor to refold after SDS-PAGE fractionation. Alternatively, it can be performed using native (PAGE) gels. Although the protocol presented here has been standardized to test for subtilisin inhibitory activity, it can easily be adapted to test other proteases and protease inhibitors.

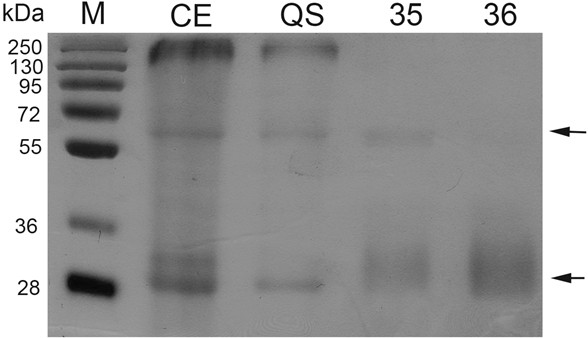

Figure 1. Protease inhibitor activity by zymogram analysis of different purified fractions and a protein crude extract. Zymogram was performed after SDS-PAGE. One microgram of protein was loaded to each lane. CE: Crude extract; QS: Fraction from anion exchange chromatography (Q-sepharose); Fractions 35-36: Obtained after a size exclusion chromatography (Superdex 200). M: Molecular markers. Arrows indicate inhibition activity.

Materials and Reagents

  1. Protein extract or purified protein (1-5 μg)
  2. Aprotinin (Sigma-Aldrich, catalog number: A-3886 )
  3. Subtilisin (Sigma-Aldrich, catalog number: P-5380 )
  4. 30% Acrylamide stock (29:1 acrylamide:bisacrylamide) (Bio-Rad Laboratories)
  5. TEMED (Sigma-Aldrich)
  6. Ammonium persulfate (Bio-Rad Laboratories)
  7. SDS (Bio-Rad Laboratories)
  8. Tris base (Sigma-Aldrich)
  9. Gelatin (Sigma-Aldrich)
  10. Bromophenol Blue (Sigma-Aldrich)
  11. β-mercaptoethanol (Sigma-Aldrich)
  12. Glycine (Sigma-Aldrich)
  13. EDTA (JT Baker)
  14. Glycerol (JT Baker)
  15. Pre-stain Protein Standard (Bio-Rad Laboratories)
  16. Coomassie blue G250 (Sigma-Aldrich)
  17. Ethanol (JT Baker)
  18. Phosphoric acid (Sigma-Aldrich)
  19. Triton X-100 (Sigma-Aldrich)
  20. Separating gel buffer (8x) (see Recipes)
  21. Stacking gel buffer (4x) (see Recipes)
  22. Gelatin-SDS-PAGE Separating gel (see Recipes)
  23. Stacking gel (see Recipes)
  24. Sample loading buffer (see Recipes)
  25. Laemmli Reservoir buffer (see Recipes)
  26. Stain solution (4 L) (see Recipes)

Equipment

  1. Protein mini gel cassettes (Bio-Rad Laboratories)
  2. Power supply
  3. Orbital shaker
  4. Incubator

Procedure

  1. Preparation of the gelatin-SDS-PAGE gel
    1. Clean and completely dry glass plates, combs, spacers (0.75-1 mm), and assemble the gel cassette.
    2. Dissolve 1% gelatin in dH2O by heating, and keep warm to avoid gelling.
    3. Prepare the 12.5% separating gel, replacing the corresponding volume of water with the gelatin solution to a final concentration of 0.1%. Mix well and quickly transfer to the casting chamber to avoid the uneven gelling of the gelatin. Add a small layer of water or isopropanol prior to polymerization to level the gel.
    4. Once the gel has polymerized remove the water or isopropanol layer and dry off as much as possible by using a filter paper. Prepare and pour the stacking solution into the casting chamber and insert the comb.
    5. Sample Preparation.
    6. Add the same volume of 2x protein sample loading buffer to each protein extract to be tested, and mix. Do not heat at any time.
    7. Use a protein-based protease inhibitor as a positive control for the reaction, such as: aprotinin for subtilisin, or trypsin inhibitor for trypsin and load it at a similar concentration to the protein samples tested.
  2. Electrophoresis. Performed at 100 V for approximately 2.5 h at 4 °C.
  3. Eliminating SDS from the gel. SDS in the gel may interfere with activity of the protease inhibitor to be tested, so it must be removed from gel before treating the gel with the protease. Removal is carried out by:
    1. Rinsing twice with 30 ml of 2.5% (v/v) Triton X-100 solution, for 10 min each with agitation.
    2. Rinsing twice with 30 ml of 2.5% (v/v) Triton X-100 + 50 mM Tris-HCl (pH 7.4) solution, for 10 min each with agitation.
    3. Rinsing with 30 ml of 50 mM Tris-HCl (pH 7.4), for 10 min with agitation.
  4. For protein digestion, incubate the gel for 2 h at 37 °C, in a buffer solution containing 1.4 U of subtilisin in 50 ml of 50 mM Tris-HCl (pH 7.4), 200 mM NaCl.
  5. For fixation, place the gel in a 10% methanol, 10% acetic acid solution with gentle shaking for 30 min. Discard the solution.
  6. Detection of proteolysis inhibitors. Stain the gel with Coomassie Brilliant Blue, by adding approximately 100 ml of stain solution and leaving it in an orbital shaker overnight. Discard the stain and rinse the gel with water until the background gel becomes clear, which indicates the efficient degradation of the copolymerized gelatin. The presence of stained bands indicates areas where gelatin was protected from degradation by the activity of a protease inhibitor (hence “protection bands”).
  7. Commonly a twin gel, lacking gelatin is run in parallel as a control.
  8. If an antibody for the tested protease inhibitor is available, the digested gel can be transferred and an immunoblot assay can be performed.

Recipes

  1. Separating gel buffer (8x)
    3 M Tris-HCl (pH 8.8)
  2. Stacking gel buffer (4x)
    0.5 M Tris-HCl (pH 6.8)
  3. Gelatin-SDS-PAGE Separating gel
    Add the following solutions (total volume: 5 ml)
    30% acrylamide/bisacrylamide
    2.08 ml
    dH2O
    1.72 ml
    Separating gel buffer (8x)
    0.625 ml
    20% SDS
    25 μl
    1% gelatin solution
    0.5 ml
    10% ammonium persulfate
    25 μl
    TEMED (add it right before pouring the gel)
    5 μl
  4. Stacking gel (total volume: 2.5 ml)
    30% acrylamide/bisacrylamide
    0.5 ml
    dH2O
    1.375 ml
    Stacking gel buffer (4x)
    0.625 ml
    20% (w/v) SDS
    15 μl
    10% ammonium persulfate
    15 μl
    TEMED
    5 μl
  5. Sample loading buffer
    0.12 M Tris
    10% 2-mercaptoethanol
    20% (v/v) glycerol
    2 mg/ml Bromphenol blue
  6. Laemmli Reservoir buffer
    25 mM Tris base
    0.192 M Glycine
    0.1% (w/v) SDS
    pH around 8.3
    Should not require adjustment
    Store at room temperature
  7. Stain solution (4 L)
    Coomassie blue R250
    3.2 g
    Ethanol
    800 ml
    Phosphoric acid
    64 ml
    Ammonium sulphate
    320 g
    Dissolve Coomassie blue G250 in ethanol and add phosphoric acid. Dissolve the ammonium sulphate in water and add to the mix. Adjust final volume with water.

Acknowledgments

This protocol is adapted from Jimenez-Duran et al. (2013).

References

  1. Jimenez-Duran, K., McClure, B., Garcia-Campusano, F., Rodriguez-Sotres, R., Cisneros, J., Busot, G. and Cruz-Garcia, F. (2013). NaStEP: a proteinase inhibitor essential to self-incompatibility and a positive regulator of HT-B stability in Nicotiana alata pollen tubes. Plant Physiol 161(1): 97-107.
  2. Laemmli, U. K. (1970). Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 227(5259): 680-685.
  3. Lantz, M. S. and Ciborowski, P. (1994). Zymographic techniques for detection and characterization of microbial proteases. Methods Enzymol 235: 563-594.


How to cite: Readers should cite both the Bio-protocol article and the original research article where this protocol was used:
  1. Bernal, L., García-Campusano, F., Nájera, E. and Cruz-García, F. (2013). Reverse Zymmogram Analysis for the Detection of Protease Inhibitor Activity. Bio-protocol 3(16): e856. DOI: 10.21769/BioProtoc.856; Full Text
  2. Jimenez-Duran, K., McClure, B.,Garcia-Campusano, F., Rodriguez-Sotres, R., Cisneros, J., Busot, G. andCruz-Garcia, F. (2013). NaStEP: a proteinase inhibitor essential to self-incompatibilityand a positive regulator of HT-B stability in Nicotiana alata pollentubes. Plant Physiol 161(1): 97-107.
