Bioluminescence Resonance Energy Transfer (BRET) Assay for Determination of Molecular Interactions in Living Cells

Download PDF How to cite Favorites Q&A Share your feedback Cited by

In this protocol

Original research article

A brief version of this protocol appeared in:
The Journal of Biological Chemistry
Aug 2017

Abstract

The bioluminescence resonance energy transfer (BRET) assay can be used as an indicator of molecular approximation and/or interaction. A significant resonance energy transfer signal is generated when the acceptor, having the appropriate spectral overlap with the donor emission, is approximated with the donor. In the example provided, proteins tagged with bioluminescent Renilla luciferase (Rlu) as donor and yellow fluorescent protein (YFP) as acceptor were co-expressed in cells. This pair of donor and acceptor have an approximate Förster distance of 4.4 nm, providing the optimal working distance (Dacres et al., 2010). This technique can be used to explore the time-course of specific molecular interactions that occur in living cells.

Keywords: BRET assay, Molecular approximation/interaction, Renilla luciferase, Yellow fluorescent protein, Coelenterazine h

Background

Bioluminescence resonance energy transfer (BRET) studies, using a bioluminescence donor and a fluorescence acceptor, can monitor molecular interactions (such as between labeled proteins, peptides, or small molecules) occurring in real time in living cells. This approach is dependent on spatial approximation between the donor and acceptor, as well as appropriate spectral overlap to yield a meaningful signal (Figure 1). The example currently provided utilizes a Rlu-tagged protein as the donor and a YFP-tagged protein as acceptor (Harikumar et al., 2007). This has been very successfully applied to establish the presence of physiologically-relevant protein-protein interactions in the plasma membrane of living cells. It is important, however, to include controls for levels of expression that could cause non-specific protein-protein approximation and energy transfer (bystander effect), such as the use of similar levels of expression of a known non-associated protein. Also, competition with an unlabeled protein can help to establish the saturability of the interaction and the specificity of the signal.


Figure 1. Illustration of relevant events in a BRET experiment in a living cell. The energy transfer reaction is initiated by adding the luciferase substrate, coelenterazine-h, to cells expressing both molecules tagged with Rlu (donor) and with yellow fluorescent protein (acceptor). The Rlu emits light with a wavelength of approximately 475 nm that then excites the YFP to emit light at approximately 525 nm that can be quantified to represent the BRET signal. The approximate Fӧrster distance for this pair of donor-acceptor is approximately 4.4 nm.

Materials and Reagents

  1. Pipette tips (USA Scientific, catalog number: 1111-1700 )
  2. 100-mm tissue culture grade plastic plates (SARSTEDT, catalog number: 83.3902 )
  3. 5 ml tissue culture tubes (Corning, Falcon®, catalog number: 352052 )
  4. Cell culture flasks (Corning, catalog number: 3056 )
  5. 96-well OptiPlates (PerkinElmer, catalog number: 6005290 )
  6. 15 ml conical tube (Thermo Fisher Scientific, Thermo ScientificTM, catalog number: 339650 )
  7. Pasteur pipette (Fisher Scientific, catalog number: 13-678-20B )
  8. Rapid flow bottle-top filter unit with polyethersulfone (PES) membrane (Thermo Fisher Scientific, Thermo ScientificTM, catalog number: 595-3320 )
  9. PS1/PS2-deleted HTL cells
    Note: This cell line was derived by Xu et al., 2016, utilizing CRISPR/Cas9 to delete PS1/PS2 from HTL cells, representing a cell line derived from HEK293 cells by Barnea and Axel who stably integrated a luciferase reporter under the control of the bacterial operator element tetO. These cells were used in this case to correlate with specific functional assays requiring a specialized cell type. In a general protocol, any transfectable cell type is fine.
  10. Dulbecco’s modified Eagle’s medium powder (DMEM) (Thermo Fisher Scientific, GibcoTM, catalog number: 12100-038 ) (see Recipe 6 for media preparation)
  11. Fetal Clone II supplement, a bovine serum product (GE Healthcare, HycloneTM, catalog number: SH30066.03 )
  12. Trypsin 0.25%-EDTA (Thermo Fisher Scientific, GibcoTM, catalog number: 25200056 ) diluted to 0.05% with 1x Dulbecco’s phosphate buffered saline, pH 6.80
  13. DEAE-dextran hydrochloride (Sigma-Aldrich, catalog number: D9885 )
  14. Dimethyl sulfoxide (DMSO) (Fisher Biotech, catalog number: BP231-1 )
  15. Chloroquine diphosphate salt (Sigma-Aldrich, catalog number: C6628 )
  16. Enzyme-free cell dissociation solution (EMD Millipore, catalog number: S-014-C )
  17. Sodium phosphate dibasic (Na2HPO4) (Sigma-Aldrich, catalog number: S0876 )
  18. Potassium phosphate monobasic (KH2PO4) (Fisher Scientific, catalog number: P285 )
  19. Sodium chloride (NaCl) (Fisher Scientific, catalog number: S671-500 )
  20. Potassium chloride (KCl) (Sigma-Aldrich, catalog number: P9541 )
  21. HEPES (Research Products International, catalog number: H75030-1000 )
  22. Magnesium sulfate heptahydrate (MgSO4·7H2O) (Sigma-Aldrich, catalog number: M1880 )
  23. Calcium chloride dihydrate (CaCl2·2H2O) (Fisher Scientific, catalog number: C79-500 )
  24. Sodium hydroxide (NaOH) (VWR, catalog number: BDH7247-1 )
  25. Coelenterazine-h (AAT Bioquest, catalog number: 21165 ) (see Recipe 5 for preparation of stock solution)
  26. Methanol (Honeywell International, catalog number: 24229 )
  27. Penicillin-streptomycin (Thermo Fisher Scientific, GibcoTM, catalog number: 15140122 )
  28. Sodium bicarbonate (Fisher Scientific, catalog number: BP328-500 )
  29. Hydrochloric acid (HCl) (Fisher Scientific, catalog number: A144-212 )
  30. 10x phosphate-buffered saline (PBS buffer) (see Recipes)
  31. 10x Kreb’s-Ringers-HEPES stock solution (10x KRH) (see Recipes)
  32. 50x CaCl2 stock solution (see Recipes)
  33. 1x KRH working solution (see Recipes)
  34. Coelenterazine-h solution (see Recipes)
  35. 1x DMEM tissue culture medium (see Recipes)

Equipment

  1. 37 °C, 5% CO2 incubator (Thermo Fisher Scientific, Thermo ScientificTM, model: FormaTM Series II 3110 Water-Jacketed)
  2. Cell culture microscope (Fisher Scientific)
  3. Micropipettes (Gilson)
  4. 2103 EnVision Plate Reader (PerkinElmer, model: 2103 EnVisionTM )
  5. Centrifuge (Thermo Fisher Scientific, Thermo ScientificTM, model: SorvallTM LegendTM XT/XF centrifuge , catalog number : 75216362)
  6. 500 ml screw-cap autoclaved glass bottles (WHEATON, catalog number: 219759 )

Software

  1. GraphPad Prism 6 (GraphPad Software, Inc. USA)

Procedure

  1. Cell culture
    1. The PS1/PS2-deleted HTL cells are routinely grown in DMEM medium supplemented with 10% (v/v) Fetal Clone II and including 1x penicillin-streptomycin (see Recipes) at 37 °C under a humidified 5% CO2 atmosphere.
    2. Treat the cells with 0.05% trypsin-EDTA for 5 min at 37 °C in an incubator to lift the cells. Wash the cells with medium, and count them to allow a plating density of 1.5 x 106 cells per 100 mm dish one day prior to transfection.
    3. In preparation for transfection, visualize the confluence of the cells and their health using a cell culture microscope with phase optics.

  2. Transfection
    1. To a sterile 5 ml tissue culture tube, add 1.5 ml DMEM medium without serum.
    2. Add 75 µl DEAE-dextran solution and mix well.
    3. Add 1.0 µg of total DNA (0.5 µg of donor + 0.5 µg of acceptor prepared using standard DNA isolation techniques) and mix well.
    4. Use a micropipette to transfer 1.575 µl of DNA-DEAE-dextran complex to each plate.
    5. Incubate at 37 °C in a tissue culture incubator for 2 h without shaking.
    6. Aspirate the medium from each plate, add 4 ml of DMEM containing 10% DMSO and incubate at room temperature for 2 min without shaking.
    7. Aspirate the medium from each plate, add 4 ml of DMEM containing 0.1 µM chloroquine and incubate for 2 h at 37 °C without shaking.
    8. Aspirate the medium from each plate, and add 8 ml of serum-containing complete DMEM medium (see Recipes).
    9. Incubate the cells in the incubator at 37 °C in a humidified atmosphere containing 5% CO2 for 48 h.

  3. Luminescence and fluorescence measurement
    1. 48 h post-transfection, remove the medium from the cultured cells using a Pasteur pipette attached to a vacuum source and gently add 5 ml of PBS (see Recipes) to each plate to rinse the cells.
    2. Dispense 1 ml of enzyme-free cell dissociation solution into each plate and incubate without shaking for 5 min at 37 °C in tissue culture incubator to release the cells.
    3. Transfer the cells into a 15 ml conical tube and centrifuge the cells at 175 x g for 5 min at room temperature.
    4. Resuspend the cell pellet in approximately 1 ml of Kreb’s-Ringers-HEPES medium, pH 7.4 (see Recipes) to achieve a density of 0.20 x 106 cells per ml. Keep this tube at room temperature in preparation for the assay.
    5. Dispense 100 µl of cell suspension (approximately 20,000 cells) into a white 96-well OptiPlate, add 5 µl coelenterazine h (see Recipes), mix the cells by swirling the plate, and measure both the luminescence signal and the YFP fluorescence signal using an Envision Plate Reader with a BRET module.



    6. Luminescence and fluorescence signals should be collected immediately after the addition of coelenterazine h solution. The spectrofluorometer instrument should be set up for the specific pair of donor and acceptor chosen. Here, for the proposed BRET studies, luminescence emission should be collected using a dedicated filter set (460 nm, with bandwidth 25 nm) and the fluorescence emission should be collected simultaneously using a dedicated filter set (535 nm, bandwidth 25 nm). The measurement time is 0.2 sec and measurement height is 6.5 mm. (Harikumar et al., 2007). In the example, YFP fluorescence was measured by exciting the sample at 475 nm (bandwidth 25 nm) and the emission was collected at 535 nm (bandwidth 25 nm), with detector gain 150 and number of flashes 20.

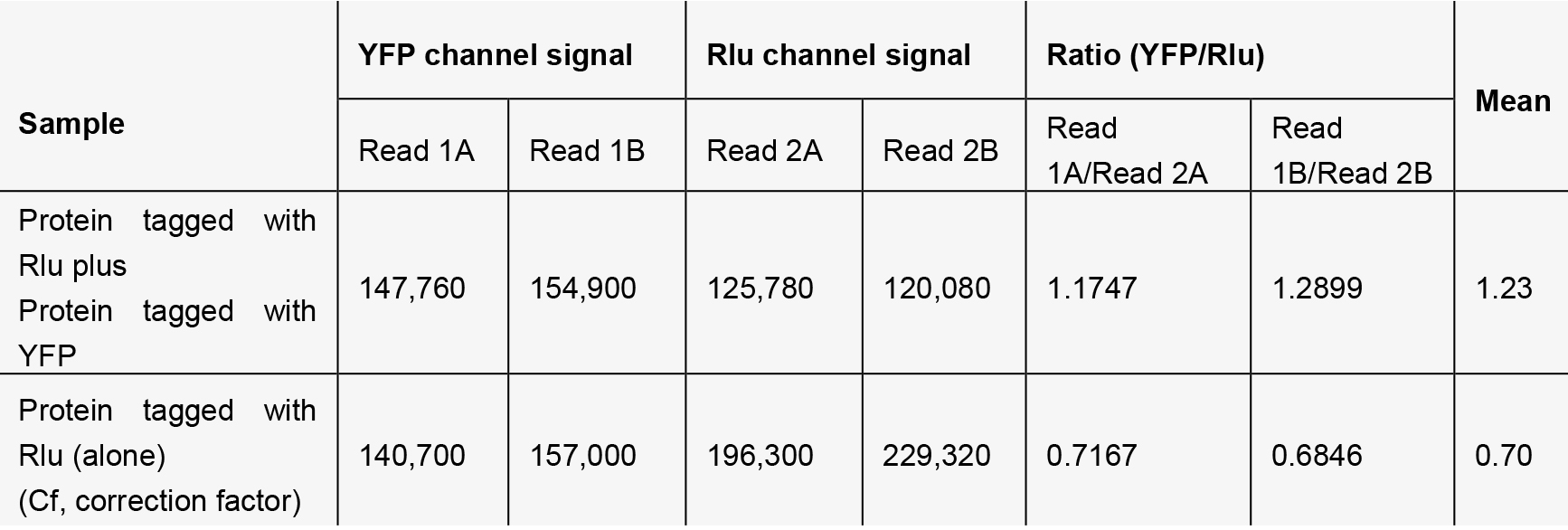

    7. A representative example of data collection and analysis follows:

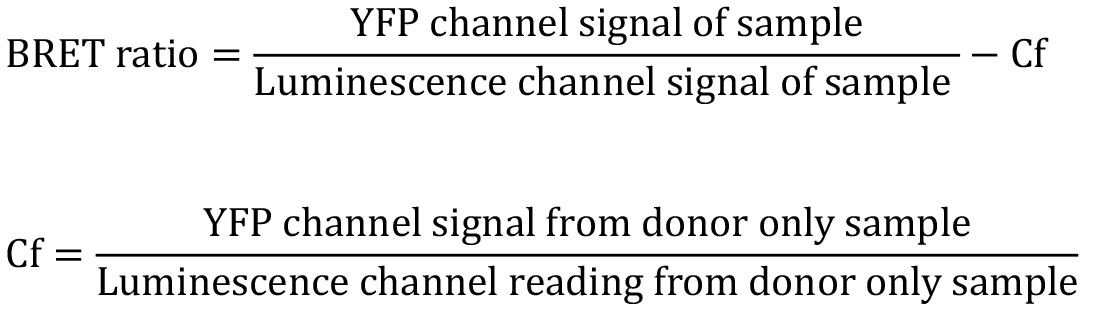

      Calculated BRET ratio: 1.23 - 0.70 = 0.53

Data analysis

Data should be collected in at least duplicate conditions in a minimum of three independent experiments. The statistical analysis of data can be accomplished with GraphPad Prism 6, using a t-test with the Mann-Whitney post-test.

Notes

Controls for levels of expression of donor and acceptor are important to eliminate bystander energy transfer. A significant BRET signal should be observed at levels of expression that exist physiologically. Additionally, saturability and specificity of the BRET signal are important, and can be established using competing non-labeled protein of interest. For positive control, a construct encoding a fusion protein containing both luciferase and yellow fluorescent protein (Rlu-YFP) was used to transfect the cells, and the BRET signal was measured.

Recipes

  1. 10x phosphate-buffered saline (10x PBS buffer) (1 L)
    11.5 g Na2HPO4
    2 g KH2PO4
    80 g NaCl
    2 g KCl
    Dissolve in 1 L of sterile, deionized water
    Adjust the pH of 1x PBS to 7.4
    Store at 4 °C
  2. 10x Kreb’s-Ringers-HEPES stock solution (10x KRH) (1 L)
    59.58 g HEPES
    60.74 g NaCl
    3.72 g KCl
    1.36 g KH2PO4
    2.96 g MgSO4
    Dissolve the components in deionized water and bring the volume to 1 L, do not adjust the pH
    Store at 4 °C
  3. 50x CaCl2 stock solution (100 mM) (100 ml)
    1.47 g CaCl2
    Bring the volume to 100 ml with deionized water; do not adjust pH
    Store at 4 °C
  4. 1x KRH working solution (100 ml)
    10 ml 10x KRH stock solution
    2 ml 50x CaCl2 stock solution
    Bring the volume to 100 ml with deionized water; adjust the pH to 7.4 with NaOH
  5. Coelenterazine-h solution
    0.5 mg coelenterazine-h powder
    Dissolve in 12.5 ml of 5% methanol/95% water
    Store at -20 °C
  6. 1x DMEM tissue culture medium (1 L)
    1. One 1-L packet of Dulbecco’s modified Eagle medium (13.4 g) and 3.7 g of sodium bicarbonate are added to 1 L of deionized water
    2. Adjust the pH to 6.90 with HCl, filter into 500 ml screw-cap autoclaved glass bottles using a 0.2 µm rapid flow bottle-top filter unit containing a polyethersulfone (PES) membrane
    3. Store at 4 °C
