Measurement of 33P-PO4 Absorption Capacity and Root-to-leaf Transfer in Arabidopsis

Plant Science > Plant physiology > Nutrition
Authors: Marie-Christine Thibaud
Marie-Christine ThibaudAffiliation: Laboratoire de Biologie du Développement des Plantes, UMR 7265 CNRS, CEA, Aix-Marseille II, Saint-Paul-lez-Durance Cedex, France
For correspondence: mcthibaud@cea.fr
Bio-protocol author page: a2931
 and Elena Marin
Elena MarinAffiliation: Laboratoire de Biologie du Développement des Plantes, UMR 7265 CNRS, CEA, Aix-Marseille II, Saint-Paul-lez-Durance Cedex, France
For correspondence: elena.marin@cea.fr
Bio-protocol author page: a2932
Vol 6, Iss 5, 3/5/2016, 457 views, 0 Q&A, How to cite
DOI: http://dx.doi.org/10.21769/BioProtoc.1741

[Abstract] This method allows quantification of phosphate absorption capacity by Arabidopsis roots using a very simple equipment and it can be scaled up or down.

Keywords: Phosphate absorption, Phosphate root-to-leaf transfer, Arabidopsis

Materials and Reagents

  1. Plastic 12-well plates (Denmark, Nunc)
    Note: One for the absorption step, one for the desorption step for each treatment (plant type or culture condition).
  2. Plastic 20 ml vials for radioactivity measurement (Ratiolab GmbH, Dreieich)
    Note: You will need one vial per plant, or 2 vials per plant if you want to quantify 33P in both roots and leaves. The vials should be numbered from 1 to N before you start the experiment. They also should be placed in order in appropriate racks (PerkinElmer) adapted to the beta counter.
  3. Tips
  4. Young in vitro plantlets
  5. MES hydrate (Sigma-Aldrich, catalog number: M8250)
  6. CaCl2 (Sigma-Aldrich)
  7. KH2PO4 (Sigma-Aldrich)
  8. 33P-PO4 5 mCi/ml (40-158 Ci/mg, 1.48-5.84 TBq/mg, >99% isotopically pure, less than 0.5 μM Pi) (PerkinElmer)
  9. Scintillation cocktail (PerkinElmer, Ultima GoldTM)
  10. MgSO4
  11. NH4NO3
  12. KNO3
  13. NaH2PO4
  14. KI
  15. FeCl2
  16. MnSO4
  17. ZnSO4
  18. CuSO4
  19. CoCl2
  20. Na2MoO4
  21. Thiamine
  22. Pyridoxine
  23. Nicotinic acid
  24. Inositol
  25. Sucrose
  26. Agar
  27. MS/10 medium (see Recipes)
  28. Stock solution (see Recipes)
  29. Incubation medium (see Recipes)
  30. Desorption medium (see Recipes)

Equipment

  1. Experiments should be performed on a bench or under a hood illuminated with white light (150 -180 μE.m-2s-1) during the incubation step
  2. Liquid scintillation counter (PerkinElmer, Packard Instrument Company, model: TRI-CARB)
  3. Ice-containing large boxes for the desorption step (all 12-well plates will be placed horizontally on ice for 2 h)
  4. Tweezers for handling the plantlets
  5. If necessary, a razor to separate roots and aerial parts
  6. Micropipets
  7. Shield for protection against radiations (plexiglass)
  8. Scanner or camera (Epson America, model: Perfection V850Pro or Canon, model: Powershot SX130), respectively but other devices from other manufacturers could suit perfectly

Software

  1. ImageJ version 1.46r with NeuronJ plugin (http://imagej.nih.gov/ij)

Procedure

  1. Preparation of plant materials
    9 to 11 day-old plantlets are convenient for the experiment.
    1. When plating, space the seeds in order to maintain root systems independent for every single plantlet; this will help when measuring the length of root system (see below). 6 to 10 seeds are sown per plate depending on the growth medium (respectively with high or low Pi, see below). 2 to 3 plates will be necessary per plant type (genotype or treatment depending on the experiment).
    2. Plants are grown vertically in 12 x 12 cm Petri plates in modified MS/10 medium.
    3. Number the plants on each Petri plate, in order to identify each root system individually.
    4. 10 to 12 replicates per treatment or genotype will be necessary plus 5 to 10 plants for blanks.
    5. Scan or photograph of the plates (in black and white and jpg format). Use graph paper as scale bar for measurement of the root length. Scan should be 300 dpi or photos should be about 1,000 x 800 pixels (this is recommended by ImageJ).
    6. Root length measurement and calculation: We use ImageJ version 1.46r with NeuronJ plugin (http://imagej.nih.gov/ij). Figure 1 shows a photo of a plate, and how root length is measured with imageJ. The scale (1 cm using the graph paper) is measured (Figure 1A) then with NeuronJ plugin the primary and lateral roots are traced (pink trace, Figure 1B). Values (in cm) are transferred in an Excel file. Total root length is calculated by adding primary and lateral root lengths (see detailed protocol in Figure 1 legend).

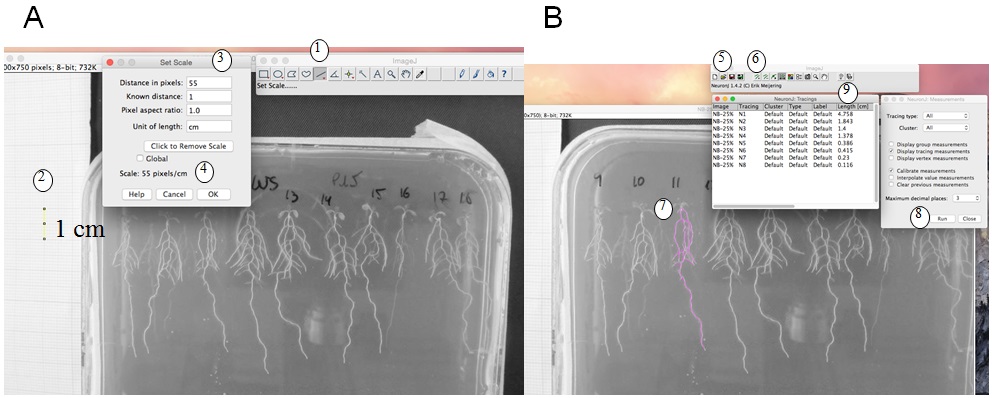

      Figure 1. Root length measurement. A. Set of the scale: with ImageJ, trace a 1 cm scale on the graph paper (1, 2) then ‘set scale’ (3). This gives pixels/cm (4). B. Measurement of the root length: with NeuronJ plugin, load the image file (5) then set scale (as defined in A). Add tracings (6) by drawing the along the roots (pink trace, 7) then measure tracings (RUN, 8). Results of root length in cm (9) can be copied to an excel file. A and B are screenshots of the process.

  2. Incubation
    1. This step should be performed behind a shield for protection against radiations.
    2. Before starting a series of experiments, you must check that Pi absorption is linear in your conditions (plant specificity, temperature, light). To do that, a time course is performed between 30 min and 2 h following the protocol as described below. In our conditions, Pi absorption was always linear.
    3. Prepare12-well plates, one for each plant treatment. Number the wells: 1 to 12.
    4. Add 4 ml of incubation medium per well. Place 1 plant per well with tweezers (Figure 2), the roots should be immersed and the leaves outside the well. To avoid excessive dehydration of the young plantlets during the incubation, carefully put a cover on the plate avoiding the immersion of the leaves in the solution (Figure 2B). Incubate during 2 h at room temperature (22-24 °C) under white light (150-180 μE.m-2s-1). Discard plants that are fully immersed in the liquid, if any.

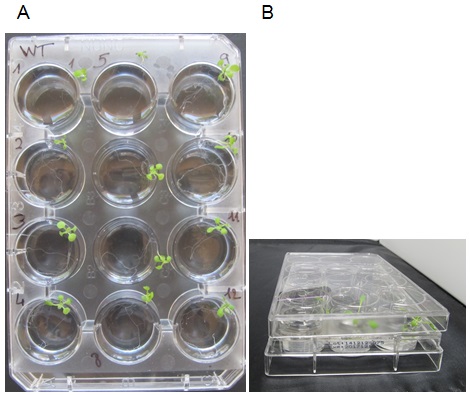

      Figure 2. Incubation experiment. A. Photo of a 12-well plate with plants numbered 1 to 12 in the incubation medium. The cover plate has been removed for clarity. Please note that rosettes are out of the medium and roots are fully immersed. B. Photo of the plate and the cover (side view) showing how the cover is placed onto the 12-well plate.

    5. In order to evaluate Pi adsorption on the root (mechanical or chemical adsorption can occur on cells but in that case, Pi does not enter inside the root cells), blank samples are treated as follows: The plant root is dipped in the incubation medium for 2 sec (use tweezers) and directly transferred in the desorption medium for 2 h (see below for the desorption procedure).

  3. Desorption (see Video 1)

    Video 1. Desorption

    To play the video, you need to install a newer version of Adobe Flash Player.

    Get Adobe Flash Player


    1. Prepare new 12-well plates, with 3 ml of cold desorption medium per well. Place the plates on ice.
    2. Rinse the incubated plants in water (1-2 sec).
    3. With the help of tweezers, transfer the plants (in the same order you put them in the incubation solution, 1 plant/well) with both leaves and roots immersed in the desorption medium for 2 h on ice.
    4.  Transfer each plant in a counting vial (use tweezers). Alternatively, separate the rosette and roots with a sharp razor and put each part of the plant in a separate vial. It is convenient to put the vials in the counting racks as soon as you harvest the plants (in order to avoid mismatches).

  4. Dry the plants in an oven at 50 °C overnight

  5. Radioactivity measurement
    1. Under a chemical hood, add 2 ml of scintillation cocktail and tight a top on each counting vial. Then place the vials in racks adapted to the counter.
    2. With a beta counter, count 33P in each sample (Cs) and in blanks (Cb is a mean of the blank replicates) and also in the incubation medium (C10, 10 μl of incubation medium are placed in a counting vial and 2 ml scintillation cocktail are added). In the scintillation cocktail, beta radiations are transformed in photons that are detected by the beta counter. The measure is in cpm (count per min).
    3. Data analysis:
      The amount of PO4 absorbed per hour per root cm (V in nmol/h/cm) is calculated as follows:
      V = (Cs-Cb) * (S *10-3)* B / (T * Lroot * C10)
      Cs: Radioactivity in the sample (cpm)
      Cb: Mean value of radioactivity in the blanks (cpm)
      S: Pi concentration in the incubation medium (S=50 μM Pi).
      S*10-3=0.05: Pi content (nmol/μl) in the incubation medium (S=50 μM).
      C10: Radioactivity in 10 μl of the incubation solution (cpm). C10/(S*10-2) is the specific activity of 33P in the incubation medium
      B=10: Volume of the incubation solution for measurement of radioactivity before incubation of the plants (10 μl is convenient).
      T=2: Incubation is 2 h
      Lroot: Root length (cm)
      In addition, using the same equation as above, but omitting Lroot, you can calculate Pi absorption per plant (Cs corresponds to 33P in the whole plant), per rosette tissue or root tissue (Cs corresponds to 33P in the leaves or the root system respectively).
      It is also possible to calculate the ratio of 33P (Cs in leaves in cpm) measured in the leaves compared to total 33P absorbed by the whole plant [Cs in leaves + Cs in roots (cpm)].

Representative data

Pi uptake per hour and per root cm for plants grown on low or high Pi (Table 1). Two genotypes are presented (WT and mutant) in order to show the range of variation of Pi uptake between plants and the distribution of Pi in the plant.

Table 1. Pi uptake and distribution in WT and mutant plantlets grown on low or high Pi. Pi uptake capacity is expressed as nmol Pi per hour per root cm (mean±SD). Pi distribution is calculated from the ratio of 33P in leaves compared to 33P in the whole plant.

Recipes

  1. MS/10 medium
    10x time diluted Murashige and Skoog medium containing:
    0.15 mM MgSO4
    2.1 mM NH4NO3
    1.9 mM KNO3
    0.5 (high Pi) or 0.005 (low Pi) mM NaH2PO4
    0.34 mM CaCl2
    0.5 μM KI
    10 μM FeCl2
    10 μM H3BO3
    10 μM MnSO4
    3 μM ZnSO4
    0.1 μM CuSO4
    0.1 μM CoCl2
    1 μM Na2MoO4
    5.9 μM thiamine
    4.9 μM pyridoxine
    8.1 μM nicotinic acid
    55 μM inositol
    3.4 mM MES
    0.5% sucrose and 0.8% agar at pH 5.7
  2. Stock solution
    0.1 mM CaCl2 in 5 mM MES, adjusted at pH 5.5
    For 1 L (water): 0.976 g MES + 0.0147 g CaCl2, adjust pH to 5.5 with 10 N NaOH
  3. 1 M KH2PO4
    For 1 L (water): 136 g KH2PO4
  4. Incubation medium (4 ml/plant are necessary)
    50 µM KH2PO4 in stock solution: 50 µl 1 M KH2PO4 in 1 L stock solution
    Add 5,550 Bq 33P/ml (0.15 µCi 33P/ml)
  5. Desorption medium (3 ml/plant are necessary)
    1 mM KH2PO4 in stock solution: 1 ml 1 M KH2PO4 in 1 L stock solution

Acknowledgments

This protocol was adapted from the previously published studies: Narang et al. (2000) and Misson et al. (2004) and it was performed by Ayadi et al. (2015). This work was supported by the Commissariat à l’Energie Atomique et aux Energies Alternatives.

References

  1. Ayadi, A., David, P., Arrighi, J. F., Chiarenza, S., Thibaud, M. C., Nussaume, L. and Marin, E. (2015). Reducing the genetic redundancy of Arabidopsis PHOSPHATE TRANSPORTER1 transporters to study phosphate uptake and signaling. Plant Physiol 167(4): 1511-1526.
  2. Misson, J., Thibaud, M. C., Bechtold, N., Raghothama, K. and Nussaume, L. (2004). Transcriptional regulation and functional properties of Arabidopsis Pht1;4, a high affinity transporter contributing greatly to phosphate uptake in phosphate deprived plants. Plant Mol Biol 55(5): 727-741.
  3. Narang, R. A., Bruene, A. and Altmann, T. (2000). Analysis of phosphate acquisition efficiency in different Arabidopsis accessions. Plant Physiol 124(4): 1786-1799.
